101493-9123 ZEXEL F 01G 09U 02N BOSCH INJECTION-PUMP ASSEMBLY f01g09u02n 1014939123 167000t309




Information injection-pump assembly

BOSCH F 01G 09U 02N f01g09u02n
ZEXEL 101493-9123 1014939123
NISSAN 167000T309 167000t309
101493-9123 INJECTION-PUMP ASSEMBLY
Rating:
36
Buy INJECTION-PUMP ASSEMBLY 101493-9123 zexel genuine, new aftermarket engine parts with delivery

Include in #2:

Cross reference number

BOSCH F 01G 09U 02N f01g09u02n
ZEXEL 101493-9123 1014939123
NISSAN 167000T309 167000t309


Zexel num
Bosch num
Firm num
Name
101493-9123
101493-9124
F 01G 09U 02N
167000T309  NISSAN
INJECTION-PUMP ASSEMBLY
FD3 * K
101493-9123
101493-9124
F 01G 09U 02N
167000T309  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
FD3 * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Overflow valve   131424-1520
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-3-4-2
Pre-stroke mm   3.2 3.15 3.25
Rack position
Point A
  R=A
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-3
deg.   90 89.5 90.5
Difference between angles 2
Cal 1-4
deg.   180 179.5 180.5
Difference between angles 3
Cyl.1-2
deg.   270 269.5 270.5
Injection quantity adjustment
Adjusting point   -
Rack position   12.8
Pump speed r/min   900 900 900
Average injection quantity mm3/st.   70.3 68.7 71.9
Max. variation between cylinders %   0 -2.5 2.5
Basic   *
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_02
Adjusting point   H
Rack position   9.5+-0.5
Pump speed r/min   300 300 300
Average injection quantity mm3/st.   9.3 7.5 11.1
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_03
Adjusting point   A
Rack position   R1(12.8)
Pump speed r/min   900 900 900
Average injection quantity mm3/st.   70.3 69.3 71.3
Basic   *
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   B
Rack position   R1-0.1
Pump speed r/min   1500 1500 1500
Average injection quantity mm3/st.   80 76 84
Fixing the lever   *
Injection quantity adjustment_05
Adjusting point   C
Rack position   R1+0.25
Pump speed r/min   500 500 500
Average injection quantity mm3/st.   59.8 55.8 63.8
Fixing the lever   *
Injection quantity adjustment_06
Adjusting point   I
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   101 85 117
Fixing the lever   *
Timer adjustment
Pump speed r/min   970--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   920
Advance angle deg.   0.3
Timer adjustment_03
Pump speed r/min   -
Advance angle deg.   0.6 0.3 0.9
Remarks
Measure the actual speed.

Timer adjustment_04
Pump speed r/min   1250
Advance angle deg.   0.6 0.3 0.9
Timer adjustment_05
Pump speed r/min   1500
Advance angle deg.   5 4.5 5.5
Remarks
Finish


Test data Ex:

Governor adjustment

Test data 101493-9123

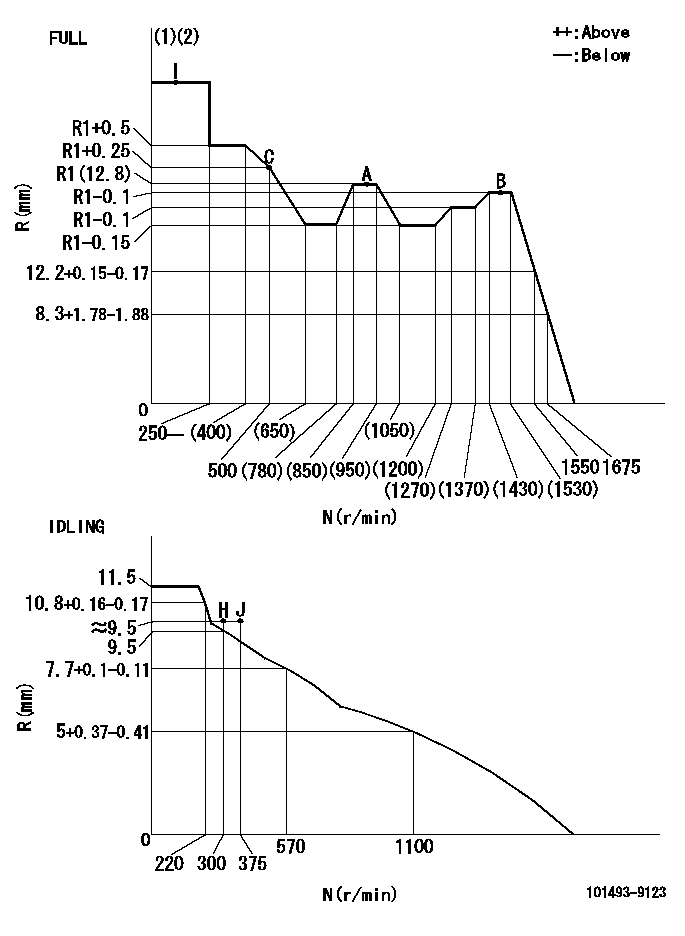

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm.
----------
T1=H39
----------

Speed control lever angle

Test data 101493-9123
F:Full speed I:Idle (1)Use the hole at R = aa (2)Stopper bolt set position 'H'
----------
aa=32mm
----------
a=70deg+-5deg b=(39deg)+-3deg

Stop lever angle

Test data 101493-9123
N:Pump normal S:Stop the pump. (1)Use the pin at R = aa
----------
aa=12mm
----------
a=29deg+-5deg b=10deg+-5deg

0000001501 LEVER

Test data 101493-9123
(A) Speed lever (lower) (B) Stopper bolt (C) Special lever (upper) a:Point A (inside lever) 1. Special lever adjustment (1)With the speed lever at the idle position, set the accelerator lever stopper bolt so that the accelerator lever contacts the speed lever at point a. (2)Back off the stopper bolt L and set.
----------
L=1+0.5mm
----------

Timing setting

Test data 101493-9123
(1)Pump vertical direction (2)Position of gear's standard threaded hole (position of gear mark 'S') at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=12deg
----------
a=(60deg)
