101492-4010 ZEXEL 9 400 614 464 BOSCH INJECTION-PUMP ASSEMBLY 9400614464 1014924010 8972251300

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 464 9400614464

ZEXEL 101492-4010 1014924010

ISUZU 8972251300 8972251300

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101492-4010 zexel genuine, new aftermarket engine parts with delivery

Include in #1:

106682-4830 as _

Cross reference number

BOSCH 9 400 614 464 9400614464

ZEXEL 101492-4010 1014924010

ISUZU 8972251300 8972251300

Zexel num

Bosch num

Firm num

Name

101492-4010

9 400 614 464

8972251300 ISUZU

INJECTION-PUMP ASSEMBLY
4JB1 * K 14BC INJECTION PUMP ASSY PE4A,5A, PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-0820

Overflow valve opening pressure kPa 127 107 147

Overflow valve opening pressure kgf/cm2 1.3 1.1 1.5

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-3-4-2

Pre-stroke mm 3.3 3.25 3.35

Rack position
Point A R=A

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 7.8

Pump speed r/min 1225 1225 1225

Average injection quantity mm3/st. 53.5 52.5 54.5

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point -

Rack position 6.6+-0.5

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 11.5 9.5 13.5

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Test data Ex:

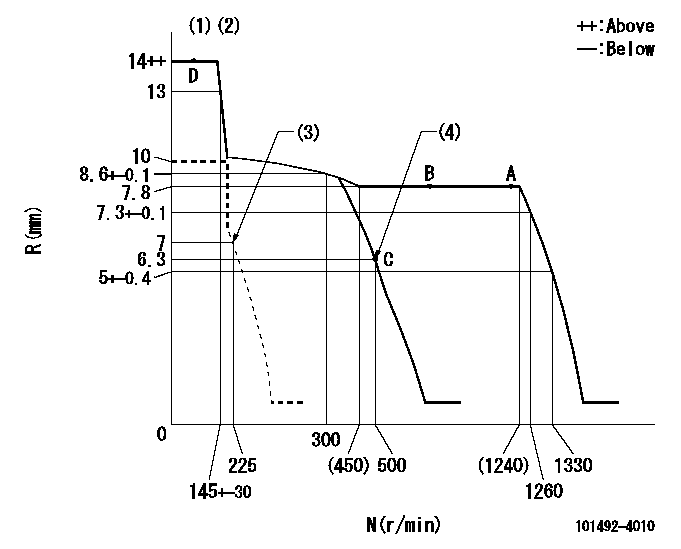

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Set idle sub-spring (4)Main spring setting
----------
K=10
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=11deg+-5deg b=19deg+-5deg c=35deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=2.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'V' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=14deg
----------
a=(210deg)
