101491-9850 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1014919850

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101491-9850 1014919850

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101491-9850 zexel genuine, new aftermarket engine parts with delivery

Service parts 101491-9850 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101049-9760

3. GOVERNOR 105921-5530

4. SUPPLY PUMP 105220-5252

5. AUTOM. ADVANCE MECHANIS 105670-0080

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105118-5192

11. Nozzle and Holder SLH1 13 H50

12. Open Pre:MPa(Kqf/cm2) 16.7{170}

13. NOZZLE-HOLDER 105048-3121

14. NOZZLE

105017-0870

15. NOZZLE SET

Include in #1:

101491-9850 as INJECTION-PUMP ASSEMBLY

106692-9282 as _

Cross reference number

ZEXEL 101491-9850 1014919850

Zexel num

Bosch num

Firm num

Name

101491-9850

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-4-2

Pre-stroke mm 2.8 2.75 2.85

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point -

Rack position 11.2

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 49.1 48.6 49.6

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Injection quantity adjustment_02

Adjusting point -

Rack position 9.4+-0.5

Pump speed r/min 325 325 325

Average injection quantity mm3/st. 9 7 11

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Standard for adjustment of the maximum variation between cylinders *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point A

Rack position R1(11.2)

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 49.1 48.6 49.6

Basic *

Fixing the lever *

Injection quantity adjustment_04

Adjusting point B

Rack position R1+0.1

Pump speed r/min 1700 1700 1700

Average injection quantity mm3/st. 55.4 51.4 59.4

Fixing the lever *

Injection quantity adjustment_05

Adjusting point C

Rack position R1+0.25

Pump speed r/min 625 625 625

Average injection quantity mm3/st. 32.4 28.4 36.4

Fixing the lever *

Injection quantity adjustment_06

Adjusting point I

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 91 81 96

Fixing the lever *

Injection quantity adjustment_07

Adjusting point H

Rack position 9.3+-0.5

Pump speed r/min 325 325 325

Average injection quantity mm3/st. 7 6.5 7.5

Fixing the lever *

Remarks
Set lever at delivery.

Timer adjustment

Pump speed r/min 1350+-25

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 1700

Advance angle deg. 3.5 3.2 3.8

Remarks
Finish

Test data Ex:

Governor adjustment

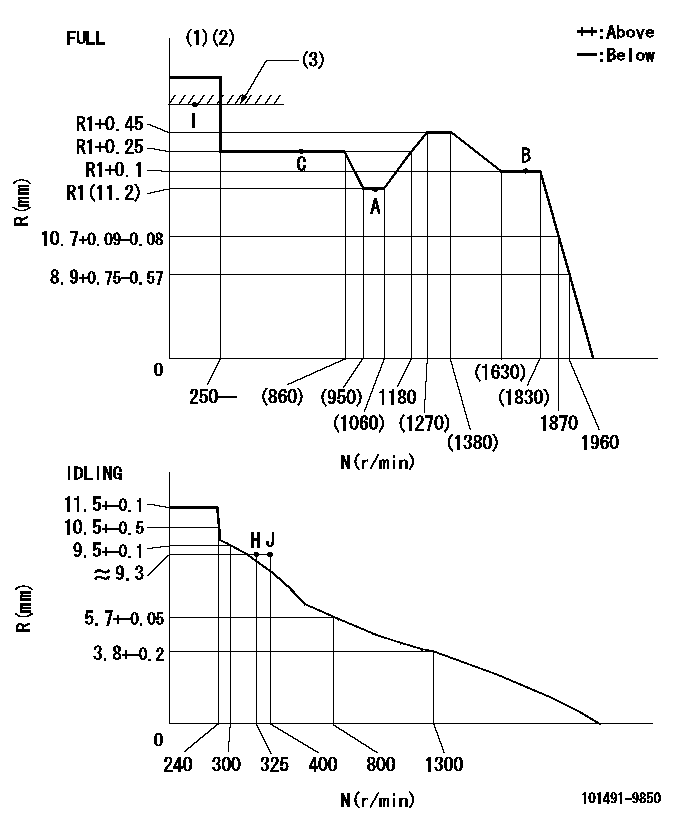

N:Pump speed R:Rack position (mm) (1)Torque cam stamping: T1 (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
T1=G19
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt set position 'H' (2)Rack position = aa, speed = bb
----------
aa=(9.3)mm bb=325r/min
----------
a=20deg+-5deg b=(39deg)+-3deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=40deg+-5deg b=40deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'CC' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=15deg
----------
a=(130deg)

Information:

Governor Linkage Adjustment
(1) Rod. (2) Nut. (3) Control lever. (4) Lever. (5) Pin. (6) High idle stop. (7) Locknut. (8) Low idle stop. (9) Locknut. (10) Decelerator treadle. (11) Floor plate. (12) Accelerator treadle. (13) Lever. (14) Rod. (15) Locknut. (16) Lever. (17) Locknut. (A) 9.7 mm (.38 in). (B) 4.8 mm (.19 in). (C) 38.1 mm (1.50 in). (D) 60.5 3.0 mm (2.38 .12 in). DO NOT USE control lever (3), or decelerator treadle (10) to shut OFF the engine.To shut engine OFF, pull up on accelerator treadle (12).1. Tighten nut (2) just enough so position of control lever (3) is not affected by the operation of the accelerator treadle (12) and decelerator treadle (10).2. With the parking brake ON and engine stopped, BE SURE disconnect switch is OFF.3. Remove pin (5).4. Loosen LOW IDLE stop (8) and HIGH IDLE stop (6) so they do not touch lever (13).5. Move control lever (3) to LOW IDLE position.6. Turn LOW IDLE stop (8) until it touches lever (13) and tighten locknut (9).7. Adjust length of rod (14) so distance from top of lever (16) to bottom of floor plate (11) is (C) 38.1 mm (1.50 in) as shown.8. Loosen locknut (15) and adjust length of rod so top of decelerator treadle (10) is (B) 4.8 mm (.19 in) above floor plate (11) as shown. If machine is equipped with a thick floor insulation pad, (used with enclosed cab), adjust decelerator treadle (10) so top of treadle is (A) 9.7 mm (.38 in) above top of floor plate and tighten locknut (15).9. Move control lever (3) to HIGH IDLE position.10. Turn HIGH IDLE stop (6) until it touches lever (13) and tighten locknut (7).11. Loosen locknut (17) and adjust accelerator treadle (12) so that distance from bottom of plate on treadle to top of floor plate (11) is (D) 60.5 3.0 mm (2.38 .12 in) as shown.12. Move lever (4) to HIGH IDLE position and adjust length of rod (1) so pin (5) can be installed.13. Install pin (5).
