101482-9102 ZEXEL 9 400 614 258 BOSCH INJECTION-PUMP ASSEMBLY 9400614258 1014829102 1679090311

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 258 9400614258

ZEXEL 101482-9102 1014829102

NISSAN-DIESEL 1679090311 1679090311

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101482-9102 zexel genuine, new aftermarket engine parts with delivery

Include in #1:

101401-0310 as _

Cross reference number

BOSCH 9 400 614 258 9400614258

ZEXEL 101482-9102 1014829102

NISSAN-DIESEL 1679090311 1679090311

Zexel num

Bosch num

Firm num

Name

101482-9102

9 400 614 258

1679090311 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
BD304 * K 14BC PE4A,5A, PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-1520

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-4-2

Pre-stroke mm 3.2 3.15 3.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 10.4

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 42.7 41.7 43.7

Max. variation between cylinders % 0 -3.5 3.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 10.7

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 38.4 36.4 40.4

Max. variation between cylinders % 0 -5 5

Fixing the lever *

Injection quantity adjustment_03

Adjusting point -

Rack position 9.2+-0.5

Pump speed r/min 450 450 450

Average injection quantity mm3/st. 8 6 10

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_04

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 62 62 72

Fixing the lever *

Rack limit *

Test data Ex:

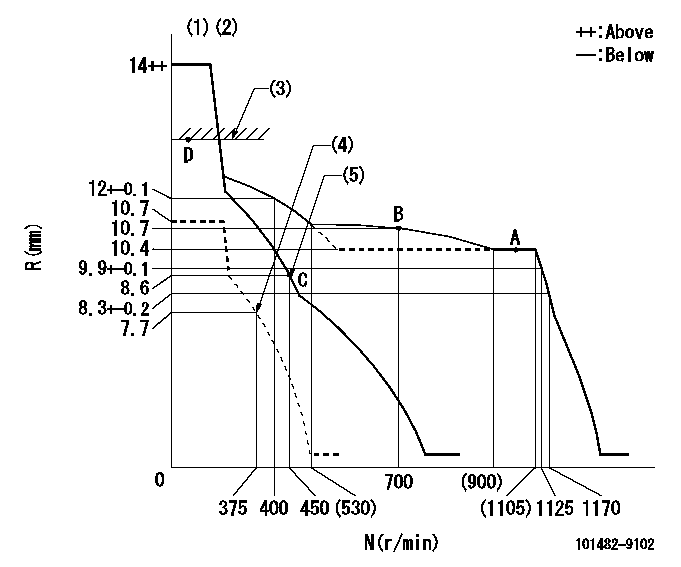

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting
----------
K=9
----------

Speed control lever angle

F:Full speed I:Idle S:Stop (1)Set the stopper bolt at delivery (2)Confirmation
----------

----------
a=(14deg)+-5deg b=(3deg)+-5deg c=(24deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=56.5deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'ZZ' at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(100deg)
