Cross reference number

ZEXEL 101472-3640 1014723640

KOMATSU 6144711170 6144711170

Zexel num

Bosch num

Firm num

Name

101472-3640

6144711170 KOMATSU

INJECTION-PUMP ASSEMBLY
4D94 *

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-2-4-3

Pre-stroke mm 2.2 2.15 2.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cyl.1-2 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cal 1-3 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 9.3

Pump speed r/min 1200 1200 1200

Average injection quantity mm3/st. 43.5 42.5 44.5

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point B

Rack position 9.7

Pump speed r/min 750 750 750

Average injection quantity mm3/st. 40 39 41

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 7.5+-0.5

Pump speed r/min 400 400 400

Average injection quantity mm3/st. 9 8.2 9.8

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Test data Ex:

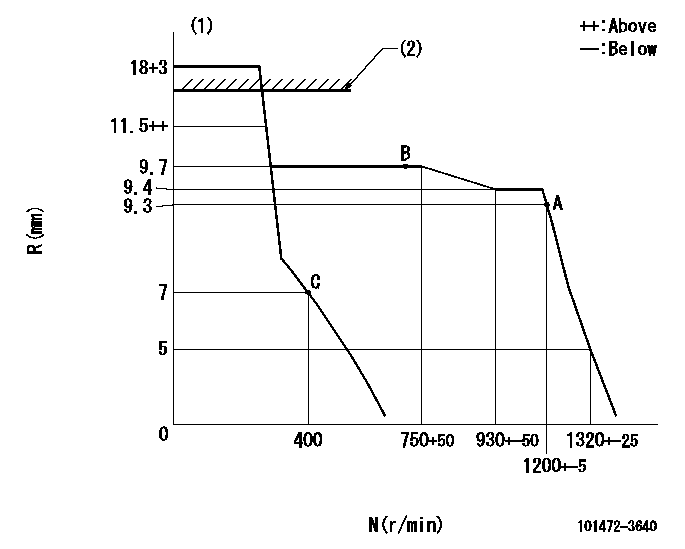

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK CAP: R1
----------
K=8 R1=18+1mm
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=12deg+-5deg b=32deg+-3deg c=21deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of key groove at No 1 cylinder's beginning of injection (3)Stamp aligning marks on the pump housing flange. (4)- (5)-
----------

----------
a=50deg24min+-3deg b=9deg36min+-30min
