101471-0130 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1014710130 5156003911

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101471-0130 1014710130

ISUZU 5156003911 5156003911

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101471-0130 zexel genuine, new aftermarket engine parts with delivery

Service parts 101471-0130 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101047-8050

3. GOVERNOR 105410-2480

4. SUPPLY PUMP 105220-1871

5. AUTOM. ADVANCE MECHANIS 105622-0220

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105191-1190

11. Nozzle and Holder 5-15300-024-1

12. Open Pre:MPa(Kqf/cm2) 11.8{120}

13. NOZZLE-HOLDER 105091-1140

14. NOZZLE

105000-1080

15. NOZZLE SET

Include in #1:

101471-0130 as INJECTION-PUMP ASSEMBLY

101602-0290 as _

Cross reference number

ZEXEL 101471-0130 1014710130

ISUZU 5156003911 5156003911

Zexel num

Bosch num

Firm num

Name

101471-0130

5156003911 ISUZU

INJECTION-PUMP ASSEMBLY
C330 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle 105000-1650

Bosch type code DN0SD2110

Nozzle holder 105091-1090

Opening pressure MPa 11.8

Opening pressure kgf/cm2 120

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 132424-0620

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-4-2

Pre-stroke mm 2.2 2.15 2.25

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 11.2

Pump speed r/min 1350 1350 1350

Average injection quantity mm3/st. 57.5 56.5 58.5

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point B

Rack position 12

Pump speed r/min 800 800 800

Average injection quantity mm3/st. 58 55.5 60.5

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 8+-0.5

Pump speed r/min 325 325 325

Average injection quantity mm3/st. 8.5 7.5 9.5

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Injection quantity adjustment_04

Adjusting point D

Rack position -

Pump speed r/min 150 150 150

Average injection quantity mm3/st. 95 95

Fixing the lever *

Remarks
Excess fuel for starting.

Timer adjustment

Pump speed r/min 500+-50

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 700

Advance angle deg. 0.7 0.2 1.2

Timer adjustment_03

Pump speed r/min 1100

Advance angle deg. 1.9 1.1 2.6

Timer adjustment_04

Pump speed r/min 1500

Advance angle deg. 3.9 3.4 4.4

Timer adjustment_05

Pump speed r/min 1750

Advance angle deg. 6 5.2 6.2

Remarks
Finish

Test data Ex:

Governor adjustment

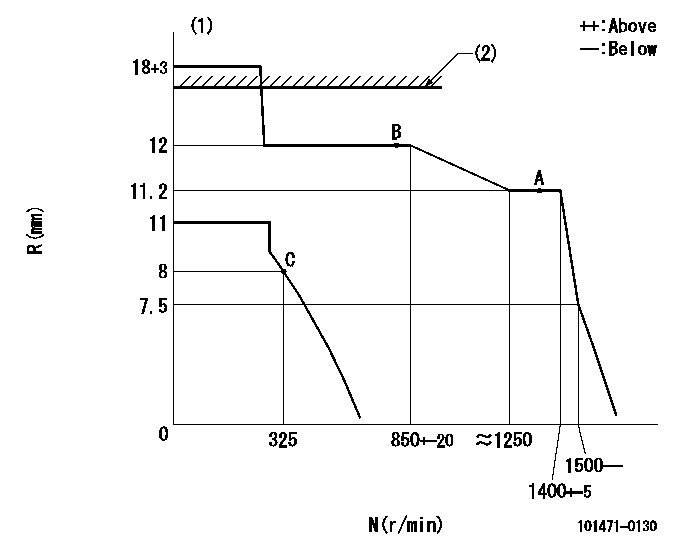

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)At rack cap installation: R1
----------
K=10 R1=(17.5)mm
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=20deg+-5deg b=34deg+-5deg c=32deg+-3deg
