Information injection-pump assembly
BOSCH
9 400 610 075
9400610075
ZEXEL
101441-9420
1014419420
NISSAN-DIESEL
1670025G00
1670025g00
Rating:
Service parts 101441-9420 INJECTION-PUMP ASSEMBLY:
1.
_
6.
COUPLING PLATE
7.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
16600-36W00
12.
Open Pre:MPa(Kqf/cm2)
9.8{100}
15.
NOZZLE SET
Include in #1:
101441-9420
as INJECTION-PUMP ASSEMBLY
Include in #2:
105866-3230
as _
Cross reference number
BOSCH
9 400 610 075
9400610075
ZEXEL
101441-9420
1014419420
NISSAN-DIESEL
1670025G00
1670025g00
Zexel num
Bosch num
Firm num
Name
101441-9420
9 400 610 075
1670025G00 NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
SD23 * K 14BC INJECTION PUMP ASSY PE4A,5A, PE
SD23 * K 14BC INJECTION PUMP ASSY PE4A,5A, PE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Tester oil delivery pressure
kPa
157
157
157
Tester oil delivery pressure
kgf/cm2
1.6
1.6
1.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
1-3-4-2
Pre-stroke
mm
2.15
2.1
2.2
Beginning of injection position
Drive side NO.1
Drive side NO.1
Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5
Cal 1-3 deg. 90 89.5 90.5
Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5
Cal 1-4 deg. 180 179.5 180.5
Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5
Cyl.1-2 deg. 270 269.5 270.5
Injection quantity adjustment
Adjusting point
-
Rack position
12
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
38.8
37.8
39.8
Max. variation between cylinders
%
0
-2.5
2.5
Basic
*
Fixing the rack
*
Injection quantity adjustment_02
Adjusting point
-
Rack position
8.2+-0.5
Pump speed
r/min
300
300
300
Average injection quantity
mm3/st.
8
6.9
9.1
Max. variation between cylinders
%
0
-15
15
Fixing the rack
*
Timer adjustment
Pump speed
r/min
550--
Advance angle
deg.
0
0
0
Remarks
Start
Start
Timer adjustment_02
Pump speed
r/min
500
Advance angle
deg.
0.5
Timer adjustment_03
Pump speed
r/min
1200
Advance angle
deg.
2
1.5
2.5
Timer adjustment_04
Pump speed
r/min
2150
Advance angle
deg.
7
6.5
7.5
Remarks
Finish
Finish
Test data Ex:

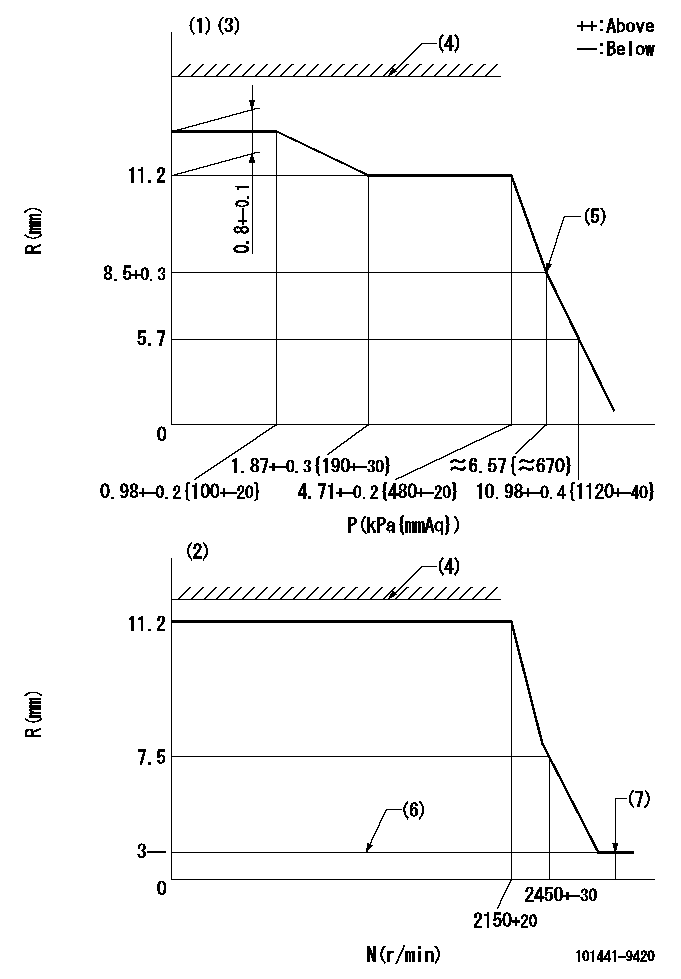

Governor adjustment
N:Pump speed
R:Rack position (mm)
P:Negative pressure
(1)Pneumatic governor
(2)Mechanical governor
(3)Acting negative pressure: P1
(4)RACK LIMIT: RAL
(5)Beginning of idle sub spring operation: L1
(6)Without stopper disk
(7)Injection quantity Q = Q1 or less (at N = N1)
----------
P1=2.94+-0.2kPa(300+-20mmAg) RAL=14.7-0.3mm L1=8.5+0.3mm Q1=3mm3/st N1=(2600)r/min
----------
----------
P1=2.94+-0.2kPa(300+-20mmAg) RAL=14.7-0.3mm L1=8.5+0.3mm Q1=3mm3/st N1=(2600)r/min
----------
0000001101
N:Normal
B:When boosted
S:Stop
(1)Rack position = aa
(2)Rack position corresponding to bb
----------
aa=0mm bb=15mm
----------
a=0deg+-5deg b=23deg+-3deg c=6deg+-5deg
----------
aa=0mm bb=15mm
----------
a=0deg+-5deg b=23deg+-3deg c=6deg+-5deg
Timing setting
(1)Pump vertical direction
(2)Position of gear mark 'Y' at No 1 cylinder's beginning of injection
(3)B.T.D.C.: aa
(4)-
----------
aa=18deg
----------
a=(140deg)
----------
aa=18deg
----------
a=(140deg)
