101432-9070 ZEXEL 9 400 614 120 BOSCH INJECTION-PUMP ASSEMBLY 9400614120 1014329070

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 614 120 9400614120

ZEXEL 101432-9070 1014329070

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101432-9070 zexel genuine, new aftermarket engine parts with delivery

Service parts 101432-9070 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP

3. GOVERNOR 105410-8673

4. SUPPLY PUMP 105220-4742

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE 156636-3120

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105151-1451

11. Nozzle and Holder

12. Open Pre:MPa(Kqf/cm2) 11.8(120)

13. NOZZLE-HOLDER 105081-3141

14. NOZZLE

105000-1650

15. NOZZLE SET

Include in #1:

101432-9070 as INJECTION-PUMP ASSEMBLY

103682-0370 as _

Cross reference number

BOSCH 9 400 614 120 9400614120

ZEXEL 101432-9070 1014329070

Zexel num

Bosch num

Firm num

Name

101432-9070

9 400 614 120

DAEWOO

INJECTION-PUMP ASSEMBLY
DC24 K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-4420

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-3-4-2

Pre-stroke mm 2.25 2.2 2.3

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point B

Rack position 12.4

Pump speed r/min 800 800 800

Average injection quantity mm3/st. 41.1 40.1 42.1

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 9+-0.5

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 18.5 17.4 19.6

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Test data Ex:

Governor adjustment

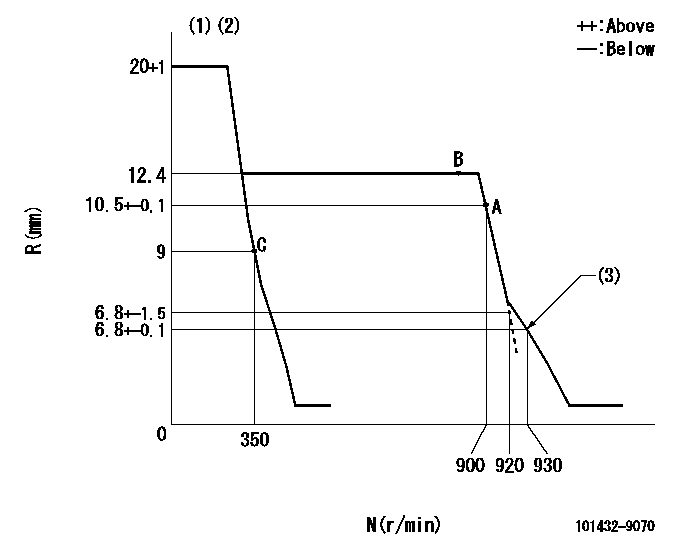

N:Pump speed R:Rack position (mm) (1)Notch fixed: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Set idle sub-spring
----------
K=20
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(9deg)+-5deg b=(26deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=19deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Gear mark Z for the No. 4 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=14deg
----------
a=(60deg)
