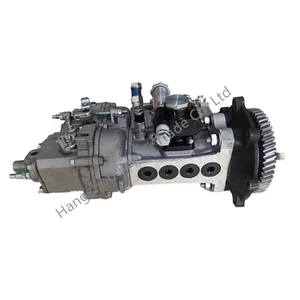

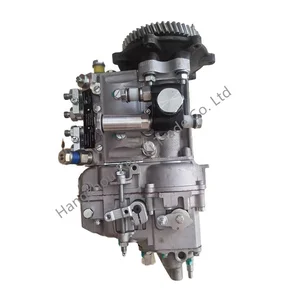

101402-7720 ZEXEL 9 400 611 815 BOSCH INJECTION-PUMP ASSEMBLY 9400611815 1014027720 8972490840

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 611 815 9400611815

ZEXEL 101402-7720 1014027720

ISUZU 8972490840 8972490840

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101402-7720 zexel genuine, new aftermarket engine parts with delivery

Service parts 101402-7720 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101041-8900

3. GOVERNOR 105419-4150

4. SUPPLY PUMP 105220-6250

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE 156643-2520

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105160-5130

11. Nozzle and Holder 8-97222-170-0

12. Open Pre:MPa(Kqf/cm2) 18.1{185}

13. NOZZLE-HOLDER 105030-4750

14. NOZZLE

105025-3040

15. NOZZLE SET

Include in #1:

101402-7720 as INJECTION-PUMP ASSEMBLY

106672-9890 as _

Cross reference number

BOSCH 9 400 611 815 9400611815

ZEXEL 101402-7720 1014027720

ISUZU 8972490840 8972490840

Zexel num

Bosch num

Firm num

Name

101402-7720

9 400 611 815

8972490840 ISUZU

INJECTION-PUMP ASSEMBLY
4BG1-T K 14BC INJECTION PUMP ASSY PE4A,5A, PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-4920

Overflow valve opening pressure kPa 127 107 147

Overflow valve opening pressure kgf/cm2 1.3 1.1 1.5

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-4-2

Pre-stroke mm 3.4 3.35 3.45

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 8.6

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 87 85.9 88.1

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 6+-0.5

Pump speed r/min 475 475 475

Average injection quantity mm3/st. 8.8 7.4 10.2

Max. variation between cylinders % 0 -14 14

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 125 120 130

Fixing the lever *

Rack limit *

Test data Ex:

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting
----------
K=13
----------

Speed control lever angle

F:Full speed I:Idle S:Stop D:Dead point (1)Stopper bolt setting
----------

----------
a=(21deg)+-5deg b=(17deg)+-5deg c=(18deg)+-5deg d=(13deg)+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=13deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark 'CC' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=10deg
----------
a=(100deg)
