101402-3461 ZEXEL 9 400 613 429 BOSCH INJECTION-PUMP ASSEMBLY 9400613429 1014023461 6131721311

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 613 429 9400613429

ZEXEL 101402-3461 1014023461

KOMATSU 6131721311 6131721311

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101402-3461 zexel genuine, new aftermarket engine parts with delivery

Service parts 101402-3461 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101040-8090

3. GOVERNOR 105400-1370

4. SUPPLY PUMP 105220-1810

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE 156635-2520

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105100-4250

11. Nozzle and Holder 6131-12-3100

12. Open Pre:MPa(Kqf/cm2) 22.1{225}

13. NOZZLE-HOLDER 105031-3510

14. NOZZLE 105015-3630

15. NOZZLE SET

Include in #1:

101402-3461 as INJECTION-PUMP ASSEMBLY

107491-3111 as _

Cross reference number

BOSCH 9 400 613 429 9400613429

ZEXEL 101402-3461 1014023461

KOMATSU 6131721311 6131721311

Zexel num

Bosch num

Firm num

Name

101402-3461

9 400 613 429

6131721311 KOMATSU

INJECTION-PUMP ASSEMBLY
S4D105 K 14BC INJECTION PUMP ASSY PE4A,5A, PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-2-4-3

Pre-stroke mm 3.5 3.45 3.55

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cyl.1-2 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cal 1-3 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 9.4

Pump speed r/min 1200 1200 1200

Average injection quantity mm3/st. 73.5 71.5 75.5

Max. variation between cylinders % 0 -2 2

Basic *

Fixing the rack *

Injection quantity adjustment_02

Adjusting point B

Rack position 10.5

Pump speed r/min 600 600 600

Average injection quantity mm3/st. 74.5 70.5 78.5

Max. variation between cylinders % 0 -4 4

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 5.6+-0.5

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 15 13 17

Max. variation between cylinders % 0 -10 10

Fixing the rack *

Test data Ex:

Governor adjustment

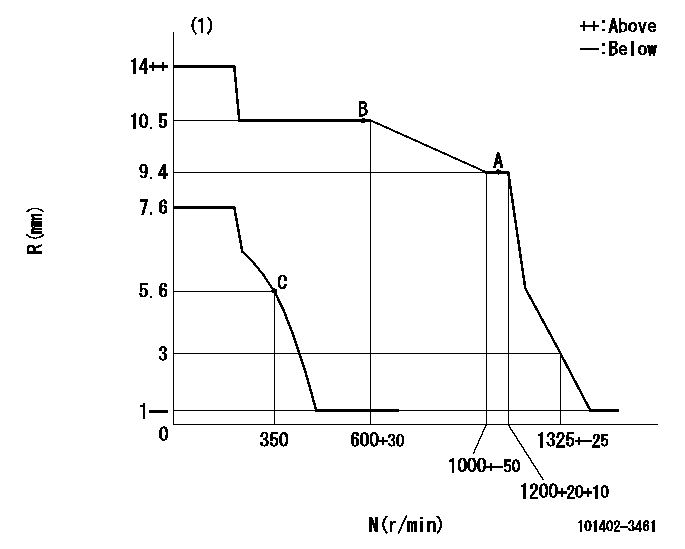

N:Pump speed R:Rack position (mm) (1)Target notch: K
----------
K=10
----------

Speed control lever angle

F:Full speed I:Idle S:Stop
----------

----------
a=13deg+-5deg b=33deg+-5deg c=32deg+-3deg

Timing setting

(1)Pump vertical direction (2)Position of center of spline's wide tooth at No 1 cylinder's beginning of injection (key position) (3)- (4)-
----------
aa=21deg
----------
a=(30deg)
