101402-2281 ZEXEL 9 400 613 868 BOSCH INJECTION-PUMP ASSEMBLY 9400613868 1014022281 220204411a

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 613 868 9400613868

ZEXEL 101402-2281 1014022281

HINO 220204411A 220204411a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101402-2281 zexel genuine, new aftermarket engine parts with delivery

Service parts 101402-2281 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 101040-9300

3. GOVERNOR 105400-8321

4. SUPPLY PUMP 105220-5300

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE 156636-4821

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105110-5201

11. Nozzle and Holder 23600-2561A

12. Open Pre:MPa(Kqf/cm2) 17.7{180}

13. NOZZLE-HOLDER 105041-5140

14. NOZZLE 105015-9420

15. NOZZLE SET

Include in #1:

101402-2281 as INJECTION-PUMP ASSEMBLY

107691-3240 as _

Cross reference number

BOSCH 9 400 613 868 9400613868

ZEXEL 101402-2281 1014022281

HINO 220204411A 220204411a

Zexel num

Bosch num

Firm num

Name

101402-2281

9 400 613 868

220204411A HINO

INJECTION-PUMP ASSEMBLY
W04C-T K 14BC INJECTION PUMP ASSY PE4A,5A, PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 134424-0920

Overflow valve opening pressure kPa 162 147 177

Overflow valve opening pressure kgf/cm2 1.65 1.5 1.8

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-4-2

Pre-stroke mm 3.2 3.17 3.23

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.75 90.25

Difference between angles 2
Cal 1-4 deg. 180 179.75 180.25

Difference between angles 3
Cyl.1-2 deg. 270 269.75 270.25

Injection quantity adjustment

Adjusting point A

Rack position 10.5

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 87 85 89

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point -

Rack position 6.2+-0.5

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 8 6.5 9.5

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Test data Ex:

Governor adjustment

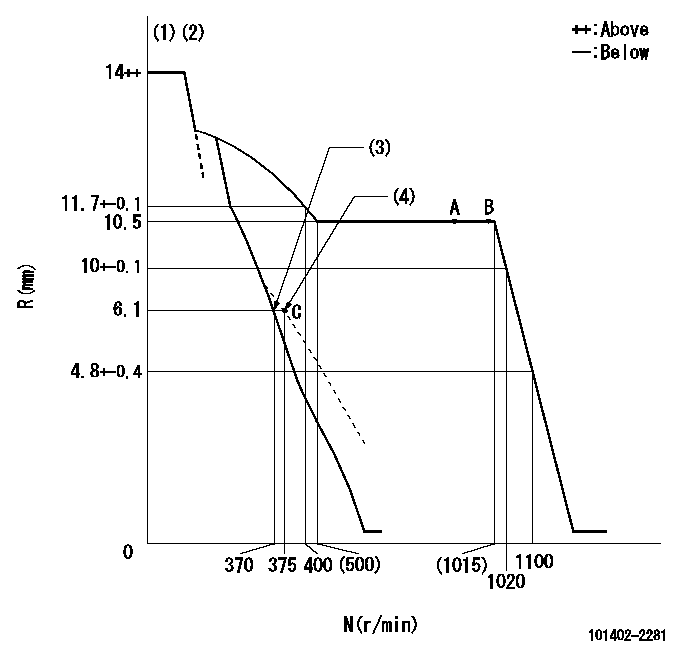

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)Main spring setting (4)Set idle sub-spring
----------
K=5
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(4deg)+-5deg b=(18deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Rack position aa or less, pump speed bb
----------
aa=5.6mm bb=0r/min
----------
a=27deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of gear's standard threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(70deg)
