101402-2240 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1014022240 220204130a

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 101402-2240 1014022240

HINO 220204130A 220204130a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 101402-2240 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 101402-2240 1014022240

HINO 220204130A 220204130a

Zexel num

Bosch num

Firm num

Name

101402-2240
101402-2241

220204130A HINO

INJECTION-PUMP ASSEMBLY
W04C-T * K

101402-2240
101402-2241

S220204130A HINO

INJECTION-PUMP ASSEMBLY
W04C-T A * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Overflow valve 131424-5720

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-4-2

Pre-stroke mm 4.4 4.35 4.45

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5

Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5

Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5

Injection quantity adjustment

Adjusting point A

Rack position 9.7

Pump speed r/min 1175 1175 1175

Average injection quantity mm3/st. 65 63 67

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point -

Rack position 7.4

Pump speed r/min 425 425 425

Average injection quantity mm3/st. 9 7.5 10.5

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 100 100 110

Fixing the lever *

Rack limit *

Test data Ex:

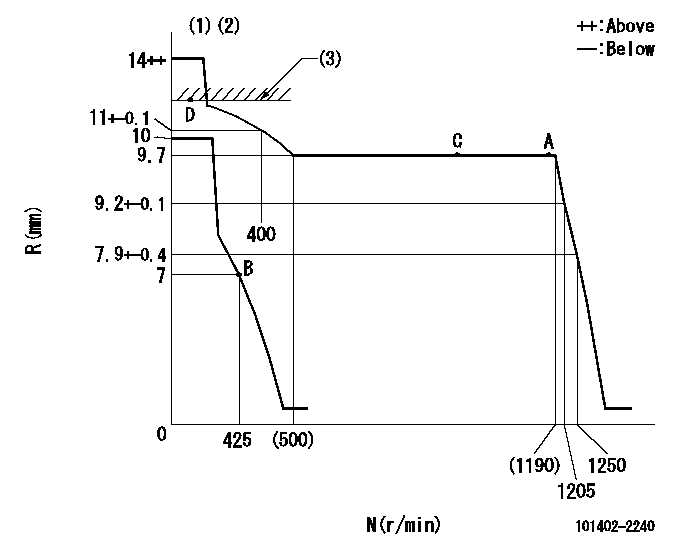

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT
----------
K=11
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=(23deg)+-5deg b=(38deg)+-5deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Pump speed aa and rack position bb (to be sealed at delivery)
----------
aa=0r/min bb=1-0.2mm
----------
a=21deg+-5deg b=(55deg)

Timing setting

(1)Pump vertical direction (2)Position of gear's standard threaded hole at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(70deg)
