Information injection-pump assembly
BOSCH
9 400 613 666
9400613666
ZEXEL
101401-3040
1014013040
KOMATSU
6132711101
6132711101

Rating:
Service parts 101401-3040 INJECTION-PUMP ASSEMBLY:
1.
_
6.
COUPLING PLATE
7.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
6-13211-310-0
12.
Open Pre:MPa(Kqf/cm2)
22.1{225}
15.
NOZZLE SET
Cross reference number
BOSCH
9 400 613 666
9400613666
ZEXEL
101401-3040
1014013040
KOMATSU
6132711101
6132711101
Zexel num
Bosch num
Firm num
Name
101401-3040
9 400 613 666
6132711101 KOMATSU
INJECTION-PUMP ASSEMBLY
* K 14BD INJECTION PUMP ASSY PE4AD PE
* K 14BD INJECTION PUMP ASSY PE4AD PE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Overflow valve
132424-0620
Overflow valve opening pressure
kPa
157
123
191
Overflow valve opening pressure
kgf/cm2
1.6
1.25
1.95
Tester oil delivery pressure
kPa
157
157
157
Tester oil delivery pressure
kgf/cm2
1.6
1.6
1.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
1-2-4-3
Pre-stroke
mm
2.1
2.05
2.15
Beginning of injection position
Governor side NO.1
Governor side NO.1
Difference between angles 1
Cyl.1-2 deg. 90 89.5 90.5
Cyl.1-2 deg. 90 89.5 90.5
Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5
Cal 1-4 deg. 180 179.5 180.5
Difference between angles 3
Cal 1-3 deg. 270 269.5 270.5
Cal 1-3 deg. 270 269.5 270.5
Injection quantity adjustment
Adjusting point
A
Rack position
9.5
Pump speed
r/min
1350
1350
1350
Average injection quantity
mm3/st.
117
115
119
Max. variation between cylinders
%
0
-2
2
Basic
*
Fixing the rack
*
Injection quantity adjustment_02
Adjusting point
B
Rack position
8.4
Pump speed
r/min
700
700
700
Average injection quantity
mm3/st.
80
77
83
Max. variation between cylinders
%
0
-4
4
Fixing the lever
*
Injection quantity adjustment_03
Adjusting point
C
Rack position
8.9
Pump speed
r/min
1100
1100
1100
Average injection quantity
mm3/st.
100
96
104
Max. variation between cylinders
%
0
-4
4
Fixing the lever
*
Injection quantity adjustment_04
Adjusting point
D
Rack position
6.7+-0.5
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
30
27
33
Max. variation between cylinders
%
0
-10
10
Fixing the rack
*
Timer adjustment
Pump speed
r/min
550+-50
Advance angle
deg.
0
0
0
Remarks
Start
Start
Timer adjustment_02
Pump speed
r/min
750
Advance angle
deg.
1.2
0.7
1.7
Timer adjustment_03
Pump speed
r/min
1000
Advance angle
deg.
3
2.2
3.5
Timer adjustment_04
Pump speed
r/min
1300
Advance angle
deg.
5.3
4.5
5.8
Timer adjustment_05
Pump speed
r/min
1500
Advance angle
deg.
7
6.5
7.5
Timer adjustment_06
Pump speed
r/min
-
Advance angle
deg.
9
9
9
Remarks
Measure the actual speed, stop
Measure the actual speed, stop
Test data Ex:
Governor adjustment

N:Pump speed
R:Rack position (mm)

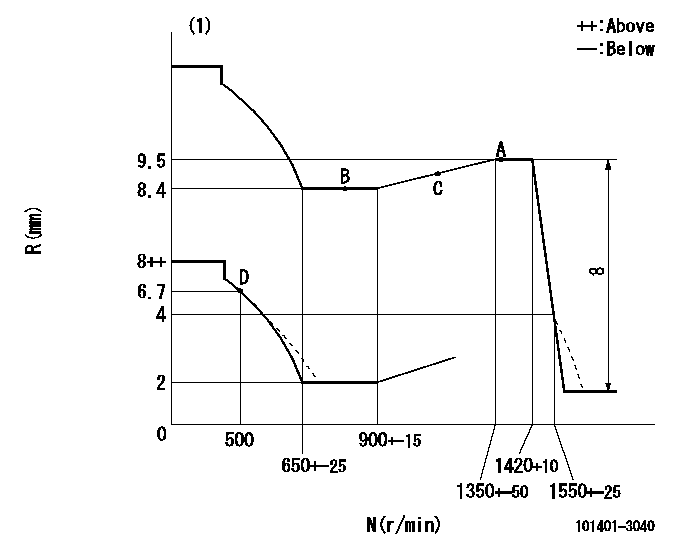

(1)Beginning of damper spring operation: DL
----------
DL=4-0.3mm
----------
----------
DL=4-0.3mm
----------
0000000901

F:Full load
I:Idle
S:Stop
----------
----------
a=24.5deg+-3deg b=8.5deg+-3deg c=1.5deg+-5deg
----------
----------
a=24.5deg+-3deg b=8.5deg+-3deg c=1.5deg+-5deg
