105866-7310 ZEXEL F 019 Z2E 515 BOSCH HYDRAULIC GOVERNOR f019z2e515 1058667310 s579107

Information hydraulic governor

BOSCH F 019 Z2E 515 f019z2e515

ZEXEL 105866-7310 1058667310

HANSHIN S579107 s579107

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105866-7310 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105866-7310
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

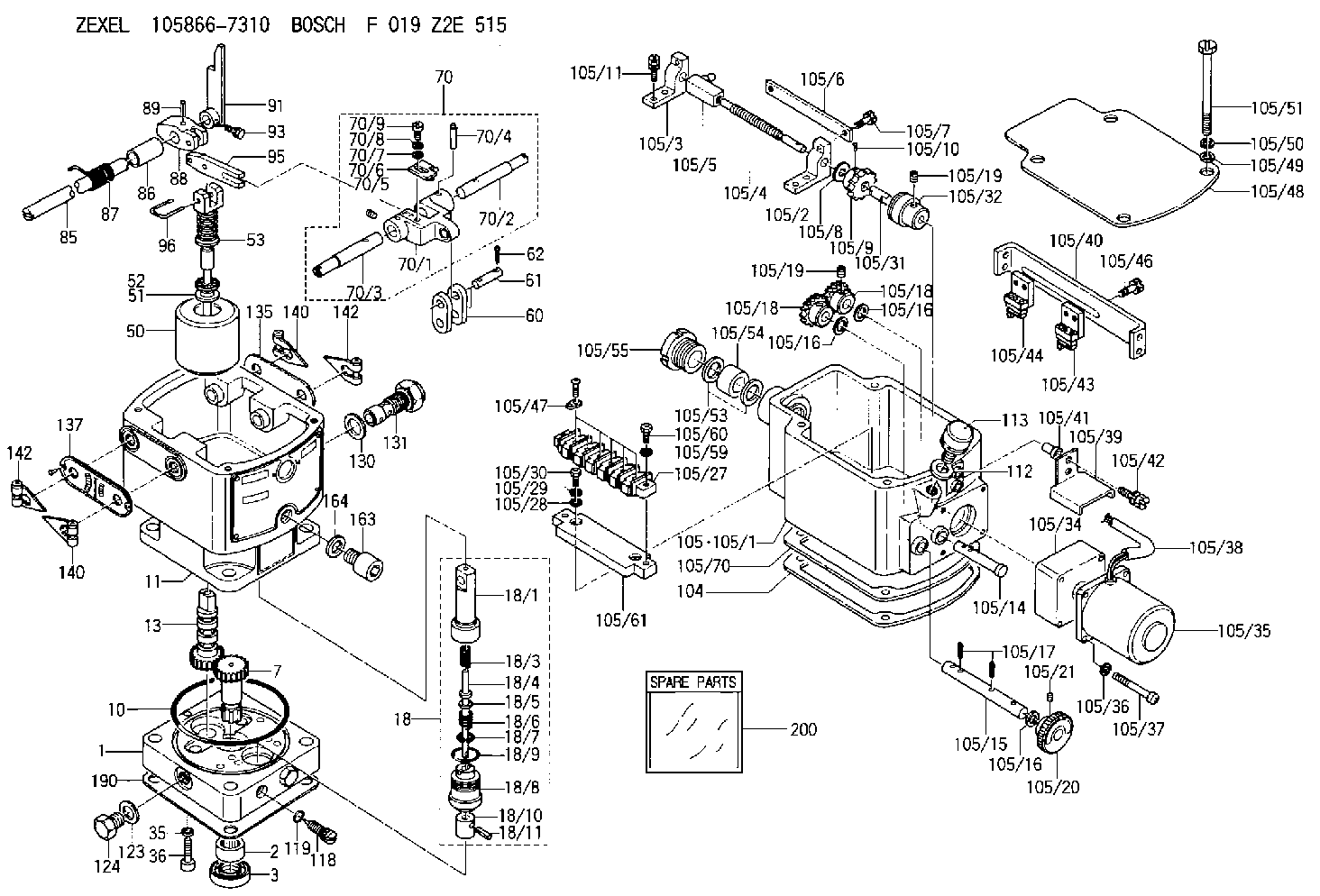

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1920	DIAPHRAGM HOUSING
13.	[1]	158621-0500	SLEEVE
18.	[1]	158699-0621	COMPENSATOR ASSY
18/1.	[1]	158610-1101	POWER PISTON
18/3.	[1]	158654-0800	COILED SPRING
18/4.	[1]	158614-0700	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-0900	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0401	BUSHING
18/9.	[2]	016550-2310	O-RING
18/10.	[1]	158615-0500	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-0720	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1520	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-1200	SPEED CONTROL SHAFT
86.	[1]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
91.	[1]	158712-2000	CONTROL LEVER
93.	[1]	029010-5210	BLEEDER SCREW
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158964-6720	GOVERNOR MOTOR ASSY
105/1.	[1]	158962-5210	CASE
105/2.	[1]	158903-0200	HOLDER
105/3.	[1]	158903-0300	HOLDER
105/4.	[1]	158903-0400	FLAT-HEAD SCREW
105/5.	[1]	158903-1720	ADJUSTER
105/6.	[2]	158903-0800	PLATE
105/7.	[4]	029010-6330	BLEEDER SCREW M6P1.0L13
105/8.	[1]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/9.	[1]	158904-0500	TOOTHED GEAR
105/10.	[1]	158590-0000	BEARING PIN
105/11.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
105/14.	[1]	158904-0300	LEVER SHAFT
105/15.	[1]	158904-0200	LEVER SHAFT
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/17.	[3]	015320-1540	SPLIT PIN
105/18.	[2]	158904-0400	TOOTHED GEAR
105/18.	[2]	158904-0400	TOOTHED GEAR
105/19.	[3]	011005-0820	SET OF NUTS
105/19.	[3]	011005-0820	SET OF NUTS
105/20.	[1]	158904-1920	ROUND NUT
105/21.	[1]	158916-0000	SET OF NUTS
105/27.	[1]	158906-1500	TERMINAL BOARD
105/28.	[2]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/29.	[2]	014110-4440	LOCKING WASHER
105/30.	[2]	012154-1040	FLAT-HEAD SCREW M4P0.7L10
105/31.	[1]	158902-0300	JOINT CONNECTION
105/32.	[1]	158902-0020	FRICTION COUPLING
105/34.	[1]	158908-2800	GEAR HEAD
105/35.	[1]	158908-4200	MOTOR
105/36.	[4]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/37.	[4]	158901-8100	FLAT-HEAD SCREW
105/38.	[1]	158901-2200	HOSE
105/39.	[1]	158901-8300	COVER
105/40.	[1]	158900-0300	BRACKET
105/41.	[3]	158900-0200	BUSHING
105/42.	[3]	029010-6350	BLEEDER SCREW M6P1.0L22
105/43.	[1]	158907-2720	LIMIT SWITCH
105/44.	[1]	158907-2620	LIMIT SWITCH
105/46.	[4]	020144-1240	BLEEDER SCREW
105/47.	[3]	158906-0801	TERMINAL
105/48.	[1]	158562-2600	COVER
105/49.	[4]	014020-6140	PLAIN WASHER
105/50.	[4]	014110-6440	LOCKING WASHER
105/51.	[4]	158909-0100	BLEEDER SCREW
105/53.	[2]	158901-2700	PLAIN WASHER
105/54.	[1]	158901-2800	PACKING
105/55.	[1]	158901-2600	GROUND
105/59.	[2]	014110-4440	LOCKING WASHER
105/60.	[1]	012154-1640	FLAT-HEAD SCREW
105/61.	[1]	158906-1600	SPACER BUSHING
105/70.	[1]	158563-1300	COVER
112.	[1]	026512-1640	GASKET D15.9&12.2T1
113.	[1]	155406-0220	AIR FILTER
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0900	INDICATOR PLATE
137.	[1]	158515-1000	INDICATOR PLATE
140.	[2]	158820-0620	POINTER
140.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
163.	[1]	010210-1420	HEX-SOCKET-HEAD CAP SCREW
164.	[1]	026510-1340	GASKET D13.4&10.2T1
190.	[1]	158017-1000	GASKET
200.	[1]	158599-7220	SPARE PART

Include in #2:

105866-7310 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105866-7310

F 019 Z2E 515
RHD10-MCL

S579107 HANSHIN

HYDRAULIC GOVERNOR
K

Information:

Engine Identification
Caterpillar engines are identified with Serial Numbers, Performance Specification Numbers (fuel system settings) and Arrangement Numbers. In some cases Modification Numbers are also used.These numbers are shown on the serial number plate mounted on the engine.Electronic engines have the fuel setting information numbers stored in the personality module and can be read by using Caterpillar service tools (i.e. ECAP or DDT).Caterpillar dealers need all of these numbers to determine which components were included on the engine when it was assembled at the factory. This permits accurate identification of replacement part numbers.Serial Number Plate
Located on the right rear side of the cylinder block.Information Plate
Located on the valve cover.Reference Numbers
Ordering Parts
Quality Caterpillar replacement parts are available from Caterpillar dealers throughout North America and the world. Their parts stocks are up to date and include all parts normally required to protect your investment in Caterpillar engines.* When ordering parts, your order should specify the part number, part name, quantity and serial number, arrangement number and modification number of the engine for which the parts are needed. If in doubt about the part number, please provide your dealer with a complete description of the needed item.* When maintenance or repair is needed for your Caterpillar engine, be prepared to give the dealer all the information that is provided on the Information Plate, described in this manual.* Discuss the problem with the dealer, such as; when it occurs, what happens, etc. This will help the dealer in troubleshooting and solving the problem faster.Fill in blanks for future reference.Chassis Serial No. ____________________Engine Model ____________________Engine Serial No. ____________________Engine Arrangement No. ____________________Modification No. ____________________Engine Low Idle RPM ____________________Engine Full Load RPM ____________________Performance Specification No. ____________________Governor Group No. ____________________Fuel Filter No. ____________________Primary Fuel Filter No. ____________________Lubrication Oil Filter Element No. ____________________Auxiliary Oil Filter Element No. ____________________Supplemental Coolant Additive Maintenance Element No. 9N3368Supplemental Coolant Additive Precharge Element No. 7E6013Air Cleaner Element No. ____________________Fan Drive Belt Set No. ____________________Alternator Belt No. ____________________Lube System Capacity (Total) ____________________Cooling System Capacity (Total) ____________________
