105866-5190 ZEXEL F 019 Z2E 486 BOSCH HYDRAULIC GOVERNOR f019z2e486 1058665190 41100005370

Information hydraulic governor

BOSCH F 019 Z2E 486 f019z2e486

ZEXEL 105866-5190 1058665190

YANMAR 41100005370 41100005370

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105866-5190 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105866-5190
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

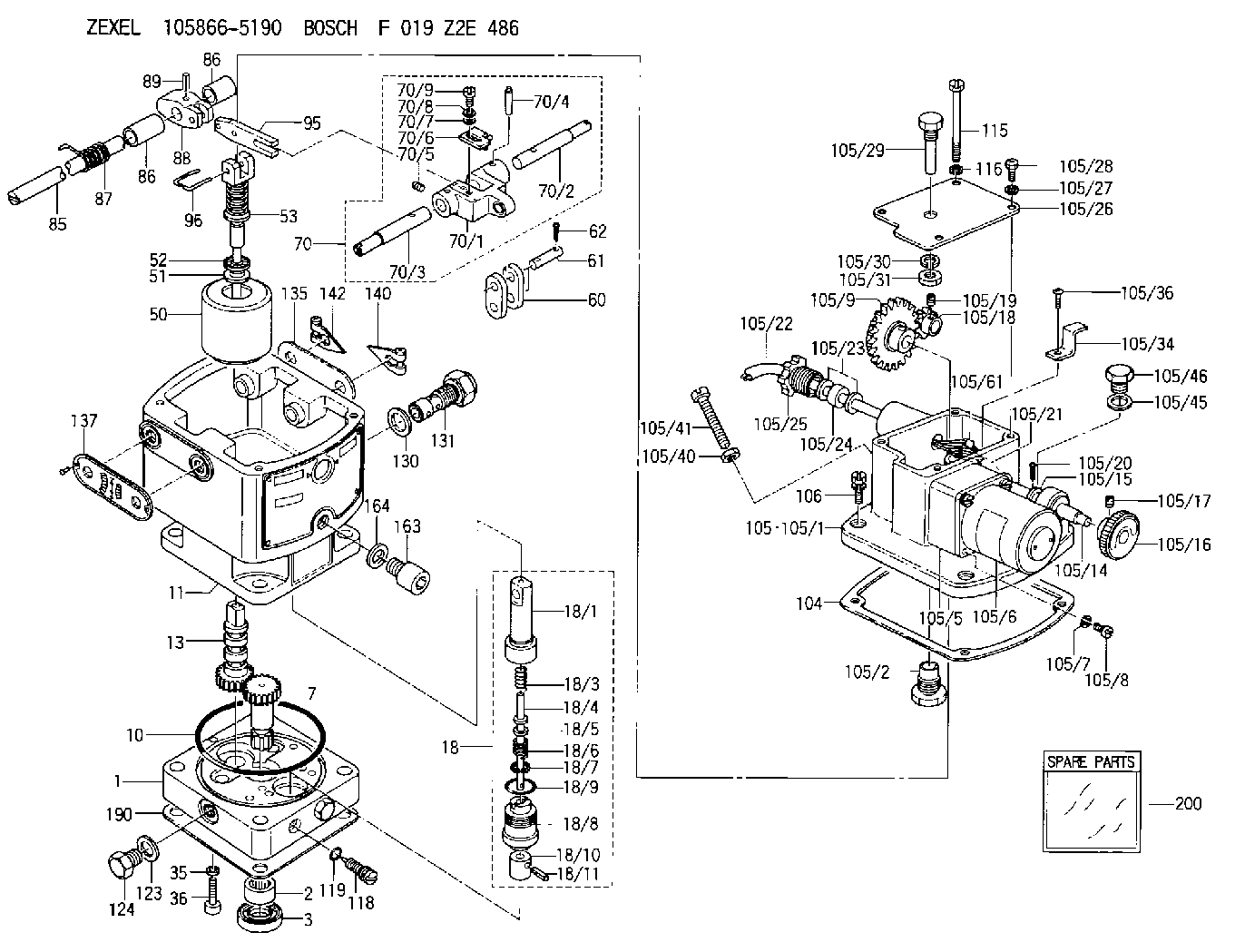

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1920	DIAPHRAGM HOUSING
13.	[1]	158621-0500	SLEEVE
18.	[1]	158699-0621	COMPENSATOR ASSY
18/1.	[1]	158610-1101	POWER PISTON
18/3.	[1]	158654-0800	COILED SPRING
18/4.	[1]	158614-0700	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-0900	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0401	BUSHING
18/9.	[2]	016550-2310	O-RING
18/10.	[1]	158615-0500	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-0720	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1120	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-0900	SPEED CONTROL SHAFT
86.	[2]	158823-0300	BUSHING
86.	[2]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158562-5621	GOVERNOR MOTOR ASSY
105/1.	[1]	158962-5110	CASE
105/2.	[1]	158903-1920	SCREW
105/5.	[1]	158908-3800	GEAR HEAD
105/6.	[1]	158901-7301	MOTOR
105/7.	[4]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/8.	[4]	158901-8100	FLAT-HEAD SCREW
105/9.	[1]	158402-3020	FRICTION COUPLING
105/14.	[1]	158404-1000	LEVER SHAFT
105/15.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[1]	158904-1120	ROUND NUT
105/17.	[1]	158916-0000	SET OF NUTS
105/18.	[1]	158404-1100	TOOTHED GEAR
105/19.	[2]	011005-0820	SET OF NUTS
105/20.	[2]	015320-1540	SPLIT PIN
105/21.	[1]	158401-6400	HOSE
105/22.	[1]	158401-5000	WIRE
105/23.	[2]	158401-7300	GASKET
105/24.	[1]	158401-7500	GASKET
105/25.	[1]	158401-7400	GROUND
105/26.	[1]	158962-6100	COVER
105/27.	[3]	014110-5440	LOCKING WASHER
105/28.	[3]	012155-1240	FLAT-HEAD SCREW M5P0.8L12
105/29.	[1]	158905-0000	FILLER PIECE
105/30.	[1]	014110-8440	LOCKING WASHER
105/31.	[1]	013020-8140	UNION NUT M8P1.25H6.5
105/34.	[1]	158906-1400	CLAMP
105/36.	[1]	012154-0840	FLAT-HEAD SCREW M4P0.7L8
105/37.	[1]	014110-4440	LOCKING WASHER
105/40.	[1]	013020-6040	UNION NUT M6P1H5
105/41.	[1]	158067-0100	SET OF NUTS
105/45.	[1]	026512-1640	GASKET D15.9&12.2T1
105/46.	[1]	029111-2070	CAPSULE M12P1.5L10
105/61.	[2]	158950-0100	TERMINAL
106.	[3]	029010-6350	BLEEDER SCREW M6P1.0L22
115.	[1]	029050-6310	BLEEDER SCREW
116.	[1]	014110-6440	LOCKING WASHER
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0900	INDICATOR PLATE
137.	[1]	158515-1000	INDICATOR PLATE
140.	[1]	158820-0620	POINTER
142.	[1]	158820-0620	POINTER
163.	[1]	010210-1420	HEX-SOCKET-HEAD CAP SCREW
164.	[1]	026510-1340	GASKET D13.4&10.2T1
190.	[1]	158017-1000	GASKET
200.	[1]	158599-7520	SPARE PART

Include in #2:

105866-5190 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105866-5190
105866-5191

F 019 Z2E 486

41100005370 YANMAR

HYDRAULIC GOVERNOR
