Information hydraulic governor
BOSCH
F 019 Z2E 482
f019z2e482
ZEXEL
105866-5150
1058665150
YANMAR
41100005330
41100005330
Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 105866-5150 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | |
10. | NOZZLE-HOLDER | |
11. | NOZZLE |

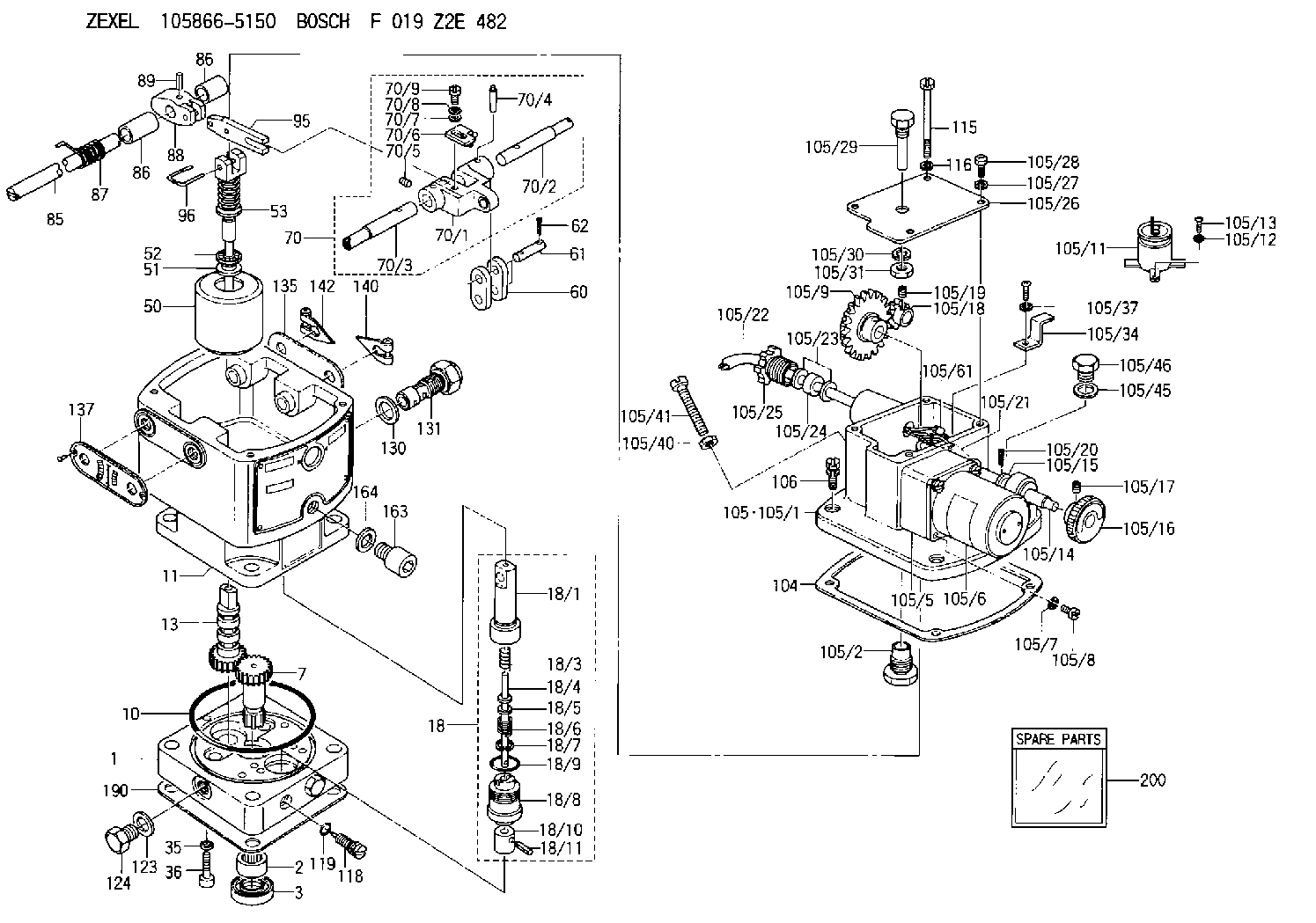

Scheme ###:
1. | [1] | 158502-0420 | BASE |
2. | [1] | 029811-8000 | BEARING PLATE |
3. | [1] | 158528-0900 | PACKING RING |
7. | [1] | 158131-0100 | GEAR SHAFT |
10. | [1] | 158028-0000 | O-RING |
11. | [1] | 158507-1920 | DIAPHRAGM HOUSING |
13. | [1] | 158621-0500 | SLEEVE |
18. | [1] | 158699-0621 | COMPENSATOR ASSY |
18/1. | [1] | 158610-1101 | POWER PISTON |
18/3. | [1] | 158654-0800 | COILED SPRING |
18/4. | [1] | 158614-0700 | STOP PIN |
18/5. | [1] | 158612-0500 | PLAIN WASHER |
18/6. | [1] | 158654-0900 | COILED SPRING |
18/7. | [1] | 016110-1220 | LOCKING WASHER |
18/8. | [1] | 158612-0401 | BUSHING |
18/9. | [2] | 016550-2310 | O-RING |
18/10. | [1] | 158615-0500 | PUMP PLUNGER |
18/11. | [1] | 025620-1410 | SPRING PIN |
35. | [3] | 029330-6070 | GASKET |
36. | [3] | 010206-2520 | HEX-SOCKET-HEAD CAP SCREW |
50. | [1] | 158600-0720 | FLYWEIGHT ASSEMBLY |
51. | [1] | 158106-0100 | PLAIN WASHER |
52. | [1] | 029811-0000 | BEARING PLATE |
53. | [1] | 158620-1120 | PILOT VALVE |
60. | [2] | 158220-0000 | GUIDE LEVER |
61. | [2] | 158736-0200 | BEARING PIN |
62. | [4] | 025520-1510 | SPLIT PIN |
70. | [1] | 158730-0220 | TERMINAL ARM |
70/1. | [1] | 158230-0020 | TERMINAL ARM |
70/2. | [1] | 158315-0200 | TERMINAL SHAFT |
70/3. | [1] | 158315-0200 | TERMINAL SHAFT |
70/4. | [2] | 158736-0100 | TAPER PIN |
70/5. | [2] | 011006-0620 | SET OF NUTS |
70/6. | [1] | 158214-0020 | SPEED DROOP ADJUSTER |
70/7. | [1] | 014020-5120 | PLAIN WASHER |
70/8. | [1] | 029320-5030 | TAB WASHER |
70/9. | [1] | 010535-1220 | FLAT-HEAD SCREW |
85. | [1] | 158814-0900 | SPEED CONTROL SHAFT |
86. | [2] | 158823-0300 | BUSHING |
86. | [2] | 158823-0300 | BUSHING |
87. | [1] | 158322-0200 | COILED SPRING |
88. | [1] | 158710-0400 | STRAP |
89. | [1] | 029404-5010 | BEARING PIN |
95. | [1] | 158211-0100 | STRAP |
96. | [2] | 158653-0100 | WIRE |
104. | [1] | 158017-0900 | GASKET |
105. | [1] | 158562-8221 | GOVERNOR MOTOR ASSY |
105/1. | [1] | 158962-6310 | CASE |
105/2. | [1] | 158903-1920 | SCREW |
105/5. | [1] | 158908-3600 | GEAR HEAD |
105/6. | [1] | 158908-4300 | MOTOR |
105/7. | [4] | 014020-4140 | PLAIN WASHER D8&4.5T0.5 |
105/8. | [4] | 158901-8100 | FLAT-HEAD SCREW |
105/9. | [1] | 158402-3020 | FRICTION COUPLING |
105/11. | [1] | 158908-4000 | CONDENSER |
105/12. | [2] | 014110-3440 | LOCKING WASHER |
105/13. | [2] | 012153-0840 | FLAT-HEAD SCREW M3P0.5L8 |
105/14. | [1] | 158404-1000 | LEVER SHAFT |
105/15. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
105/16. | [1] | 158904-1920 | ROUND NUT |
105/17. | [1] | 158916-0000 | SET OF NUTS |
105/18. | [1] | 158404-1100 | TOOTHED GEAR |
105/19. | [2] | 011005-0820 | SET OF NUTS |
105/20. | [2] | 015320-1540 | SPLIT PIN |
105/21. | [1] | 158401-6400 | HOSE |
105/22. | [1] | 158401-5000 | WIRE |
105/23. | [2] | 158401-7300 | GASKET |
105/24. | [1] | 158401-7500 | GASKET |
105/25. | [1] | 158401-7400 | GROUND |
105/26. | [1] | 158962-6100 | COVER |
105/27. | [3] | 014110-5440 | LOCKING WASHER |
105/28. | [3] | 012155-1240 | FLAT-HEAD SCREW M5P0.8L12 |
105/29. | [1] | 158905-0000 | FILLER PIECE |
105/30. | [1] | 014110-8440 | LOCKING WASHER |
105/31. | [1] | 013020-8140 | UNION NUT M8P1.25H6.5 |
105/34. | [1] | 158906-1800 | CLAMP |
105/37. | [1] | 014110-4440 | LOCKING WASHER |
105/40. | [1] | 013020-6040 | UNION NUT M6P1H5 |
105/41. | [1] | 158067-0100 | SET OF NUTS |
105/45. | [1] | 026512-1640 | GASKET D15.9&12.2T1 |
105/46. | [1] | 029111-2070 | CAPSULE M12P1.5L10 |
105/61. | [1] | 158950-0100 | TERMINAL |
105/120. | [1] | 158908-5100 | CABLE TIE |
106. | [3] | 029010-6350 | BLEEDER SCREW M6P1.0L22 |
115. | [1] | 029050-6310 | BLEEDER SCREW |
116. | [1] | 014110-6440 | LOCKING WASHER |
118. | [1] | 158527-0200 | NEEDLE VALVE |
119. | [1] | 016500-0710 | O-RING |
123. | [2] | 026512-1640 | GASKET D15.9&12.2T1 |
124. | [2] | 029111-2070 | CAPSULE M12P1.5L10 |
130. | [1] | 029331-8040 | GASKET |
131. | [1] | 158660-0320 | CONTROL VALVE |
135. | [1] | 158515-0900 | INDICATOR PLATE |
137. | [1] | 158515-1000 | INDICATOR PLATE |
140. | [1] | 158820-0620 | POINTER |
142. | [1] | 158820-0620 | POINTER |
163. | [1] | 010210-1420 | HEX-SOCKET-HEAD CAP SCREW |
164. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
190. | [1] | 158017-1000 | GASKET |
200. | [1] | 158599-7220 | SPARE PART |
