105856-7680 ZEXEL F 019 Z2E 385 BOSCH HYDRAULIC GOVERNOR f019z2e385 1058567680

Information hydraulic governor

BOSCH F 019 Z2E 385 f019z2e385

ZEXEL 105856-7680 1058567680

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-7680 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-7680
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

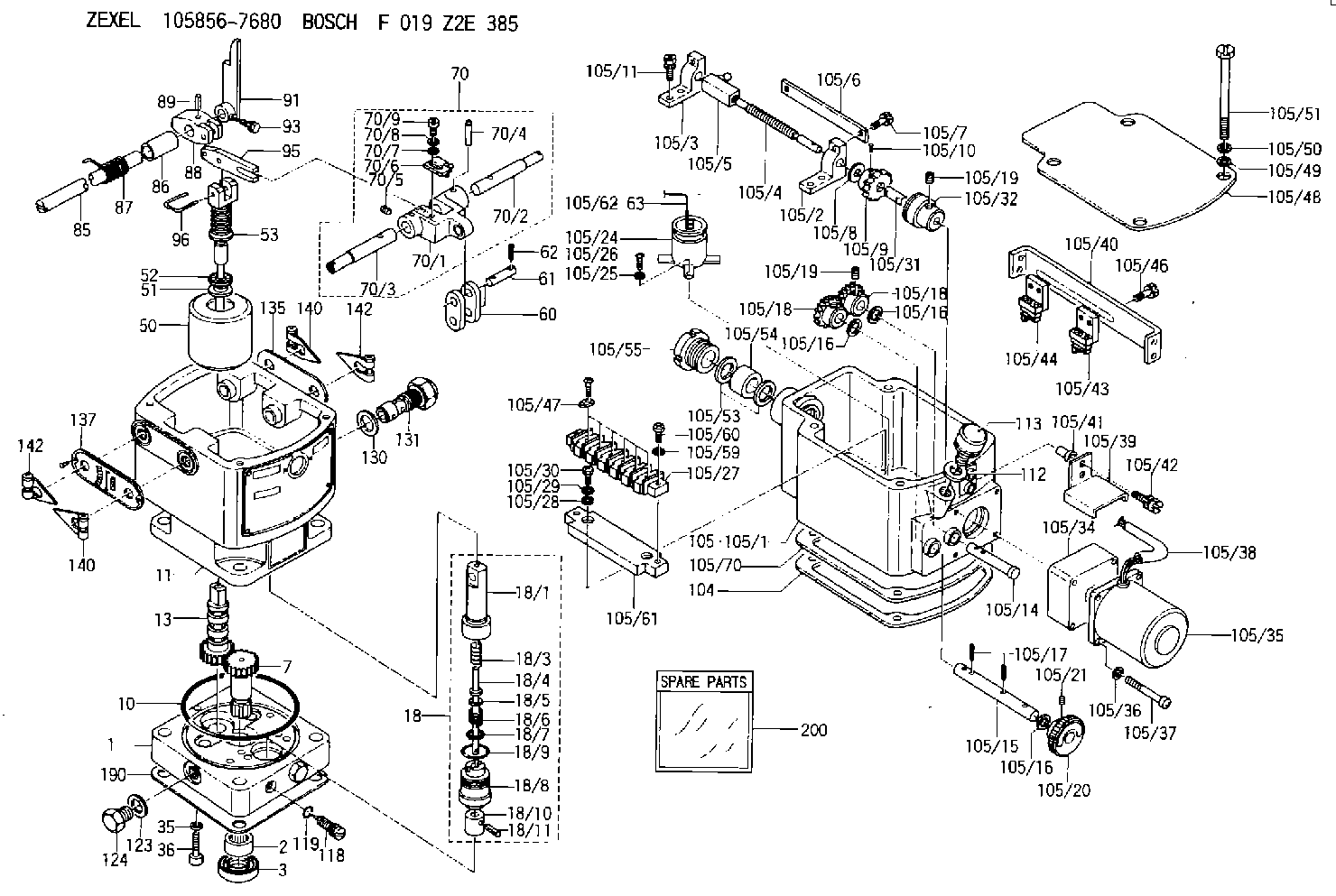

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1820	DIAPHRAGM HOUSING
13.	[1]	158621-0800	SLEEVE
18.	[1]	158699-0521	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-1000	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-1100	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0400	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-0720	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1220	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-1200	SPEED CONTROL SHAFT
86.	[1]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
91.	[1]	158712-2000	CONTROL LEVER
93.	[1]	029010-5210	BLEEDER SCREW
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158964-5421	GOVERNOR MOTOR ASSY
105/1.	[1]	158962-5210	CASE
105/2.	[1]	158903-0200	HOLDER
105/3.	[1]	158903-0300	HOLDER
105/4.	[1]	158903-0400	FLAT-HEAD SCREW
105/5.	[1]	158903-1720	ADJUSTER
105/6.	[2]	158903-0800	PLATE
105/7.	[4]	029010-6330	BLEEDER SCREW M6P1.0L13
105/8.	[1]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/9.	[1]	158904-0500	TOOTHED GEAR
105/10.	[1]	158590-0000	BEARING PIN
105/11.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
105/14.	[1]	158904-0300	LEVER SHAFT
105/15.	[1]	158904-0200	LEVER SHAFT
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/17.	[3]	015320-1540	SPLIT PIN
105/18.	[2]	158904-0400	TOOTHED GEAR
105/18.	[2]	158904-0400	TOOTHED GEAR
105/19.	[3]	011005-0820	SET OF NUTS
105/19.	[3]	011005-0820	SET OF NUTS
105/20.	[1]	158904-1920	ROUND NUT
105/21.	[1]	158916-0000	SET OF NUTS
105/24.	[1]	158908-3900	CONDENSER
105/25.	[2]	014110-3440	LOCKING WASHER
105/26.	[2]	012153-0840	FLAT-HEAD SCREW M3P0.5L8
105/27.	[1]	158906-1500	TERMINAL BOARD
105/28.	[2]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/29.	[2]	014110-4440	LOCKING WASHER
105/30.	[2]	012154-1040	FLAT-HEAD SCREW M4P0.7L10
105/31.	[1]	158902-0300	JOINT CONNECTION
105/32.	[1]	158902-0020	FRICTION COUPLING
105/34.	[1]	158908-2800	GEAR HEAD
105/35.	[1]	158908-4200	MOTOR
105/36.	[4]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/37.	[4]	158901-8100	FLAT-HEAD SCREW
105/38.	[1]	158901-9700	HOSE
105/39.	[1]	158901-8300	COVER
105/40.	[1]	158900-0300	BRACKET
105/41.	[3]	158900-0200	BUSHING
105/42.	[3]	029010-6350	BLEEDER SCREW M6P1.0L22
105/43.	[1]	158907-3820	LIMIT SWITCH
105/44.	[1]	158907-3720	LIMIT SWITCH
105/46.	[2]	020144-1240	BLEEDER SCREW
105/47.	[5]	158906-0801	TERMINAL
105/48.	[1]	158562-2600	COVER
105/49.	[4]	014020-6140	PLAIN WASHER
105/50.	[4]	014110-6440	LOCKING WASHER
105/51.	[4]	158909-0100	BLEEDER SCREW
105/53.	[2]	158901-2700	PLAIN WASHER
105/54.	[1]	158901-2800	PACKING
105/55.	[1]	158901-2600	GROUND
105/59.	[2]	014110-4440	LOCKING WASHER
105/60.	[2]	012154-1640	FLAT-HEAD SCREW
105/61.	[1]	158906-1600	SPACER BUSHING
105/62.	[1]	158901-2000	WIRE
105/63.	[1]	158901-1800	WIRE
105/70.	[1]	158563-1300	COVER
112.	[1]	026512-1640	GASKET D15.9&12.2T1
113.	[1]	155406-0220	AIR FILTER
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[2]	158820-0620	POINTER
140.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
190.	[1]	158017-1000	GASKET
200.	[1]	158599-0720	SPARE PART

Include in #2:

105856-7680 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-7680
105856-7681

F 019 Z2E 385

HYDRAULIC GOVERNOR
* K

Information:

6N1301 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)9N0018 Flywheel Group
9N2648 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)9N0676 Flywheel Group
9N2649 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)9N0678 Flywheel Group
4W6730 FlywheelMake reference to Flywheel Runout for correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)4P3740 Flywheel Group
4P4797 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)4P4795 Flywheel Group
4P4795 FlywheelMake reference to Flywheel Runout for correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)4P8170 Flywheel Group
4P8169 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N m (200 20 lb ft)(2) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)4W7370 Flywheel Group
4W7186 Flywheel AssemblyMake reference to Flywheel Runout for the correct method of flywheel inspection.(1) Maximum permissible temperature of the gear for installation on the flywheel (do not use a torch) ... 315°C (600°F)(2) Put 2P2506 Thread Lubricant on all bolt threads that hold flywheel to crankshaft and tighten to a torque of ... 270 25 N (200 20 lb ft)(3) Bore in bushing ... 52.007 0.013 mm (2.0475 .0005 in)(4) Diameter of bushing ... 72.022 0.015 mm (2.8355 .0006 in) Bore in flywheel ... 71.971
