105856-7451 ZEXEL F 019 Z1F 210 BOSCH HYDRAULIC GOVERNOR f019z1f210 1058567451

Information hydraulic governor

BOSCH F 019 Z1F 210 f019z1f210

ZEXEL 105856-7451 1058567451

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-7451 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-7451
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

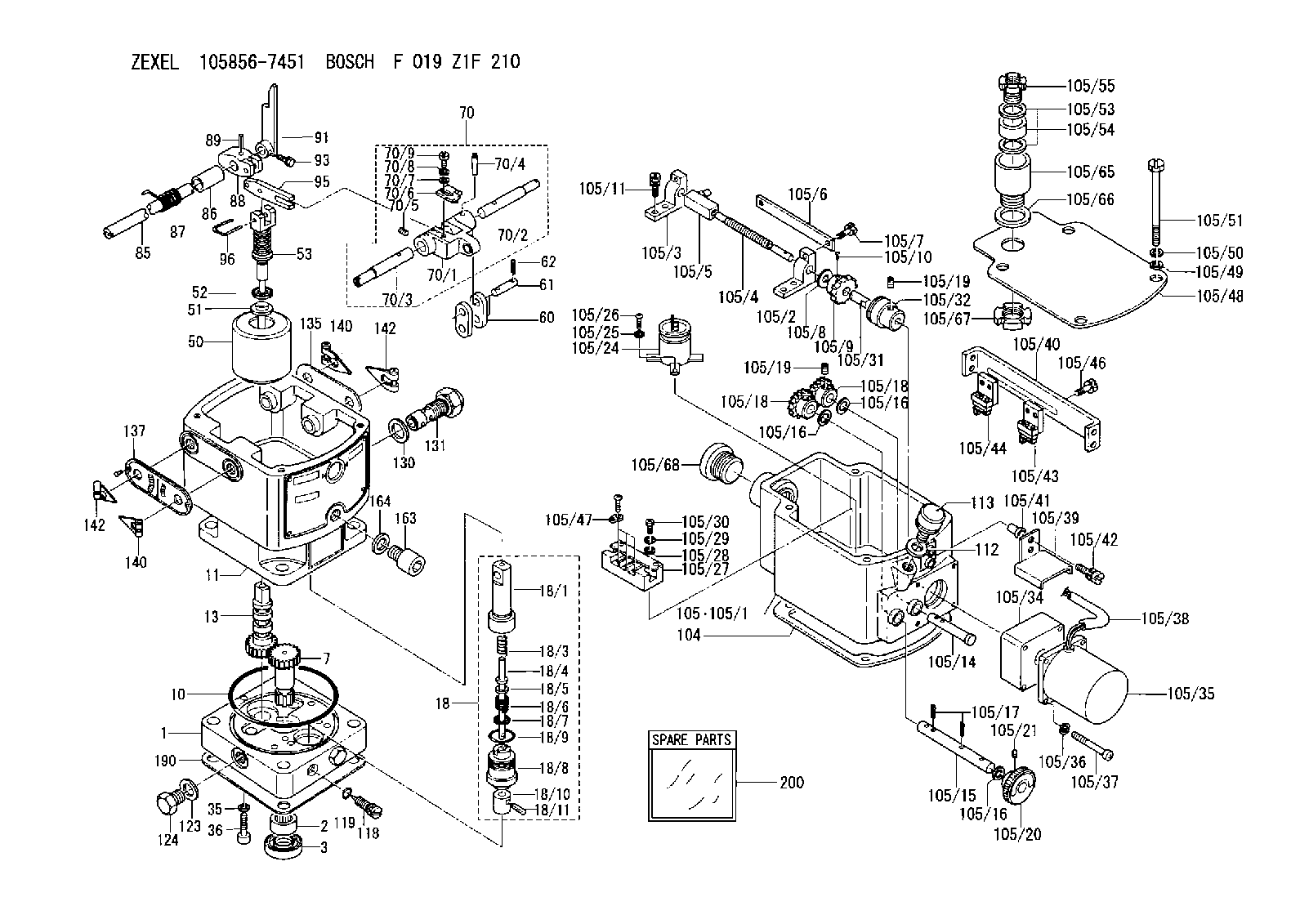

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1120	DIAPHRAGM HOUSING
13.	[1]	158621-0500	SLEEVE
18.	[1]	158699-0521	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-1000	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-1100	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0400	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-1020	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1220	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-1200	SPEED CONTROL SHAFT
86.	[1]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
91.	[1]	158712-2000	CONTROL LEVER
93.	[1]	029010-5210	BLEEDER SCREW
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158964-1521	GOVERNOR MOTOR ASSY
105/1.	[1]	158962-0410	CASE
105/2.	[1]	158903-0200	HOLDER
105/3.	[1]	158903-0300	HOLDER
105/4.	[1]	158903-0400	FLAT-HEAD SCREW
105/5.	[1]	158903-1720	ADJUSTER
105/6.	[2]	158903-0800	PLATE
105/7.	[4]	029010-6330	BLEEDER SCREW M6P1.0L13
105/8.	[1]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/9.	[1]	158904-0500	TOOTHED GEAR
105/10.	[1]	158590-0000	BEARING PIN
105/11.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
105/14.	[1]	158904-0300	LEVER SHAFT
105/15.	[1]	158904-0200	LEVER SHAFT
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/17.	[3]	015320-1540	SPLIT PIN
105/18.	[2]	158904-0400	TOOTHED GEAR
105/18.	[2]	158904-0400	TOOTHED GEAR
105/19.	[3]	011005-0820	SET OF NUTS
105/19.	[3]	011005-0820	SET OF NUTS
105/20.	[1]	158904-1920	ROUND NUT
105/21.	[1]	158916-0000	SET OF NUTS
105/24.	[1]	158908-3900	CONDENSER
105/25.	[2]	014110-3440	LOCKING WASHER
105/26.	[2]	012153-0840	FLAT-HEAD SCREW M3P0.5L8
105/27.	[1]	158906-0700	TERMINAL BOARD
105/28.	[2]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/29.	[2]	014110-4440	LOCKING WASHER
105/30.	[2]	012154-1640	FLAT-HEAD SCREW
105/31.	[1]	158902-0300	JOINT CONNECTION
105/32.	[1]	158902-0020	FRICTION COUPLING
105/34.	[1]	158908-5200	GEAR HEAD
105/35.	[1]	158908-5020	MOTOR
105/36.	[4]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/37.	[4]	158901-8100	FLAT-HEAD SCREW
105/38.	[1]	158901-2200	HOSE
105/39.	[1]	158901-8300	COVER
105/40.	[1]	158900-0300	BRACKET
105/41.	[3]	158900-0200	BUSHING
105/42.	[3]	029010-6350	BLEEDER SCREW M6P1.0L22
105/43.	[1]	158907-1820	LIMIT SWITCH
105/44.	[1]	158907-1720	LIMIT SWITCH
105/46.	[4]	020144-1240	BLEEDER SCREW
105/47.	[1]	158906-0801	TERMINAL
105/48.	[1]	158962-0300	COVER
105/49.	[4]	014020-6140	PLAIN WASHER
105/50.	[4]	014110-6440	LOCKING WASHER
105/51.	[4]	158909-0100	BLEEDER SCREW
105/53.	[2]	158401-7300	GASKET
105/54.	[1]	158401-7500	GASKET
105/55.	[1]	158401-7400	GROUND
105/65.	[1]	158901-6200	ADAPTOR
105/66.	[1]	158901-6300	GASKET
105/67.	[1]	158901-6400	UNION NUT
105/68.	[1]	158591-0000	CAPSULE
112.	[1]	026512-1640	GASKET D15.9&12.2T1
113.	[1]	155406-0220	AIR FILTER
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[2]	158820-0620	POINTER
140.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
163.	[1]	010210-1420	HEX-SOCKET-HEAD CAP SCREW
164.	[1]	026510-1340	GASKET D13.4&10.2T1
190.	[1]	158017-1000	GASKET
200.	[1]	158599-6720	SPARE PART

Include in #2:

105856-7451 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-7451
105856-7452

F 019 Z1F 210
RHD6-MCL

HYDRAULIC GOVERNOR
* K
