Information hydraulic governor
BOSCH
F 019 Z2E 312
f019z2e312
ZEXEL
105856-5260
1058565260
Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 105856-5260 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | |
10. | NOZZLE-HOLDER | |
11. | NOZZLE |

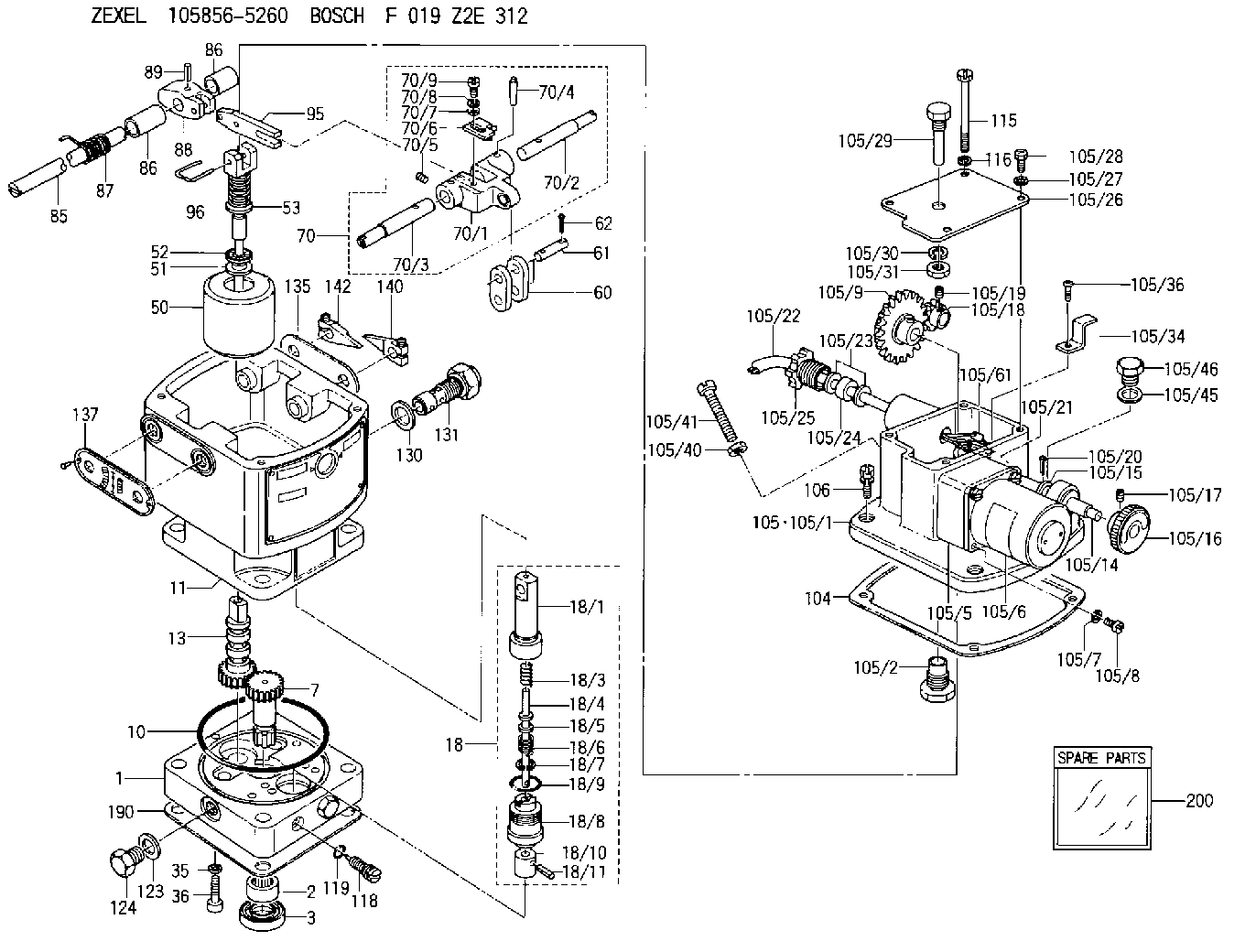

Scheme ###:
1. | [1] | 158502-0420 | BASE |
2. | [1] | 029811-8000 | BEARING PLATE |
3. | [1] | 158528-0900 | PACKING RING |
7. | [1] | 158131-0100 | GEAR SHAFT |
10. | [1] | 158028-0000 | O-RING |
11. | [1] | 158507-1820 | DIAPHRAGM HOUSING |
13. | [1] | 158621-0500 | SLEEVE |
18. | [1] | 158699-0321 | COMPENSATOR ASSY |
18/1. | [1] | 158610-0901 | POWER PISTON |
18/3. | [1] | 158654-0400 | COILED SPRING |
18/4. | [1] | 158614-0300 | STOP PIN |
18/5. | [1] | 158612-0500 | PLAIN WASHER |
18/6. | [1] | 158654-0500 | COILED SPRING |
18/7. | [1] | 016110-1220 | LOCKING WASHER |
18/8. | [1] | 158612-0001 | BUSHING |
18/9. | [2] | 158528-1300 | O-RING |
18/10. | [1] | 158615-0300 | PUMP PLUNGER |
18/11. | [1] | 025620-1410 | SPRING PIN |
35. | [3] | 029330-6070 | GASKET |
36. | [3] | 010206-2520 | HEX-SOCKET-HEAD CAP SCREW |
50. | [1] | 158600-0720 | FLYWEIGHT ASSEMBLY |
51. | [1] | 158106-0100 | PLAIN WASHER |
52. | [1] | 029811-0000 | BEARING PLATE |
53. | [1] | 158620-1120 | PILOT VALVE |
60. | [2] | 158220-0000 | GUIDE LEVER |
61. | [2] | 158736-0200 | BEARING PIN |
62. | [4] | 025520-1510 | SPLIT PIN |
70. | [1] | 158730-0220 | TERMINAL ARM |
70/1. | [1] | 158230-0020 | TERMINAL ARM |
70/2. | [1] | 158315-0200 | TERMINAL SHAFT |
70/3. | [1] | 158315-0200 | TERMINAL SHAFT |
70/4. | [2] | 158736-0100 | TAPER PIN |
70/5. | [2] | 011006-0620 | SET OF NUTS |
70/6. | [1] | 158214-0020 | SPEED DROOP ADJUSTER |
70/7. | [1] | 014020-5120 | PLAIN WASHER |
70/8. | [1] | 029320-5030 | TAB WASHER |
70/9. | [1] | 010535-1220 | FLAT-HEAD SCREW |
85. | [1] | 158814-0900 | SPEED CONTROL SHAFT |
86. | [2] | 158823-0300 | BUSHING |
86. | [2] | 158823-0300 | BUSHING |
87. | [1] | 158322-0200 | COILED SPRING |
88. | [1] | 158710-0400 | STRAP |
89. | [1] | 029404-5010 | BEARING PIN |
95. | [1] | 158211-0100 | STRAP |
96. | [2] | 158653-0100 | WIRE |
104. | [1] | 158017-0900 | GASKET |
105. | [1] | 158964-4520 | GOVERNOR MOTOR ASSY |
105/1. | [1] | 158962-5110 | CASE |
105/2. | [1] | 158903-1920 | SCREW |
105/5. | [1] | 158908-2900 | GEAR HEAD |
105/6. | [1] | 158901-7200 | MOTOR |
105/7. | [4] | 014020-4140 | PLAIN WASHER D8&4.5T0.5 |
105/8. | [4] | 158901-8100 | FLAT-HEAD SCREW |
105/9. | [1] | 158402-3020 | FRICTION COUPLING |
105/14. | [1] | 158404-1000 | LEVER SHAFT |
105/15. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
105/16. | [1] | 158904-1120 | ROUND NUT |
105/17. | [1] | 158916-0000 | SET OF NUTS |
105/18. | [1] | 158404-1100 | TOOTHED GEAR |
105/19. | [2] | 011005-0820 | SET OF NUTS |
105/20. | [2] | 015320-1540 | SPLIT PIN |
105/21. | [1] | 158401-6400 | HOSE |
105/22. | [1] | 158401-5000 | WIRE |
105/23. | [2] | 158401-7300 | GASKET |
105/24. | [1] | 158401-7500 | GASKET |
105/25. | [1] | 158401-7400 | GROUND |
105/26. | [1] | 158962-6100 | COVER |
105/27. | [3] | 014110-5440 | LOCKING WASHER |
105/28. | [3] | 012155-1240 | FLAT-HEAD SCREW M5P0.8L12 |
105/29. | [1] | 158905-0000 | FILLER PIECE |
105/30. | [1] | 014110-8440 | LOCKING WASHER |
105/31. | [1] | 013020-8140 | UNION NUT M8P1.25H6.5 |
105/34. | [1] | 158906-1400 | CLAMP |
105/36. | [1] | 012154-0840 | FLAT-HEAD SCREW M4P0.7L8 |
105/37. | [1] | 014110-4440 | LOCKING WASHER |
105/40. | [1] | 013020-6040 | UNION NUT M6P1H5 |
105/41. | [1] | 158067-0100 | SET OF NUTS |
105/45. | [1] | 026512-1640 | GASKET D15.9&12.2T1 |
105/46. | [1] | 029111-2070 | CAPSULE M12P1.5L10 |
105/61. | [2] | 158950-0100 | TERMINAL |
106. | [3] | 029010-6350 | BLEEDER SCREW M6P1.0L22 |
115. | [1] | 029050-6310 | BLEEDER SCREW |
116. | [1] | 014110-6440 | LOCKING WASHER |
118. | [1] | 158027-0100 | NEEDLE VALVE |
119. | [1] | 016500-0710 | O-RING |
123. | [2] | 026512-1640 | GASKET D15.9&12.2T1 |
124. | [2] | 029111-2070 | CAPSULE M12P1.5L10 |
130. | [1] | 029331-8040 | GASKET |
131. | [1] | 158660-0020 | CONTROL VALVE |
135. | [1] | 158515-0700 | INDICATOR PLATE |
137. | [1] | 158515-0800 | INDICATOR PLATE |
140. | [1] | 158820-0620 | POINTER |
142. | [1] | 158820-0620 | POINTER |
190. | [1] | 158017-1000 | GASKET |
200. | [1] | 158599-2520 | SPARE PART |
Include in #2:
105856-5260
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
4. Put clean engine oil on the O-ring seal, and assemble elbow (4) to drain tube (5).5. Put the gaskets in position on the block and on the turbocharger, and install the drain tube assembly. 6. Put a gasket in position between oil supply tube (6) and the turbocharger. Install oil supply tube (6).Disassemble Turbocharger (TV72 & TV78)
START BY:a. remove turbocharger (TV72 & TV78) 1. Install the turbocharger in tool group (A). Put alignment marks on the three housings of the turbocharger for correct installation and alignment at assembly. Remove "V" clamp (2) and compressor housing (1). 2. Remove "V" clamp (3). Remove cartridge housing (5) from turbine housing (4).
When the nut is loosened, do not put a side force on the shaft. This can result in a bent shaft.
3. Install tool (C) in tool (B), and put the cartridge assembly in tool (C) as shown. Use tool (D) to remove the nut that holds compressor wheel (6). 4. Put the cartridge assembly in tool (E), and use a press (if necessary) to remove compressor wheel (6) from the turbine wheel and shaft assembly. Do not let the turbine wheel and shaft assembly fall during removal of the compressor wheel from the turbine wheel and shaft. 5. Remove seal ring (7) and shroud (8) from turbine wheel and shaft assembly (9). 6. Bend the tabs of the locks from bolts (10), and remove the bolts and locks.7. Remove backplate assembly (11) from the cartridge housing. 8. Remove spacer (12) from backplate assembly (11). Remove seal rings (13) from spacer (12). 9. Remove collar (14), thrust bearing (15) and O-ring seal (16) from the cartridge housing. 10. Remove top bearing (17) and the washer from the cartridge housing. Put a long dye mark on the top face of bearing (17).11. Use tool (F), and remove the two rings that hold the top and bottom bearings in position. Remove the bottom bearing and washer. Put a short dye mark on the bearing. The dye marks are used for identification of the bearings when they are installed.12. Use tool (F), and remove the last ring that holds the bottom bearing in position from the cartridge housing.13. Check all the parts of the turbocharger for damage. If the parts are damaged, use new parts for replacement. See Special Instruction Form No. SMHS6854 for Turbocharger Reconditioning. Also see Guidelines For Reuseable Parts, Form No. SEBF8018.Assemble Turbocharger (TV72 & TV78)
1. Make sure that all of the oil passages in the turbocharger cartridge housing are clean and free of dirt and foreign material.2. Put clean engine oil on all parts of the cartridge assembly.
Rings (1), (4) and (5) must be installed with the round edge of the outside diameter of the rings toward the bearings.
3. Install ring (4) in the cartridge
START BY:a. remove turbocharger (TV72 & TV78) 1. Install the turbocharger in tool group (A). Put alignment marks on the three housings of the turbocharger for correct installation and alignment at assembly. Remove "V" clamp (2) and compressor housing (1). 2. Remove "V" clamp (3). Remove cartridge housing (5) from turbine housing (4).
When the nut is loosened, do not put a side force on the shaft. This can result in a bent shaft.
3. Install tool (C) in tool (B), and put the cartridge assembly in tool (C) as shown. Use tool (D) to remove the nut that holds compressor wheel (6). 4. Put the cartridge assembly in tool (E), and use a press (if necessary) to remove compressor wheel (6) from the turbine wheel and shaft assembly. Do not let the turbine wheel and shaft assembly fall during removal of the compressor wheel from the turbine wheel and shaft. 5. Remove seal ring (7) and shroud (8) from turbine wheel and shaft assembly (9). 6. Bend the tabs of the locks from bolts (10), and remove the bolts and locks.7. Remove backplate assembly (11) from the cartridge housing. 8. Remove spacer (12) from backplate assembly (11). Remove seal rings (13) from spacer (12). 9. Remove collar (14), thrust bearing (15) and O-ring seal (16) from the cartridge housing. 10. Remove top bearing (17) and the washer from the cartridge housing. Put a long dye mark on the top face of bearing (17).11. Use tool (F), and remove the two rings that hold the top and bottom bearings in position. Remove the bottom bearing and washer. Put a short dye mark on the bearing. The dye marks are used for identification of the bearings when they are installed.12. Use tool (F), and remove the last ring that holds the bottom bearing in position from the cartridge housing.13. Check all the parts of the turbocharger for damage. If the parts are damaged, use new parts for replacement. See Special Instruction Form No. SMHS6854 for Turbocharger Reconditioning. Also see Guidelines For Reuseable Parts, Form No. SEBF8018.Assemble Turbocharger (TV72 & TV78)
1. Make sure that all of the oil passages in the turbocharger cartridge housing are clean and free of dirt and foreign material.2. Put clean engine oil on all parts of the cartridge assembly.
Rings (1), (4) and (5) must be installed with the round edge of the outside diameter of the rings toward the bearings.
3. Install ring (4) in the cartridge
