105856-5070 ZEXEL F 019 Z2E 296 BOSCH HYDRAULIC GOVERNOR f019z2e296 1058565070




Information hydraulic governor

BOSCH F 019 Z2E 296 f019z2e296
ZEXEL 105856-5070 1058565070
105856-5070 HYDRAULIC GOVERNOR
Rating:
61
Buy HYDRAULIC GOVERNOR 105856-5070 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 105856-5070
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

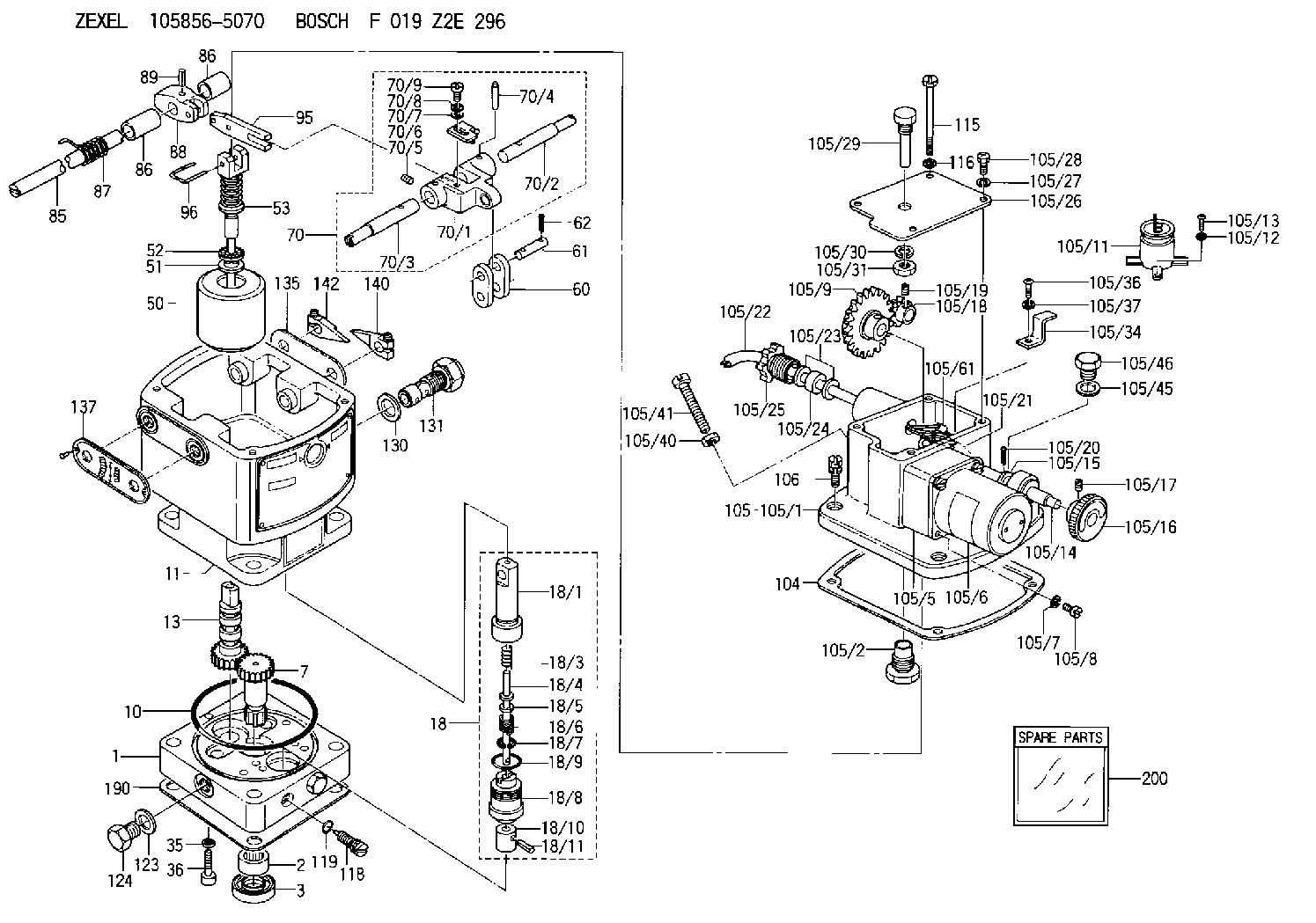

Scheme ###:

1. [1] 158502-0420 BASE
2. [1] 029811-8000 BEARING PLATE
3. [1] 158528-0900 PACKING RING
7. [1] 158131-0100 GEAR SHAFT
10. [1] 158028-0000 O-RING
11. [1] 158507-1820 DIAPHRAGM HOUSING
13. [1] 158621-0500 SLEEVE
18. [1] 158699-0321 COMPENSATOR ASSY
18/1. [1] 158610-0901 POWER PISTON
18/3. [1] 158654-0400 COILED SPRING
18/4. [1] 158614-0300 STOP PIN
18/5. [1] 158612-0500 PLAIN WASHER
18/6. [1] 158654-0500 COILED SPRING
18/7. [1] 016110-1220 LOCKING WASHER
18/8. [1] 158612-0001 BUSHING
18/9. [2] 158528-1300 O-RING
18/10. [1] 158615-0300 PUMP PLUNGER
18/11. [1] 025620-1410 SPRING PIN
35. [3] 029330-6070 GASKET
36. [3] 010206-2520 HEX-SOCKET-HEAD CAP SCREW
50. [1] 158600-0720 FLYWEIGHT ASSEMBLY
51. [1] 158106-0100 PLAIN WASHER
52. [1] 029811-0000 BEARING PLATE
53. [1] 158620-1120 PILOT VALVE
60. [2] 158220-0000 GUIDE LEVER
61. [2] 158736-0200 BEARING PIN
62. [4] 025520-1510 SPLIT PIN
70. [1] 158730-0220 TERMINAL ARM
70/1. [1] 158230-0020 TERMINAL ARM
70/2. [1] 158315-0200 TERMINAL SHAFT
70/3. [1] 158315-0200 TERMINAL SHAFT
70/4. [2] 158736-0100 TAPER PIN
70/5. [2] 011006-0620 SET OF NUTS
70/6. [1] 158214-0020 SPEED DROOP ADJUSTER
70/7. [1] 014020-5120 PLAIN WASHER
70/8. [1] 029320-5030 TAB WASHER
70/9. [1] 010535-1220 FLAT-HEAD SCREW
85. [1] 158814-0900 SPEED CONTROL SHAFT
86. [2] 158823-0300 BUSHING
86. [2] 158823-0300 BUSHING
87. [1] 158322-0200 COILED SPRING
88. [1] 158710-0400 STRAP
89. [1] 029404-5010 BEARING PIN
95. [1] 158211-0100 STRAP
96. [2] 158653-0100 WIRE
104. [1] 158017-0900 GASKET
105. [1] 158963-4320 GOVERNOR MOTOR ASSY
105/1. [1] 158962-5110 CASE
105/2. [1] 158903-1920 SCREW
105/5. [1] 158908-3200 GEAR HEAD
105/6. [1] 158908-4200 MOTOR
105/7. [4] 014020-4140 PLAIN WASHER D8&4.5T0.5
105/8. [4] 158901-8100 FLAT-HEAD SCREW
105/9. [1] 158402-3020 FRICTION COUPLING
105/11. [1] 158908-3900 CONDENSER
105/12. [2] 014110-3440 LOCKING WASHER
105/13. [2] 012153-0840 FLAT-HEAD SCREW M3P0.5L8
105/14. [1] 158404-1000 LEVER SHAFT
105/15. [2] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [1] 158904-1920 ROUND NUT
105/17. [1] 158916-0000 SET OF NUTS
105/18. [1] 158404-1100 TOOTHED GEAR
105/19. [2] 011005-0820 SET OF NUTS
105/20. [2] 015320-1540 SPLIT PIN
105/21. [1] 158401-6400 HOSE
105/22. [1] 158401-5000 WIRE
105/23. [2] 158401-7300 GASKET
105/24. [1] 158401-7500 GASKET
105/25. [1] 158401-7400 GROUND
105/26. [1] 158962-6100 COVER
105/27. [3] 014110-5440 LOCKING WASHER
105/28. [3] 012155-1240 FLAT-HEAD SCREW M5P0.8L12
105/29. [1] 158905-0000 FILLER PIECE
105/30. [1] 014110-8440 LOCKING WASHER
105/31. [1] 013020-8140 UNION NUT M8P1.25H6.5
105/34. [1] 158906-1800 CLAMP
105/36. [1] 012154-1040 FLAT-HEAD SCREW M4P0.7L10
105/37. [1] 014110-4440 LOCKING WASHER
105/40. [1] 013020-6040 UNION NUT M6P1H5
105/41. [1] 158067-0100 SET OF NUTS
105/45. [1] 026512-1640 GASKET D15.9&12.2T1
105/46. [1] 029111-2070 CAPSULE M12P1.5L10
105/61. [1] 158950-0100 TERMINAL
105/120. [1] 158908-5100 CABLE TIE
106. [3] 029010-6350 BLEEDER SCREW M6P1.0L22
115. [1] 029050-6310 BLEEDER SCREW
116. [1] 014110-6440 LOCKING WASHER
118. [1] 158027-0100 NEEDLE VALVE
119. [1] 016500-0710 O-RING
123. [2] 026512-1640 GASKET D15.9&12.2T1
124. [2] 029111-2070 CAPSULE M12P1.5L10
130. [1] 029331-8040 GASKET
131. [1] 158660-0020 CONTROL VALVE
135. [1] 158515-0700 INDICATOR PLATE
137. [1] 158515-0800 INDICATOR PLATE
140. [1] 158820-0620 POINTER
142. [1] 158820-0620 POINTER
190. [1] 158017-1000 GASKET
200. [1] 158599-6720 SPARE PART

Include in #2:

105856-5070 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
105856-5070
105856-5071
F 019 Z2E 296

HYDRAULIC GOVERNOR
* K
