105856-4591 ZEXEL F 019 Z1F 175 BOSCH HYDRAULIC GOVERNOR f019z1f175 1058564591

Information hydraulic governor

BOSCH F 019 Z1F 175 f019z1f175

ZEXEL 105856-4591 1058564591

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-4591 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-4591
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

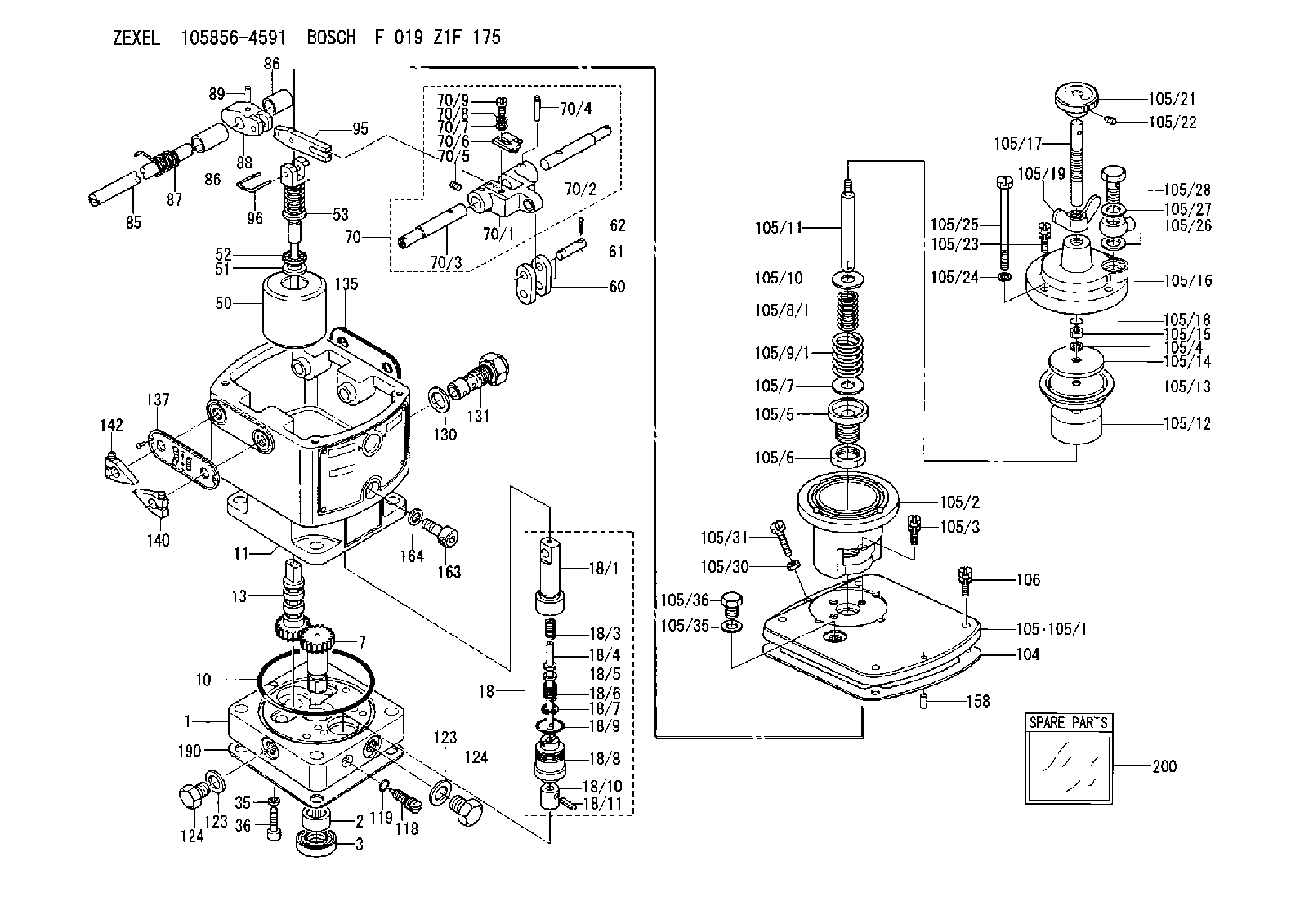

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1120	DIAPHRAGM HOUSING
13.	[1]	158621-0500	SLEEVE
18.	[1]	158699-0521	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-1000	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-1100	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0400	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-1020	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1220	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-0900	SPEED CONTROL SHAFT
86.	[2]	158823-0300	BUSHING
86.	[2]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158964-3420	PNEUMATIC CONTROLLER
105/1.	[1]	158562-4600	COVER
105/2.	[1]	158910-0200	CYLINDER
105/3.	[3]	029050-6090	FLAT-HEAD SCREW
105/4.	[1]	014110-6440	LOCKING WASHER
105/5.	[1]	158416-0000	FLAT-HEAD SCREW
105/6.	[1]	158915-0700	UNION NUT
105/7.	[1]	158918-0000	PLAIN WASHER D30&10.8T1.00
105/8/1.	[1]	158412-0100	COILED SPRING K1.0
105/8/1.	[1]	158412-0200	COILED SPRING K2.0
105/8/1.	[1]	158412-0300	COILED SPRING K3.0
105/8/1.	[1]	158412-0400	COILED SPRING K4.0
105/8/1.	[1]	158412-0500	COILED SPRING K5.0
105/8/1.	[1]	158912-1800	COILED SPRING K3.4
105/8/1.	[1]	158912-1900	COILED SPRING K2.5
105/8/1.	[1]	158912-3300	COILED SPRING K4.5
105/9/1.	[1]	158412-0000	COILED SPRING K7.0
105/9/1.	[1]	158912-0500	COILED SPRING K4.9
105/9/1.	[1]	158912-0600	COILED SPRING K5.1
105/9/1.	[1]	158912-0700	COILED SPRING K5.2
105/9/1.	[1]	158912-1100	COILED SPRING K4.8
105/9/1.	[1]	158912-1200	COILED SPRING K5.4
105/9/1.	[1]	158912-2300	COILED SPRING K6.8
105/9/1.	[1]	158912-2400	COILED SPRING K7.0
105/9/1.	[1]	158912-2500	COILED SPRING K7.3
105/9/1.	[1]	158912-2600	COILED SPRING K7.4
105/10.	[1]	158918-0000	PLAIN WASHER D30&10.8T1.00
105/11.	[1]	158413-0001	STOP PIN
105/12.	[1]	158414-0000	PUMP PLUNGER
105/13.	[1]	158414-0100	DIAPHRAGM
105/14.	[1]	158414-0200	PLATE
105/15.	[1]	013020-6040	UNION NUT M6P1H5
105/16.	[1]	158910-0300	CAP
105/17.	[1]	158915-1000	FLAT-HEAD SCREW
105/18.	[1]	029630-9050	O-RING
105/19.	[1]	158567-1500	WING NUT
105/21.	[1]	158904-2020	ROUND NUT
105/22.	[1]	158916-0000	SET OF NUTS
105/23.	[2]	029050-6220	FLAT-HEAD SCREW
105/24.	[2]	029320-6010	LOCKING WASHER
105/25.	[2]	158909-0200	BLEEDER SCREW
105/26.	[1]	027114-1040	INLET UNION
105/27.	[2]	029331-4120	GASKET D18&14.2T1.5
105/28.	[1]	027414-2640	EYE BOLT
105/30.	[1]	013020-6040	UNION NUT M6P1H5
105/31.	[1]	158567-1200	SET OF NUTS
105/35.	[1]	026512-1640	GASKET D15.9&12.2T1
105/36.	[1]	158066-0000	BLEEDER SCREW
106.	[4]	029010-6350	BLEEDER SCREW M6P1.0L22
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[1]	158820-0620	POINTER
142.	[1]	158820-0620	POINTER
158.	[1]	015040-0880	BEARING PIN
163.	[1]	010210-1420	HEX-SOCKET-HEAD CAP SCREW
164.	[1]	026510-1340	GASKET D13.4&10.2T1
190.	[1]	158017-1000	GASKET
200.	[1]	158599-6920	SPARE PART

Include in #2:

105856-4591 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-4591

F 019 Z1F 175
RHD6-PC

HYDRAULIC GOVERNOR
* K

Information:

Above Normal Heating
Recommended Procedure
1. Low Coolant Level ... If the coolant level is too low, not enough coolant will go through the engine and radiator. This lack of coolant will not take enough heat from the engine and there will not be enough flow of coolant through the radiator to release the heat into the cooling air. Low coolant level is caused by leaks or wrong filling of the radiator. With the engine cool, be sure that coolant can be seen at the low end of the fill neck on the radiator top tank.2. Bad Temperature Gauge ... A temperature gauge which does not work correctly will not show the correct temperature. If the temperature gauge shows that the coolant temperature is too hot but other conditions are normal, either install a gauge you know is good or check the cooling system with the 8T0470 Thermistor Thermometer Group.3. Dirty Radiator ... Check the radiator for debris between the fins of the radiator core which prevents free air flow through the radiator core. Check the radiator for debris, dirt, or deposits on the inside of the radiator core which prevents free flow of coolant through the radiator.4. Loose Belt(s) ... Loose fan belts will cause a reduction in air flow. Tighten the belts according to V-Belt Tension Chart that is shown in Specification section of this Service Manual.5. Bad Hose(s) ... Bad hoses with leaks can normally be seen. Hoses that have no visual leaks can "collapse" (pull together) during operation and cause a restriction in the flow of coolant. Hoses become soft and/or get cracks after a period of time. Hoses must be changed after 50,000 miles or a year of use. The inside of a hose can deterioriate, and the loose particles of the hose can cause a restriction in the flow of coolant.6. Shunt Line Restriction ... A restriction of the shunt line from the radiator top tank to the engine water pump inlet, or a shunt line not installed correctly, will cause a reduction in water pump efficiency. The result will be low coolant flow and overheating.7. Shutters Not Opening Correctly ... Check the opening temperature of the shutters. The shutters must be completely closed at a temperature below the fully open temperature of the water temperature regulators.8. Bad Water Temperature Regulator(s) ... A regulator that does not open, or only opens part of the way, can cause above normal heating. To test the thermostats, see the Testing and Adjusting section of this Service Manual.9. Bad Water Pump ... A water pump with a loose or damaged impeller does not pump enough coolant for correct engine cooling. Remove the water pump and check for damage to the impeller. If the impeller has no damage, check the impeller clearance. The clearance between the impeller and the housing is 0.28 to 0.84 mm (.011 to .033 in).10. Air in Cooling System ... Air can get into the cooling system in different ways. The most common causes
