105856-4590 ZEXEL F 019 Z2E 285 BOSCH HYDRAULIC GOVERNOR f019z2e285 1058564590 qgdk313030fz

Information hydraulic governor

BOSCH F 019 Z2E 285 f019z2e285

ZEXEL 105856-4590 1058564590

DAIHATSU QGDK313030FZ qgdk313030fz

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-4590 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-4590
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

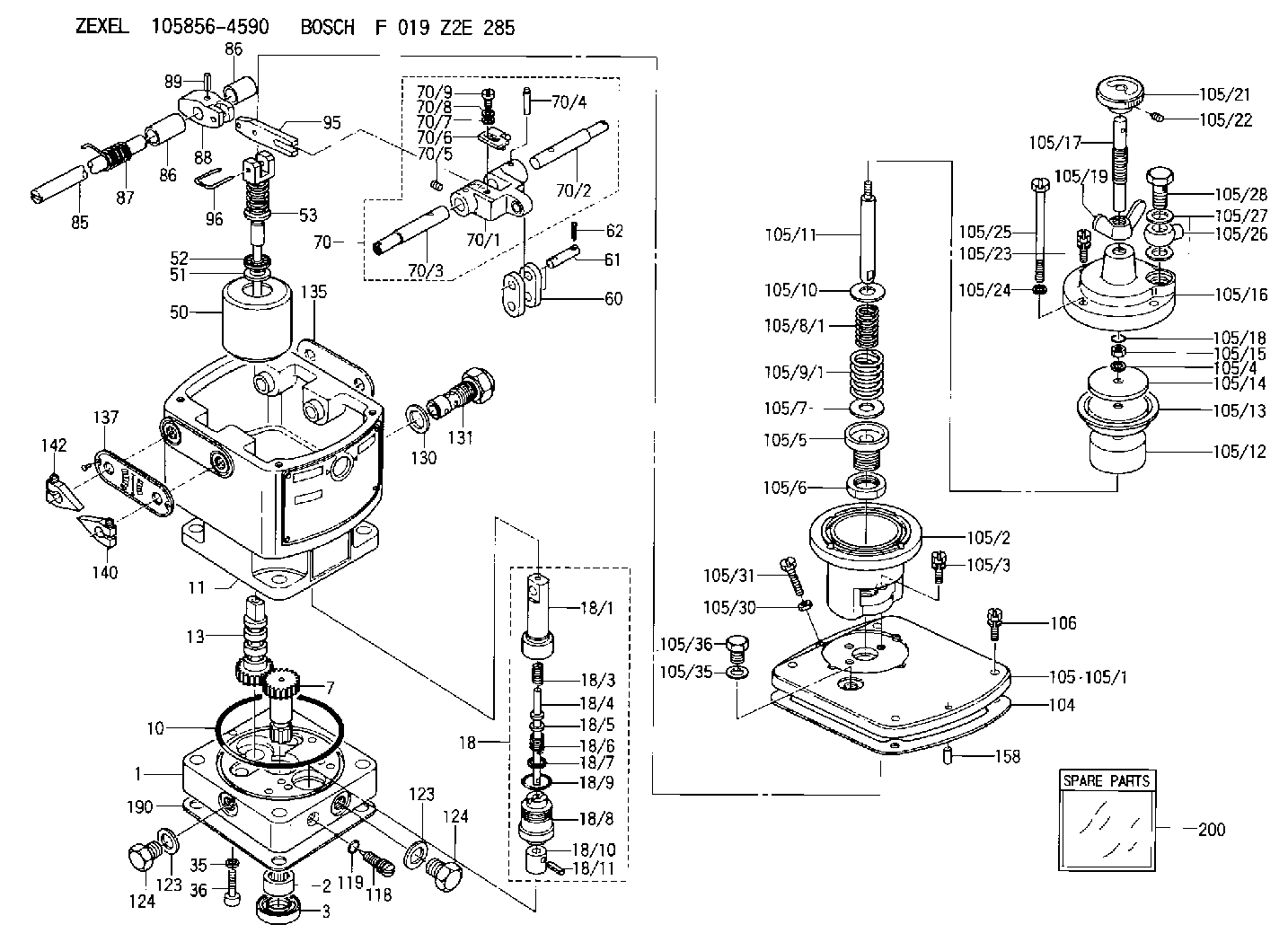

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1820	DIAPHRAGM HOUSING
13.	[1]	158621-0500	SLEEVE
18.	[1]	158699-0521	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-1000	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-1100	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0400	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-1020	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1220	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-0900	SPEED CONTROL SHAFT
86.	[2]	158823-0300	BUSHING
86.	[2]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158964-3420	PNEUMATIC CONTROLLER
105/1.	[1]	158562-4600	COVER
105/2.	[1]	158910-0200	CYLINDER
105/3.	[3]	029050-6090	FLAT-HEAD SCREW
105/4.	[1]	014110-6440	LOCKING WASHER
105/5.	[1]	158416-0000	FLAT-HEAD SCREW
105/6.	[1]	158915-0700	UNION NUT
105/7.	[1]	158918-0000	PLAIN WASHER D30&10.8T1.00
105/8/1.	[1]	158412-0100	COILED SPRING K1.0
105/8/1.	[1]	158412-0200	COILED SPRING K2.0
105/8/1.	[1]	158412-0300	COILED SPRING K3.0
105/8/1.	[1]	158412-0400	COILED SPRING K4.0
105/8/1.	[1]	158412-0500	COILED SPRING K5.0
105/8/1.	[1]	158912-1800	COILED SPRING K3.4
105/8/1.	[1]	158912-1900	COILED SPRING K2.5
105/8/1.	[1]	158912-3300	COILED SPRING K4.5
105/9/1.	[1]	158412-0000	COILED SPRING K7.0
105/9/1.	[1]	158912-0500	COILED SPRING K4.9
105/9/1.	[1]	158912-0600	COILED SPRING K5.1
105/9/1.	[1]	158912-0700	COILED SPRING K5.2
105/9/1.	[1]	158912-1100	COILED SPRING K4.8
105/9/1.	[1]	158912-1200	COILED SPRING K5.4
105/9/1.	[1]	158912-2300	COILED SPRING K6.8
105/9/1.	[1]	158912-2400	COILED SPRING K7.0
105/9/1.	[1]	158912-2500	COILED SPRING K7.3
105/9/1.	[1]	158912-2600	COILED SPRING K7.4
105/10.	[1]	158918-0000	PLAIN WASHER D30&10.8T1.00
105/11.	[1]	158413-0001	STOP PIN
105/12.	[1]	158414-0000	PUMP PLUNGER
105/13.	[1]	158414-0100	DIAPHRAGM
105/14.	[1]	158414-0200	PLATE
105/15.	[1]	013020-6040	UNION NUT M6P1H5
105/16.	[1]	158910-0300	CAP
105/17.	[1]	158915-1000	FLAT-HEAD SCREW
105/18.	[1]	029630-9050	O-RING
105/19.	[1]	158567-1500	WING NUT
105/21.	[1]	158904-2020	ROUND NUT
105/22.	[1]	158916-0000	SET OF NUTS
105/23.	[2]	029050-6220	FLAT-HEAD SCREW
105/24.	[2]	029320-6010	LOCKING WASHER
105/25.	[2]	158909-0200	BLEEDER SCREW
105/26.	[1]	027114-1040	INLET UNION
105/27.	[2]	029331-4120	GASKET D18&14.2T1.5
105/28.	[1]	027414-2640	EYE BOLT
105/30.	[1]	013020-6040	UNION NUT M6P1H5
105/31.	[1]	158567-1200	SET OF NUTS
105/35.	[1]	026512-1640	GASKET D15.9&12.2T1
105/36.	[1]	158066-0000	BLEEDER SCREW
106.	[4]	029010-6350	BLEEDER SCREW M6P1.0L22
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[1]	158820-0620	POINTER
142.	[1]	158820-0620	POINTER
158.	[1]	015040-0880	BEARING PIN
190.	[1]	158017-1000	GASKET
200.	[1]	158599-6920	SPARE PART

Include in #2:

105856-4590 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-4590
105856-4591

F 019 Z2E 285

QGDK313030FZ DAIHATSU

HYDRAULIC GOVERNOR
* K

Information:

Engine Crankshaft Will Not Turn
Recommended Procedure
1. Low or No Battery Voltage ... Check battery voltage. If battery voltage is less than 8 volts for a 12 volt system, or 16 volts for a 24 volt system, put a charge to the battery. If battery will not hold a charge, load test the battery as shown in the Electrical System of the Testing and Adjusting section of this Service Manual.2. Bad Switch, Bad Wiring or Connection in Switch Circuit ... With ignition switch in START position, check voltage at switch connection on starter solenoid. If there is no voltage, or if the voltage is low at this connection, check wiring, connections, ignition switch, and magnetic switch (if used).3. Bad Cable or Connection; Battery to Starter ... With ignition switch in the START position, check voltage at connection of battery cable to starter. If there is no voltage, or if the voltage is low at
