105856-4550 ZEXEL F 019 Z2E 281 BOSCH HYDRAULIC GOVERNOR f019z2e281 1058564550 871676a5




Information hydraulic governor

BOSCH F 019 Z2E 281 f019z2e281
ZEXEL 105856-4550 1058564550
MATSUI-IRON 871676A5 871676a5
105856-4550 HYDRAULIC GOVERNOR
Rating:
13
Buy HYDRAULIC GOVERNOR 105856-4550 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 105856-4550
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

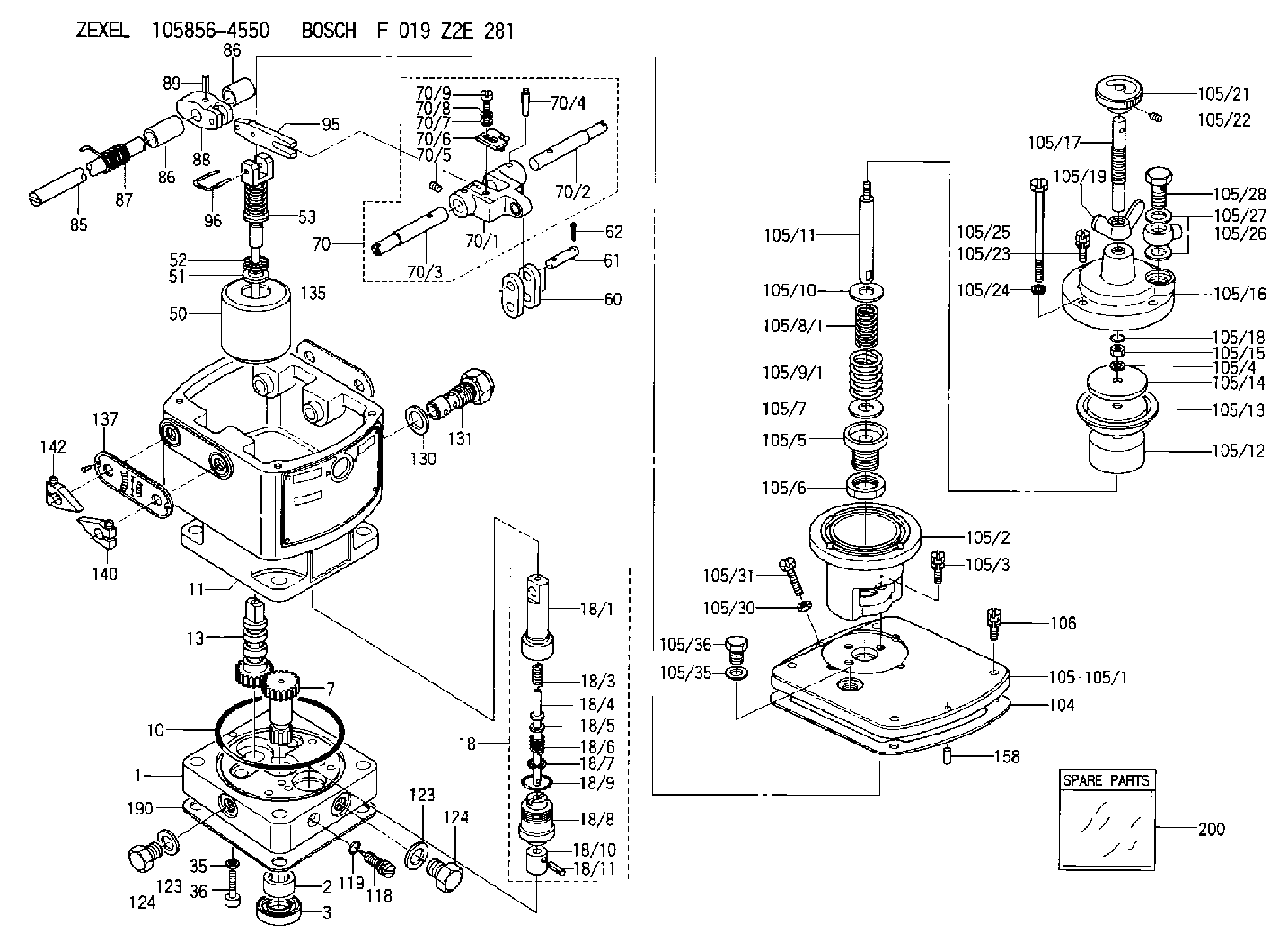

Scheme ###:

1. [1] 158502-0420 BASE
2. [1] 029811-8000 BEARING PLATE
3. [1] 158528-0900 PACKING RING
7. [1] 158131-0100 GEAR SHAFT
10. [1] 158028-0000 O-RING
11. [1] 158507-1820 DIAPHRAGM HOUSING
13. [1] 158621-0600 SLIDING PIECE
18. [1] 158699-0321 COMPENSATOR ASSY
18/1. [1] 158610-0901 POWER PISTON
18/3. [1] 158654-0400 COILED SPRING
18/4. [1] 158614-0300 STOP PIN
18/5. [1] 158612-0500 PLAIN WASHER
18/6. [1] 158654-0500 COILED SPRING
18/7. [1] 016110-1220 LOCKING WASHER
18/8. [1] 158612-0001 BUSHING
18/9. [2] 158528-1300 O-RING
18/10. [1] 158615-0300 PUMP PLUNGER
18/11. [1] 025620-1410 SPRING PIN
35. [3] 029330-6070 GASKET
36. [3] 010206-2520 HEX-SOCKET-HEAD CAP SCREW
50. [1] 158600-0720 FLYWEIGHT ASSEMBLY
51. [1] 158106-0100 PLAIN WASHER
52. [1] 029811-0000 BEARING PLATE
53. [1] 158620-1220 PILOT VALVE
60. [2] 158220-0000 GUIDE LEVER
61. [2] 158736-0200 BEARING PIN
62. [4] 025520-1510 SPLIT PIN
70. [1] 158730-0220 TERMINAL ARM
70/1. [1] 158230-0020 TERMINAL ARM
70/2. [1] 158315-0200 TERMINAL SHAFT
70/3. [1] 158315-0200 TERMINAL SHAFT
70/4. [2] 158736-0100 TAPER PIN
70/5. [2] 011006-0620 SET OF NUTS
70/6. [1] 158214-0020 SPEED DROOP ADJUSTER
70/7. [1] 014020-5120 PLAIN WASHER
70/8. [1] 029320-5030 TAB WASHER
70/9. [1] 010535-1220 FLAT-HEAD SCREW
85. [1] 158814-0900 SPEED CONTROL SHAFT
86. [2] 158823-0300 BUSHING
86. [2] 158823-0300 BUSHING
87. [1] 158322-0200 COILED SPRING
88. [1] 158710-0400 STRAP
89. [1] 029404-5010 BEARING PIN
95. [1] 158211-0100 STRAP
96. [2] 158653-0100 WIRE
104. [1] 158017-0900 GASKET
105. [1] 158964-3420 PNEUMATIC CONTROLLER
105/1. [1] 158562-4600 COVER
105/2. [1] 158910-0200 CYLINDER
105/3. [3] 029050-6090 FLAT-HEAD SCREW
105/4. [1] 014110-6440 LOCKING WASHER
105/5. [1] 158416-0000 FLAT-HEAD SCREW
105/6. [1] 158915-0700 UNION NUT
105/7. [1] 158918-0000 PLAIN WASHER D30&10.8T1.00
105/8/1. [1] 158412-0100 COILED SPRING K1.0
105/8/1. [1] 158412-0200 COILED SPRING K2.0
105/8/1. [1] 158412-0300 COILED SPRING K3.0
105/8/1. [1] 158412-0400 COILED SPRING K4.0
105/8/1. [1] 158412-0500 COILED SPRING K5.0
105/8/1. [1] 158912-1800 COILED SPRING K3.4
105/8/1. [1] 158912-1900 COILED SPRING K2.5
105/8/1. [1] 158912-3300 COILED SPRING K4.5
105/9/1. [1] 158412-0000 COILED SPRING K7.0
105/9/1. [1] 158912-0500 COILED SPRING K4.9
105/9/1. [1] 158912-0600 COILED SPRING K5.1
105/9/1. [1] 158912-0700 COILED SPRING K5.2
105/9/1. [1] 158912-1100 COILED SPRING K4.8
105/9/1. [1] 158912-1200 COILED SPRING K5.4
105/9/1. [1] 158912-2300 COILED SPRING K6.8
105/9/1. [1] 158912-2400 COILED SPRING K7.0
105/9/1. [1] 158912-2500 COILED SPRING K7.3
105/9/1. [1] 158912-2600 COILED SPRING K7.4
105/10. [1] 158918-0000 PLAIN WASHER D30&10.8T1.00
105/11. [1] 158413-0001 STOP PIN
105/12. [1] 158414-0000 PUMP PLUNGER
105/13. [1] 158414-0100 DIAPHRAGM
105/14. [1] 158414-0200 PLATE
105/15. [1] 013020-6040 UNION NUT M6P1H5
105/16. [1] 158910-0300 CAP
105/17. [1] 158915-1000 FLAT-HEAD SCREW
105/18. [1] 029630-9050 O-RING
105/19. [1] 158567-1500 WING NUT
105/21. [1] 158904-2020 ROUND NUT
105/22. [1] 158916-0000 SET OF NUTS
105/23. [2] 029050-6220 FLAT-HEAD SCREW
105/24. [2] 029320-6010 LOCKING WASHER
105/25. [2] 158909-0200 BLEEDER SCREW
105/26. [1] 027114-1040 INLET UNION
105/27. [2] 029331-4120 GASKET D18&14.2T1.5
105/28. [1] 027414-2640 EYE BOLT
105/30. [1] 013020-6040 UNION NUT M6P1H5
105/31. [1] 158567-1200 SET OF NUTS
105/35. [1] 026512-1640 GASKET D15.9&12.2T1
105/36. [1] 158066-0000 BLEEDER SCREW
106. [4] 029010-6350 BLEEDER SCREW M6P1.0L22
118. [1] 158027-0100 NEEDLE VALVE
119. [1] 016500-0710 O-RING
123. [2] 026512-1640 GASKET D15.9&12.2T1
123. [2] 026512-1640 GASKET D15.9&12.2T1
124. [2] 029111-2070 CAPSULE M12P1.5L10
124. [2] 029111-2070 CAPSULE M12P1.5L10
130. [1] 029331-8040 GASKET
131. [1] 158660-0020 CONTROL VALVE
135. [1] 158515-0700 INDICATOR PLATE
137. [1] 158515-0800 INDICATOR PLATE
140. [1] 158820-0620 POINTER
142. [1] 158820-0620 POINTER
158. [1] 015040-0880 BEARING PIN
190. [1] 158017-1000 GASKET
200. [1] 158599-6920 SPARE PART

Include in #2:

105856-4550 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
105856-4550
F 019 Z2E 281
RHD6-PC
871676A5  MATSUI-IRON
HYDRAULIC GOVERNOR
K




Information:

(Diagnosis With Chassis Dynamometer)
1. Preparation of vehicle for fuel consumption test (consult dynamometer manufacturer's operating instructions for specific details on correct operation). Always perform the Primary Engine Test procedure before vehicle is installed on chassis dynamometer.a. Place vehicle on the chassis dynamometer. Tie the vehicle in a way that will not add any load to the drive wheels. Do not pull wheels down into dynamometer drive rolls.Check the radiator coolant level, crankcase oil level, tire pressure, tire condition, remove rocks from the tire tread and connect exhaust system.
Recapped tires should be run on a chassis dynamometer only at the customer's own risk.
b. The maximum acceptable fuel rate must be calculated for the customer's engine by use of the formula that follows: Find the rated brake specific fuel consumption (lb-bhp/hr) from the Fuel Setting And Related Information Fiche and add 0.25 mm (.010 in) manufacturing tolerance. Multiply this value by the advertised engine horsepower (plus 3% manufactures tolerance) and divide by the density of the fuel (lbs/gal).c. Calculate the allowable limitt that the customer can expect from his engine and present these figures to him. Caterpillar engines are rated with the conditions that follow: Barometric pressure = 747 mm (29.4 in) of mercuryInlet air temperature = 29°C (85°F) at air cleaner inletFuel gravity = API gravity of 35 at 16°C (60°F)Measure and record these variables.2. Operate vehicle at 60% of rated speed with moderate load until oil and coolant temperatures reach their normal range for operation.
If there is a heavy vibration, drive shaft whip, tire bounce, etc., do not continue with dynamometer test until cause of the problem is corrected. Engines that have had new internal parts installed should be operated on a run-in schedule before operation at full load.
Put transmission in direct gear and the differential in the highest speed ratio. Operate vehicle at maximum engine speed and increase chassis dynamometer load until a speed of 50 rpm less than rated speed is reached (continuity light should be on). Maintain this speed for one minute and record the engine speed, wheel horsepower and fuel rate.3. If the fuel rate and the wheel horsepower are both acceptable, then the engine is not the cause of the complaint, or the complaint is not valid. Refer to section Problem With Vehicle Or Vehicle Operation.4. If the wheel horsepower is low, regardless of how the fuel rate measures, refer to the Low Power Troubleshooting Chart. The low power problem must be corrected first.5. If the fuel rate and wheel horsepower are both too high, check the set point (balance point) of the engine (speed at which the load stop pin just touches the torque spring or stop bar). At this point the continuity light should flicker (go off and on dimly).If the set point (balance point) is high, the high idle will have to be decreased to lower the set point (balance point) to the correct rpm (point at which the continuity light just comes on). If the set point (balance
