105856-4510 ZEXEL F 019 Z2E 277 BOSCH HYDRAULIC GOVERNOR f019z2e277 1058564510

Information hydraulic governor

BOSCH F 019 Z2E 277 f019z2e277

ZEXEL 105856-4510 1058564510

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-4510 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-4510
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

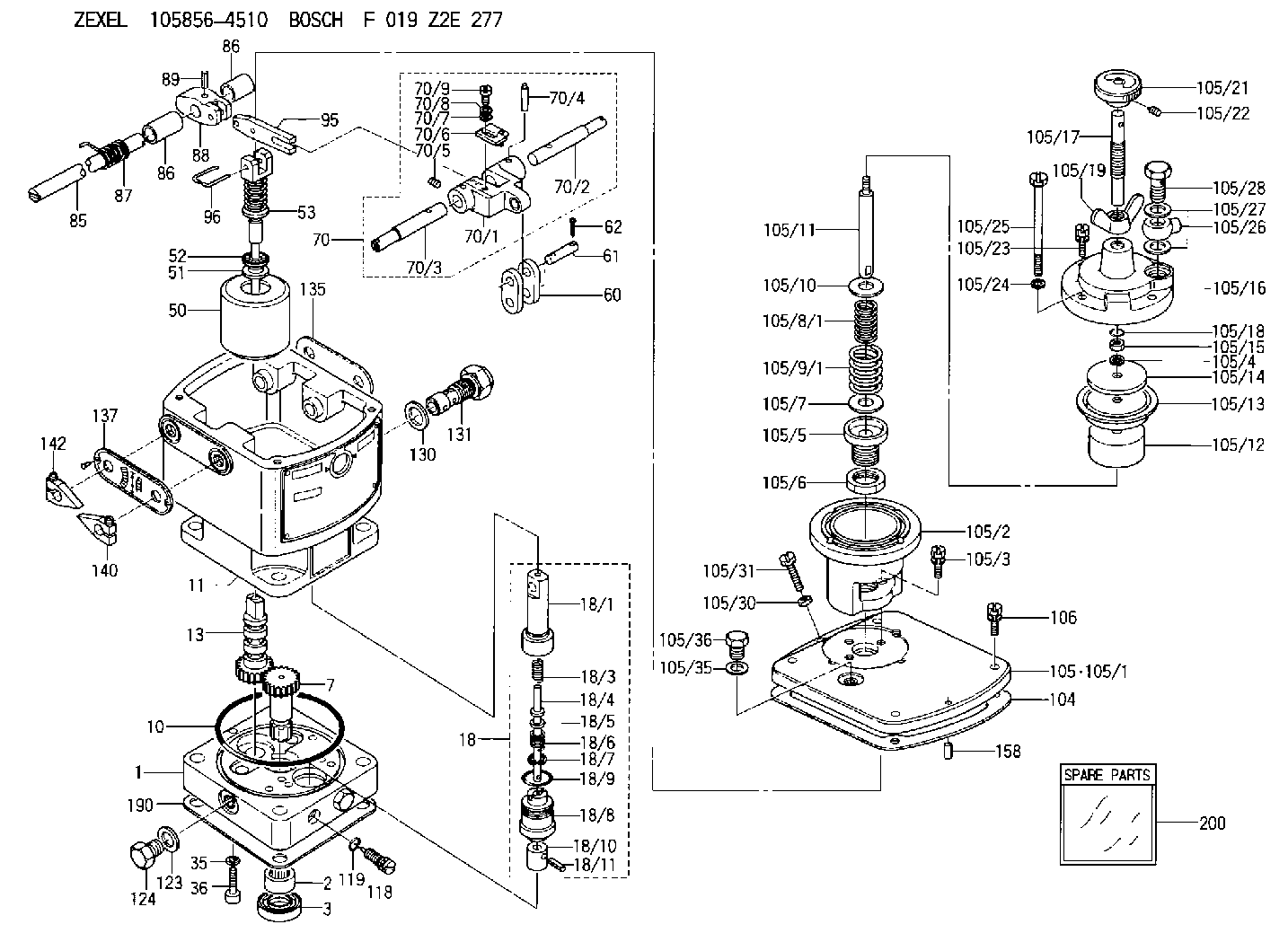

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1820	DIAPHRAGM HOUSING
13.	[1]	158621-0800	SLEEVE
18.	[1]	158699-0521	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-1000	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-1100	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0400	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-0720	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1220	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-0900	SPEED CONTROL SHAFT
86.	[2]	158823-0300	BUSHING
86.	[2]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158964-5120	PNEUMATIC CONTROLLER
105/1.	[1]	158562-4600	COVER
105/2.	[1]	158910-0200	CYLINDER
105/3.	[3]	029050-6090	FLAT-HEAD SCREW
105/4.	[1]	014110-6440	LOCKING WASHER
105/5.	[1]	158416-0000	FLAT-HEAD SCREW
105/6.	[1]	158915-0700	UNION NUT
105/7.	[1]	158918-0000	PLAIN WASHER D30&10.8T1.00
105/8/1.	[1]	158412-0100	COILED SPRING K1.0
105/8/1.	[1]	158412-0200	COILED SPRING K2.0
105/8/1.	[1]	158412-0300	COILED SPRING K3.0
105/8/1.	[1]	158412-0400	COILED SPRING K4.0
105/8/1.	[1]	158412-0500	COILED SPRING K5.0
105/8/1.	[1]	158912-1800	COILED SPRING K3.4
105/8/1.	[1]	158912-1900	COILED SPRING K2.5
105/8/1.	[1]	158912-3300	COILED SPRING K4.5
105/9/1.	[1]	158412-0000	COILED SPRING K7.0
105/9/1.	[1]	158912-0500	COILED SPRING K4.9
105/9/1.	[1]	158912-0600	COILED SPRING K5.1
105/9/1.	[1]	158912-0700	COILED SPRING K5.2
105/9/1.	[1]	158912-1100	COILED SPRING K4.8
105/9/1.	[1]	158912-1200	COILED SPRING K5.4
105/9/1.	[1]	158912-2300	COILED SPRING K6.8
105/9/1.	[1]	158912-2400	COILED SPRING K7.0
105/9/1.	[1]	158912-2500	COILED SPRING K7.3
105/9/1.	[1]	158912-2600	COILED SPRING K7.4
105/10.	[1]	158918-0000	PLAIN WASHER D30&10.8T1.00
105/11.	[1]	158413-0001	STOP PIN
105/12.	[1]	158414-0000	PUMP PLUNGER
105/13.	[1]	158414-0100	DIAPHRAGM
105/14.	[1]	158414-0200	PLATE
105/15.	[1]	013020-6040	UNION NUT M6P1H5
105/16.	[1]	158910-0300	CAP
105/17.	[1]	158915-1000	FLAT-HEAD SCREW
105/18.	[1]	029630-9050	O-RING
105/19.	[1]	158567-1500	WING NUT
105/21.	[1]	158904-2020	ROUND NUT
105/22.	[1]	158916-0000	SET OF NUTS
105/23.	[2]	029050-6220	FLAT-HEAD SCREW
105/24.	[2]	029320-6010	LOCKING WASHER
105/25.	[2]	158909-0200	BLEEDER SCREW
105/26.	[1]	029701-4150	INLET UNION
105/27.	[2]	029331-4120	GASKET D18&14.2T1.5
105/28.	[1]	027414-2640	EYE BOLT
105/30.	[1]	013020-6040	UNION NUT M6P1H5
105/31.	[1]	158567-1200	SET OF NUTS
105/35.	[1]	026512-1640	GASKET D15.9&12.2T1
105/36.	[1]	158066-0000	BLEEDER SCREW
106.	[4]	029010-6350	BLEEDER SCREW M6P1.0L22
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[1]	158820-0620	POINTER
142.	[1]	158820-0620	POINTER
158.	[1]	015040-0880	BEARING PIN
190.	[1]	158017-1000	GASKET
200.	[1]	158599-6920	SPARE PART

Include in #2:

105856-4510 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-4510

F 019 Z2E 277
RHD6-PC

HYDRAULIC GOVERNOR
K 35AA HYDRAULIC GOVERNOR Hydraulic RHD6 Others

Information:

This troubleshooting guide, when followed exactly as shown, can be an aid for the serviceman to find the cause of existing problems. The information from the measurements will also show proof if there is any basis for the complaint.Be sure to get a good description of the problem from the operator and/or the person who owns the vehicle. What they tell you about the problem can save you time and make the repair job faster and easier.Low Power And High Fuel Consumption Problems
The troubleshooting charts that follow provide a definite sequence to be followed for a logical, one by one elimination of many variables. The encircled numbers do not designate steps, but are references to detailed instructions that can not be shown on the chart. Always read the written material that corresponds with the encircled numbers on the charts.The Primary Engine Tests consist of quick and easy procedures that could identify the problem with a minimum loss of time. Always make these tests before starting the more involved troubleshooting charts.The necessary instruments to check each problem in sequence are shown on the chart. If the correct instrument is not available for the test, do not continue. The vehicle must be sent to a shop where the necessary tools are available.Whenever a problem is found and corrected, always run the test again to that point to be sure there is not a combination of problems. When the problem has been corrected and the complaint resolved, stop the test. Do not continue through the complete procedure just because it is there.When investigating possible causes, follow the letter sequence shown. Possible causes are arranged in order from more probable/easiest to check to less probable/more complex to check.Other Problems: Vehicle Or Vehicle Operation, Misfiring And Running Rough, Too Much Exhaust Smoke, Difficult Starting, Cooling System, Loss Of Coolant, Or Fuel In Crankcase Oil.
The probable causes of a problem are given in the order they most commonly take place. Check the probable causes in the same order that they are given. When troubleshooting, use the section on recommended procedures which follow each chart to check and make the necessary corrections for each probable cause.Engine Vibration Problem
The troubleshooting chart provides a definite sequence to be followed for a logical procedure to determine the frequency and amplitude of vibration so that the source of the vibration can be located and corrected.
