105856-3060 ZEXEL F 019 Z2E 202 BOSCH HYDRAULIC GOVERNOR f019z2e202 1058563060 41100003570

Information hydraulic governor

BOSCH F 019 Z2E 202 f019z2e202

ZEXEL 105856-3060 1058563060

YANMAR 41100003570 41100003570

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-3060 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-3060
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

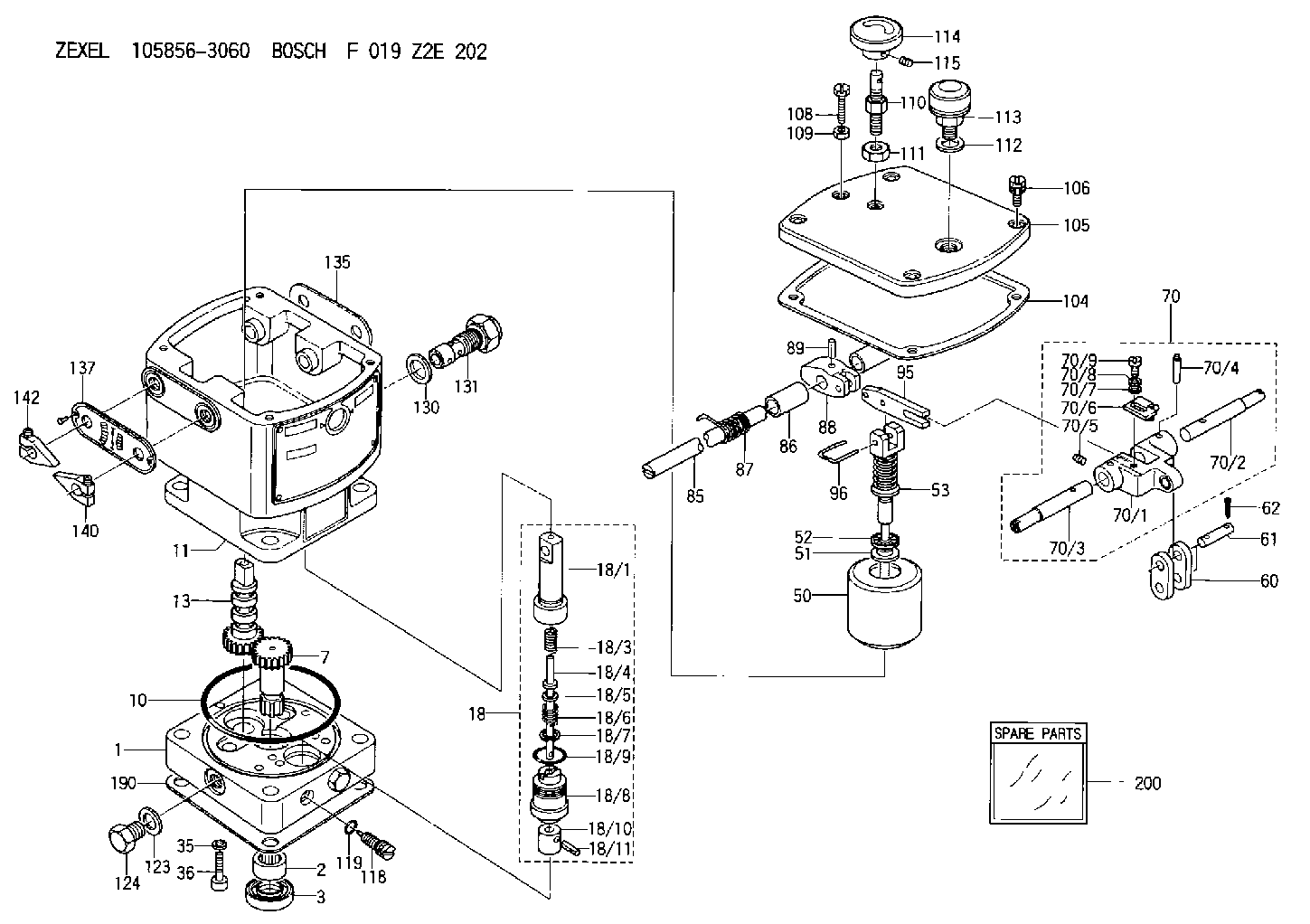

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1820	DIAPHRAGM HOUSING
13.	[1]	158621-0600	SLIDING PIECE
18.	[1]	158699-0321	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-0400	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-0500	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0300	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-1120	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1120	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-0900	SPEED CONTROL SHAFT
86.	[2]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158562-8720	COVER
106.	[4]	029010-6350	BLEEDER SCREW M6P1.0L22
108.	[1]	158567-1200	SET OF NUTS
109.	[1]	013020-6040	UNION NUT M6P1H5
110.	[1]	158567-1400	SET OF NUTS
111.	[1]	158567-1300	UNION NUT
112.	[1]	026512-1640	GASKET D15.9&12.2T1
113.	[1]	378050-6120	AIR FILTER
114.	[1]	158904-1920	ROUND NUT
115.	[1]	011206-1020	SET OF NUTS
118.	[1]	158027-0100	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0020	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[1]	158820-0620	POINTER
142.	[1]	158820-0620	POINTER
190.	[1]	158017-1000	GASKET
200.	[1]	158599-6720	SPARE PART

Include in #2:

105856-3060 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-3060
105856-3061

F 019 Z2E 202

41100003570 YANMAR

HYDRAULIC GOVERNOR
* K

Information:

POSITIONING PIN BEARING
MARKS FOR TIGHTENING CONNECTING ROD BOLTS(1) Bore in connecting rod for piston pin bearing ... 2.1825 .0005 in.(55.436 0.013 mm) Tight fit between connecting rod eye and piston pin bearing ... .002 to .004 in.(0.05 to 0.10 mm) Connecting rod must be heated for installation of piston pin bearing. Do not use a torch.Heat connecting rod to temperature of ... 350 to 500° F (177 to 260° C) Piston pin bearing junction must be assembled within either area "A" (90 10° from the centerline through the connecting rod bores) as shown.(2) Bore in connecting rod for bearing with nuts tight to specifications (6) ... 4.0748 .0005 in.(103.500 0.013 mm)(3) Distance between center of bearings ... 10.300 .002 in.(261.62 0.05 mm)(4) Bore in bearing for piston pin (new) ... 2.0012 .0003 in.(50.830 0.008 mm) Diameter of piston pin (new) ... 1.9998 .0002 in.(50.795 0.005
