105856-3040 ZEXEL F 019 Z2E 200 BOSCH HYDRAULIC GOVERNOR f019z2e200 1058563040

Information hydraulic governor

BOSCH F 019 Z2E 200 f019z2e200

ZEXEL 105856-3040 1058563040

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-3040 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-3040
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

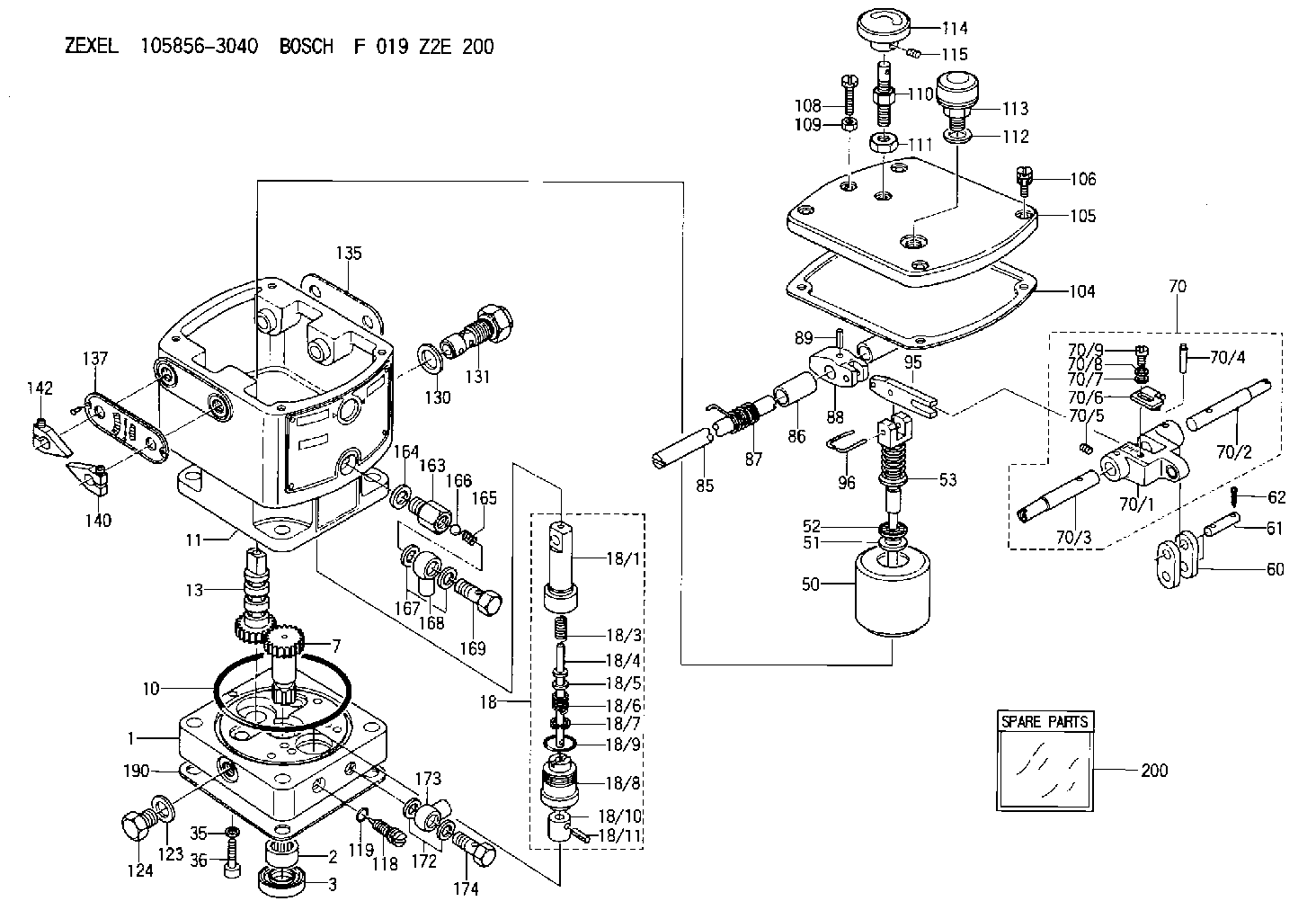

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1120	DIAPHRAGM HOUSING
13.	[0]	158621-0500
13.	[1]	158621-0600	SLIDING PIECE
18.	[1]	158699-0521	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-1000	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-1100	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0400	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-0720	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1120	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-0900	SPEED CONTROL SHAFT
86.	[2]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158562-8720	COVER
106.	[4]	029010-6350	BLEEDER SCREW M6P1.0L22
108.	[1]	158567-1200	SET OF NUTS
109.	[1]	013020-6040	UNION NUT M6P1H5
110.	[1]	158567-1400	SET OF NUTS
111.	[1]	158567-1300	UNION NUT
112.	[1]	026512-1640	GASKET D15.9&12.2T1
113.	[1]	378050-6120	AIR FILTER
114.	[1]	158904-1920	ROUND NUT
115.	[1]	011206-1020	SET OF NUTS
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[1]	026512-1640	GASKET D15.9&12.2T1
124.	[1]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0420	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[1]	158820-0620	POINTER
142.	[1]	158820-0620	POINTER
163.	[1]	158522-0000	CONNECTOR
164.	[1]	026510-1350	GASKET
165.	[1]	158655-0000	COILED SPRING
166.	[1]	029820-6010	BALL
167.	[2]	026512-1840	GASKET D17.9&12.2T1.50
168.	[1]	029701-2030	INLET UNION
169.	[1]	158521-0000	EYE BOLT
172.	[2]	026512-1640	GASKET D15.9&12.2T1
173.	[1]	029701-2030	INLET UNION
174.	[1]	027412-2440	EYE BOLT
190.	[1]	158017-1000	GASKET
200.	[1]	158599-6720	SPARE PART

Include in #2:

105856-3040 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-3040

F 019 Z2E 200

HYDRAULIC GOVERNOR
* K

Information:

Section A:
Rotation (seen from the drive end) ... counterclockwise Test on test stand, with SAE 10W oil at 120° F (49° C) Output ... 51 U.S. gpm(193 liter/min) with pump at ... 2550 rpmSection B:
Rotation (seen from the drive end) ... counterclockwise Test on test stand, with SAE 10W oil at 120° F (49° C) Output ... 72 U.S. gpm(272 liter/min) at a pressure of ... 45 psi(310 kPa) with pump at ... 2550 rpmOutput ... 36 U.S. gpm(136 liter/min) at a pressure of ... 81 psi(560 kPa)with pump at ... 2550 rpm Scavenge pump end (Section A)(1) Diameter of drive shaft and idler shaft (new) ... .8000 .0002 in.(20.320 0.005 mm) Bore in bearings for drive shaft and idler shaft (new) ... .8016 .0003 in.(20.361 0.008 mm)(2) Length of gears (new) ... 2.2503 .0010 in.(57.158 0.025 mm) Depth of bores for gears (new) ... 2.2553 .0008 in.(57.285 0.020 mm) Spacer assembly(3) Diameter of drive shaft and idler shaft (new) ... .8747 .0002 in.(22.217 0.005 mm) Bore in bearings for drive shaft and idler shaft (new) ... .8763 .0003 in.(22.258 0.008 mm) Pump body assembly (Section B)(4) Length of gears (new) ... 3.1250 .0010 in.(79.375 0.025 mm) Depth of bores for gears (new) ... 3.1300 .0008 in.(79.502 0.020 mm)(5) Diameter of drive shaft and idler shaft (new) ... .8747 .0002 in.(22.217 0.005 mm) Bore in bearings for drive shaft and idler shaft (new) ... .8763 .0003 in.(22.258 0.008 mm)(6) 2S2760 Spring (oil pressure relief valve): Length under test force ... 4.64 in.(117.9 mm)Test force ... 110 6 lb.(490 27 N)Free length after test ... 6.02 in.(152.9 mm)Outside diameter ... 1.063 in.(27.00 mm)
SCAVENGE PUMP(7) Bearing junction.(8) Position of bearing junction from the centerline through bearing bores ... 30° 15°(9) Install bearings in bottom of gear bores to a depth of ... .060 .010 in.(1.52 0.25 mm) Rotation of pump must be free when turned by hand.
