105856-2961 ZEXEL F 019 Z2E 196 BOSCH HYDRAULIC GOVERNOR f019z2e196 1058562961 41100002402

Information hydraulic governor

BOSCH F 019 Z2E 196 f019z2e196

ZEXEL 105856-2961 1058562961

YANMAR 41100002402 41100002402

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-2961 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-2961
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

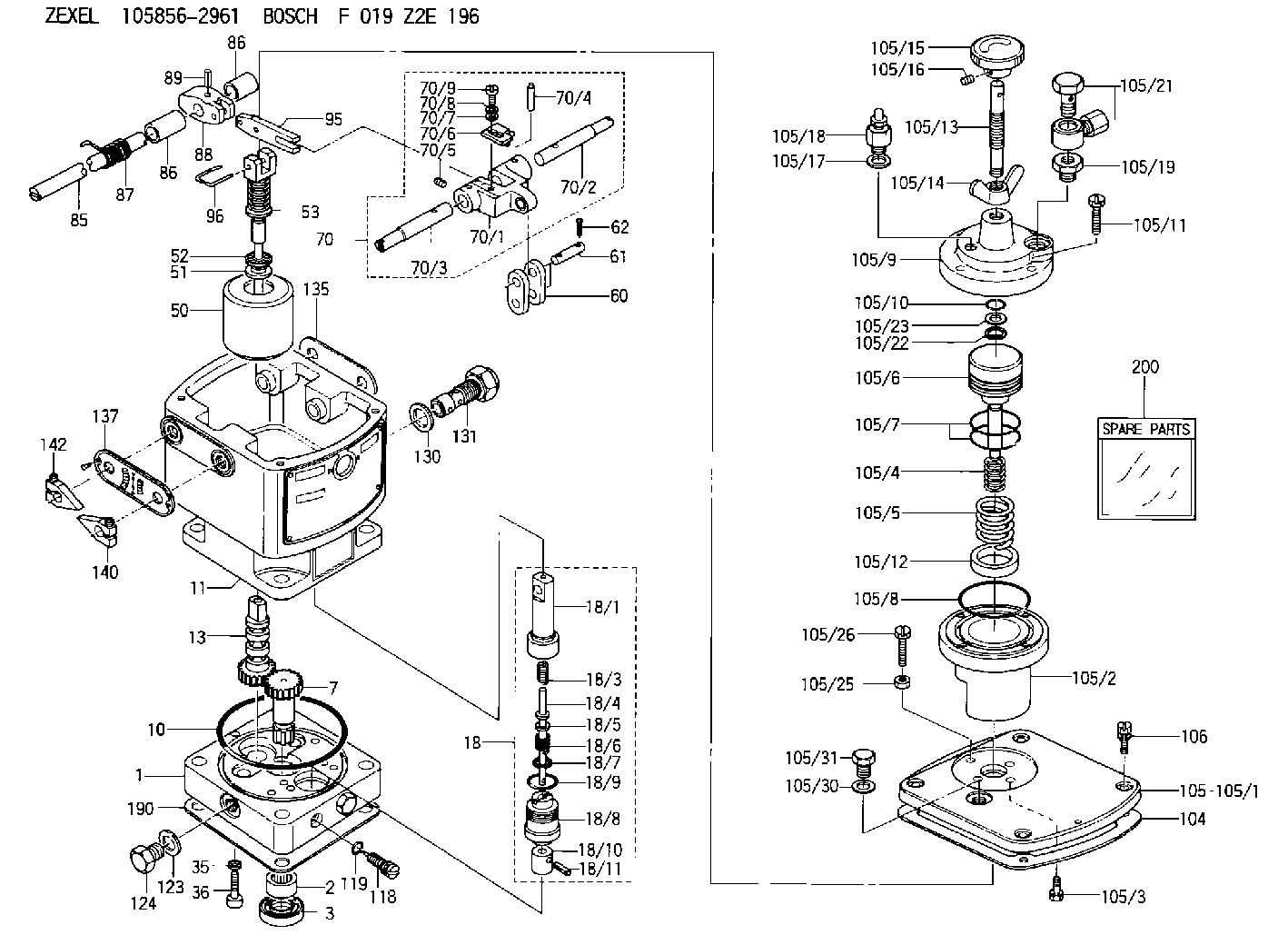

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1820	DIAPHRAGM HOUSING
13.	[1]	158621-0600	SLIDING PIECE
18.	[1]	158699-0321	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-0400	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-0500	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0300	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-0720	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1420	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-0900	SPEED CONTROL SHAFT
86.	[2]	158823-0300	BUSHING
86.	[2]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158562-2120	HYDRAULIC CONTROLLER
105/1.	[1]	158562-2100	COVER
105/2.	[1]	158910-0400	CYLINDER
105/3.	[3]	029050-6090	FLAT-HEAD SCREW
105/4.	[1]	158912-2100	COILED SPRING
105/5.	[1]	158912-2200	COILED SPRING
105/6.	[1]	158914-0520	PUMP PLUNGER
105/7.	[2]	029633-5051	O-RING
105/8.	[1]	016570-5610	O-RING
105/9.	[1]	158910-0500	CAP
105/10.	[1]	029630-9050	O-RING
105/11.	[4]	029050-6220	FLAT-HEAD SCREW
105/12.	[1]	158914-0800	BUSHING
105/13.	[1]	158915-1100	FLAT-HEAD SCREW
105/14.	[1]	158567-1500	WING NUT
105/15.	[1]	158904-2020	ROUND NUT
105/16.	[1]	011206-1020	SET OF NUTS
105/17.	[1]	029331-0080	GASKET D15&10T1
105/18.	[1]	158917-0220	AIR FILTER
105/19.	[1]	158917-0500	CONNECTOR
105/21.	[1]	158917-2420	ELBOW
105/22.	[1]	016010-0910	LOCKING WASHER
105/23.	[1]	029311-0170	SHIM
105/25.	[1]	029240-6020	UNION NUT
105/26.	[1]	158567-0500	SET OF NUTS
105/30.	[1]	026512-1640	GASKET D15.9&12.2T1
105/31.	[1]	158066-0000	BLEEDER SCREW
106.	[4]	029010-6350	BLEEDER SCREW M6P1.0L22
118.	[1]	158027-0100	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0020	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[1]	158820-0620	POINTER
142.	[1]	158820-0620	POINTER
190.	[1]	158017-1000	GASKET
200.	[1]	158599-7620	SPARE PART

Include in #2:

105856-2961 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-2961

F 019 Z2E 196
RHD6-HC

41100002402 YANMAR

HYDRAULIC GOVERNOR
K 35AA HYDRAULIC GOVERNOR Hydraulic RHD6 Others
