105856-2760 ZEXEL F 019 Z2E 175 BOSCH HYDRAULIC GOVERNOR f019z2e175 1058562760




Information hydraulic governor

BOSCH F 019 Z2E 175 f019z2e175
ZEXEL 105856-2760 1058562760
105856-2760 HYDRAULIC GOVERNOR
Rating:
38
Buy HYDRAULIC GOVERNOR 105856-2760 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 105856-2760
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

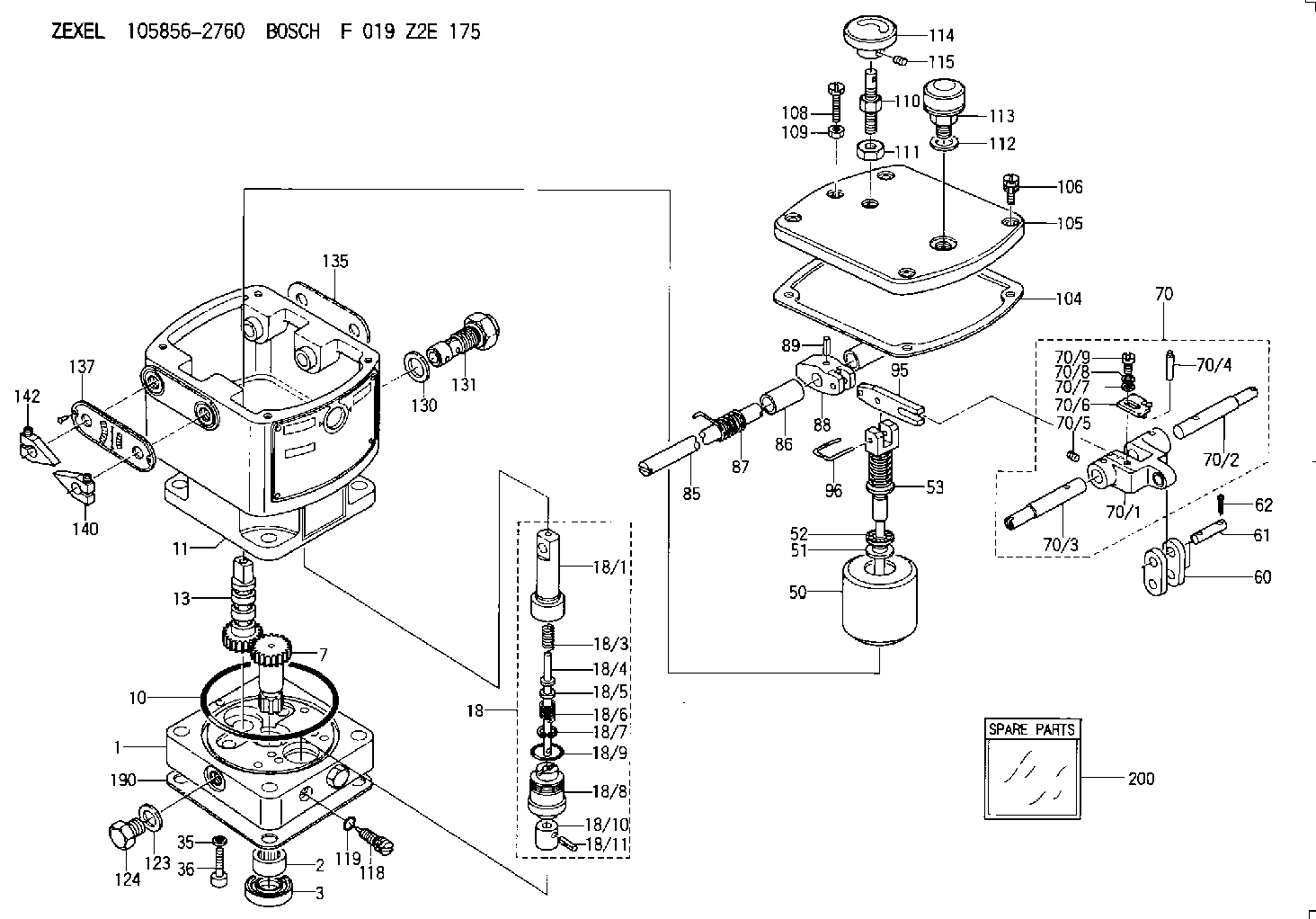

Scheme ###:

1. [1] 158502-0420 BASE
2. [1] 029811-8000 BEARING PLATE
3. [1] 158528-0900 PACKING RING
7. [1] 158131-0100 GEAR SHAFT
10. [1] 158028-0000 O-RING
11. [1] 158507-1820 DIAPHRAGM HOUSING
13. [1] 158621-0600 SLIDING PIECE
18. [1] 158699-0521 COMPENSATOR ASSY
18/1. [1] 158610-0901 POWER PISTON
18/3. [1] 158654-1000 COILED SPRING
18/4. [1] 158614-0300 STOP PIN
18/5. [1] 158612-0500 PLAIN WASHER
18/6. [1] 158654-1100 COILED SPRING
18/7. [1] 016110-1220 LOCKING WASHER
18/8. [1] 158612-0001 BUSHING
18/9. [2] 158528-1300 O-RING
18/10. [1] 158615-0400 PUMP PLUNGER
18/11. [1] 025620-1410 SPRING PIN
35. [3] 029330-6070 GASKET
36. [3] 010206-2520 HEX-SOCKET-HEAD CAP SCREW
50. [1] 158600-0720 FLYWEIGHT ASSEMBLY
51. [1] 158106-0100 PLAIN WASHER
52. [1] 029811-0000 BEARING PLATE
53. [1] 158620-1120 PILOT VALVE
60. [2] 158220-0000 GUIDE LEVER
61. [2] 158736-0200 BEARING PIN
62. [4] 025520-1510 SPLIT PIN
70. [1] 158730-0220 TERMINAL ARM
70/1. [1] 158230-0020 TERMINAL ARM
70/2. [1] 158315-0200 TERMINAL SHAFT
70/3. [1] 158315-0200 TERMINAL SHAFT
70/4. [2] 158736-0100 TAPER PIN
70/5. [2] 011006-0620 SET OF NUTS
70/6. [1] 158214-0020 SPEED DROOP ADJUSTER
70/7. [1] 014020-5120 PLAIN WASHER
70/8. [1] 029320-5030 TAB WASHER
70/9. [1] 010535-1220 FLAT-HEAD SCREW
85. [1] 158814-0900 SPEED CONTROL SHAFT
86. [2] 158823-0300 BUSHING
87. [1] 158322-0200 COILED SPRING
88. [1] 158710-0400 STRAP
89. [1] 029404-5010 BEARING PIN
95. [1] 158211-0100 STRAP
96. [2] 158653-0100 WIRE
104. [1] 158017-0900 GASKET
105. [1] 158562-8720 COVER
106. [4] 029010-6350 BLEEDER SCREW M6P1.0L22
108. [1] 158567-1200 SET OF NUTS
109. [1] 013020-6040 UNION NUT M6P1H5
110. [1] 158567-1400 SET OF NUTS
111. [1] 158567-1300 UNION NUT
112. [1] 026512-1640 GASKET D15.9&12.2T1
113. [1] 378050-6120 AIR FILTER
114. [1] 158904-1920 ROUND NUT
115. [1] 011206-1020 SET OF NUTS
118. [1] 158527-0200 NEEDLE VALVE
119. [1] 016500-0710 O-RING
123. [2] 026512-1640 GASKET D15.9&12.2T1
124. [2] 029111-2070 CAPSULE M12P1.5L10
130. [1] 029331-8040 GASKET
131. [1] 158660-0420 CONTROL VALVE
135. [1] 158515-0700 INDICATOR PLATE
137. [1] 158515-0800 INDICATOR PLATE
140. [2] 158820-0620 POINTER
142. [2] 158820-0620 POINTER
190. [1] 158017-1000 GASKET
200. [1] 158599-6720 SPARE PART

Include in #2:

105856-2760 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
105856-2760
F 019 Z2E 175
RHD6-LC

HYDRAULIC GOVERNOR
K 35AA HYDRAULIC GOVERNOR Hydraulic RHD6 Others




Information:


Never disconnect any charging unit circuit or battery circuit cable from battery when the charging unit is charging.
9S1990 BATTERY CHARGER TESTERLoad test a battery that does not hold a charge when in use. To do this, put a test load across the main connections (terminals) of the battery. For a 6, 8, or 12V battery, put a test load of three times the ampere/hour rating, (the maximum test load on any battery is 500 amperes). Let the test load remove the charge (discharge) of the battery for 15 seconds and immediately test the battery voltage. A 6V battery in good condition will show 4.5V; an 8V battery will show 6V; a 12V battery will show 9V. Each cell must show 1.6V on either a 6, 8, or 12V battery.The Special Instruction (GEG00058) with the 9S1990 Battery Charger Tester gives the battery testing procedure.Charging System
5P300 Electrical Tester. Make reference to Special Instruction (GEG02276) and to the instructions inside of the cover of the tester, when testing with the 5P300 Electrical Tester.The condition of charge in the battery at each regular inspection will show if the charging system is operating correctly. An adjustment is necessary when the battery is constantly in a low condition of charge or a large amount of water is needed (more than one ounce of water per cell per week or per every 50 service hours).Make a test of the charging unit and voltage regulator on the engine, when possible, using wiring and components that are a permanent part of the system. Off the engine (bench) testing will give a test of the charging unit and voltage regulator operation. This testing will give an indication of needed repair. After repairs are made, again make a test to give proof that the units are repaired to their original operating condition.Before starting the on engine testing, the charging system and battery must be checked as given in the Steps below.1. Battery must be at least 75% (1.240 Sp. Gr.) full charged and held tightly in place. The battery holder must not put too much stress on the battery.2. Cables between the battery, starter and engine ground must be the correct size. Wires and cables must be free of corrosion and have cable support clamps to prevent stress on battery connections (terminals).3. Leads, junctions, switches and panel instruments that have direct relation to the charging circuit must give correct circuit control.4. Inspect the drive components for the charging unit to be sure they are free of grease and oil and have the ability to operate the charging unit.Alternator Regulator (Delco)
When an alternator is either overcharging or undercharging the battery, the alternator charging rate can be adjusted. Remove the hollow head screw from the cover of the alternator regulator and use a screwdriver to turn the inside adjustment. Turn the adjustment toward the "+" to increase or toward the "-" to decrease the alternator charging rate.
ALTERNATOR REGULATORPulley Nut of Delco-Remy Alternators
Tighten the nut that holds the pulley to a torque

Have questions with 105856-2760?





Group cross 105856-2760 ZEXEL

F 019 Z2E 170

HYDRAULIC GOVERNOR
F 019 Z2E 171

HYDRAULIC GOVERNOR



F 019 Z2E 172

HYDRAULIC GOVERNOR
F 019 Z2E 173
RHD6-PC

HYDRAULIC GOVERNOR

Fuji-Diesel

F 019 Z2E 174
RHD6-MC
L405706
HYDRAULIC GOVERNOR
F 019 Z2E 174
RHD6-MC
A36315
HYDRAULIC GOVERNOR
105856-2760
F 019 Z2E 175
RHD6-LC

HYDRAULIC GOVERNOR

Matsui-Iron

F 019 Z2E 176
RHD6-PC
870214A5
HYDRAULIC GOVERNOR

Shinko-Engin.

F 019 Z2E 177
RHD6-LC
127100012
HYDRAULIC GOVERNOR
F 019 Z2E 178

HYDRAULIC GOVERNOR
