105856-2730 ZEXEL F 019 Z2E 172 BOSCH HYDRAULIC GOVERNOR f019z2e172 1058562730

Information hydraulic governor

BOSCH F 019 Z2E 172 f019z2e172

ZEXEL 105856-2730 1058562730

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy HYDRAULIC GOVERNOR 105856-2730 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	105856-2730
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

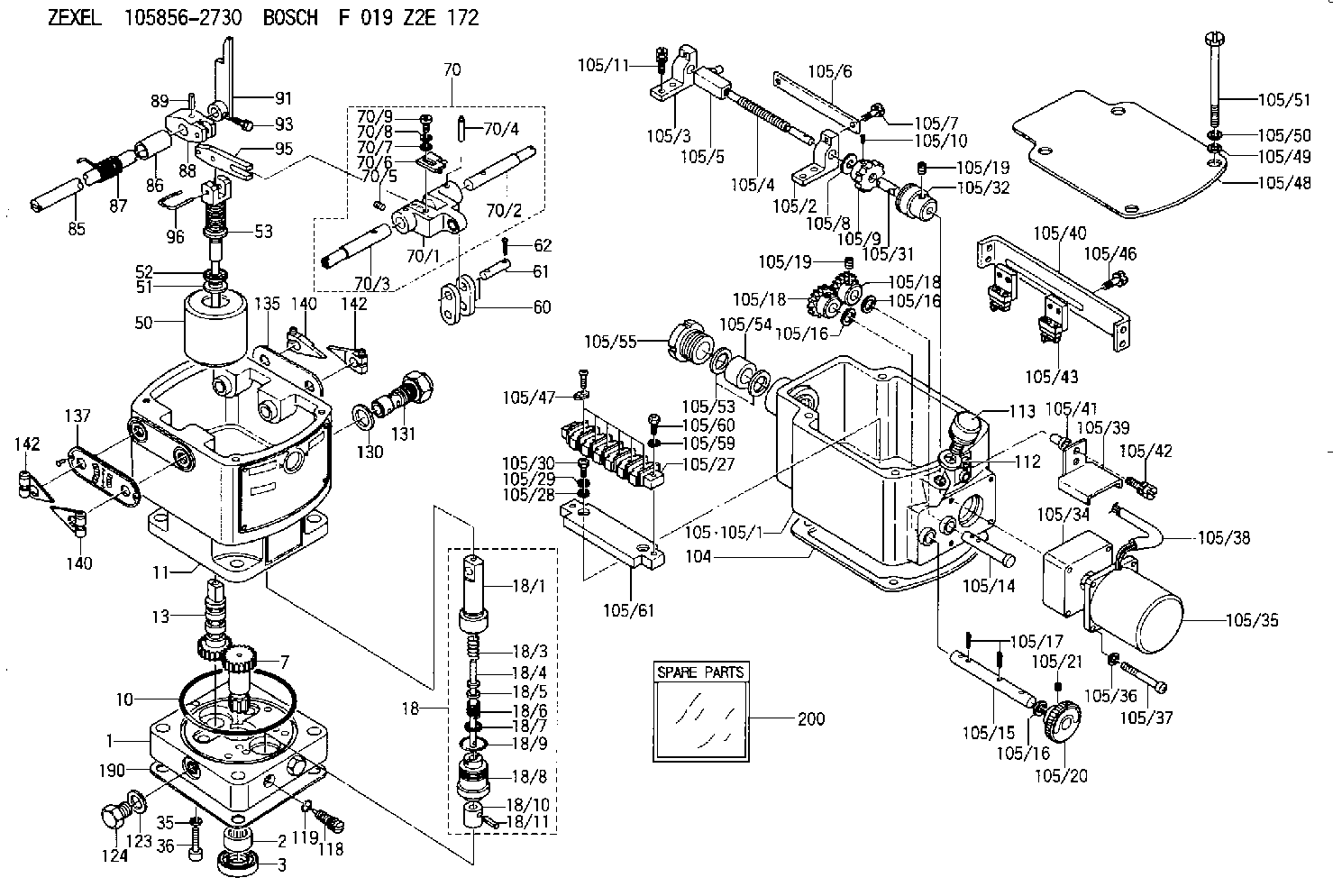

Scheme ###:

1.	[1]	158502-0420	BASE
2.	[1]	029811-8000	BEARING PLATE
3.	[1]	158528-0900	PACKING RING
7.	[1]	158131-0100	GEAR SHAFT
10.	[1]	158028-0000	O-RING
11.	[1]	158507-1820	DIAPHRAGM HOUSING
13.	[1]	158621-0600	SLIDING PIECE
18.	[1]	158699-0521	COMPENSATOR ASSY
18/1.	[1]	158610-0901	POWER PISTON
18/3.	[1]	158654-1000	COILED SPRING
18/4.	[1]	158614-0300	STOP PIN
18/5.	[1]	158612-0500	PLAIN WASHER
18/6.	[1]	158654-1100	COILED SPRING
18/7.	[1]	016110-1220	LOCKING WASHER
18/8.	[1]	158612-0001	BUSHING
18/9.	[2]	158528-1300	O-RING
18/10.	[1]	158615-0400	PUMP PLUNGER
18/11.	[1]	025620-1410	SPRING PIN
35.	[3]	029330-6070	GASKET
36.	[3]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
50.	[1]	158600-0720	FLYWEIGHT ASSEMBLY
51.	[1]	158106-0100	PLAIN WASHER
52.	[1]	029811-0000	BEARING PLATE
53.	[1]	158620-1220	PILOT VALVE
60.	[2]	158220-0000	GUIDE LEVER
61.	[2]	158736-0200	BEARING PIN
62.	[4]	025520-1510	SPLIT PIN
70.	[1]	158730-0220	TERMINAL ARM
70/1.	[1]	158230-0020	TERMINAL ARM
70/2.	[1]	158315-0200	TERMINAL SHAFT
70/3.	[1]	158315-0200	TERMINAL SHAFT
70/4.	[2]	158736-0100	TAPER PIN
70/5.	[2]	011006-0620	SET OF NUTS
70/6.	[1]	158214-0020	SPEED DROOP ADJUSTER
70/7.	[1]	014020-5120	PLAIN WASHER
70/8.	[1]	029320-5030	TAB WASHER
70/9.	[1]	010535-1220	FLAT-HEAD SCREW
85.	[1]	158814-1200	SPEED CONTROL SHAFT
86.	[1]	158823-0300	BUSHING
87.	[1]	158322-0200	COILED SPRING
88.	[1]	158710-0400	STRAP
89.	[1]	029404-5010	BEARING PIN
91.	[1]	158712-2000	CONTROL LEVER
93.	[1]	029010-5210	BLEEDER SCREW
95.	[1]	158211-0100	STRAP
96.	[2]	158653-0100	WIRE
104.	[1]	158017-0900	GASKET
105.	[1]	158963-0320	GOVERNOR MOTOR ASSY
105/1.	[1]	158962-5210	CASE
105/2.	[1]	158903-0200	HOLDER
105/3.	[1]	158903-0300	HOLDER
105/4.	[1]	158903-0400	FLAT-HEAD SCREW
105/5.	[1]	158903-1720	ADJUSTER
105/6.	[2]	158903-0800	PLATE
105/7.	[4]	029010-6330	BLEEDER SCREW M6P1.0L13
105/8.	[1]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/9.	[1]	158904-0500	TOOTHED GEAR
105/10.	[1]	158590-0000	BEARING PIN
105/11.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
105/14.	[1]	158904-0300	LEVER SHAFT
105/15.	[1]	158904-0200	LEVER SHAFT
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/16.	[3]	014020-8140	PLAIN WASHER D16&8.5T1.2
105/17.	[3]	015320-1540	SPLIT PIN
105/18.	[2]	158904-0400	TOOTHED GEAR
105/18.	[2]	158904-0400	TOOTHED GEAR
105/19.	[3]	011005-0820	SET OF NUTS
105/19.	[3]	011005-0820	SET OF NUTS
105/20.	[1]	158904-1920	ROUND NUT
105/21.	[1]	158916-0000	SET OF NUTS
105/27.	[1]	158906-1900	TERMINAL BOARD
105/28.	[2]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/29.	[2]	014110-4440	LOCKING WASHER
105/30.	[2]	012154-1040	FLAT-HEAD SCREW M4P0.7L10
105/31.	[1]	158902-0300	JOINT CONNECTION
105/32.	[1]	158902-0020	FRICTION COUPLING
105/34.	[1]	158908-3200	GEAR HEAD
105/35.	[1]	158901-7301	MOTOR
105/36.	[4]	014020-4140	PLAIN WASHER D8&4.5T0.5
105/37.	[4]	158901-8100	FLAT-HEAD SCREW
105/38.	[1]	158901-2200	HOSE
105/39.	[1]	158901-4300	COVER
105/40.	[1]	158900-0300	BRACKET
105/41.	[3]	158900-0200	BUSHING
105/42.	[3]	029010-6350	BLEEDER SCREW M6P1.0L22
105/43.	[2]	158907-2320	LIMIT SWITCH
105/46.	[4]	020144-1240	BLEEDER SCREW
105/47.	[3]	158906-0801	TERMINAL
105/48.	[1]	158562-2600	COVER
105/49.	[4]	014020-6140	PLAIN WASHER
105/50.	[4]	014110-6440	LOCKING WASHER
105/51.	[4]	158909-0100	BLEEDER SCREW
105/53.	[2]	158901-2700	PLAIN WASHER
105/54.	[1]	158901-2800	PACKING
105/55.	[1]	158901-2600	GROUND
105/59.	[2]	014110-4440	LOCKING WASHER
105/60.	[2]	012154-1640	FLAT-HEAD SCREW
105/61.	[1]	158906-2000	SPACER BUSHING
112.	[1]	026512-1640	GASKET D15.9&12.2T1
113.	[1]	155406-0220	AIR FILTER
118.	[1]	158527-0200	NEEDLE VALVE
119.	[1]	016500-0710	O-RING
123.	[2]	026512-1640	GASKET D15.9&12.2T1
124.	[2]	029111-2070	CAPSULE M12P1.5L10
130.	[1]	029331-8040	GASKET
131.	[1]	158660-0320	CONTROL VALVE
135.	[1]	158515-0700	INDICATOR PLATE
137.	[1]	158515-0800	INDICATOR PLATE
140.	[2]	158820-0620	POINTER
140.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
142.	[2]	158820-0620	POINTER
190.	[1]	158017-1000	GASKET
200.	[1]	158599-7120	SPARE PART

Include in #2:

105856-2730 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

105856-2730

F 019 Z2E 172

HYDRAULIC GOVERNOR
* K

Information:

Make reference to ANALYZING TURBOCHARGER FAILURE, Form No. FEG45138.(1) See TURBOCHARGER IMPELLER INSTALLATION.(2) Torque for bolts holding thrust plate ... 40 5 lb. in.(4.5 0.6 N m)(3) Tighten bolt holding band clamp to ... 120 10 lb. in.(14 1 N m)(4) Put 9M3710 or 4S9416 Anti-Seize Compound on threads of bolts holding turbine housing and tighten to ... 175 15 lb. in.(20 2 N m)(5) Put 9M3710 or 4S9416 Anti-Seize Compound on threads of bolts holding turbocharger to manifold and tighten to ... 40 4 lb. ft.(55 5 N m)(6) End play for shaft (new) ... .006 to .011 in.(0.15 to 0.27 mm)(7) Bore in the bearing ... .6268 to .6272 in.(15.921 to 15.931 mm) Diameter of surface on shaft (journal) for the bearing ... .6250 to .6254 in.(15.875 to 15.885 mm)(8) Bore in housing ... .9827 to .9832 in.(24.961 to 24.973 mm) Outside diameter of the bearing ... .9780 to .9785 in.(24.841 to 24.854 mm)(9) Clearance between ends of oil seal ring ... .008 to .015 in.(0.20 to 0.38 mm) The radial clearance for the shaft is .004 to .009 in. (0.10 to 0.23 mm).(AiResearch TV81)
(1) Nut for impeller (See TURBOCHARGER IMPELLER INSTALLATION) Do not bend or add stress to the shaft when nut is tightened.(2) Torque for the bolts that hold the backplate ... 90 10 lb.in.(10 1 N m)(3) Torque for the clamp bolts ... 10 1 lb. ft.(14 1 N m)(4) Bore in the bearings ... .6268 to .6272 in.(15.921 to 15.931 mm) Diameter for the surfaces (journals) on the shaft for the bearings ... .6250 to .6254 in.(15.875 to 15.885 mm)(5) Bore in the housing ... .9827 to .9832 in.(24.961 to 24.973 mm) Outside diameter of the bearings ... .9782 to .9787 in.(24.846 to 24.859 mm)(6) Clearance between the ends of the oil seal ring ... .008 to .015 in.(0.20 to 0.38 mm)(7) End play for the shaft ... .003 to .010 in.(0.08 to 0.25 mm)(8) Torque for support nuts (put 9M3710 or 4S9416 Anti-Seize Compound on the stud threads) ... 40 4 lb. ft.(55 5 N m)(AiResearch T1810)
Make reference to ANALYZING TURBOCHARGER FAILURE. Form No. FEG45138.(1) End play for shaft ... .0065 .0025 in.(0.165 0.063 mm) Radial clearance for the shaft ... .004 to .009 in.(0.10 to 0.23 mm)(2) Bore in the bearing ... .6268 to .6272 in.(15.921 to 15.931 mm) Diameter of surface on shaft (journal) for the bearing ... .6250 to .6254 in.(15.875 to 15.885 mm)(3) Put 8S6747 Gasket Sealer on bolts holding compressor housing and tighten to ... 105 5 lb. in.(11.9 0.6 N m)(4) Put 9M3710 or 4S9416 Anti-Seize Compound on bolts holding turbine housing and tighten to ... 175 15 lb. in.(19.8 1.7 N m)(5) Put 9M3710 or 4S9416 Anti-Seize Compound on
