105856-2591 ZEXEL F 019 Z2E 162 BOSCH HYDRAULIC GOVERNOR f019z2e162 1058562591




Information hydraulic governor

BOSCH F 019 Z2E 162 f019z2e162
ZEXEL 105856-2591 1058562591
105856-2591 HYDRAULIC GOVERNOR
Rating:
15
Buy HYDRAULIC GOVERNOR 105856-2591 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 105856-2591
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

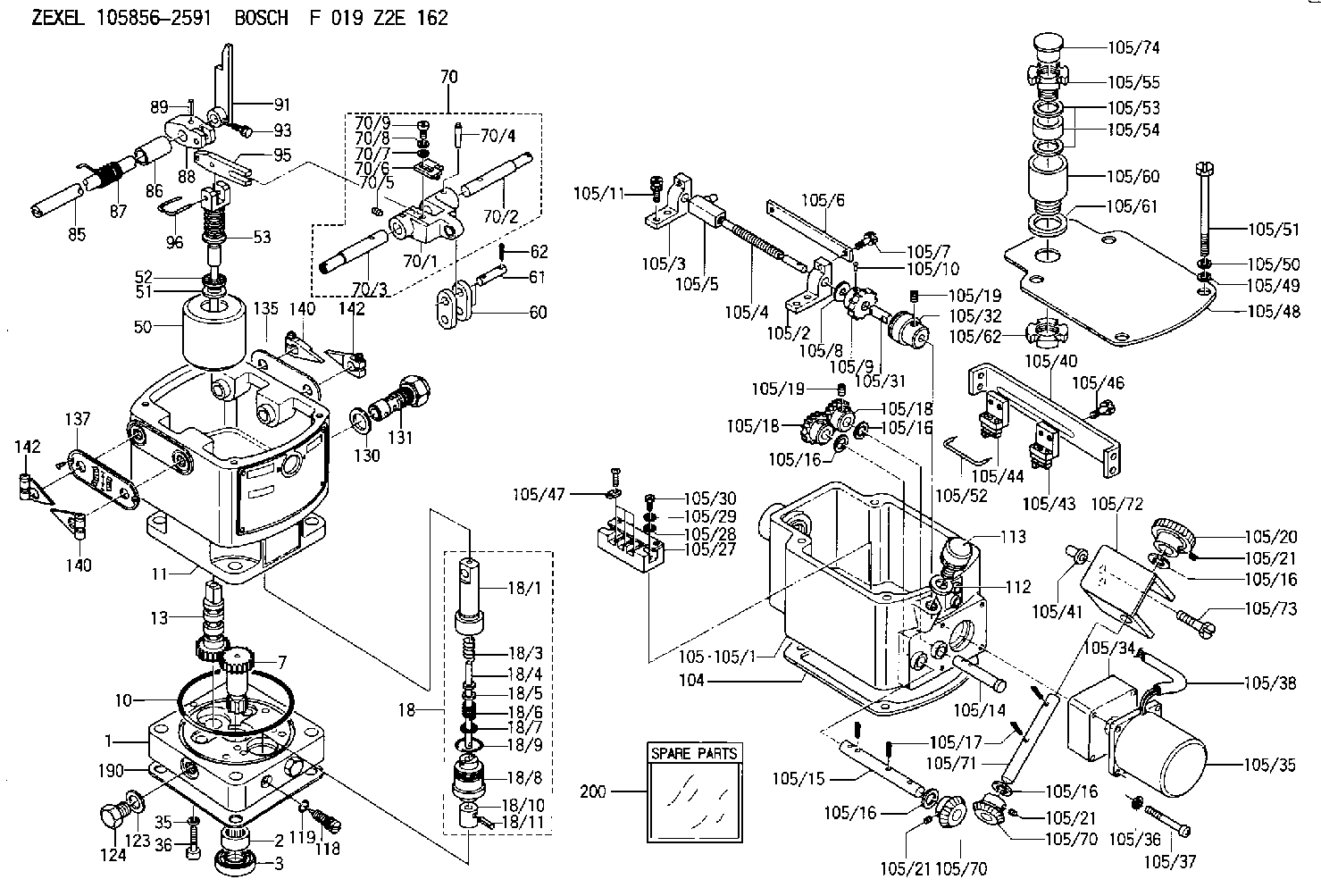

Scheme ###:

BASE
1. [1] 158502-0420 BASE
2. [1] 029811-8000 BEARING PLATE
3. [1] 158528-0900 PACKING RING
7. [1] 158131-0100 GEAR SHAFT
10. [1] 158028-0000 O-RING
11. [1] 158507-1820 DIAPHRAGM HOUSING
13. [1] 158621-0500 SLEEVE
18. [1] 158699-0321 COMPENSATOR ASSY
18/1. [1] 158610-0901 POWER PISTON
18/3. [1] 158654-0400 COILED SPRING
18/4. [1] 158614-0300 STOP PIN
18/5. [1] 158612-0500 PLAIN WASHER
18/6. [1] 158654-0500 COILED SPRING
18/7. [1] 016110-1220 LOCKING WASHER
18/8. [1] 158612-0001 BUSHING
18/9. [2] 158528-1300 O-RING
18/10. [1] 158615-0300 PUMP PLUNGER
18/11. [1] 025620-1410 SPRING PIN
35. [3] 029330-6070 GASKET
36. [3] 010206-2520 HEX-SOCKET-HEAD CAP SCREW
50. [1] 158600-0720 FLYWEIGHT ASSEMBLY
51. [1] 158106-0100 PLAIN WASHER
52. [1] 029811-0000 BEARING PLATE
53. [1] 158620-1120 PILOT VALVE
60. [2] 158220-0000 GUIDE LEVER
61. [2] 158736-0200 BEARING PIN
62. [4] 025520-1510 SPLIT PIN
70. [1] 158730-0220 TERMINAL ARM
70/1. [1] 158230-0020 TERMINAL ARM
70/2. [1] 158315-0200 TERMINAL SHAFT
70/3. [1] 158315-0200 TERMINAL SHAFT
70/4. [2] 158736-0100 TAPER PIN
70/5. [2] 011006-0620 SET OF NUTS
70/6. [1] 158214-0020 SPEED DROOP ADJUSTER
70/7. [1] 014020-5120 PLAIN WASHER
70/8. [1] 029320-5030 TAB WASHER
70/9. [1] 010535-1220 FLAT-HEAD SCREW
85. [1] 158814-1200 SPEED CONTROL SHAFT
86. [1] 158823-0300 BUSHING
87. [1] 158322-0200 COILED SPRING
88. [1] 158710-0400 STRAP
89. [1] 029404-5010 BEARING PIN
91. [1] 158712-2000 CONTROL LEVER
93. [1] 029010-5210 BLEEDER SCREW
95. [1] 158211-0100 STRAP
96. [2] 158653-0100 WIRE
104. [1] 158017-0900 GASKET
105. [1] 158962-9621 GOVERNOR MOTOR ASSY
105/1. [1] 158962-4810 CASE
105/2. [1] 158903-0200 HOLDER
105/3. [1] 158903-0300 HOLDER
105/4. [1] 158903-0400 FLAT-HEAD SCREW
105/5. [1] 158903-1720 ADJUSTER
105/6. [2] 158903-0800 PLATE
105/7. [4] 029010-6330 BLEEDER SCREW M6P1.0L13
105/8. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/9. [1] 158904-0500 TOOTHED GEAR
105/10. [1] 158590-0000 BEARING PIN
105/11. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
105/14. [1] 158904-0300 LEVER SHAFT
105/15. [1] 158904-0200 LEVER SHAFT
105/16. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/17. [4] 015320-1540 SPLIT PIN
105/18. [2] 158904-0400 TOOTHED GEAR
105/18. [2] 158904-0400 TOOTHED GEAR
105/19. [3] 011005-0820 SET OF NUTS
105/19. [3] 011005-0820 SET OF NUTS
105/20. [1] 158904-1920 ROUND NUT
105/21. [3] 011206-1020 SET OF NUTS
105/21. [3] 011206-1020 SET OF NUTS
105/21. [3] 011206-1020 SET OF NUTS
105/27. [1] 158906-0700 TERMINAL BOARD
105/28. [2] 014020-4140 PLAIN WASHER D8&4.5T0.5
105/29. [2] 014110-4440 LOCKING WASHER
105/30. [2] 012154-1640 FLAT-HEAD SCREW
105/31. [1] 158902-0300 JOINT CONNECTION
105/32. [1] 158902-0020 FRICTION COUPLING
105/34. [1] 158908-3400 GEAR HEAD
105/35. [1] 158901-7301 MOTOR
105/36. [4] 014020-4140 PLAIN WASHER D8&4.5T0.5
105/37. [4] 158901-8100 FLAT-HEAD SCREW
105/38. [1] 158901-2200 HOSE
105/40. [1] 158900-0300 BRACKET
105/41. [3] 158900-0200 BUSHING
105/42. [3] 029010-6350 BLEEDER SCREW M6P1.0L22
105/43. [1] 158907-1820 LIMIT SWITCH
105/44. [1] 158907-1720 LIMIT SWITCH
105/46. [4] 020144-1240 BLEEDER SCREW
105/47. [1] 158906-0801 TERMINAL
105/48. [1] 158962-0300 COVER
105/49. [4] 014020-6140 PLAIN WASHER
105/50. [4] 014110-6440 LOCKING WASHER
105/51. [4] 158909-0100 BLEEDER SCREW
105/52. [1] 158901-6900 WIRE
105/53. [2] 158401-7300 GASKET
105/54. [1] 158401-7500 GASKET
105/55. [1] 158401-7400 GROUND
105/60. [1] 158901-6200 ADAPTOR
105/61. [1] 158901-6300 GASKET
105/62. [1] 158901-6400 UNION NUT
105/70. [2] 158904-1800 TOOTHED GEAR
105/70. [2] 158904-1800 TOOTHED GEAR
105/71. [1] 158904-1700 LEVER SHAFT
105/72. [1] 158900-0520 BRACKET
105/73. [2] 029010-6370 BLEEDER SCREW M6P1.0L28
105/74. [1] 158591-0000 CAPSULE
112. [1] 026512-1640 GASKET D15.9&12.2T1
113. [1] 155406-0220 AIR FILTER
118. [1] 158027-0100 NEEDLE VALVE
119. [1] 016500-0710 O-RING
123. [2] 026512-1640 GASKET D15.9&12.2T1
124. [2] 029111-2070 CAPSULE M12P1.5L10
130. [1] 029331-8040 GASKET
131. [1] 158660-0020 CONTROL VALVE
135. [1] 158515-0700 INDICATOR PLATE
137. [1] 158515-0800 INDICATOR PLATE
140. [2] 158820-0620 POINTER
140. [2] 158820-0620 POINTER
142. [2] 158820-0620 POINTER
142. [2] 158820-0620 POINTER
190. [1] 158017-1000 GASKET
200. [1] 158599-7120 SPARE PART

Include in #2:

105856-2591 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
105856-2591
F 019 Z2E 162
RHD6-MCL

HYDRAULIC GOVERNOR
* K




Information:


Before any service work is to be done on the fuel system the outer surface of the injection pump housing must be clean.
1. Remove cover assembly (1) from the pump housing. Remove the spring for the bypass valve. 2. Loosen bushing (2) from the pump housing with tool (A). Do not loosen screws (3) when removing or installing the pumps. If the levers are moved, the fuel pump adjustment will be changed.3. Remove the fuel injection pump from the pump housing. The sleeve on the plunger will slide off the lever as the pump is removed.Install Fuel Injection Pumps
1. Put fuel injection pump (1) in the bore of the pump housing.2. Sleeve (2) must be engaged with lever (3) when installed correctly.
If the levers (3) have been moved on the shaft, fuel pump adjustment must be made. (See TESTING AND ADJUSTING).
3. Tighten the bushing with tool (A) to a torque of 70 5 lb.ft. (95 7 N m). 4. Put the spring and bypass valve in place. Install the cover assembly on the pump housing. Be sure spring (4) is in position in the cover.Disassemble Fuel Injection Pumps
start by: a) remove fuel injection pumps1. Remove bushing (1) from bonnet (2).2. Remove ring (3) from the bonnet and barrel (7). Remove check valve (6) and spring (4) from the bonnet.3. Remove spring (8) and washer (5). Remove plunger (9) and sleeve (10). Keep the plunger and sleeve with their respective barrel for installation. Do not use plungers, sleeves or barrels with other plungers, sleeves or barrels.Assemble Fuel Injection Pumps
1. Install sleeve (4), plunger (5), spring (2) and washer (3) on barrel (1).
Make sure the sleeve is installed with the thin edge up.
Be sure the sleeve and plunger are installed in their original barrel. Make sure the large hole in the plunger is up.2. Install the check valve and spring in the bonnet. Connect the barrel and bonnet and install the ring. Install the bushing on the bonnet.end by: a) install fuel injection pumps
