105856-2472 ZEXEL F 019 Z2E 152 BOSCH HYDRAULIC GOVERNOR f019z2e152 1058562472 w4044048a




Information hydraulic governor

BOSCH F 019 Z2E 152 f019z2e152
ZEXEL 105856-2472 1058562472
NIIGATA-URAWA W4044048A w4044048a
105856-2472 HYDRAULIC GOVERNOR
Rating:
16
Buy HYDRAULIC GOVERNOR 105856-2472 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 105856-2472
1. _
2. FUEL INJECTION PUMP
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2)
10. NOZZLE-HOLDER
11. NOZZLE

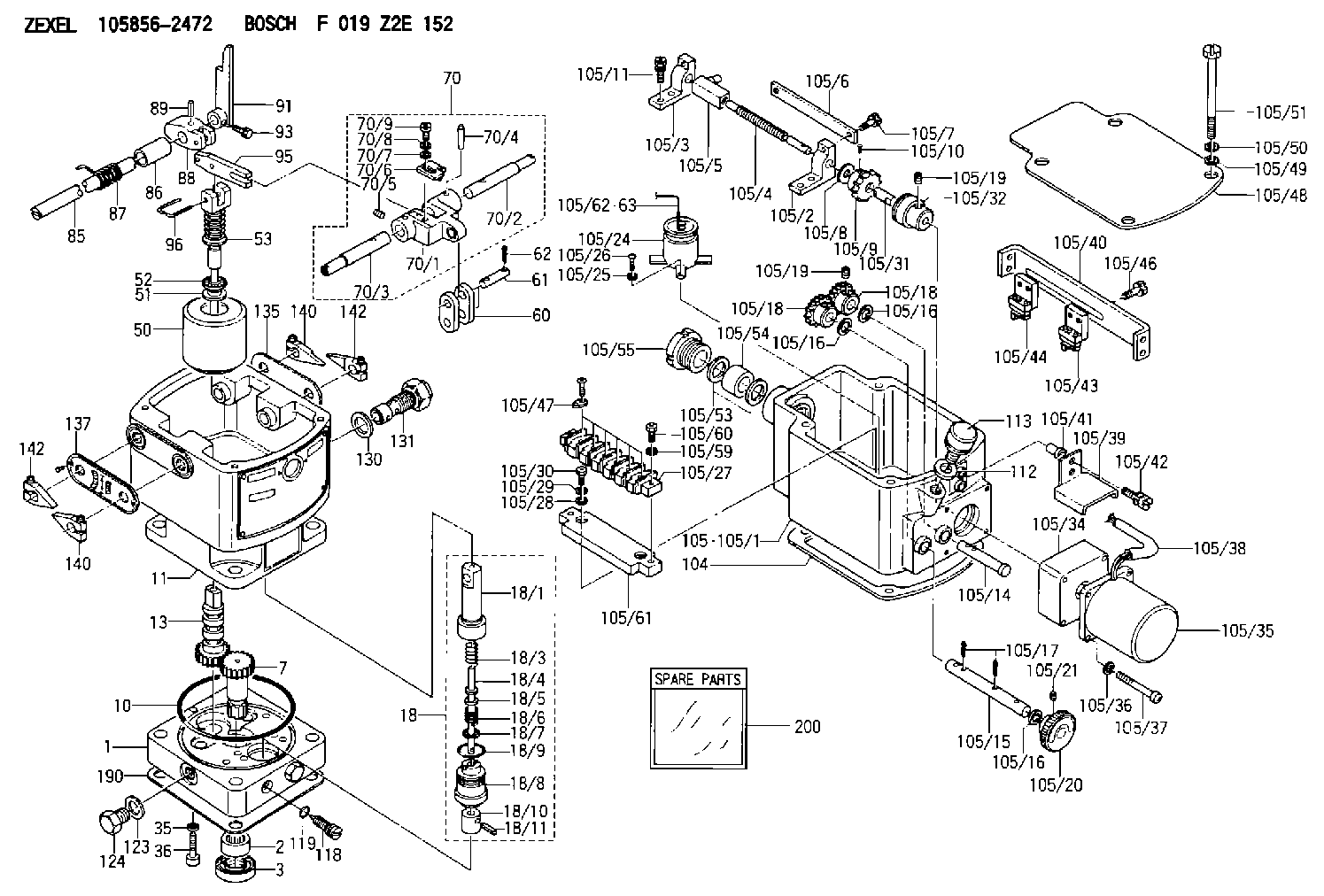

Scheme ###:

1. [1] 158502-0420 BASE
2. [1] 029811-8000 BEARING PLATE
3. [1] 158528-0900 PACKING RING
7. [1] 158131-0100 GEAR SHAFT
10. [1] 158028-0000 O-RING
11. [1] 158507-1820 DIAPHRAGM HOUSING
13. [1] 158621-0800 SLEEVE
18. [1] 158699-0521 COMPENSATOR ASSY
18/1. [1] 158610-0901 POWER PISTON
18/3. [1] 158654-1000 COILED SPRING
18/4. [1] 158614-0300 STOP PIN
18/5. [1] 158612-0500 PLAIN WASHER
18/6. [1] 158654-1100 COILED SPRING
18/7. [1] 016110-1220 LOCKING WASHER
18/8. [1] 158612-0001 BUSHING
18/9. [2] 158528-1300 O-RING
18/10. [1] 158615-0400 PUMP PLUNGER
18/11. [1] 025620-1410 SPRING PIN
35. [3] 029330-6070 GASKET
36. [3] 010206-2520 HEX-SOCKET-HEAD CAP SCREW
50. [1] 158600-0720 FLYWEIGHT ASSEMBLY
51. [1] 158106-0100 PLAIN WASHER
52. [1] 029811-0000 BEARING PLATE
53. [1] 158620-1220 PILOT VALVE
60. [2] 158220-0000 GUIDE LEVER
61. [2] 158736-0200 BEARING PIN
62. [4] 025520-1510 SPLIT PIN
70. [1] 158730-0220 TERMINAL ARM
70/1. [1] 158230-0020 TERMINAL ARM
70/2. [1] 158315-0200 TERMINAL SHAFT
70/3. [1] 158315-0200 TERMINAL SHAFT
70/4. [2] 158736-0100 TAPER PIN
70/5. [2] 011006-0620 SET OF NUTS
70/6. [1] 158214-0020 SPEED DROOP ADJUSTER
70/7. [1] 014020-5120 PLAIN WASHER
70/8. [1] 029320-5030 TAB WASHER
70/9. [1] 010535-1220 FLAT-HEAD SCREW
85. [1] 158814-1200 SPEED CONTROL SHAFT
86. [1] 158823-0300 BUSHING
87. [1] 158322-0200 COILED SPRING
88. [1] 158710-0400 STRAP
89. [1] 029404-5010 BEARING PIN
91. [1] 158712-2000 CONTROL LEVER
93. [1] 029010-5210 BLEEDER SCREW
95. [1] 158211-0100 STRAP
96. [2] 158653-0100 WIRE
104. [1] 158017-0900 GASKET
105. [1] 158962-6021 GOVERNOR MOTOR ASSY
105/1. [1] 158962-5210 CASE
105/2. [1] 158903-0200 HOLDER
105/3. [1] 158903-0300 HOLDER
105/4. [1] 158903-0400 FLAT-HEAD SCREW
105/5. [1] 158903-1720 ADJUSTER
105/6. [2] 158903-0800 PLATE
105/7. [4] 029010-6330 BLEEDER SCREW M6P1.0L13
105/8. [1] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/9. [1] 158904-0500 TOOTHED GEAR
105/10. [1] 158590-0000 BEARING PIN
105/11. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
105/14. [1] 158904-0300 LEVER SHAFT
105/15. [1] 158904-0200 LEVER SHAFT
105/16. [3] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [3] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/16. [3] 014020-8140 PLAIN WASHER D16&8.5T1.2
105/17. [3] 015320-1540 SPLIT PIN
105/18. [2] 158904-0400 TOOTHED GEAR
105/18. [2] 158904-0400 TOOTHED GEAR
105/19. [3] 011005-0820 SET OF NUTS
105/19. [3] 011005-0820 SET OF NUTS
105/20. [1] 158904-1920 ROUND NUT
105/21. [1] 158916-0000 SET OF NUTS
105/24. [1] 158908-3900 CONDENSER
105/25. [2] 014110-3440 LOCKING WASHER
105/26. [2] 012153-0840 FLAT-HEAD SCREW M3P0.5L8
105/27. [1] 158906-1500 TERMINAL BOARD
105/28. [2] 014020-4140 PLAIN WASHER D8&4.5T0.5
105/29. [2] 014110-4440 LOCKING WASHER
105/30. [2] 012154-1040 FLAT-HEAD SCREW M4P0.7L10
105/31. [1] 158902-0300 JOINT CONNECTION
105/32. [1] 158902-0420 FRICTION COUPLING
105/34. [1] 158908-2700 GEAR HEAD
105/35. [1] 158908-4200 MOTOR
105/36. [4] 014020-4140 PLAIN WASHER D8&4.5T0.5
105/37. [4] 158901-8100 FLAT-HEAD SCREW
105/38. [1] 158901-2200 HOSE
105/39. [1] 158901-8300 COVER
105/40. [1] 158900-0300 BRACKET
105/41. [3] 158900-0200 BUSHING
105/42. [3] 029010-6350 BLEEDER SCREW M6P1.0L22
105/43. [1] 158907-1820 LIMIT SWITCH
105/44. [1] 158907-1720 LIMIT SWITCH
105/46. [4] 020144-1240 BLEEDER SCREW
105/47. [5] 158906-0801 TERMINAL
105/48. [1] 158562-2600 COVER
105/49. [4] 014020-6140 PLAIN WASHER
105/50. [4] 014110-6440 LOCKING WASHER
105/51. [4] 158909-0100 BLEEDER SCREW
105/53. [2] 158901-2700 PLAIN WASHER
105/54. [1] 158901-2800 PACKING
105/55. [1] 158901-2600 GROUND
105/59. [2] 014110-4440 LOCKING WASHER
105/60. [2] 012154-1640 FLAT-HEAD SCREW
105/61. [1] 158906-1600 SPACER BUSHING
105/62. [1] 158901-2000 WIRE
105/63. [2] 158901-1800 WIRE
112. [1] 026512-1640 GASKET D15.9&12.2T1
113. [1] 155406-0220 AIR FILTER
118. [1] 158527-0200 NEEDLE VALVE
119. [1] 016500-0710 O-RING
123. [2] 026512-1640 GASKET D15.9&12.2T1
124. [2] 029111-2070 CAPSULE M12P1.5L10
130. [1] 029331-8040 GASKET
131. [1] 158660-0320 CONTROL VALVE
135. [1] 158515-0700 INDICATOR PLATE
137. [1] 158515-0800 INDICATOR PLATE
140. [2] 158820-0620 POINTER
140. [2] 158820-0620 POINTER
142. [2] 158820-0620 POINTER
142. [2] 158820-0620 POINTER
190. [1] 158017-1000 GASKET
200. [1] 158599-6720 SPARE PART

Include in #2:

105856-2472 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
105856-2472
105856-2473
F 019 Z2E 152
W4044048A  NIIGATA-URAWA
HYDRAULIC GOVERNOR
* K
105856-2472
105856-2473
F 019 Z2E 152
17720053A  NIIGATA-URAWA
HYDRAULIC GOVERNOR
A * K




Information:

b. Operate vehicle at 60% of rated speed with moderate load until oil and coolant temperatures reach their normal range for operation. If there is a heavy vibration, drive shaft whip, tire bounce, etc., do not continue with dynamometer test until cause of the problem is corrected. Engines that have had new internal parts installed should be operated on a run-in schedule before operation at full load. For run-in schedule information, make reference to General Instructions section of this Service Manual.2. Put transmission in direct gear and the differential in the highest speed ratio. Operate vehicle at maximum engine speed and increase chassis dynamometer load until a speed of 50 rpm less than rated speed is reached (continuity light should be on). Maintain this speed for one minute and record the engine speed and wheel horsepower. If horsepower is low and poor maintenance is suspected, remove air cleaner or inlet piping to turbocharger and check horsepower again to see if a plugged air cleaner could be the problem.3a. If the wheel horsepower is correct, find the balance point of the engine (speed at which the load stop pin just touches the torque spring or stop bar). At this point the continuity light should flicker (go off and on dimly). If the balance point is correct, then the low power complaint can not be validated. No further test or repairs are necessary.If the balance point is low, see Procedure No. 5.3b. If the wheel horsepower is below the correct value, find the balance point of the engine (speed at which the load stop pin just touches the torque spring or stop bar). At this point the continuity light should flicker (go off and on dimly). If the balance point is correct, see Procedure No. 6.If the balance point is low, see Procedure No. 4.4. Stop the engine. Remove the AFRC (air-fuel ratio control). Put a cover over the hole where the AFRC was installed. Start the engine and check the balance point and horsepower again. If both of these are now correct, the problem is in AFRC. Repair or replace the AFRC. If, with the AFRC removed, horsepower is now acceptable and balance point is low, the problem is still with AFRC. Repair or replace the AFRC. Then adjust balance point according to Procedure No. 5.5. If the balance point is low, the high idle will have to be increased to raise the balance point to the correct rpm (the point at which the continuity light just comes on). If the balance point is still low and high idle has been adjusted to maximum, disengage clutch while maximum throttle position is maintained. Now observe high idle rpm and, if lower than previously adjusted, check frame-to-engine-mount. A damaged or loose engine mount may put the linkage in a bind and thus prevent maximum governor position at load conditions.6. If the balance point was correct and the wheel horsepower was low, install the 4S6553 Engine Test Group and do the wheel
