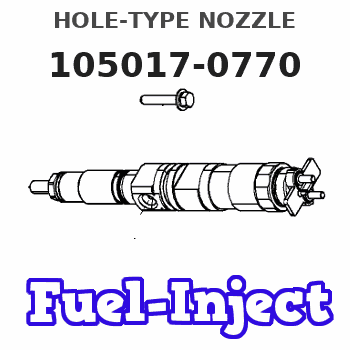

105017-0770 ZEXEL 9 432 610 719 BOSCH HOLE-TYPE NOZZLE 9432610719 1050170770

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to machines within the listed serial numbers and are effective with all machines after the listed serial numbers.
Illustration 1 g06325715
View of Air lines group on 966M, 972M, 966M XE, and 972M XE machines
(1) 415-8220 Hose
(2) 8T-6703 Hose Clamp
(3) 211-8073 Protection Cap
Illustration 2 g06325708
View of Air lines group on 980M and 982M machines
(1) 365-0045 Hose
(2) 8T-6703 Hose Clamp
(3) 211-8073 Protection Cap
Table 1
Required Parts
Item Qty New Part Number Part Name Former Part Number
1 1 415-8220 (1) Hose 415-8220
365-0045 (2) 365-0045
2 2 8T-6703 Hose Clamp (3) 296-5807
3 2 211-8073 Protection Cap 7X-1443
(1) For 966M, 972M, 966M XE, and 972M XE machines
(2) For 980M and 982M machines
(3) Torque for the hose clamps is 11 2 N m (97 18 lb in).If the CRS hose is found damaged on the above listed machines, replace the hose with same part number. Use hose clamp (2) and protection cap (3) to secure the new hose.The new hose clamp (2) replaces the existing 296-5807 Clamp. The new protection cap (3) replaces the existing 7X-1443 Protector on machines listed above.Torque the hose clamps (2) to 11 2 N m (97 18 lb in).
