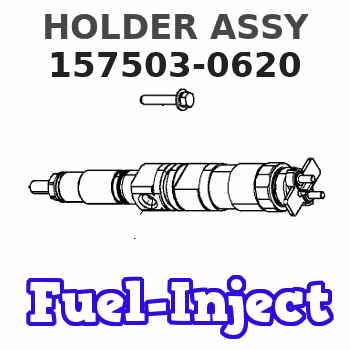

157503-0620 ZEXEL 9 443 615 583 BOSCH HOLDER ASSY 9443615583 1575030620

(1) Torque for fuel injection line nut ... 40 7 N m (30 5 lb.ft.)(2) Torque for retainer ... 48 7 N m (35 5 lb.ft.)(3) Torque for bleed screw ... 2.2 0.8 N m (20 7 lb.in.) Always use a new washer (seal) anytime the bleed screw is loosened or removed.(4) Washer. Make sure the correct washer is used when the nozzle assembly is installed.(5) Put liquid soap on rubber O-ring and bore in head before assembly.(6) Put 5P3931 Anti-Seize Compound on the threads of the adapter before installation. Torque for the adapter ... 205 14 N m (150 10 lb.ft.)See Testing And Adjusting section, for fuel injection nozzle test procedure.Earlier Engines
(1) Nut for fuel line. Hold adapter assembly (2) when nut (1) is loosened or tightened. Torque for the nut ... 40 7 N m (30 5 lb.ft.)(2) Adapter assembly.(3) Torque for bleed screw ... 1.6 0.4 N m (14 4 lb.in.)Always use a new washer (seal) anytime the bleed screw is loosened or removed.(4) Washer. Make sure the correct washer is used when the nozzle assembly is installed. Check the Engine Arrangement for the correct part number to use.(5) Torque for clamp bolt ... 31 7 N m (23 5 lb.ft.)(6) Put liquid soap on rubber O-ring and bore in head before assembly.(7) Put 5P3931 Anti-Seize Compound on the threads of the adapter before installation. Torque for the adapter ... 205 14 N m (150 10 lb.ft.)Engines With Capsule-Type Nozzles
Earlier Engines
(1) Torque for
