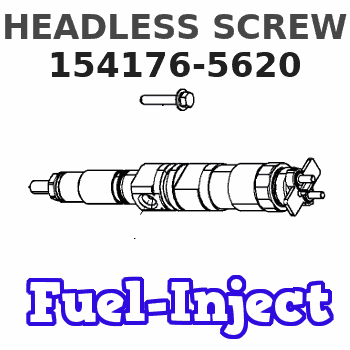

154176-5620 ZEXEL 9 421 615 350 BOSCH HEADLESS SCREW 9421615350 1541765620 1157235470

This Program can only be administeredafter a failure occurs. The decision whether to apply the Program is madeby the dealer. When reporting the repair, use "PS50780" as the Part numberand "7755" as the Group Number. Use "96" as the Warranty Claim DescriptionCode and use "Z" as the SIMS Description Code. The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst. This Revised Service Letter replacesthe April 2, 2004 (Revised April 2004) Service Letter. Changes have beenmade to the Affected Product.TERMINATION DATE
April 30, 2006PROBLEM
Failed injector and wiring harness need to bereplaced on certain C-9 Industrial Engines. The C-9 engine can developan injector misfire due to an open connection at the injector to harnessconnector. This misfire can be diagnosed with standard troubleshootingguide procedures.AFFECTED PRODUCT
Model Identification Number
C9 CLJ1-4259
12H 12500001-40AMZ1-496CBK1-353
330C B1K1-178B2L1-203B4N1-187BTM1-189CGZ1-511CYA1-287D3C1-231JAB1-626JCD1-292JNK1-245KDD1-580MCA1-427MKM1-308GAG1-329RBH1-233
330C L CAP1-1257DKY1-2011HAA1-393
D6R II AEM1-100AFM1-115BLE1-199BLT1-186BMK1-121BNL1-99BPM1-101BPP1-97BPS1-102BRJ1-116
D6R II LGP ACJ1-101ADE1-311BNC1-265BPZ1-142
D6R II XL AAX1-465BMJ1-130BMY1-297BRZ1-115CAD1-143FDT1-141
D6R II XW AEP1-223DAE1-129
470 7651-811
475 7671-824
MT765 AMS1-266
TK711 10100001-00191
TK721 10200001-00191
TK722 10300001-00193
TK732 10400185-00190
627G CEX187-296
637G CEH222-255PARTS NEEDED
Qty
Part Number
Description
1 1567106 Wiring Kit
1 1889865 Harness Assembly
1 2359651 Bolt - Socket
1 2360962 Injector GroupACTION REQUIRED
Replace the single failed injector with the new 2360962 Injector and the1889865 Wiring Harness Assembly. Refer to REHS1809 Special Instructionfor use of the 1567106 Wiring Kit.SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts Labor Hrs Parts Labor Hrs Parts Labor Hrs
0-5000
0-35 months 100% 2.0 0 0 0 0
This is a 2?hour job.PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warrantyparts handling.
