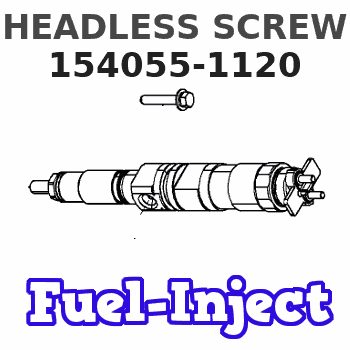

154055-1120 ZEXEL 9 421 621 772 BOSCH HEADLESS SCREW 9421621772 1540551120 me704649

Remote Fault Reset$00 $0D aUsed to reset faults on the CCM.
Table 2
(a)     $00 - $7F = Retain current CCM inactive fault status.
$80 - $FF = Reset CCM inactive fault.    Device ID Code$00 $80 aabbccUsed to read the device ID code from the CCM as well as other components on the data link. Each pair of bytes (aa, bb, cc) is sent LSB first.
Table 3
(aa)     Module ID: will always equal $61, data will be sent as $61 $00
(bb)     Service Tool Support Change Level: $01, data will be sent as $01 $00
(cc)     Application type:$FF $E0, data will be sent as $E0 $FF    CCM Error Codes$00 $82 abUsed to read the CCM Error Codes.
Table 4
(a)     bit 1 = Reserved
(b) (1)     Fault Code Status
bit 8     1 = RS-232C link message fault exists
bit 7     1 = Miscellaneous Cat Data Link fault
bit 6     1 = Invalid Cat Data message fault
bit 5     1 = Internal buffer overflow on RS-232C or Data Data Link fault
bit 4     1 = RS-232C short circuit fault
bit 3     1 = Memory battery is weak
bit 2     1 = M5X message error (checksum or byte count error)
bit 1     1 = EEPROM fault
( 1 ) A value of 0 (zero) in bits 1 through 8 indicates that particular fault does not exist.CCM Communication Rate Change Enable$AA $12 aUsed to determine if the CCM is connected to the host computer directly or remotely using a modem. Also used to enable or disable the host computers ability to change the communication rate of the RS-232C serial port.
Table 5
(a)     Bit 4     Reserved for Caterpillar.
Bit 3 0 = Enable password protection
1 = Disable password protection
Bit 2 0 = Enable baud rate change
1 = Disable baud rate change
Bit 1 0 = Direct connection
1 = Modem connection    Access Level 1 Password$AA $87 aaaaaaaaUsed to read or program the Level 1 Password
Table 6
(aaaaaaaa)     Level 1 password in printable ASCII form. Must be at least 6, but no more than
