105933-1171 ZEXEL 9 420 614 721 BOSCH GOVERNOR 9420614721 1059331171

Information governor

BOSCH 9 420 614 721 9420614721

ZEXEL 105933-1171 1059331171

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105933-1171 zexel genuine, new aftermarket engine parts with delivery

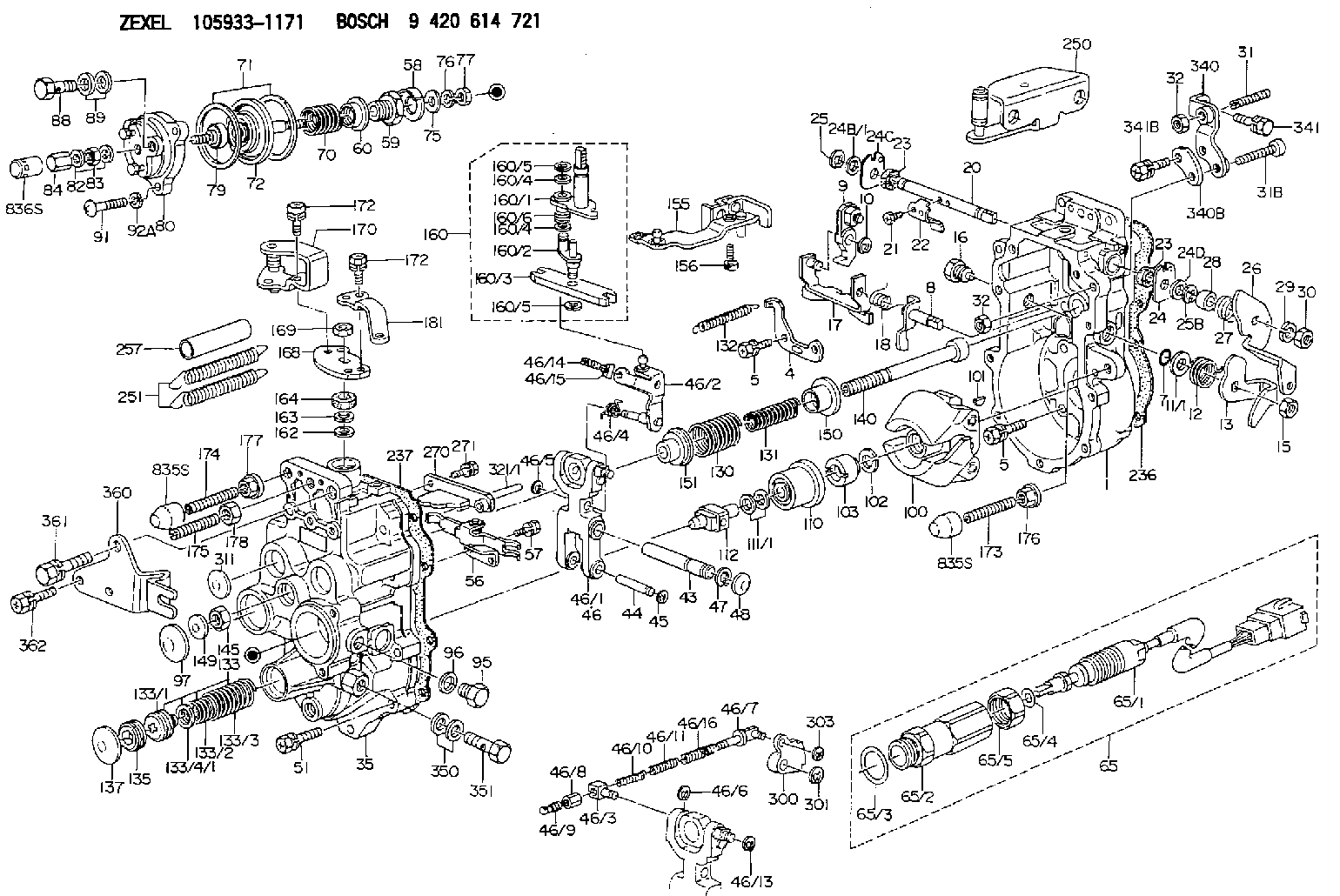

Scheme ###:

1.	[1]	159360-0620	GOVERNOR HOUSING
4.	[1]	159362-5120	PLATE
5.	[10]	139006-6100	BLEEDER SCREW
5.	[10]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-4820	LEVER SHAFT
9.	[1]	159362-6620	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7900	COILED SPRING
13.	[1]	159362-2500	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-2620	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159364-9800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-6500	CONTROL LEVER
27.	[1]	159369-2000	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
31B.	[1]	153505-0800	FLAT-HEAD SCREW
32.	[2]	013030-6040	UNION NUT M6P1H3.6
32.	[2]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-0920	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159362-8620	TENSIONING LEVER
46/1.	[1]	159362-8521	TENSIONING LEVER
46/2.	[1]	159362-8721	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-7700	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
56.	[1]	159362-3720	LEVER GROUP
57.	[2]	020105-1040	BLEEDER SCREW M5P0.8L10
58.	[1]	146711-0000	PLATE
59.	[1]	154413-3600	BUSHING
60.	[1]	146716-0000	UNION NUT
65.	[1]	154612-6320	RACK SENSOR ASSY
65/1.	[1]	479775-8520	RACK SENSOR
65/2.	[1]	154614-2500	JOINT CONNECTION
65/3.	[1]	026524-3040	GASKET
65/4.	[1]	029310-6280	SHIM D11.5&6.4T1.50
65/5.	[1]	154614-1900	UNION NUT
70.	[1]	154402-1500	COILED SPRING
71.	[2]	154413-2600	GASKET
72.	[1]	154415-1020	DIAPHRAGM
75.	[1]	154415-1100	SLOTTED WASHER
76.	[1]	014110-6440	LOCKING WASHER
77.	[1]	013030-6010	UNION NUT
79.	[1]	154413-4000	FLAT-HEAD SCREW
80.	[1]	154404-5600	COVER
82.	[2]	026506-1040	GASKET D9.9&6.2T1
83.	[1]	013030-6040	UNION NUT M6P1H3.6
84.	[1]	154035-1600	CAP NUT
88.	[1]	029731-0180	EYE BOLT
89.	[2]	026510-1340	GASKET D13.4&10.2T1
91.	[3]	154062-2900	BLEEDER SCREW
92A.	[3]	014110-6440	LOCKING WASHER
95.	[1]	029111-2090	CAPSULE
96.	[1]	029331-2130	GASKET
97.	[1]	159364-2000	CAPSULE
100.	[1]	154101-1020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2100	TERMINAL STUD
130.	[1]	159367-2500	GOVERNOR SPRING
131.	[1]	159367-6600	GOVERNOR SPRING
132.	[1]	159368-6500	COILED SPRING
133.	[1]	159368-5020	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-1300	COILED SPRING
133/3.	[1]	159368-0500	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-3220	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-3420	LEVER GROUP
160/1.	[1]	159364-4920	LEVER SHAFT
160/2.	[1]	159362-1020	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-7400	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159380-0300	CONTROL LEVER
169.	[1]	013020-8040	UNION NUT M8P1.25H7
170.	[1]	159382-5321	CONTROL LEVER
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
173.	[1]	154013-3800	FLAT-HEAD SCREW
173B.	[1]	154013-3900	FLAT-HEAD SCREW
173C.	[1]	154013-4600	FLAT-HEAD SCREW
174.	[1]	154013-3700	FLAT-HEAD SCREW
174B.	[1]	154013-4400	FLAT-HEAD SCREW
174C.	[1]	154013-4700	FLAT-HEAD SCREW
175.	[1]	154013-2100	FLAT-HEAD SCREW
176.	[1]	154011-4800	UNION NUT
177.	[1]	154011-4700	UNION NUT
178.	[1]	013131-0040	UNION NUT M10P1.25H6
181.	[1]	159382-5000	CONTROL LEVER
236.	[1]	154390-4200	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159398-7320	BRACKET
251.	[2]	154339-4000	COILED SPRING
257.	[2]	154156-1600	TUBE
270.	[1]	159362-3520	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159375-2600	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
321/1.	[1]	159274-5100	STOP PIN L72.5
321/1.	[1]	159274-5200	STOP PIN L73
321/1.	[1]	159274-5300	STOP PIN L73.5
321/1.	[1]	159274-5400	STOP PIN L74
321/1.	[1]	159274-5500	STOP PIN L74.5
321/1.	[1]	159274-5600	STOP PIN L75
321/1.	[1]	159274-5700	STOP PIN L75.5
321/1.	[1]	159274-5800	STOP PIN L76
321/1.	[1]	159274-5900	STOP PIN L76.5
321/1.	[1]	159274-6000	STOP PIN L77
321/1.	[1]	159274-6100	STOP PIN L77.5
321/1.	[1]	159274-6200	STOP PIN L78
321/1.	[1]	159274-6300	STOP PIN L78.5
321/1.	[1]	159274-6400	STOP PIN L79
321/1.	[1]	159274-6500	STOP PIN L79.5
321/1.	[1]	159274-6600	STOP PIN L80
321/1.	[1]	159274-6700	STOP PIN L80.5
321/1.	[1]	159274-6800	STOP PIN L81
321/1.	[1]	159274-6900	STOP PIN L81.5
321/1.	[1]	159274-7000	STOP PIN L82
321/1.	[1]	159274-7100	STOP PIN L82.5
321/1.	[1]	159274-7200	STOP PIN L83
321/1.	[1]	159274-7300	STOP PIN L83.5
321/1.	[1]	159274-7400	STOP PIN L84
321/1.	[1]	159274-7500	STOP PIN L84.5
321/1.	[1]	159274-7600	STOP PIN L85
321/1.	[1]	159274-7700	STOP PIN L85.5
321/1.	[1]	159274-7800	STOP PIN L86
321/1.	[1]	159274-7900	STOP PIN L86.5
321/1.	[1]	159274-8000	STOP PIN L87
321/1.	[1]	159274-8100	STOP PIN L87.5
321/1.	[1]	159274-8200	STOP PIN L88
321/1.	[1]	159274-8300	STOP PIN L88.5
321/1.	[1]	159274-8400	STOP PIN L89
321/1.	[1]	159274-8500	STOP PIN L89.5
321/1.	[1]	159274-8600	STOP PIN L90
340.	[1]	159397-0420	BRACKET
340B.	[1]	159397-0500	PLATE
341.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
341B.	[1]	020106-1840	BLEEDER SCREW M6P1L18
350.	[2]	139512-0000	GASKET D17.2&12.2T1.0
351.	[1]	139812-0100	EYE BOLT
360.	[1]	159398-7700	BRACKET
361.	[1]	010110-2040	BLEEDER SCREW M10P1.25L20
362.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
835S.	[2]	154062-3220	CAP
835S.	[2]	154062-3220	CAP
836S.	[1]	154062-2720	CAP

Include in #1:

107491-3151 as GOVERNOR

107491-3152

Cross reference number

Zexel num

Bosch num

Firm num

Name

105933-1171

9 420 614 721
NP-EP/RLD350-1400T5JXL

GOVERNOR
K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV
