105933-1044 ZEXEL 9 420 614 799 BOSCH GOVERNOR 9420614799 1059331044




Information governor

BOSCH 9 420 614 799 9420614799
ZEXEL 105933-1044 1059331044
105933-1044 GOVERNOR
Rating:
8
Buy GOVERNOR 105933-1044 zexel genuine, new aftermarket engine parts with delivery

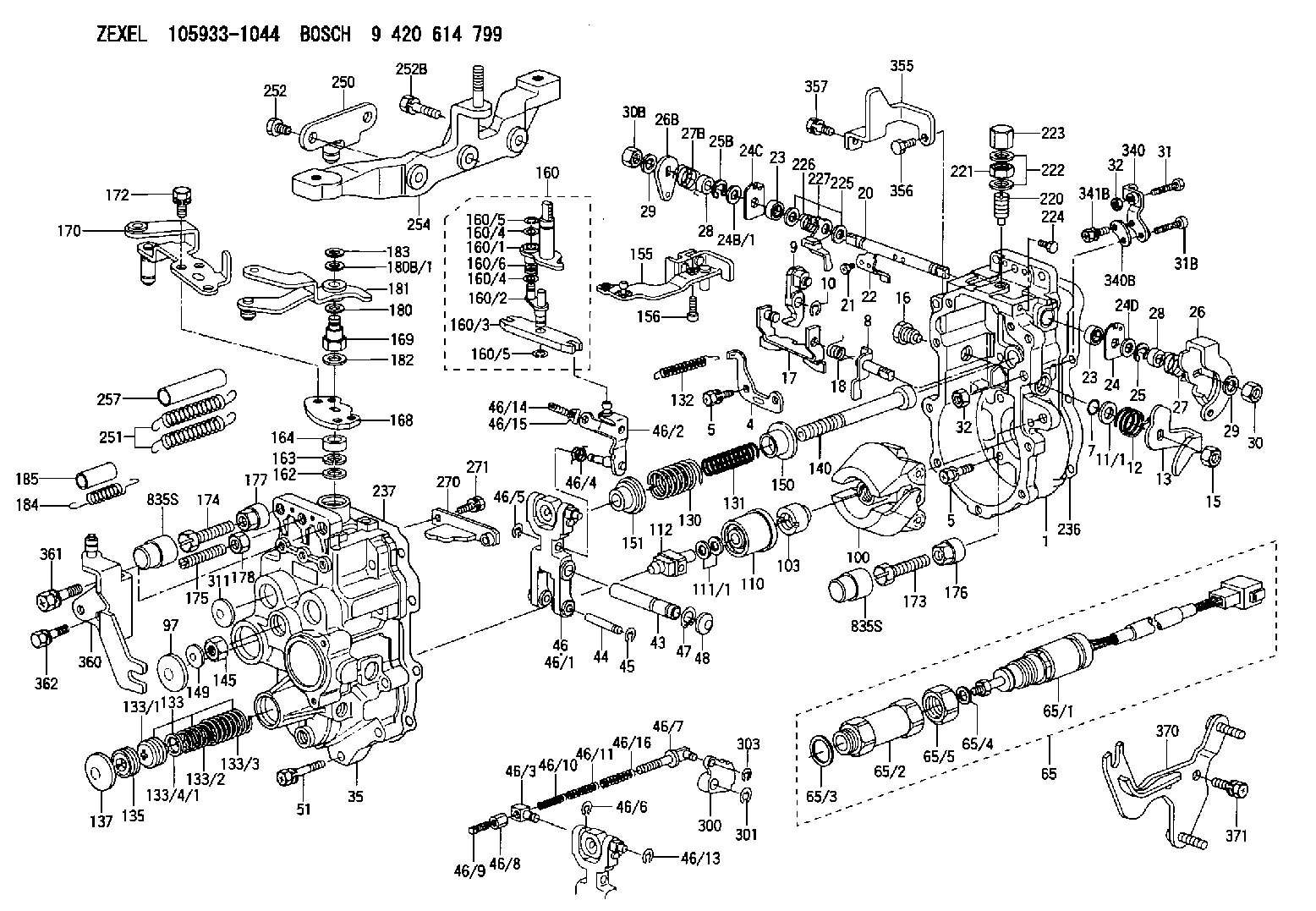

Scheme ###:

GOVERNOR HOUSING
1. [1] 159360-2120 GOVERNOR HOUSING
4. [1] 159362-5120 PLATE
5. [10] 139006-6100 BLEEDER SCREW
5. [10] 139006-6100 BLEEDER SCREW
7. [1] 139709-0100 O-RING
8. [1] 159364-4820 LEVER SHAFT
9. [1] 159362-6520 CONTROL LEVER
10. [1] 016010-0740 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159368-7900 COILED SPRING
13. [1] 159362-5300 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159364-5000 CAPSULE
17. [1] 159362-5420 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159365-4300 LEVER SHAFT
21. [2] 020104-1240 BLEEDER SCREW
22. [1] 159362-0600 CONTROL LEVER
23. [2] 139608-0600 PACKING RING
23. [2] 139608-0600 PACKING RING
24. [1] 159362-0700 PLAIN WASHER
24B/1. [0] 139408-1000 SHIM D16&8T0.5
24B/1. [0] 139408-1300 SHIM D16&8T0.2
24C. [1] 159362-0700 PLAIN WASHER
24D. [2] 139308-2100 PLAIN WASHER
25. [1] 159238-4200 LOCKING WASHER
25B. [1] 159238-4200 LOCKING WASHER
26. [1] 159391-0620 CONTROL LEVER
26B. [1] 159390-2900 CONTROL LEVER
27. [1] 159369-2000 COILED SPRING
27B. [1] 159368-7300 COILED SPRING
28. [2] 159364-6000 BUSHING
28. [2] 159364-6000 BUSHING
29. [2] 014110-8440 LOCKING WASHER
29. [2] 014110-8440 LOCKING WASHER
30. [1] 013020-8040 UNION NUT M8P1.25H7
30B. [1] 013030-8040 UNION NUT M8P1.25H5
31. [1] 155644-1301 BLEEDER SCREW
31B. [1] 153505-0800 FLAT-HEAD SCREW
32. [2] 013030-6040 UNION NUT M6P1H3.6
32. [2] 013030-6040 UNION NUT M6P1H3.6
35. [1] 159361-1120 GOVERNOR COVER
43. [1] 159364-0700 LEVER SHAFT
44. [1] 159364-0800 BEARING PIN
45. [2] 016010-0640 LOCKING WASHER
46. [1] 159362-8620 TENSIONING LEVER
46/1. [1] 159362-8521 TENSIONING LEVER
46/2. [1] 159362-8721 GUIDE LEVER
46/3. [1] 159364-4201 BEARING PIN
46/4. [1] 159368-7700 COILED SPRING
46/5. [1] 016010-0540 LOCKING WASHER
46/6. [1] 016010-0440 LOCKING WASHER
46/7. [1] 159364-4121 RACK
46/8. [1] 159364-4300 UNION NUT
46/9. [1] 159364-4400 FLAT-HEAD SCREW
46/10. [1] 159368-6900 COILED SPRING
46/11. [1] 159368-7000 COILED SPRING
46/13. [1] 016010-0540 LOCKING WASHER
46/14. [1] 159364-1900 FLAT-HEAD SCREW
46/15. [1] 159364-1800 UNION NUT
46/16. [1] 159368-9500 COILED SPRING
47. [2] 016110-1020 LOCKING WASHER
48. [2] 159237-0200 CAPSULE
51. [9] 020106-3840 BLEEDER SCREW
65. [1] 154612-6121 RACK SENSOR ASSY
65/1. [1] 407945-0331 RACK SENSOR
65/2. [1] 154614-9000 JOINT CONNECTION
65/3. [1] 026524-3040 GASKET
65/4. [1] 029310-6280 SHIM D11.5&6.4T1.50
65/5. [1] 154614-1900 UNION NUT
97. [1] 159364-2000 CAPSULE
100. [1] 154101-4820 FLYWEIGHT ASSEMBLY
103. [1] 154101-2500 HEXAGON NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159364-2400 TERMINAL STUD
130. [1] 159367-4200 GOVERNOR SPRING
131. [1] 159367-6700 GOVERNOR SPRING
132. [1] 159368-6500 COILED SPRING
133. [1] 159368-2320 SPRING PACK
133/1. [1] 159364-2200 GUIDE SLEEVE
133/2. [1] 159368-0200 COILED SPRING
133/3. [1] 159368-0500 COILED SPRING
133/4/1. [0] 029311-0010 SHIM D14&10.1T0.2
133/4/1. [0] 029311-0180 SHIM D14&10.1T0.3
133/4/1. [0] 029311-0190 SHIM D14&10.1T0.40
133/4/1. [0] 029311-0210 SHIM D14&10.1T1
133/4/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
133/4/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
133/4/1. [0] 139410-3000 SHIM D14&10.1T2.0
133/4/1. [0] 139410-3100 SHIM D14&10.1T3.0
133/4/1. [0] 139410-3200 SHIM D14&10.1T4.0
135. [1] 159364-2300 FLAT-HEAD SCREW
137. [1] 159364-2000 CAPSULE
140. [1] 159364-2500 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159364-2600 SLOTTED WASHER
151. [1] 159364-2700 SLOTTED WASHER
155. [1] 159366-1220 STRAP
156. [1] 010235-1020 HEX-SOCKET-HEAD CAP SCREW
160. [1] 159362-3420 LEVER GROUP
160/1. [1] 159364-4920 LEVER SHAFT
160/2. [1] 159362-1020 CONTROL LEVER
160/3. [1] 159362-2000 CONTROL LEVER
160/4. [2] 159362-1300 SHIM
160/4. [2] 159362-1300 SHIM
160/5. [2] 016010-0840 LOCKING WASHER
160/5. [2] 016010-0840 LOCKING WASHER
160/6. [1] 159368-7400 COILED SPRING
162. [1] 139411-0600 SHIM
163. [1] 159238-3000 LOCKING WASHER
164. [1] 139610-0800 PACKING RING
168. [1] 159380-0300 CONTROL LEVER
169. [1] 159233-7600 UNION NUT
170. [1] 159383-1520 CONTROL LEVER
172. [3] 020106-1240 BLEEDER SCREW M6P1.0L12
173. [1] 154013-1700 BLEEDER SCREW
173B. [1] 154013-1800 BLEEDER SCREW
173C. [1] 154013-1900 BLEEDER SCREW
174. [1] 154013-2000 BLEEDER SCREW
175. [1] 154013-2100 FLAT-HEAD SCREW
176. [1] 154011-4000 UNION NUT
177. [1] 154011-4100 UNION NUT
178. [1] 013131-0040 UNION NUT M10P1.25H6
180. [1] 139408-0800 PLAIN WASHER D17&8.2T0.5
180B/1. [0] 139408-1000 SHIM D16&8T0.5
180B/1. [0] 139408-1300 SHIM D16&8T0.2
181. [1] 159383-1820 CONTROL LEVER
182. [1] 029300-8010 PLAIN WASHER D15&8T1.00
183. [1] 016010-0740 LOCKING WASHER
184. [1] 154339-2500 COILED SPRING
185. [1] 154156-2800 TUBE
220. [1] 159368-8420 HEADLESS SCREW
221. [1] 154011-4300 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-2100 CAP NUT
224. [1] 029010-6700 BLEEDER SCREW
225. [2] 029310-8050 SHIM D13.5&8T0.5
226. [1] 159368-9101 COILED SPRING
227. [1] 159362-6720 CONTROL LEVER
236. [1] 154390-4200 GASKET
237. [1] 154390-2500 GASKET
250. [1] 159399-9620 BRACKET
251. [2] 154339-7800 COILED SPRING
252. [2] 156633-0200 BLEEDER SCREW
252B. [1] 156633-4700 BLEEDER SCREW
254. [1] 159400-2921 BRACKET
257. [2] 154156-0500 TUBE
270. [1] 159362-7320 GUIDE PLATE
271. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
300. [1] 159376-4400 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [2] 159237-5400 CAPSULE
340. [1] 159397-0420 BRACKET
340B. [1] 159397-0500 PLATE
341B. [1] 020106-1840 BLEEDER SCREW M6P1L18
355. [1] 159399-9800 BRACKET
356. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
357. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
360. [1] 159400-0120 BRACKET
361. [1] 010110-2040 BLEEDER SCREW M10P1.25L20
362. [2] 020106-1440 BLEEDER SCREW M6P1.0L14
370. [1] 159400-0320 BRACKET
371. [2] 020158-1640 BLEEDER SCREW M8P1.25L16
835S. [2] 154062-1700 CAP D20L32
835S. [2] 154062-1700 CAP D20L32

Include in #1:

107691-3304 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105933-1044
9 420 614 799
NP-EP/RLD275-1550T5JFL

GOVERNOR
K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV
