105933-0930 ZEXEL 9 420 613 869 BOSCH GOVERNOR 9420613869 1059330930 me748119




Information governor

BOSCH 9 420 613 869 9420613869
ZEXEL 105933-0930 1059330930
MITSUBISHI ME748119 me748119
105933-0930 GOVERNOR
Rating:
65
Buy GOVERNOR 105933-0930 zexel genuine, new aftermarket engine parts with delivery

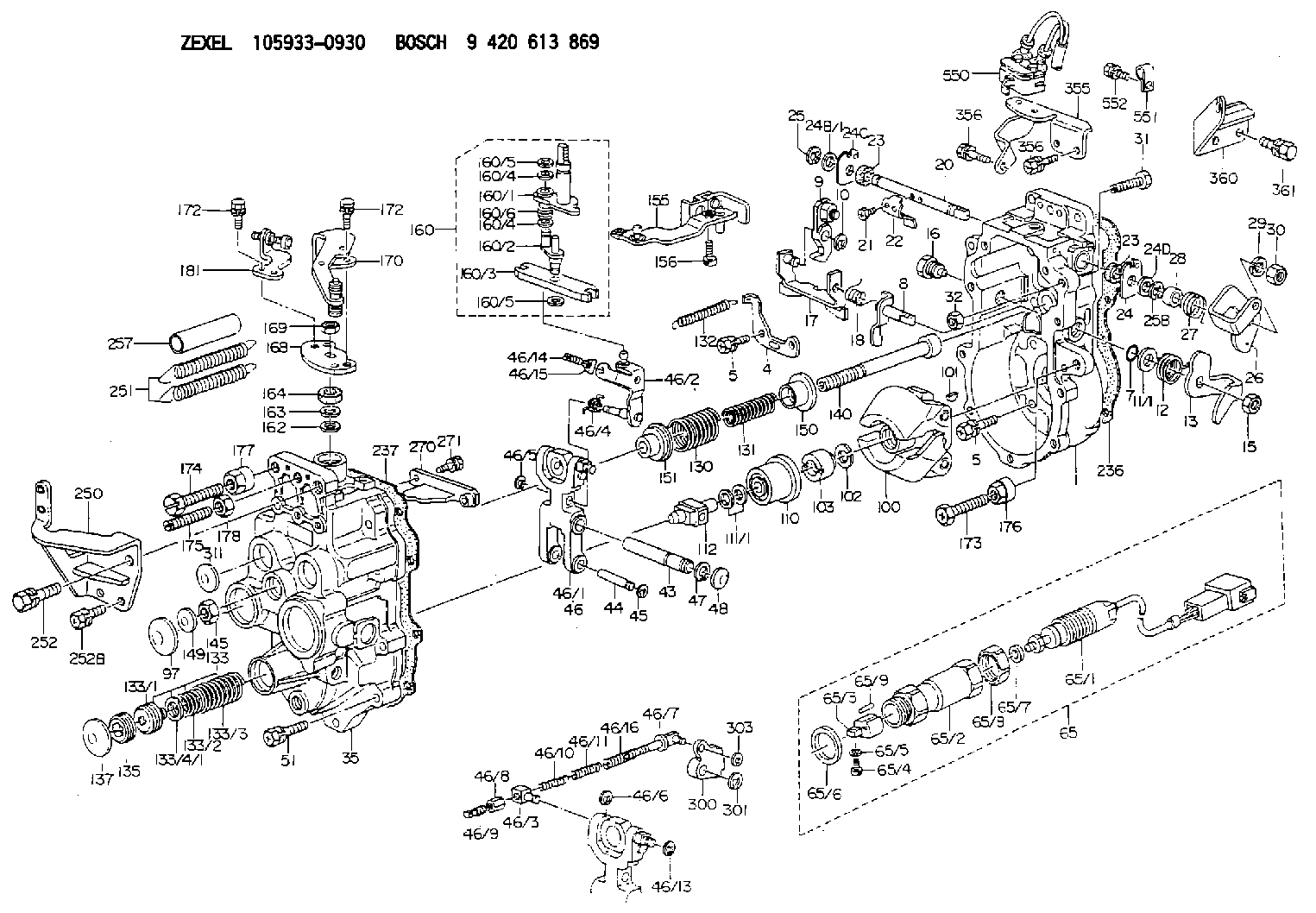

Scheme ###:

1. [1] 159360-0620 GOVERNOR HOUSING
4. [1] 159362-5120 PLATE
5. [10] 139006-6100 BLEEDER SCREW
5. [10] 139006-6100 BLEEDER SCREW
7. [1] 139709-0100 O-RING
8. [1] 159364-4820 LEVER SHAFT
9. [1] 159362-6520 CONTROL LEVER
10. [1] 016010-0740 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159368-7900 COILED SPRING
13. [1] 159362-5300 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159364-5000 CAPSULE
17. [1] 159362-5420 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159364-3800 LEVER SHAFT
21. [2] 020104-1240 BLEEDER SCREW
22. [1] 159362-0600 CONTROL LEVER
23. [2] 139608-0600 PACKING RING
23. [2] 139608-0600 PACKING RING
24. [1] 159362-0700 PLAIN WASHER
24B/1. [0] 139408-1000 SHIM D16&8T0.5
24B/1. [0] 139408-1300 SHIM D16&8T0.2
24C. [1] 159362-0700 PLAIN WASHER
24D. [1] 139308-2100 PLAIN WASHER
25. [1] 159238-4200 LOCKING WASHER
25B. [1] 159238-4200 LOCKING WASHER
26. [1] 159390-5300 CONTROL LEVER
26. [1] 159390-5300 CONTROL LEVER
27. [1] 159368-6100 COILED SPRING
28. [1] 159364-6000 BUSHING
29. [1] 014110-8440 LOCKING WASHER
30. [1] 013020-8040 UNION NUT M8P1.25H7
31. [1] 155644-1301 BLEEDER SCREW
32. [1] 013030-6040 UNION NUT M6P1H3.6
35. [1] 159361-1120 GOVERNOR COVER
43. [1] 159364-0700 LEVER SHAFT
44. [1] 159364-0800 BEARING PIN
45. [2] 016010-0640 LOCKING WASHER
46. [1] 159362-8620 TENSIONING LEVER
46/1. [1] 159362-8521 TENSIONING LEVER
46/2. [1] 159362-8721 GUIDE LEVER
46/3. [1] 159364-4201 BEARING PIN
46/4. [1] 159368-7700 COILED SPRING
46/5. [1] 016010-0540 LOCKING WASHER
46/6. [1] 016010-0440 LOCKING WASHER
46/7. [1] 159364-4121 RACK
46/8. [1] 159364-4300 UNION NUT
46/9. [1] 159364-4400 FLAT-HEAD SCREW
46/10. [1] 159368-6900 COILED SPRING
46/11. [1] 159368-7000 COILED SPRING
46/13. [1] 016010-0540 LOCKING WASHER
46/14. [1] 159364-1900 FLAT-HEAD SCREW
46/15. [1] 159364-1800 UNION NUT
46/16. [1] 159368-9500 COILED SPRING
47. [2] 016110-1020 LOCKING WASHER
48. [2] 159237-0200 CAPSULE
51. [9] 020106-3840 BLEEDER SCREW
65. [1] 154611-3020 RACK SENSOR ASSY
65/1. [1] 479775-0820 RACK SENSOR
65/2. [1] 154614-2500 JOINT CONNECTION
65/3. [1] 154614-5300 BLOCK
65/3. [1] 154614-5300 BLOCK
65/4. [1] 010234-1040 HEX-SOCKET-HEAD CAP SCREW
65/5. [1] 014110-4440 LOCKING WASHER
65/6. [1] 026524-3040 GASKET
65/7A. [0] 029310-6220 SHIM D11.5&6.5T0.10
65/7B. [0] 029310-6230 SHIM D11.5&6.5T0.20
65/7C. [0] 029310-6240 SHIM D11.5&6.5T0.25
65/7D. [0] 029310-6260 SHIM D11.5&6.4T1.00
65/7E. [0] 029310-6270 SHIM D11.5&6.4T1.20
65/7F. [0] 029310-6280 SHIM D11.5&6.4T1.50
65/8. [1] 154614-1900 UNION NUT
65/9. [1] 154614-3300 BEARING PIN
97. [1] 159364-2000 CAPSULE
100. [1] 154101-0920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159364-2100 TERMINAL STUD
130. [1] 159367-1400 GOVERNOR SPRING
131. [1] 159367-6400 GOVERNOR SPRING
132. [1] 159368-6500 COILED SPRING
133. [1] 159368-3620 SPRING PACK
133/1. [1] 159364-2200 GUIDE SLEEVE
133/2. [1] 159368-0200 COILED SPRING
133/3. [1] 159368-0300 COILED SPRING
133/4/1. [0] 029311-0010 SHIM D14&10.1T0.2
133/4/1. [0] 029311-0180 SHIM D14&10.1T0.3
133/4/1. [0] 029311-0190 SHIM D14&10.1T0.40
133/4/1. [0] 029311-0210 SHIM D14&10.1T1
133/4/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
133/4/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
133/4/1. [0] 139410-3000 SHIM D14&10.1T2.0
133/4/1. [0] 139410-3100 SHIM D14&10.1T3.0
133/4/1. [0] 139410-3200 SHIM D14&10.1T4.0
135. [1] 159364-2300 FLAT-HEAD SCREW
137. [1] 159364-2000 CAPSULE
140. [1] 159364-2500 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159364-2600 SLOTTED WASHER
151. [1] 159364-2700 SLOTTED WASHER
155. [1] 159363-3621 STRAP
156. [1] 010235-1020 HEX-SOCKET-HEAD CAP SCREW
160. [1] 159362-3420 LEVER GROUP
160/1. [1] 159364-4920 LEVER SHAFT
160/2. [1] 159362-1020 CONTROL LEVER
160/3. [1] 159362-2000 CONTROL LEVER
160/4. [2] 159362-1300 SHIM
160/4. [2] 159362-1300 SHIM
160/5. [2] 016010-0840 LOCKING WASHER
160/5. [2] 016010-0840 LOCKING WASHER
160/6. [1] 159368-7400 COILED SPRING
162. [1] 139411-0600 SHIM
163. [1] 159238-3000 LOCKING WASHER
164. [1] 139610-0800 PACKING RING
168. [1] 159380-0300 CONTROL LEVER
169. [1] 013020-8040 UNION NUT M8P1.25H7
170. [1] 159383-1020 CONTROL LEVER
172. [4] 020106-1240 BLEEDER SCREW M6P1.0L12
172. [4] 020106-1240 BLEEDER SCREW M6P1.0L12
173. [1] 154013-1700 BLEEDER SCREW
173B. [1] 154013-1800 BLEEDER SCREW
173C. [1] 154013-1900 BLEEDER SCREW
174. [1] 154013-2000 BLEEDER SCREW
175. [1] 154013-2100 FLAT-HEAD SCREW
176. [1] 154011-4000 UNION NUT
177. [1] 154011-4100 UNION NUT
178. [1] 013131-0040 UNION NUT M10P1.25H6
181. [1] 159383-1120 CONTROL LEVER
236. [1] 154390-4200 GASKET
237. [1] 154390-2500 GASKET
250. [1] 159399-8520 BRACKET
251. [2] 154339-7400 COILED SPRING
252. [1] 010110-1640 BLEEDER SCREW M101.25L16
252B. [2] 020106-1240 BLEEDER SCREW M6P1.0L12
257. [2] 154156-0600 TUBE
270. [1] 159362-7320 GUIDE PLATE
271. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
300. [1] 159373-5400 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [2] 159237-5400 CAPSULE
355. [1] 159397-7220 BRACKET
356. [3] 020106-1240 BLEEDER SCREW M6P1.0L12
356. [3] 020106-1240 BLEEDER SCREW M6P1.0L12
360. [1] 159399-8620 BRACKET
361. [2] 010138-1440 BLEEDER SCREW M8P1.25L14
550. [1] 153146-5420 MICROSWITCH
551. [1] 154614-4120 CLAMPING BAND
552. [1] 020106-1040 BLEEDER SCREW M6P1L12

Include in #1:

107691-2680 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105933-0930
9 420 613 869
NP-EP/RLD275-1500T1JFL
ME748119  MITSUBISHI
GOVERNOR
K




Information:

Cautions Regarding Battery* Handle Battery Carefully * Never use flames or allow sparks near the battery. The battery releases flammable hydrogen gas and oxygen gas. These gases can be ignited by flames and cause an explosion.* Do not use the battery when the fluid surface is lower than the minimum level. Using a battery with a low electrolyte level can result in an explosion.* Do not short the battery terminals with a tool or other metal object.* When disconnecting battery cables, always remove the cable from the negative (-) terminal first. When reconnecting cables, attach the cable to the positive (+) terminal first.* Charge the battery in a well-ventilated area, with all filling hole plugs removed.* Make sure the cable clamps are securely installed on the battery terminals. A loose cable clamp can cause sparks that may result in explosion.* Before servicing electrical components or conducting electrical welding, set the battery switch to the [Open/OFF] position or disconnect the cable from the negative (-) battery terminal to cut off the electrical current.* Electrolyte (battery fluid) contains dilute sulfuric acid. Careless handling of the battery can lead to the loss of sight and/or burns. Also, do not swallow electrolyte.* Wear protective goggles and rubber gloves when maintaining and inspecting the battery (when adding water, charging, etc.).* If electrolyte is spilled onto the skin or clothes, immediately wash with lots of clean fresh water and thoroughly clean with soap.* If electrolyte gets into eyes, immediately flush with lots of clean fresh water and seek immediate medical attention.* Should you accidentally swallow electrolyte, gargle with plenty of water, then drink lots of water, and seek immediate medical attention.
Response To Abnormalities* If Engine Overheats, Conduct Heating Operation Before Stopping The Engine If the engine overheats, do not stop the engine immediately. Abruptly stopping an overheated engine may cause the coolant temperature to rise, resulting in seizing of the engine. If the engine overheats, operate the engine at low idling speed (cooling temperature), and stop the engine after the coolant temperature lowers sufficiently.Do not add coolant immediately after stopping the engine. Adding coolant to a hot engine may cause damage to the cylinder heads due to sudden change in temperature. Add coolant after the engine cools to room temperature.* If Engine Stops Due To Abnormality, Exercise Caution When Restarting If the engine stops due to an abnormality, do not restart the engine immediately. If the engine stops with an alarm, check and correct the cause of the problem before restarting. Operating the engine without correcting the problem may result in serious engine problems.* If Oil Pressure Drops, Stop Engine Immediately If the engine oil pressure decreases, stop the engine immediately, and inspect the lubrication system. Operating the engine with low oil pressure may cause seizing of the bearings and other parts.* If Fan Belt Breaks, Stop Engine Immediately If the fan belt breaks, stop the engine immediately. Continued operation of the engine without the fan belt causes coolant to change to steam and

Have questions with 105933-0930?





Group cross 105933-0930 ZEXEL



GOVERNOR


GOVERNOR

Mitsubishi

F 019 Z5E 930
NP-EP/RLD275-1500T1JFL
ME748889
GOVERNOR
9 420 613 868
NP-EP/RLD275-1500T1JFL
ME748116
GOVERNOR
F 019 Z5E 931
NP-EP/RLD275-1500T1JFL
ME748118
GOVERNOR
105933-0930
9 420 613 869
NP-EP/RLD275-1500T1JFL
ME748119
GOVERNOR
F 019 Z5E 932
NP-EP/RLD275-1500T1JXL
ME748120
GOVERNOR
9 420 613 870
NP-EP/RLD275-1500T1JXL
ME748121
GOVERNOR

Hino

9 420 614 393
NP-EP/RLD325-1450T5JXL
223009790A
GOVERNOR
F 019 Z2E 036
NP-EP/RLD325-1450T5JXL
224001940A
GOVERNOR
9 420 614 894
NP-EP/RLD275-1550T5JYL
223009770A
GOVERNOR
9 420 614 917
NP-EP/RLD275-1550T5JXL
224001790A
GOVERNOR
