Information governor
BOSCH
F 019 Z5E 931
f019z5e931
ZEXEL
105933-0920
1059330920
MITSUBISHI
ME748118
me748118

Rating:

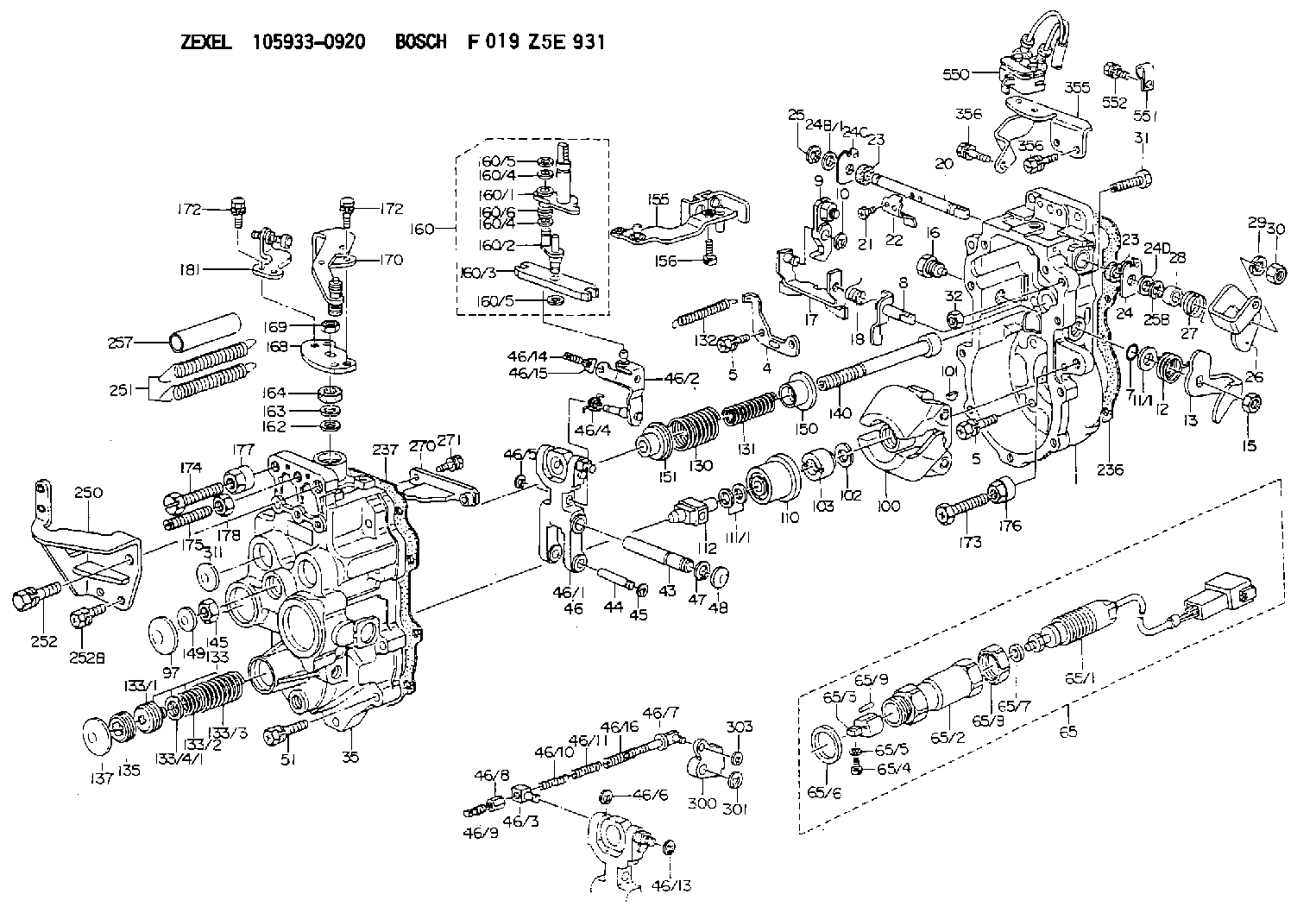

Scheme ###:
1. | [1] | 159360-0620 | GOVERNOR HOUSING |
4. | [1] | 159362-5120 | PLATE |
5. | [10] | 139006-6100 | BLEEDER SCREW |
5. | [10] | 139006-6100 | BLEEDER SCREW |
7. | [1] | 139709-0100 | O-RING |
8. | [1] | 159364-4820 | LEVER SHAFT |
9. | [1] | 159362-6520 | CONTROL LEVER |
10. | [1] | 016010-0740 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159368-7900 | COILED SPRING |
13. | [1] | 159362-5300 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT |
16. | [1] | 159364-5000 | CAPSULE |
17. | [1] | 159362-5420 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159364-9800 | LEVER SHAFT |
21. | [2] | 020104-1240 | BLEEDER SCREW |
22. | [1] | 159362-0600 | CONTROL LEVER |
23. | [2] | 139608-0600 | PACKING RING |
23. | [2] | 139608-0600 | PACKING RING |
24. | [1] | 159362-0700 | PLAIN WASHER |
24B/1. | [0] | 139408-1000 | SHIM D16&8T0.5 |
24B/1. | [0] | 139408-1300 | SHIM D16&8T0.2 |
24C. | [1] | 159362-0700 | PLAIN WASHER |
24D. | [1] | 139308-2100 | PLAIN WASHER |
25. | [1] | 159238-4200 | LOCKING WASHER |
25B. | [1] | 159238-4200 | LOCKING WASHER |
26. | [1] | 159390-5300 | CONTROL LEVER |
27. | [1] | 159368-6100 | COILED SPRING |
28. | [1] | 159364-6000 | BUSHING |
29. | [1] | 014110-8440 | LOCKING WASHER D15.4&8.2T2 |
30. | [1] | 013020-8040 | UNION NUT |
31. | [1] | 155644-1301 | BLEEDER SCREW |
32. | [1] | 013030-6040 | UNION NUT |
35. | [1] | 159361-1120 | GOVERNOR COVER |
43. | [1] | 159364-0700 | LEVER SHAFT |
44. | [1] | 159364-0800 | BEARING PIN |
45. | [2] | 016010-0640 | LOCKING WASHER |
46. | [1] | 159362-8620 | TENSIONING LEVER |
46/1. | [1] | 159362-8521 | TENSIONING LEVER |
46/2. | [1] | 159362-8721 | GUIDE LEVER |
46/3. | [1] | 159364-4201 | BEARING PIN |
46/4. | [1] | 159368-7700 | COILED SPRING |
46/5. | [1] | 016010-0540 | LOCKING WASHER |
46/6. | [1] | 016010-0440 | LOCKING WASHER |
46/7. | [1] | 159364-4121 | RACK |
46/8. | [1] | 159364-4300 | UNION NUT |
46/9. | [1] | 159364-4400 | FLAT-HEAD SCREW |
46/10. | [1] | 159368-6900 | COILED SPRING |
46/11. | [1] | 159368-7000 | COILED SPRING |
46/13. | [1] | 016010-0540 | LOCKING WASHER |
46/14. | [1] | 159364-1900 | FLAT-HEAD SCREW |
46/15. | [1] | 159364-1800 | UNION NUT |
46/16. | [1] | 159368-9500 | COILED SPRING |
47. | [2] | 016110-1020 | LOCKING WASHER |
48. | [2] | 159237-0200 | CAPSULE |
51. | [9] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154611-3020 | RACK SENSOR ASSY |
65/1. | [1] | 479775-0820 | RACK SENSOR |
65/2. | [1] | 154614-2500 | JOINT CONNECTION |
65/3. | [1] | 154614-5300 | BLOCK |
65/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
65/5. | [1] | 014110-4440 | LOCKING WASHER D7.6&4.1T1 |
65/6. | [1] | 026524-3040 | GASKET |
65/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
65/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
65/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
65/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
65/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
65/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
65/8. | [1] | 154614-1900 | UNION NUT |
65/9. | [1] | 154614-3300 | BEARING PIN |
97. | [1] | 159364-2000 | CAPSULE |
100. | [1] | 154101-0920 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159364-2100 | TERMINAL STUD |
130. | [1] | 159367-1400 | GOVERNOR SPRING |
131. | [1] | 159367-6400 | GOVERNOR SPRING |
132. | [1] | 159368-6500 | COILED SPRING |
133. | [1] | 159368-3620 | SPRING PACK |
133/1. | [1] | 159364-2200 | GUIDE SLEEVE |
133/2. | [1] | 159368-0200 | COILED SPRING |
133/3. | [1] | 159368-0300 | COILED SPRING |
133/4/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
133/4/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
133/4/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
133/4/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
133/4/1. | [0] | 139410-0000 | SHIM D14&10.1T0.5 |
133/4/1. | [0] | 139410-0100 | SHIM D14&10.1T1.5 |
133/4/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
133/4/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
133/4/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
135. | [1] | 159364-2300 | FLAT-HEAD SCREW |
137. | [1] | 159364-2000 | CAPSULE |
140. | [1] | 159364-2500 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159364-2600 | SLOTTED WASHER |
151. | [1] | 159364-2700 | SLOTTED WASHER |
155. | [1] | 159363-3620 | STRAP |
156. | [1] | 010235-1020 | HEX-SOCKET-HEAD CAP SCREW |
160. | [1] | 159362-3420 | LEVER GROUP |
160/1. | [1] | 159364-4920 | LEVER SHAFT |
160/2. | [1] | 159362-1020 | CONTROL LEVER |
160/3. | [1] | 159362-2000 | CONTROL LEVER |
160/4. | [2] | 159362-1300 | SHIM |
160/4. | [2] | 159362-1300 | SHIM |
160/5. | [2] | 016010-0840 | LOCKING WASHER |
160/5. | [2] | 016010-0840 | LOCKING WASHER |
160/6. | [1] | 159368-7400 | COILED SPRING |
162. | [1] | 139411-0600 | SHIM |
163. | [1] | 159238-3000 | LOCKING WASHER |
164. | [1] | 139610-0800 | PACKING RING |
168. | [1] | 159380-0300 | CONTROL LEVER |
169. | [1] | 013020-8040 | UNION NUT |
170. | [1] | 159383-1020 | CONTROL LEVER |
172. | [4] | 020106-1240 | BLEEDER SCREW |
172. | [4] | 020106-1240 | BLEEDER SCREW |
173. | [1] | 154013-1700 | BLEEDER SCREW M8P1.25L45 |
173B. | [1] | 154013-1800 | BLEEDER SCREW M8P1.25L49 |
173C. | [1] | 154013-1900 | BLEEDER SCREW M8P1.25L53 |
174. | [1] | 154013-2000 | BLEEDER SCREW |
175. | [1] | 154013-2100 | FLAT-HEAD SCREW |
176. | [1] | 154011-4000 | UNION NUT |
177. | [1] | 154011-4100 | UNION NUT |
178. | [1] | 013131-0040 | UNION NUT |
181. | [1] | 159383-1120 | CONTROL LEVER |
236. | [1] | 154390-4200 | GASKET |
237. | [1] | 154390-2500 | GASKET |
250. | [1] | 159399-8520 | BRACKET |
251. | [2] | 154339-7400 | COILED SPRING |
252. | [1] | 010110-1640 | BLEEDER SCREW |
252B. | [2] | 020106-1240 | BLEEDER SCREW |
257. | [2] | 154156-0600 | TUBE |
270. | [1] | 159362-7320 | GUIDE PLATE |
271. | [2] | 020106-1640 | BLEEDER SCREW |
300. | [1] | 159373-5400 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [2] | 159237-5400 | CAPSULE |
355. | [1] | 159397-7220 | BRACKET |
355. | [1] | 159397-7220 | BRACKET |
356. | [3] | 020106-1240 | BLEEDER SCREW |
550. | [1] | 153146-5420 | MICROSWITCH |
551. | [1] | 154614-4120 | CLAMPING BAND |
552. | [1] | 020106-1040 | BLEEDER SCREW M6P1.0L12 |
835S. | [2] | 154062-1700 | CAP |
Include in #1:
107691-2670
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105933-0920
ME748118 MITSUBISHI
GOVERNOR
K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV
K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV
