105933-0792 ZEXEL 9 420 614 718 BOSCH GOVERNOR 9420614718 1059330792 224002650a

Information governor

BOSCH 9 420 614 718 9420614718

ZEXEL 105933-0792 1059330792

HINO 224002650A 224002650a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105933-0792 zexel genuine, new aftermarket engine parts with delivery

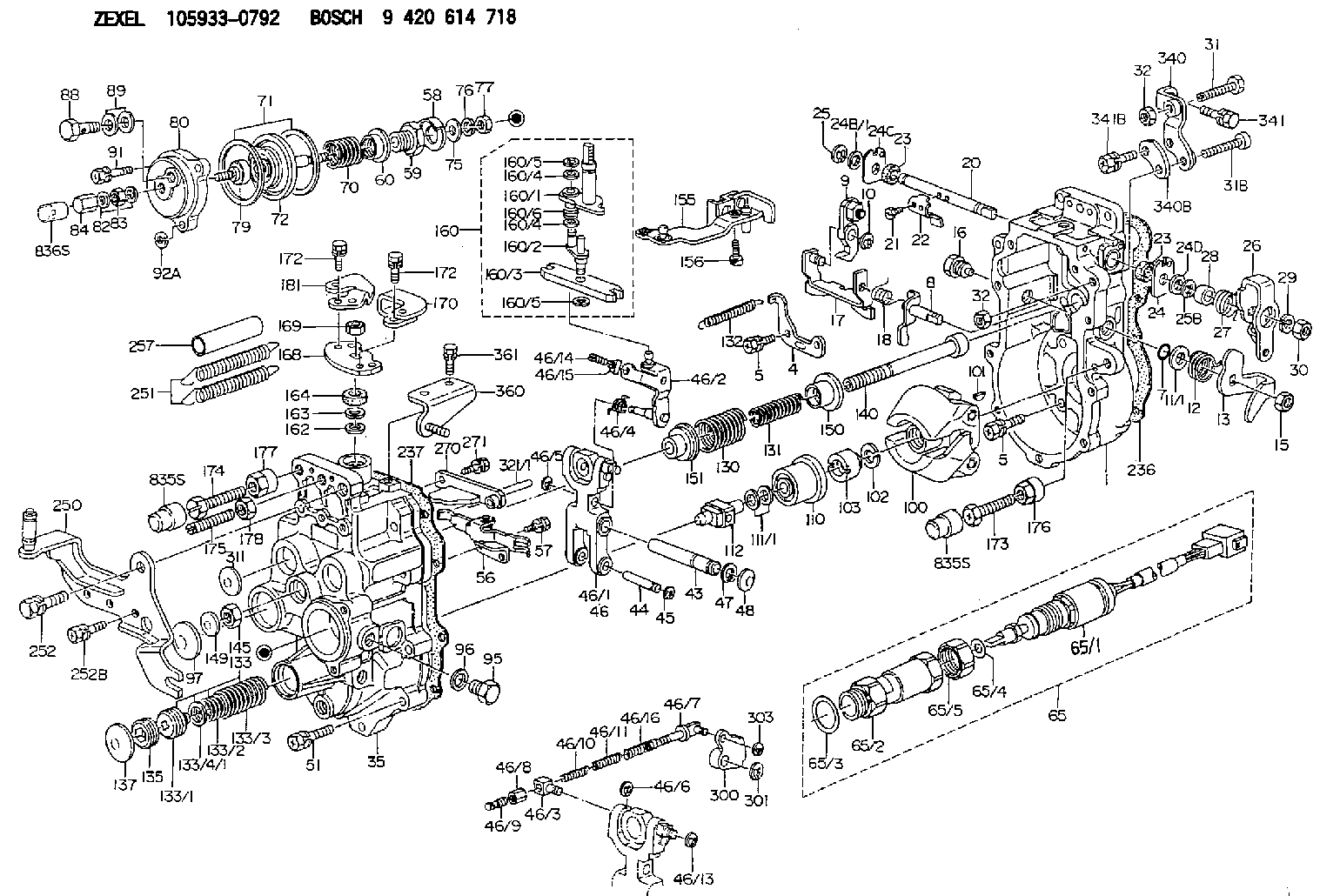

Scheme ###:

1.	[1]	159360-0620	GOVERNOR HOUSING
4.	[1]	159362-5120	PLATE
5.	[10]	139006-6100	BLEEDER SCREW
5.	[10]	139006-6100	BLEEDER SCREW
7.	[1]	139709-0100	O-RING
8.	[1]	159364-4820	LEVER SHAFT
9.	[1]	159362-6620	CONTROL LEVER
10.	[1]	016010-0740	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159368-7900	COILED SPRING
13.	[1]	159362-2500	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159364-5000	CAPSULE
17.	[1]	159362-2620	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159364-9800	LEVER SHAFT
21.	[2]	020104-1240	BLEEDER SCREW
22.	[1]	159362-0600	CONTROL LEVER
23.	[2]	139608-0600	PACKING RING
23.	[2]	139608-0600	PACKING RING
24.	[1]	159362-0700	PLAIN WASHER
24B/1.	[0]	139408-1000	SHIM D16&8T0.5
24B/1.	[0]	139408-1300	SHIM D16&8T0.2
24C.	[1]	159362-0700	PLAIN WASHER
24D.	[1]	139308-2100	PLAIN WASHER
25.	[1]	159238-4200	LOCKING WASHER
25B.	[1]	159238-4200	LOCKING WASHER
26.	[1]	159390-9520	CONTROL LEVER
27.	[1]	159369-2000	COILED SPRING
28.	[1]	159364-6000	BUSHING
29.	[1]	014110-8440	LOCKING WASHER
30.	[1]	013020-8040	UNION NUT M8P1.25H7
31.	[1]	155644-1301	BLEEDER SCREW
31B.	[1]	153505-0800	FLAT-HEAD SCREW
32.	[2]	013030-6040	UNION NUT M6P1H3.6
32.	[2]	013030-6040	UNION NUT M6P1H3.6
35.	[1]	159361-1020	GOVERNOR COVER
43.	[1]	159364-0700	LEVER SHAFT
44.	[1]	159364-0800	BEARING PIN
45.	[2]	016010-0640	LOCKING WASHER
46.	[1]	159362-8620	TENSIONING LEVER
46/1.	[1]	159362-8521	TENSIONING LEVER
46/2.	[1]	159362-8721	GUIDE LEVER
46/3.	[1]	159364-4201	BEARING PIN
46/4.	[1]	159368-7700	COILED SPRING
46/5.	[1]	016010-0540	LOCKING WASHER
46/6.	[1]	016010-0440	LOCKING WASHER
46/7.	[1]	159364-4121	RACK
46/8.	[1]	159364-4300	UNION NUT
46/9.	[1]	159364-4400	FLAT-HEAD SCREW
46/10.	[1]	159368-6900	COILED SPRING
46/11.	[1]	159368-7000	COILED SPRING
46/13.	[1]	016010-0540	LOCKING WASHER
46/14.	[1]	159364-1900	FLAT-HEAD SCREW
46/15.	[1]	159364-1800	UNION NUT
46/16.	[1]	159368-9500	COILED SPRING
47.	[2]	016110-1020	LOCKING WASHER
48.	[2]	159237-0200	CAPSULE
51.	[9]	020106-3840	BLEEDER SCREW
56.	[1]	159362-3720	LEVER GROUP
57.	[2]	020105-1040	BLEEDER SCREW M5P0.8L10
58.	[1]	146711-0000	PLATE
59.	[1]	154413-3600	BUSHING
60.	[1]	146716-0000	UNION NUT
65.	[1]	154612-5120	RACK SENSOR ASSY
65/1.	[1]	479775-8020	RACK SENSOR
65/2.	[1]	154614-4800	JOINT CONNECTION
65/3.	[1]	026524-3040	GASKET
65/4.	[1]	029310-6280	SHIM D11.5&6.4T1.50
65/5.	[1]	154614-1900	UNION NUT
70.	[1]	154411-9700	COILED SPRING
71.	[2]	154413-2600	GASKET
72.	[1]	154415-1020	DIAPHRAGM
75.	[1]	154415-1100	SLOTTED WASHER
76.	[1]	014110-6440	LOCKING WASHER
77.	[1]	013030-6010	UNION NUT
79.	[1]	154413-4000	FLAT-HEAD SCREW
80.	[1]	154404-5600	COVER
82.	[2]	026506-1040	GASKET D9.9&6.2T1
83.	[1]	013030-6040	UNION NUT M6P1H3.6
84.	[1]	154035-1600	CAP NUT
88.	[1]	029731-0180	EYE BOLT
89.	[2]	026510-1340	GASKET D13.4&10.2T1
91.	[3]	154062-2900	BLEEDER SCREW
92A.	[3]	014110-6440	LOCKING WASHER
95.	[1]	029111-2090	CAPSULE
96.	[1]	029331-2130	GASKET
97.	[1]	159364-2000	CAPSULE
100.	[1]	154101-1020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159364-2100	TERMINAL STUD
130.	[1]	159367-1600	GOVERNOR SPRING
131.	[1]	159367-6600	GOVERNOR SPRING
132.	[1]	159368-6500	COILED SPRING
133.	[1]	159368-3820	SPRING PACK
133/1.	[1]	159364-2200	GUIDE SLEEVE
133/2.	[1]	159368-1300	COILED SPRING
133/3.	[1]	159368-0400	COILED SPRING
133/4/1.	[0]	029311-0010	SHIM D14&10.1T0.2
133/4/1.	[0]	029311-0180	SHIM D14&10.1T0.3
133/4/1.	[0]	029311-0190	SHIM D14&10.1T0.40
133/4/1.	[0]	029311-0210	SHIM D14&10.1T1
133/4/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
133/4/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
133/4/1.	[0]	139410-3000	SHIM D14&10.1T2.0
133/4/1.	[0]	139410-3100	SHIM D14&10.1T3.0
133/4/1.	[0]	139410-3200	SHIM D14&10.1T4.0
135.	[1]	159364-2300	FLAT-HEAD SCREW
137.	[1]	159364-2000	CAPSULE
140.	[1]	159364-2500	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159364-2600	SLOTTED WASHER
151.	[1]	159364-2700	SLOTTED WASHER
155.	[1]	159363-3220	STRAP
156.	[1]	010235-1020	HEX-SOCKET-HEAD CAP SCREW
160.	[1]	159362-7620	LEVER GROUP
160/1.	[1]	159364-9420	LEVER SHAFT
160/2.	[1]	159362-1020	CONTROL LEVER
160/3.	[1]	159362-2000	CONTROL LEVER
160/4.	[2]	159362-1300	SHIM
160/4.	[2]	159362-1300	SHIM
160/5.	[2]	016010-0840	LOCKING WASHER
160/5.	[2]	016010-0840	LOCKING WASHER
160/6.	[1]	159368-7400	COILED SPRING
162.	[1]	139411-0600	SHIM
163.	[1]	159238-3000	LOCKING WASHER
164.	[1]	139610-0800	PACKING RING
168.	[1]	159381-5800	CONTROL LEVER
169.	[1]	013020-8040	UNION NUT M8P1.25H7
170.	[1]	159383-0200	CONTROL LEVER
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
172.	[4]	020106-1240	BLEEDER SCREW M6P1.0L12
173.	[1]	154013-3800	FLAT-HEAD SCREW
173B.	[1]	154013-3900	FLAT-HEAD SCREW
173C.	[1]	154013-4600	FLAT-HEAD SCREW
174.	[1]	154013-3700	FLAT-HEAD SCREW
174B.	[1]	154013-4400	FLAT-HEAD SCREW
174C.	[1]	154013-4700	FLAT-HEAD SCREW
175.	[1]	154013-2100	FLAT-HEAD SCREW
176.	[1]	154011-4800	UNION NUT
177.	[1]	154011-4700	UNION NUT
178.	[1]	139210-0300	UNION NUT
181.	[1]	159383-0320	CONTROL LEVER
236.	[1]	154390-4200	GASKET
237.	[1]	154390-2500	GASKET
250.	[1]	159399-7320	BRACKET
251.	[2]	154339-7100	COILED SPRING
252.	[1]	010110-2040	BLEEDER SCREW M10P1.25L20
252B.	[3]	020106-1440	BLEEDER SCREW M6P1.0L14
257.	[2]	154156-2900	TUBE
270.	[1]	159362-3520	GUIDE PLATE
271.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
300.	[1]	159375-0000	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[2]	159237-5400	CAPSULE
321/1.	[1]	159274-5100	STOP PIN L72.5
321/1.	[1]	159274-5200	STOP PIN L73
321/1.	[1]	159274-5300	STOP PIN L73.5
321/1.	[1]	159274-5400	STOP PIN L74
321/1.	[1]	159274-5500	STOP PIN L74.5
321/1.	[1]	159274-5600	STOP PIN L75
321/1.	[1]	159274-5700	STOP PIN L75.5
321/1.	[1]	159274-5800	STOP PIN L76
321/1.	[1]	159274-5900	STOP PIN L76.5
321/1.	[1]	159274-6000	STOP PIN L77
321/1.	[1]	159274-6100	STOP PIN L77.5
321/1.	[1]	159274-6200	STOP PIN L78
321/1.	[1]	159274-6300	STOP PIN L78.5
321/1.	[1]	159274-6400	STOP PIN L79
321/1.	[1]	159274-6500	STOP PIN L79.5
321/1.	[1]	159274-6600	STOP PIN L80
321/1.	[1]	159274-6700	STOP PIN L80.5
321/1.	[1]	159274-6800	STOP PIN L81
321/1.	[1]	159274-6900	STOP PIN L81.5
321/1.	[1]	159274-7000	STOP PIN L82
321/1.	[1]	159274-7100	STOP PIN L82.5
321/1.	[1]	159274-7200	STOP PIN L83
321/1.	[1]	159274-7300	STOP PIN L83.5
321/1.	[1]	159274-7400	STOP PIN L84
321/1.	[1]	159274-7500	STOP PIN L84.5
321/1.	[1]	159274-7600	STOP PIN L85
321/1.	[1]	159274-7700	STOP PIN L85.5
321/1.	[1]	159274-7800	STOP PIN L86
321/1.	[1]	159274-7900	STOP PIN L86.5
321/1.	[1]	159274-8000	STOP PIN L87
321/1.	[1]	159274-8100	STOP PIN L87.5
321/1.	[1]	159274-8200	STOP PIN L88
321/1.	[1]	159274-8300	STOP PIN L88.5
321/1.	[1]	159274-8400	STOP PIN L89
321/1.	[1]	159274-8500	STOP PIN L89.5
321/1.	[1]	159274-8600	STOP PIN L90
340.	[1]	159397-0420	BRACKET
340B.	[1]	159397-0500	PLATE
341.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
341B.	[1]	020106-1840	BLEEDER SCREW M6P1L18
360.	[1]	159399-4320	BRACKET
361.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
835S.	[2]	154062-3220	CAP
835S.	[2]	154062-3220	CAP
836S.	[1]	154062-2720	CAP

Include in #1:

107691-3253 as GOVERNOR

107691-3254

Cross reference number

Zexel num

Bosch num

Firm num

Name

105933-0792

9 420 614 718
NP-EP/RLD350-1400T5JXL

224002650A HINO

GOVERNOR
A K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV

105933-0792

9 420 614 718
NP-EP/RLD350-1400T5JXL

S224002650A HINO

GOVERNOR
B K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV

Information:

(1) Tension of brush spring ... 80 to 90 oz.(2.27 to 2.55 kg)(2) Torque for bolts ... 8 lb. ft.(1.11 mkg)(3) Torque for terminal nuts ... 20 to 25 lb. ft.(2.8 to 3.5 mkg)(4) Clearance for the pinion ... .020 to .050 in.(0.51 to 1.27 mm)2P6162 24V (Prestolite Number MES 6301 K) 3P110 24V (Prestolite Number MFY 6401 I)
Rotation is clockwise when seen from drive end.Minimum speed with no load ... 5000 rpmCurrent consumption (draw) with no load: Maximum at 20 V ... 77 A(1) Tension of brush spring ... 80 to 90 oz.(2.27 to 2.55 kg)(2) Torque for housing bolts ... 8 lb. ft.(1.11 mkg)(3) Torque for terminal nuts ... 20 to 25 lb. ft.(2.8 to 3.5 mkg)(4) Clearance between pinion and housing (pinion clearance) ... .020 to .050 in.(0.51 to 1.27 mm)2P2502 24V (Delco-Remy Number 1113393)
Rotation is clockwise when seen from drive end. Minimum speed with no load ... 5500 rpmMaximum speed with no load ... 7500 rpmCurrent consumption (draw) at no load: Minimum with solenoid at 20 V ... 92.5 AMaximum with solenoid at 20 V ... 120.1 AClearance between pinion and housing (pinion clearance) ... .36 in.(9.1 mm) (1) Tension of brush spring* ... 36 to 40 oz.(1.01 to 1.14 kg)(2) Torque for terminal nuts ... 20 to 25 lb. ft.(2.8 to 3.5 mkg) ... 80 oz.(2.27 kg)*Minimum for leaf springs 4N3182 24V (Delco-Remy Number 1114711)
Rotation is clockwise when seen from drive end.Minimum speed with no load ... 5500 rpmMaximum speed with no load ... 7500 rpmCurrent consumption (draw) at no load: Minimum with solenoid at 20V ... 108.5 AMaximum with solenoid at 20V ... 135.1 AClearance between pinion and housing (pinion clearance) ... .36 in.(9.1 mm) (1) Tension of brush spring ... 80 oz.(2.26 kg)(2) Torque for screws holding nose housing to lever housing ... 13 to 17 lb. ft.(1.8 to 2.4 mkg)(3) Torque for terminal nuts ... 20 to 25 lb. ft.(2.8 to 3.5 mkg)
