105933-0773 ZEXEL 9 420 614 863 BOSCH GOVERNOR 9420614863 1059330773 224001580a




Information governor

BOSCH 9 420 614 863 9420614863
ZEXEL 105933-0773 1059330773
HINO 224001580A 224001580a
105933-0773 GOVERNOR
Rating:
21
Buy GOVERNOR 105933-0773 zexel genuine, new aftermarket engine parts with delivery

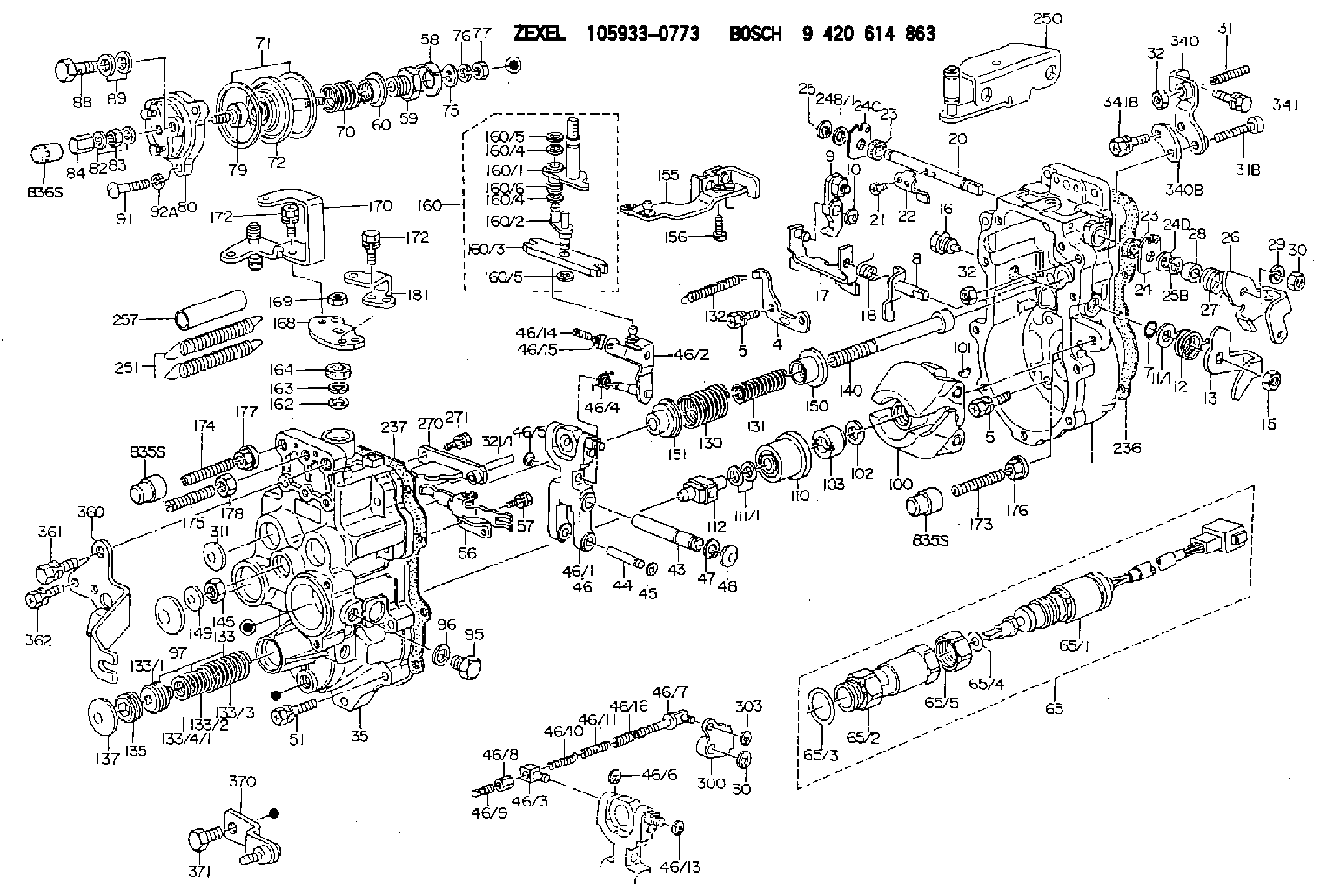

Scheme ###:

GOVERNOR HOUSING
1. [1] 159360-0620 GOVERNOR HOUSING
4. [1] 159362-5120 PLATE
5. [10] 139006-6100 BLEEDER SCREW
5. [10] 139006-6100 BLEEDER SCREW
7. [1] 139709-0100 O-RING
8. [1] 159364-4820 LEVER SHAFT
9. [1] 159362-6620 CONTROL LEVER
10. [1] 016010-0740 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159368-7900 COILED SPRING
13. [1] 159362-2500 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159364-5000 CAPSULE
17. [1] 159362-2620 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159364-9800 LEVER SHAFT
21. [2] 020104-1240 BLEEDER SCREW
22. [1] 159362-0600 CONTROL LEVER
23. [2] 139608-0600 PACKING RING
23. [2] 139608-0600 PACKING RING
24. [1] 159362-0700 PLAIN WASHER
24B/1. [0] 139408-1000 SHIM D16&8T0.5
24B/1. [0] 139408-1300 SHIM D16&8T0.2
24C. [1] 159362-0700 PLAIN WASHER
24D. [1] 139308-2100 PLAIN WASHER
25. [1] 159238-4200 LOCKING WASHER
25B. [1] 159238-4200 LOCKING WASHER
26. [1] 159390-6600 CONTROL LEVER
27. [1] 159369-2000 COILED SPRING
28. [1] 159364-6000 BUSHING
29. [1] 014110-8440 LOCKING WASHER
30. [1] 013020-8040 UNION NUT M8P1.25H7
31. [1] 155615-1100 FLAT-HEAD SCREW M6P1.0L37
31B. [1] 153505-0800 FLAT-HEAD SCREW
32. [2] 013030-6040 UNION NUT M6P1H3.6
32. [2] 013030-6040 UNION NUT M6P1H3.6
35. [1] 159361-1020 GOVERNOR COVER
43. [1] 159364-0700 LEVER SHAFT
44. [1] 159364-0800 BEARING PIN
45. [2] 016010-0640 LOCKING WASHER
46. [1] 159362-8620 TENSIONING LEVER
46/1. [1] 159362-8521 TENSIONING LEVER
46/2. [1] 159362-8721 GUIDE LEVER
46/3. [1] 159364-4201 BEARING PIN
46/4. [1] 159368-7700 COILED SPRING
46/5. [1] 016010-0540 LOCKING WASHER
46/6. [1] 016010-0440 LOCKING WASHER
46/7. [1] 159364-4121 RACK
46/8. [1] 159364-4300 UNION NUT
46/9. [1] 159364-4400 FLAT-HEAD SCREW
46/10. [1] 159368-6900 COILED SPRING
46/11. [1] 159368-7000 COILED SPRING
46/13. [1] 016010-0540 LOCKING WASHER
46/14. [1] 159364-1900 FLAT-HEAD SCREW
46/15. [1] 159364-1800 UNION NUT
46/16. [1] 159368-9500 COILED SPRING
47. [2] 016110-1020 LOCKING WASHER
48. [2] 159237-0200 CAPSULE
51. [9] 020106-3840 BLEEDER SCREW
56. [1] 159362-3720 LEVER GROUP
57. [2] 020105-1040 BLEEDER SCREW M5P0.8L10
58. [1] 146711-0000 PLATE
59. [1] 154413-3600 BUSHING
60. [1] 146716-0000 UNION NUT
65. [1] 154612-6621 RACK SENSOR ASSY
65/1. [1] 479775-8620 RACK SENSOR
65/2. [1] 154614-4800 JOINT CONNECTION
65/3. [1] 026524-3040 GASKET
65/4. [1] 029310-6280 SHIM D11.5&6.4T1.50
65/5. [1] 154614-1900 UNION NUT
70. [1] 154411-9700 COILED SPRING
71. [2] 154413-2600 GASKET
72. [1] 154415-1020 DIAPHRAGM
75. [1] 154415-1100 SLOTTED WASHER
76. [1] 014110-6440 LOCKING WASHER
77. [1] 013030-6010 UNION NUT
79. [1] 154413-4000 FLAT-HEAD SCREW
80. [1] 154404-5600 COVER
82. [2] 026506-1040 GASKET D9.9&6.2T1
83. [1] 013030-6040 UNION NUT M6P1H3.6
84. [1] 154035-1600 CAP NUT
88. [1] 029731-0180 EYE BOLT
89. [2] 026510-1340 GASKET D13.4&10.2T1
91. [3] 154062-2900 BLEEDER SCREW
92A. [3] 014110-6440 LOCKING WASHER
95. [1] 029111-2090 CAPSULE
96. [1] 029331-2130 GASKET
97. [1] 159364-2000 CAPSULE
100. [1] 154101-1020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159364-2100 TERMINAL STUD
130. [1] 159367-1600 GOVERNOR SPRING
131. [1] 159367-6600 GOVERNOR SPRING
132. [1] 159368-6500 COILED SPRING
133. [1] 159368-3820 SPRING PACK
133/1. [1] 159364-2200 GUIDE SLEEVE
133/2. [1] 159368-1300 COILED SPRING
133/3. [1] 159368-0400 COILED SPRING
133/4/1. [0] 029311-0010 SHIM D14&10.1T0.2
133/4/1. [0] 029311-0180 SHIM D14&10.1T0.3
133/4/1. [0] 029311-0190 SHIM D14&10.1T0.40
133/4/1. [0] 029311-0210 SHIM D14&10.1T1
133/4/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
133/4/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
133/4/1. [0] 139410-3000 SHIM D14&10.1T2.0
133/4/1. [0] 139410-3100 SHIM D14&10.1T3.0
133/4/1. [0] 139410-3200 SHIM D14&10.1T4.0
135. [1] 159364-2300 FLAT-HEAD SCREW
137. [1] 159364-2000 CAPSULE
140. [1] 159364-2500 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159364-2600 SLOTTED WASHER
151. [1] 159364-2700 SLOTTED WASHER
155. [1] 159363-3220 STRAP
156. [1] 010235-1020 HEX-SOCKET-HEAD CAP SCREW
160. [1] 159362-3420 LEVER GROUP
160/1. [1] 159364-4920 LEVER SHAFT
160/2. [1] 159362-1020 CONTROL LEVER
160/3. [1] 159362-2000 CONTROL LEVER
160/4. [2] 159362-1300 SHIM
160/4. [2] 159362-1300 SHIM
160/5. [2] 016010-0840 LOCKING WASHER
160/5. [2] 016010-0840 LOCKING WASHER
160/6. [1] 159368-7400 COILED SPRING
162. [1] 139411-0600 SHIM
163. [1] 159238-3000 LOCKING WASHER
164. [1] 139610-0800 PACKING RING
168. [1] 159380-0300 CONTROL LEVER
169. [1] 013020-8040 UNION NUT M8P1.25H7
170. [1] 159382-6420 CONTROL LEVER
172. [4] 020106-1240 BLEEDER SCREW M6P1.0L12
172. [4] 020106-1240 BLEEDER SCREW M6P1.0L12
173. [1] 154013-3800 FLAT-HEAD SCREW
173B. [1] 154013-3900 FLAT-HEAD SCREW
173C. [1] 154013-4600 FLAT-HEAD SCREW
174. [1] 154013-3700 FLAT-HEAD SCREW
174B. [1] 154013-4400 FLAT-HEAD SCREW
174C. [1] 154013-4700 FLAT-HEAD SCREW
175. [1] 154013-2100 FLAT-HEAD SCREW
176. [1] 154011-4800 UNION NUT
177. [1] 154011-4700 UNION NUT
178. [1] 013131-0040 UNION NUT M10P1.25H6
181. [1] 159383-0600 CONTROL LEVER
236. [1] 154390-4200 GASKET
237. [1] 154390-2500 GASKET
250. [1] 159398-7320 BRACKET
251. [2] 154339-4000 COILED SPRING
257. [2] 154156-1600 TUBE
270. [1] 159362-3520 GUIDE PLATE
271. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
300. [1] 159375-0000 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [2] 159237-5400 CAPSULE
321/1. [1] 159274-5100 STOP PIN L72.5
321/1. [1] 159274-5200 STOP PIN L73
321/1. [1] 159274-5300 STOP PIN L73.5
321/1. [1] 159274-5400 STOP PIN L74
321/1. [1] 159274-5500 STOP PIN L74.5
321/1. [1] 159274-5600 STOP PIN L75
321/1. [1] 159274-5700 STOP PIN L75.5
321/1. [1] 159274-5800 STOP PIN L76
321/1. [1] 159274-5900 STOP PIN L76.5
321/1. [1] 159274-6000 STOP PIN L77
321/1. [1] 159274-6100 STOP PIN L77.5
321/1. [1] 159274-6200 STOP PIN L78
321/1. [1] 159274-6300 STOP PIN L78.5
321/1. [1] 159274-6400 STOP PIN L79
321/1. [1] 159274-6500 STOP PIN L79.5
321/1. [1] 159274-6600 STOP PIN L80
321/1. [1] 159274-6700 STOP PIN L80.5
321/1. [1] 159274-6800 STOP PIN L81
321/1. [1] 159274-6900 STOP PIN L81.5
321/1. [1] 159274-7000 STOP PIN L82
321/1. [1] 159274-7100 STOP PIN L82.5
321/1. [1] 159274-7200 STOP PIN L83
321/1. [1] 159274-7300 STOP PIN L83.5
321/1. [1] 159274-7400 STOP PIN L84
321/1. [1] 159274-7500 STOP PIN L84.5
321/1. [1] 159274-7600 STOP PIN L85
321/1. [1] 159274-7700 STOP PIN L85.5
321/1. [1] 159274-7800 STOP PIN L86
321/1. [1] 159274-7900 STOP PIN L86.5
321/1. [1] 159274-8000 STOP PIN L87
321/1. [1] 159274-8100 STOP PIN L87.5
321/1. [1] 159274-8200 STOP PIN L88
321/1. [1] 159274-8300 STOP PIN L88.5
321/1. [1] 159274-8400 STOP PIN L89
321/1. [1] 159274-8500 STOP PIN L89.5
321/1. [1] 159274-8600 STOP PIN L90
340. [1] 159397-0420 BRACKET
340B. [1] 159397-0500 PLATE
341. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
341B. [1] 020106-1840 BLEEDER SCREW M6P1L18
360. [1] 159398-8820 BRACKET
361. [1] 010110-2040 BLEEDER SCREW M10P1.25L20
362. [2] 020106-1440 BLEEDER SCREW M6P1.0L14
370. [1] 159399-1600 BRACKET
371. [1] 139012-0100 BLEEDER SCREW
835S. [2] 154062-3220 CAP
835S. [2] 154062-3220 CAP
836S. [1] 154062-2720 CAP

Include in #1:

107691-3195 as GOVERNOR
107691-3214

Cross reference number

Zexel num
Bosch num
Firm num
Name
105933-0773
9 420 614 863
NP-EP/RLD350-1400T5JXL
224001580A  HINO
GOVERNOR
K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV
105933-0773
9 420 614 863
NP-EP/RLD350-1400T5JXL
S224001580A  HINO
GOVERNOR
A K 14JG MECHANICAL GOVERNOR GOV RLD-J(TICS) GOV




Information:

GENERAL
Specifications
Construction
Cooling System Component Parts(1) Cooling fan(2) Water pump pulley(3) Water pump assembly(4) V-belt(5) Thermostat(6) Thermostat fitting(7) Thermoswitch(8) Bypass pipeFAN AND FAN BELT
Fan Belt Inspection
For fan belt tension, see 0-06 MAINTENANCE.
Inspecting Fan BeltFan Inspection
Check the fan for cracks, damaged and deformation. If any, replace the fan.
Inspecting FanWATER PUMP
Removal and Installation
(1) Remove the fan and fan belt.(2) Remove the water pump.(3) When installing the water pump, reverse the above-mentioned order of removal.
Removing Water PumpInspection
Check the water pump for water leak, rough rotation, and cracks. If any, replace the water pump assembly.THERMOSTAT
Removal and Installation
Pay attention to the following:(1) Never allow the flange to protrude from the faucet joint.(2) Renew the gasket.
Installing ThermostatInspection
If the thermostat does not operate properly, replace it.
Inspecting Thermostat WATER TEMPERATURE GAUGE UNIT AND THERMOSWITCH
Inspection of Water Temperature Gauge Unit
If the gauge does not function properly, replace it.
Inspecting Temperature Gauge Unit CAUTION Handle hot oil with special care not to cause a scald or a fire.Inspection of Thermoswitch
Inspecting Thermoswitch CAUTION Handle hot oil with special care not to cause a scald or a fire.
