Information governor
BOSCH
9 420 614 390
9420614390
ZEXEL
105933-0722
1059330722

Rating:

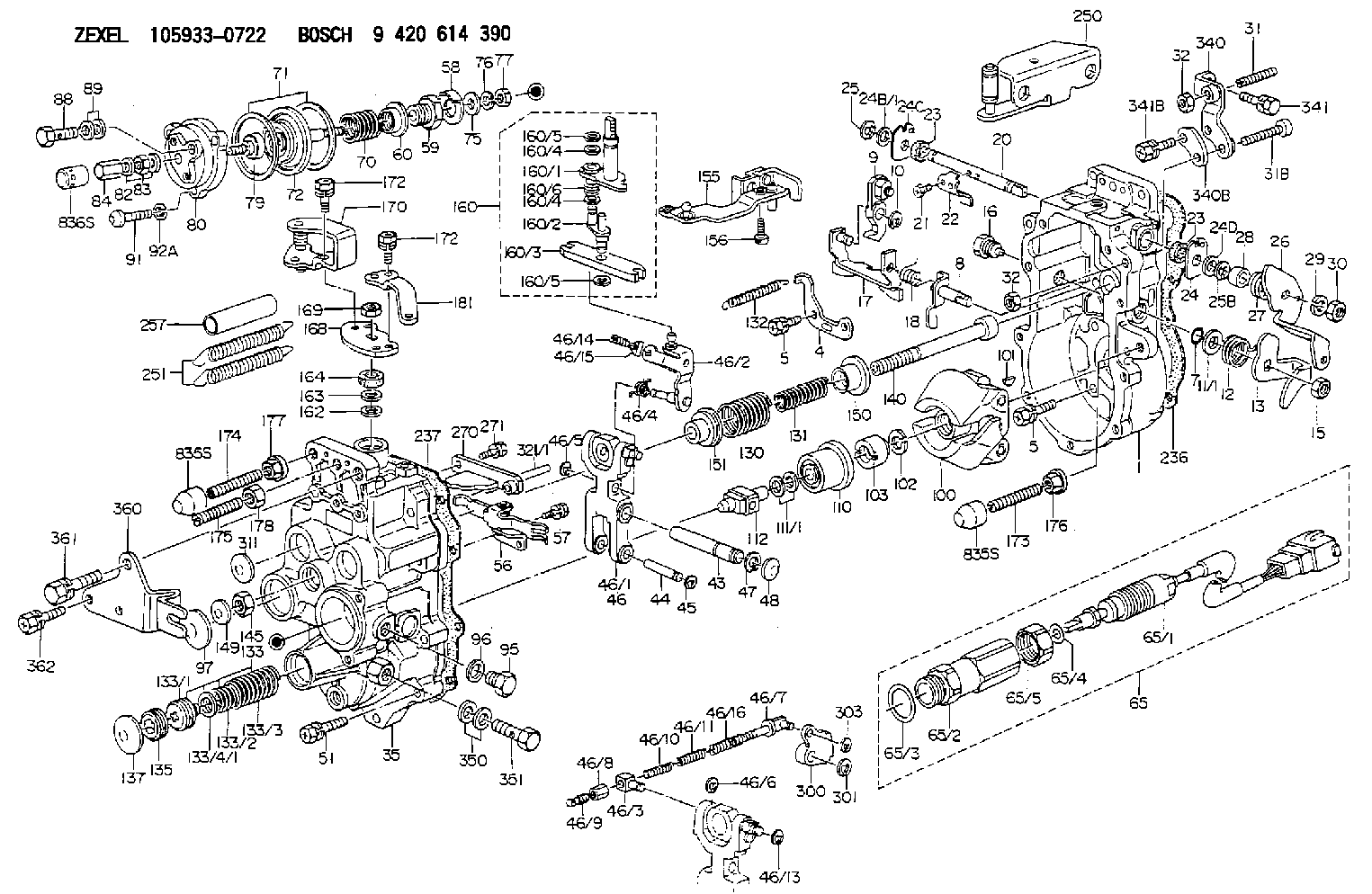

Scheme ###:
1. | [1] | 159360-0620 | GOVERNOR HOUSING |
4. | [1] | 159362-5120 | PLATE |
5. | [10] | 139006-6100 | BLEEDER SCREW |
5. | [10] | 139006-6100 | BLEEDER SCREW |
7. | [1] | 139709-0100 | O-RING |
8. | [1] | 159364-4820 | LEVER SHAFT |
9. | [1] | 159362-6620 | CONTROL LEVER |
10. | [1] | 016010-0740 | LOCKING WASHER |
11/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
11/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
11/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
11/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
11/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
11/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
11/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
11/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
11/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
12. | [1] | 159368-7900 | COILED SPRING |
13. | [1] | 159362-2500 | CONTROL LEVER |
15. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
16. | [1] | 159364-5000 | CAPSULE |
17. | [1] | 159362-2620 | CONTROL LEVER |
18. | [1] | 159215-0300 | COILED SPRING |
20. | [1] | 159364-9800 | LEVER SHAFT |
21. | [2] | 020104-1240 | BLEEDER SCREW |
22. | [1] | 159362-0600 | CONTROL LEVER |
23. | [2] | 139608-0600 | PACKING RING |
23. | [2] | 139608-0600 | PACKING RING |
24. | [1] | 159362-0700 | PLAIN WASHER |
24B/1. | [0] | 139408-1000 | SHIM D16&8T0.5 |
24B/1. | [0] | 139408-1300 | SHIM D16&8T0.2 |
24C. | [1] | 159362-0700 | PLAIN WASHER |
24D. | [1] | 139308-2100 | PLAIN WASHER |
25. | [1] | 159238-4200 | LOCKING WASHER |
25B. | [1] | 159238-4200 | LOCKING WASHER |
26. | [1] | 159390-6500 | CONTROL LEVER |
27. | [1] | 159369-2000 | COILED SPRING |
28. | [1] | 159364-6000 | BUSHING |
29. | [1] | 014110-8440 | LOCKING WASHER |
30. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
31. | [1] | 155615-1100 | FLAT-HEAD SCREW M6P1.0L37 |
31B. | [1] | 153505-0800 | FLAT-HEAD SCREW |
32. | [2] | 013030-6040 | UNION NUT M6P1H3.6 |
32. | [2] | 013030-6040 | UNION NUT M6P1H3.6 |
35. | [1] | 159361-0920 | GOVERNOR COVER |
43. | [1] | 159364-0700 | LEVER SHAFT |
44. | [1] | 159364-0800 | BEARING PIN |
45. | [2] | 016010-0640 | LOCKING WASHER |
46. | [1] | 159362-8620 | TENSIONING LEVER |
46/1. | [1] | 159362-8521 | TENSIONING LEVER |
46/2. | [1] | 159362-8721 | GUIDE LEVER |
46/3. | [1] | 159364-4201 | BEARING PIN |
46/4. | [1] | 159368-7700 | COILED SPRING |
46/5. | [1] | 016010-0540 | LOCKING WASHER |
46/6. | [1] | 016010-0440 | LOCKING WASHER |
46/7. | [1] | 159364-4121 | RACK |
46/8. | [1] | 159364-4300 | UNION NUT |
46/9. | [1] | 159364-4400 | FLAT-HEAD SCREW |
46/10. | [1] | 159368-6900 | COILED SPRING |
46/11. | [1] | 159368-7000 | COILED SPRING |
46/13. | [1] | 016010-0540 | LOCKING WASHER |
46/14. | [1] | 159364-1900 | FLAT-HEAD SCREW |
46/15. | [1] | 159364-1800 | UNION NUT |
46/16. | [1] | 159368-9500 | COILED SPRING |
47. | [2] | 016110-1020 | LOCKING WASHER |
48. | [2] | 159237-0200 | CAPSULE |
51. | [9] | 020106-3840 | BLEEDER SCREW |
56. | [1] | 159362-3720 | LEVER GROUP |
57. | [2] | 020105-1040 | BLEEDER SCREW M5P0.8L10 |
58. | [1] | 146711-0000 | PLATE |
59. | [1] | 154413-3600 | BUSHING |
60. | [1] | 146716-0000 | UNION NUT |
65. | [1] | 154612-0620 | RACK SENSOR ASSY |
65/1. | [1] | 479775-6120 | RACK SENSOR |
65/2. | [1] | 154614-2500 | JOINT CONNECTION |
65/3. | [1] | 026524-3040 | GASKET |
65/4. | [1] | 029310-6280 | SHIM D11.5&6.4T1.50 |
65/5. | [1] | 154614-1900 | UNION NUT |
70. | [1] | 154402-1500 | COILED SPRING |
71. | [2] | 154413-2600 | GASKET |
72. | [1] | 154415-1020 | DIAPHRAGM |
75. | [1] | 154415-1100 | SLOTTED WASHER |
76. | [1] | 014110-6440 | LOCKING WASHER |
77. | [1] | 013030-6010 | UNION NUT |
79. | [1] | 154413-4000 | FLAT-HEAD SCREW |
80. | [1] | 154404-5600 | COVER |
82. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
83. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
84. | [1] | 154035-1600 | CAP NUT |
88. | [1] | 029731-0180 | EYE BOLT |
89. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
91. | [3] | 154062-2900 | BLEEDER SCREW |
92A. | [3] | 014110-6440 | LOCKING WASHER |
95. | [1] | 029111-2090 | CAPSULE |
96. | [1] | 029331-2130 | GASKET |
97. | [1] | 159364-2000 | CAPSULE |
100. | [1] | 154101-1020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
110. | [1] | 154123-2320 | SLIDING PIECE |
111/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
111/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
111/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
111/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
111/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
111/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
111/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
111/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
111/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
112. | [1] | 159364-2100 | TERMINAL STUD |
130. | [1] | 159367-2500 | GOVERNOR SPRING |
131. | [1] | 159367-6600 | GOVERNOR SPRING |
132. | [1] | 159368-6500 | COILED SPRING |
133. | [1] | 159368-5020 | SPRING PACK |
133/1. | [1] | 159364-2200 | GUIDE SLEEVE |
133/2. | [1] | 159368-1300 | COILED SPRING |
133/3. | [1] | 159368-0500 | COILED SPRING |
133/4/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
133/4/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
133/4/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
133/4/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
133/4/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
133/4/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
133/4/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
133/4/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
133/4/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
135. | [1] | 159364-2300 | FLAT-HEAD SCREW |
137. | [1] | 159364-2000 | CAPSULE |
140. | [1] | 159364-2500 | LEVER SHAFT |
145. | [1] | 159233-5700 | UNION NUT |
149. | [1] | 159237-5400 | CAPSULE |
150. | [1] | 159364-2600 | SLOTTED WASHER |
151. | [1] | 159364-2700 | SLOTTED WASHER |
155. | [1] | 159363-3221 | STRAP |
156. | [1] | 010235-1020 | HEX-SOCKET-HEAD CAP SCREW |
160. | [1] | 159362-3420 | LEVER GROUP |
160/1. | [1] | 159364-4920 | LEVER SHAFT |
160/2. | [1] | 159362-1020 | CONTROL LEVER |
160/3. | [1] | 159362-2000 | CONTROL LEVER |
160/4. | [2] | 159362-1300 | SHIM |
160/4. | [2] | 159362-1300 | SHIM |
160/5. | [2] | 016010-0840 | LOCKING WASHER |
160/5. | [2] | 016010-0840 | LOCKING WASHER |
160/6. | [1] | 159368-7400 | COILED SPRING |
162. | [1] | 139411-0600 | SHIM |
163. | [1] | 159238-3000 | LOCKING WASHER |
164. | [1] | 139610-0800 | PACKING RING |
168. | [1] | 159380-0300 | CONTROL LEVER |
169. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
170. | [1] | 159382-5321 | CONTROL LEVER |
172. | [4] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
172. | [4] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
173. | [1] | 154013-3800 | FLAT-HEAD SCREW |
173B. | [1] | 154013-3900 | FLAT-HEAD SCREW |
173C. | [1] | 154013-4600 | FLAT-HEAD SCREW |
174. | [1] | 154013-3700 | FLAT-HEAD SCREW |
174B. | [1] | 154013-4400 | FLAT-HEAD SCREW |
174C. | [1] | 154013-4700 | FLAT-HEAD SCREW |
175. | [1] | 154013-2100 | FLAT-HEAD SCREW |
176. | [1] | 154011-4800 | UNION NUT |
177. | [1] | 154011-4700 | UNION NUT |
178. | [1] | 013131-0040 | UNION NUT M10P1.25H6 |
181. | [1] | 159382-5000 | CONTROL LEVER |
236. | [1] | 154390-4200 | GASKET |
237. | [1] | 154390-2500 | GASKET |
250. | [1] | 159398-7320 | BRACKET |
251. | [2] | 154339-4200 | COILED SPRING |
257. | [2] | 154156-1600 | TUBE |
270. | [1] | 159362-3520 | GUIDE PLATE |
271. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
300. | [1] | 159375-2600 | CAM PLATE |
301. | [1] | 016010-0840 | LOCKING WASHER |
303. | [1] | 016010-0540 | LOCKING WASHER |
311. | [2] | 159237-5400 | CAPSULE |
321/1. | [1] | 159274-5100 | STOP PIN L72.5 |
321/1. | [1] | 159274-5200 | STOP PIN L73 |
321/1. | [1] | 159274-5300 | STOP PIN L73.5 |
321/1. | [1] | 159274-5400 | STOP PIN L74 |
321/1. | [1] | 159274-5500 | STOP PIN L74.5 |
321/1. | [1] | 159274-5600 | STOP PIN L75 |
321/1. | [1] | 159274-5700 | STOP PIN L75.5 |
321/1. | [1] | 159274-5800 | STOP PIN L76 |
321/1. | [1] | 159274-5900 | STOP PIN L76.5 |
321/1. | [1] | 159274-6000 | STOP PIN L77 |
321/1. | [1] | 159274-6100 | STOP PIN L77.5 |
321/1. | [1] | 159274-6200 | STOP PIN L78 |
321/1. | [1] | 159274-6300 | STOP PIN L78.5 |
321/1. | [1] | 159274-6400 | STOP PIN L79 |
321/1. | [1] | 159274-6500 | STOP PIN L79.5 |
321/1. | [1] | 159274-6600 | STOP PIN L80 |
321/1. | [1] | 159274-6700 | STOP PIN L80.5 |
321/1. | [1] | 159274-6800 | STOP PIN L81 |
321/1. | [1] | 159274-6900 | STOP PIN L81.5 |
321/1. | [1] | 159274-7000 | STOP PIN L82 |
321/1. | [1] | 159274-7100 | STOP PIN L82.5 |
321/1. | [1] | 159274-7200 | STOP PIN L83 |
321/1. | [1] | 159274-7300 | STOP PIN L83.5 |
321/1. | [1] | 159274-7400 | STOP PIN L84 |
321/1. | [1] | 159274-7500 | STOP PIN L84.5 |
321/1. | [1] | 159274-7600 | STOP PIN L85 |
321/1. | [1] | 159274-7700 | STOP PIN L85.5 |
321/1. | [1] | 159274-7800 | STOP PIN L86 |
321/1. | [1] | 159274-7900 | STOP PIN L86.5 |
321/1. | [1] | 159274-8000 | STOP PIN L87 |
321/1. | [1] | 159274-8100 | STOP PIN L87.5 |
321/1. | [1] | 159274-8200 | STOP PIN L88 |
321/1. | [1] | 159274-8300 | STOP PIN L88.5 |
321/1. | [1] | 159274-8400 | STOP PIN L89 |
321/1. | [1] | 159274-8500 | STOP PIN L89.5 |
321/1. | [1] | 159274-8600 | STOP PIN L90 |
340. | [1] | 159397-0420 | BRACKET |
340B. | [1] | 159397-0500 | PLATE |
341. | [1] | 020106-1240 | BLEEDER SCREW M6P1.0L12 |
341B. | [1] | 020106-1840 | BLEEDER SCREW M6P1L18 |
350. | [2] | 139512-0000 | GASKET D17.2&12.2T1.0 |
351. | [1] | 139812-0100 | EYE BOLT |
360. | [1] | 159398-7700 | BRACKET |
361. | [1] | 010110-2040 | BLEEDER SCREW M10P1.25L20 |
362. | [2] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
835S. | [2] | 154062-3220 | CAP |
835S. | [2] | 154062-3220 | CAP |
836S. | [1] | 154062-2720 | CAP |
