105932-2520 ZEXEL 9 420 614 387 BOSCH GOVERNOR 9420614387 1059322520

Information governor

BOSCH 9 420 614 387 9420614387

ZEXEL 105932-2520 1059322520

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105932-2520 zexel genuine, new aftermarket engine parts with delivery

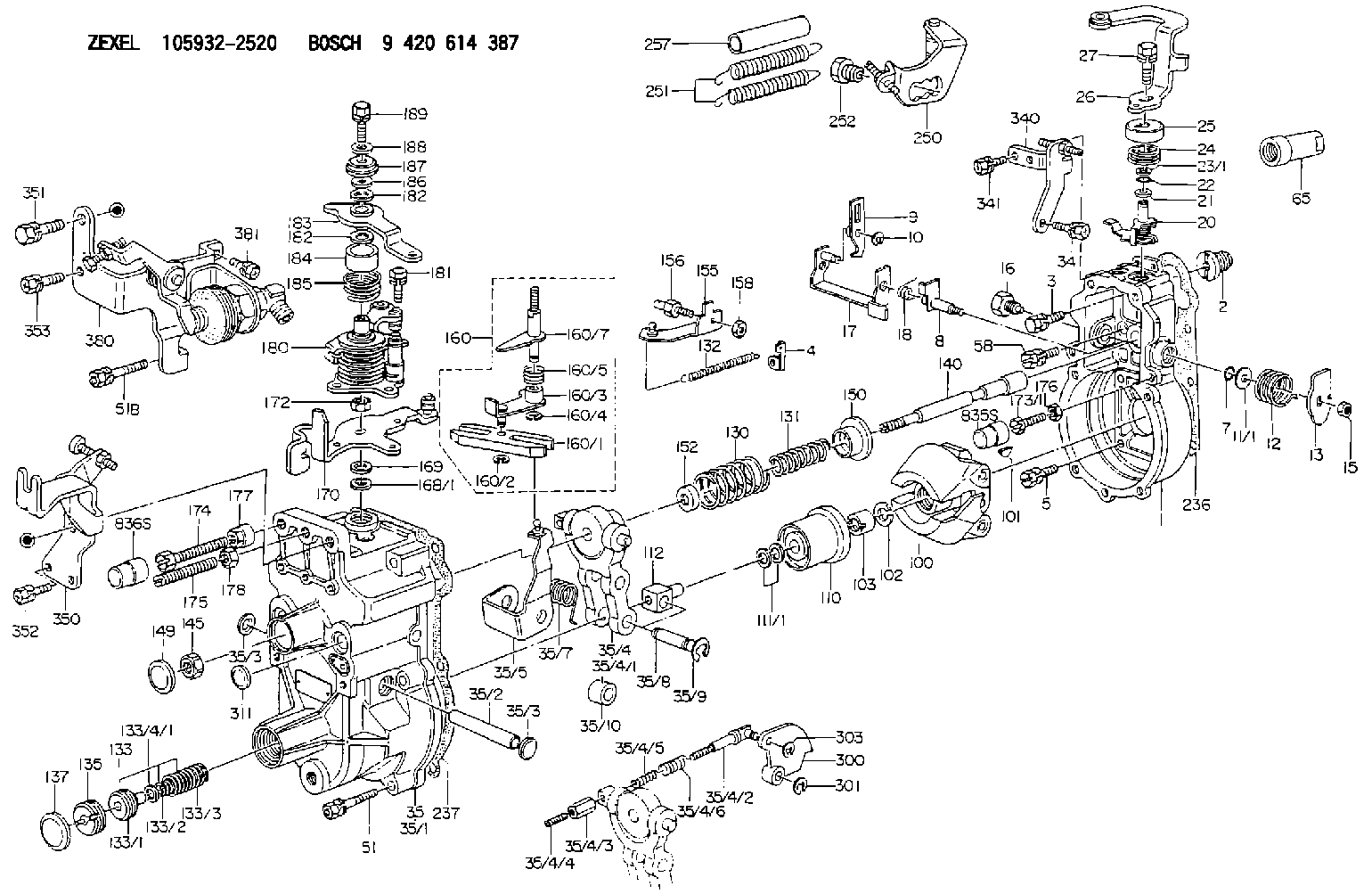

Scheme ###:

1.	[1]	159200-8620	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-6820	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159291-0320	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	029631-0030	O-RING &9.8W2.3
23/1.	[0]	029311-0220	SHIM D18&10.3T0.2
23/1.	[0]	029311-0230	SHIM D18&10.3T0.5
23/1.	[0]	029311-0430	SHIM D18&10.3T0.30
23/1.	[0]	029311-0440	SHIM D18&10.3T0.40
23/1.	[0]	029311-0450	SHIM D18&10.3T0.25
23/1.	[0]	029311-0460	SHIM D18&10.3T0.35
23/1.	[0]	139410-3300	SHIM D18&10.3T0.6
23/1.	[0]	139410-3400	SHIM D18&10.3T0.8
23/1.	[0]	139410-3500	SHIM D18&10.3T0.9
24.	[1]	159215-2000	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159291-1920	CONTROL LEVER
27.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
35.	[1]	159250-9820	GOVERNOR COVER
35/1.	[1]	159201-3422	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-4120	TENSIONING LEVER
35/4/1.	[1]	159253-4020	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-6120	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[6]	020106-3840	BLEEDER SCREW
51B.	[1]	020106-4040	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154100-8920	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159217-0500	GOVERNOR SPRING
131.	[1]	159211-6200	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-8220	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-5000	COILED SPRING
133/3.	[1]	159212-5700	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
152.	[1]	159235-7200	SLOTTED WASHER
155.	[1]	159204-5120	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-0821	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-2120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159205-2222	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159268-5320	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-7700	BLEEDER SCREW
173/1.	[1]	139006-7800	BLEEDER SCREW
173/1.	[1]	139006-7900	BLEEDER SCREW
173/1.	[1]	139006-8000	BLEEDER SCREW
173/1.	[1]	139006-8100	BLEEDER SCREW
173/1.	[1]	139006-8200	BLEEDER SCREW
173/1.	[1]	139006-8300	BLEEDER SCREW
174.	[1]	154012-5500	BLEEDER SCREW
175.	[1]	154013-3600	FLAT-HEAD SCREW
176.	[1]	159233-7500	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	013020-8040	UNION NUT M8P1.25H7
180.	[1]	159268-4020	CONTROL LEVER
181.	[3]	020105-0840	BLEEDER SCREW M5P0.5L8
182.	[2]	139310-0500	PLAIN WASHER
182.	[2]	139310-0500	PLAIN WASHER
183.	[1]	159268-4120	CONTROL LEVER
184.	[1]	159230-6000	BUSHING
185.	[1]	159215-8000	COILED SPRING
186.	[0]	029311-0010	SHIM D14&10.1T0.2
187.	[1]	159235-7100	CAP
188.	[1]	139306-0600	PLAIN WASHER
189.	[1]	020006-1270	BLEEDER SCREW M6P1L12 7T
236.	[1]	154390-1300	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159223-5220	BRACKET
251.	[2]	154338-8000	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
257.	[2]	154156-2100	TUBE
300.	[1]	159287-7300	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
340.	[1]	159223-4320	BRACKET
341.	[2]	020104-1040	BLEEDER SCREW
341.	[2]	020104-1040	BLEEDER SCREW
350.	[1]	159222-8121	BRACKET
351.	[1]	020118-2040	BLEEDER SCREW M8P1.25L20
352.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
353.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
380.	[1]	159222-7920	CYLINDER
381.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
835S.	[1]	154062-1900	CAP D12L24
836S.	[1]	154062-1700	CAP D20L32

Include in #1:

101603-2540 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105932-2520
105932-2521

9 420 614 387

GOVERNOR
* K

Information:

Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.The actuator and pump groups of these fuel injectors are sensitive to debris in the oil. The injector may malfunction due to debris in the oil, causing seizure, or high leaks in components.
Table 1
Revision Table
Revision Summary of Changes
3 Added serial numbers. Improvement Procedure
Clean oil rail after pump failure.Reference: Refer to Special Instruction, REHS3819 for the procedure to clean the oil rail after engine failure to avoid debris in the oil system.
Use clean oil and clean filters.The life of the injector depends on the oil quality. It can be increased if good cleaning practices are performed before installing the injectors.Reference: Refer to Operation and Maintenance Manual, SEBU6250 and Operation and Maintenance Manual, SEBU6251 for direction on oil sampling intervals and optimizing engine oil life.
Illustration 1 g06207717
(1) Actuator
(2) Pump Group
(3) Valve Seat Damage Due to Debris in the Oil SystemInjector Failure Due To Damage From Debris In The Oil May Not Be A Warrantable Failure
Illustration 2 g06244961
