105932-2120 ZEXEL 9 420 611 396 BOSCH GOVERNOR 9420611396 1059322120 1157709880

Information governor

BOSCH 9 420 611 396 9420611396

ZEXEL 105932-2120 1059322120

ISUZU 1157709880 1157709880

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105932-2120 zexel genuine, new aftermarket engine parts with delivery

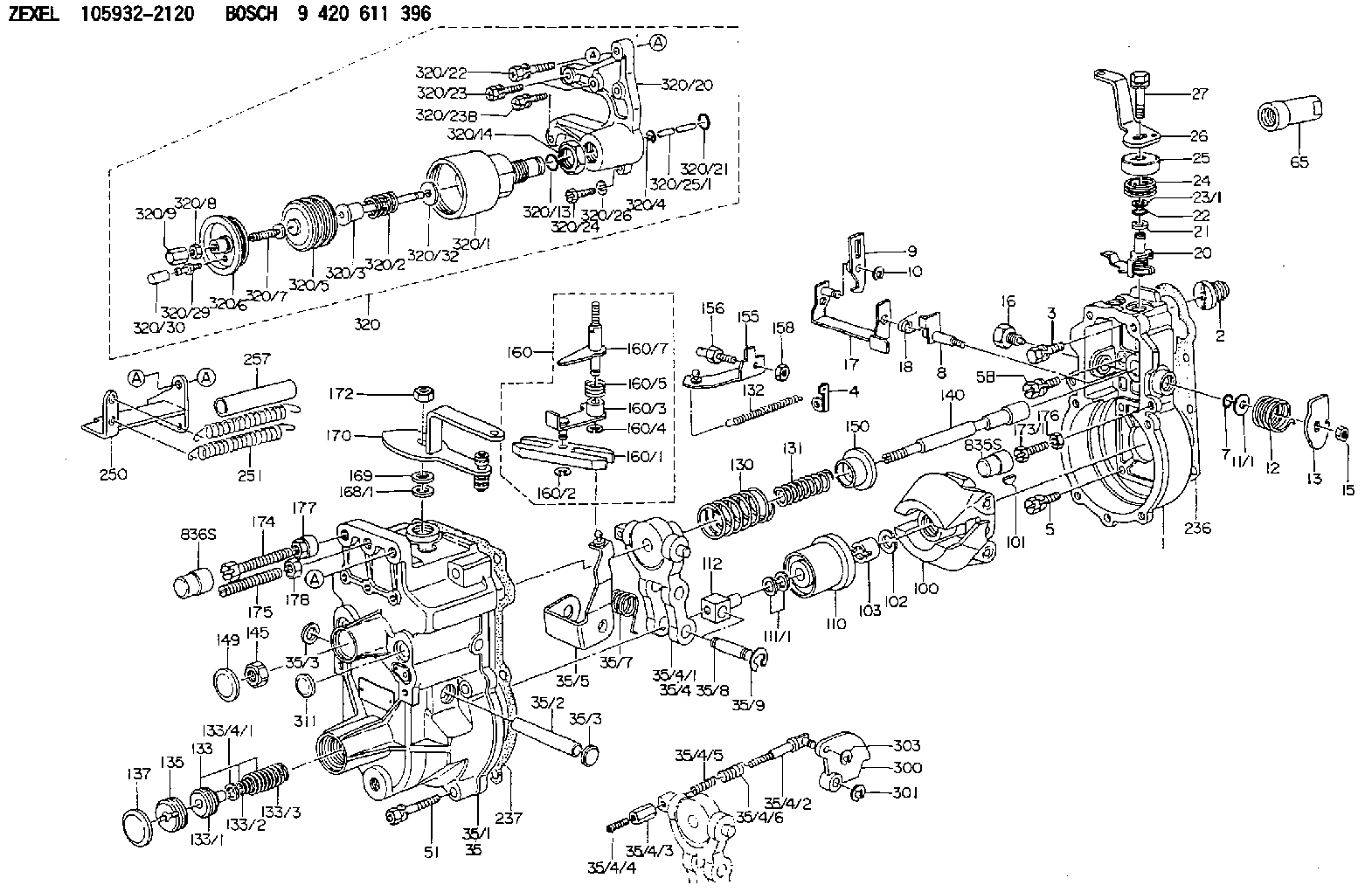

Scheme ###:

1.	[1]	159200-4920	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-1802	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5200	CAPSULE
17.	[1]	159202-2020	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	159242-0600	BUSHING
22.	[1]	029631-0030	O-RING &9.8W2.3
23/1.	[0]	029311-0220	SHIM D18&10.3T0.2
23/1.	[0]	029311-0230	SHIM D18&10.3T0.5
23/1.	[0]	029311-0430	SHIM D18&10.3T0.30
23/1.	[0]	029311-0440	SHIM D18&10.3T0.40
23/1.	[0]	029311-0450	SHIM D18&10.3T0.25
23/1.	[0]	029311-0460	SHIM D18&10.3T0.35
23/1.	[0]	139410-3300	SHIM D18&10.3T0.6
23/1.	[0]	139410-3400	SHIM D18&10.3T0.8
23/1.	[0]	139410-3500	SHIM D18&10.3T0.9
24.	[1]	159215-3400	COILED SPRING
25.	[1]	159235-5800	CAP
26.	[1]	159249-4900	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159250-2520	GOVERNOR COVER
35/1.	[1]	159201-5221	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-0720	TENSIONING LEVER
35/4/1.	[1]	159203-0720	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5720	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-2000	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-1020	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-1900	GOVERNOR SPRING
131.	[1]	159211-2200	GOVERNOR SPRING
132.	[1]	159214-0000	COILED SPRING
133.	[1]	159212-4620	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-3300	COILED SPRING
133/3.	[1]	159212-4600	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5120	STRAP
156.	[1]	159233-5800	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-0821	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-2120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159205-2222	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159260-6120	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
174.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159226-9820	BRACKET
251.	[2]	159243-1200	COILED SPRING
257.	[2]	154156-1800	TUBE
300.	[1]	159281-6600	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	155424-9620	ANEROID CAPSULE
320/1.	[1]	155423-7520	DIAPHRAGM HOUSING
320/2.	[1]	155424-2900	COILED SPRING
320/3.	[1]	155423-1800	STOP PIN
320/4.	[1]	016010-0640	LOCKING WASHER
320/5.	[1]	155403-3021	BELLOWS
320/6.	[1]	155423-2000	COVER
320/7.	[1]	155423-1500	SCREW PLUG
320/8.	[1]	029240-6010	UNION NUT M6P1.0H5*
320/9.	[1]	154035-1600	CAP NUT
320/13.	[1]	016520-1510	O-RING
320/14.	[1]	139220-0100	UNION NUT
320/20.	[1]	155423-1701	SPACER BUSHING
320/21.	[1]	159226-4500	SPACER RING
320/22.	[1]	020118-3040	BLEEDER SCREW
320/23.	[2]	020106-2240	BLEEDER SCREW
320/23B.	[2]	020106-2540	BLEEDER SCREW M6P1L25
320/24.	[1]	139006-0900	BLEEDER SCREW
320/25/1.	[1]	155423-1200	STOP PIN L102
320/25/1.	[1]	155424-4900	STOP PIN L95
320/25/1.	[1]	155424-5000	STOP PIN L96
320/25/1B.	[1]	155423-1300	STOP PIN L102.5
320/25/1C.	[1]	155423-1400	STOP PIN L103
320/25/1D.	[1]	155423-7600	STOP PIN L103.5
320/25/1E.	[1]	155423-7700	STOP PIN L104
320/25/1F.	[1]	155423-8700	STOP PIN L97
320/25/1G.	[1]	155423-8800	STOP PIN L98
320/25/1H.	[1]	155423-8900	STOP PIN L99
320/25/1I.	[1]	155423-9000	STOP PIN L100
320/25/1J.	[1]	155423-9100	STOP PIN L101
320/26.	[1]	014110-6440	LOCKING WASHER
320/29.	[1]	139805-0000	JOINT CONNECTION
320/30.	[1]	155424-0300	CAP
320/32.	[1]	029311-2060	SHIM D22&12.5T0.5

Include in #1:

101603-4402 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105932-2120

9 420 611 396
NP-EP/RLD250-1630A1EBL

1157709880 ISUZU

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV

Information:

Table 1
Part Number Description
370-5513 Fuel Line
370-5516 Fuel Injection Line As
370-5517 Fuel Injection Line As
370-5518 Fuel Injection Line As
393-5467 Fuel Line
393-5468 Fuel Line
396-2606 Fuel Line
396-2607 Fuel Line
396-2608 Fuel Line
396-2609 Fuel Line Any of the part numbers listed in Table 1 may be affected.
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
If any of the fuel injection lines are leaking, Caterpillar recommends replacing all high-pressure fuel lines on the engine. Refer to Disassembly and Assembly, Fuel Injection Lines - Remove and Disassembly and Assembly, Fuel Injection Lines - Install.
