105932-1980 ZEXEL 9 420 611 391 BOSCH GOVERNOR 9420611391 1059321980 8971605900

Information governor

BOSCH 9 420 611 391 9420611391

ZEXEL 105932-1980 1059321980

ISUZU 8971605900 8971605900

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105932-1980 zexel genuine, new aftermarket engine parts with delivery

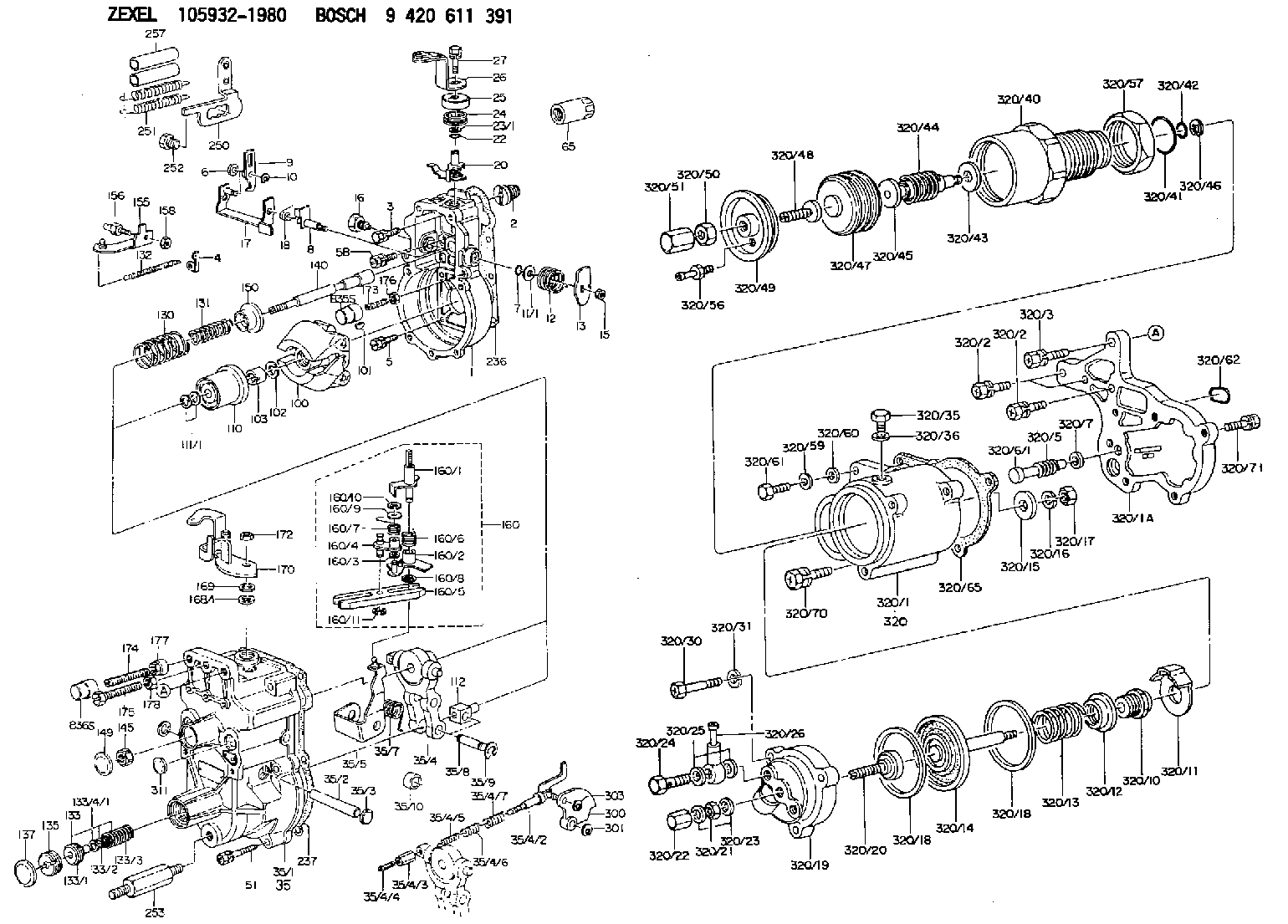

Scheme ###:

1.	[1]	159200-4720	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-1600	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
6.	[1]	159242-0600	BUSHING
7.	[1]	016530-1010	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5601	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159242-6601	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159291-0420	CONTROL LEVER
22.	[1]	029631-0030	O-RING &9.8W2.3
23/1.	[0]	139410-1300	SHIM D20.8&10.2T0.3
23/1.	[0]	139410-1700	SHIM D20.8&10.2T0.2
23/1.	[0]	139410-1800	SHIM D20.8&10.2T0.4
23/1.	[0]	139410-2800	SHIM D20.8&10.2T0.6
23/1.	[0]	139410-3700	SHIM D20.8&10.2T0.9
24.	[1]	159215-4200	COILED SPRING
25.	[1]	159235-6500	CAP
26.	[1]	159249-8620	CONTROL LEVER
27.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
35.	[1]	159250-1320	GOVERNOR COVER
35/1.	[1]	159201-7020	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2720	TENSIONING LEVER
35/4/2.	[1]	159204-6022	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/4/7.	[1]	159216-0700	COILED SPRING
35/5.	[1]	159203-6120	GUIDE LEVER
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-1000	GOVERNOR SPRING
131.	[1]	159211-1100	GOVERNOR SPRING
132.	[1]	159214-0300	COILED SPRING
133.	[1]	159212-3520	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-3300	COILED SPRING
133/3.	[1]	159212-3500	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5920	STRAP
156.	[1]	159233-6020	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-2221	LEVER GROUP
160/1.	[1]	159205-3711	LEVER SHAFT
160/2.	[1]	159202-4810	CONTROL LEVER
160/3.	[1]	029310-6030	SHIM D11.5&6.2T0.2
160/4.	[1]	159202-4520	CONTROL LEVER
160/5.	[1]	159202-2200	CONTROL LEVER
160/6.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159215-3900	COILED SPRING
160/8.	[1]	016010-0810	LOCKING WASHER
160/9.	[1]	014020-6140	PLAIN WASHER
160/10.	[1]	016010-0610	LOCKING WASHER
160/11.	[1]	016010-0810	LOCKING WASHER
168/1.	[0]	139410-1200	SHIM D26&10.2T0.3
168/1.	[0]	139410-1900	SHIM D26&10.2T0.2
168/1.	[0]	139410-2000	SHIM D26&10.2T0.4
168/1.	[0]	139410-2400	SHIM D26&10.2T0.35
168/1.	[0]	139410-2500	SHIM D26&10.2T0.25
168/1.	[0]	139410-2900	SHIM D26&10.2T0.6
169.	[1]	139410-2100	SHIM
170.	[1]	159264-3520	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173.	[1]	154013-4300	FLAT-HEAD SCREW
174.	[1]	154013-4200	FLAT-HEAD SCREW
175.	[1]	154012-4700	BLEEDER SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-4800	UNION NUT
178.	[1]	154011-3500	UNION NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159228-4920	BRACKET
251.	[2]	159243-4800	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
253.	[1]	159248-0401	BLEEDER SCREW
257.	[2]	154156-0500	TUBE
300.	[1]	159285-4500	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154421-3920	COMPENSATOR,MANIFOLD-PRES
320/1.	[1]	154413-5421	DIAPHRAGM HOUSING
320/1A.	[1]	154413-5501	SPACER BUSHING
320/2.	[3]	020106-2240	BLEEDER SCREW
320/2.	[3]	020106-2240	BLEEDER SCREW
320/3.	[1]	020118-3240	BLEEDER SCREW
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	159274-0120	STOP PIN L125
320/6/1.	[1]	159274-0220	STOP PIN L127.50
320/6/1.	[1]	159274-0320	STOP PIN L128.00
320/6/1.	[1]	159274-0420	STOP PIN L127.00
320/6/1.	[1]	159274-0520	STOP PIN L126.00
320/6/1.	[1]	159274-0620	STOP PIN L129.00
320/6/1.	[1]	159274-0720	STOP PIN L128.50
320/6/1.	[1]	159274-0820	STOP PIN L125.50
320/6/1.	[1]	159274-0920	STOP PIN L126.50
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/6/1.	[1]	159274-1220	STOP PIN L120
320/6/1.	[1]	159274-1320	STOP PIN L120.5
320/6/1.	[1]	159274-1420	STOP PIN L121
320/6/1.	[1]	159274-1520	STOP PIN L121.5
320/6/1.	[1]	159274-1620	STOP PIN L122
320/6/1.	[1]	159274-1720	STOP PIN L122.5
320/6/1.	[1]	159274-1820	STOP PIN L123
320/6/1.	[1]	159274-1920	STOP PIN L123.5
320/6/1.	[1]	159274-4220	STOP PIN L129.5
320/6/1.	[1]	159274-4320	STOP PIN L130
320/6/1.	[1]	159274-4420	STOP PIN L130.5
320/6/1.	[1]	159274-4520	STOP PIN L131
320/6/1.	[1]	159274-4620	STOP PIN L131.5
320/6/1.	[1]	159274-4720	STOP PIN L132
320/6/1.	[1]	159274-4820	STOP PIN L132.5
320/6/1.	[1]	159274-4920	STOP PIN L133
320/6/1.	[1]	159274-5020	STOP PIN L133.5
320/7.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/10.	[1]	154415-1200	BUSHING
320/11.	[1]	146711-0000	PLATE
320/12.	[1]	154415-1300	UNION NUT
320/13.	[1]	154402-3400	COILED SPRING
320/14.	[1]	154413-3820	DIAPHRAGM
320/15.	[1]	154406-5500	SLOTTED WASHER
320/16.	[1]	014110-6440	LOCKING WASHER
320/17.	[1]	013030-6010	UNION NUT
320/18.	[2]	154413-2600	GASKET
320/18.	[2]	154413-2600	GASKET
320/19.	[1]	154404-5600	COVER
320/20.	[1]	154415-1800	FLAT-HEAD SCREW
320/21.	[1]	013030-6040	UNION NUT M6P1H3.6
320/22.	[1]	154035-1600	CAP NUT
320/23.	[2]	139506-0300	GASKET
320/24.	[1]	029731-0180	EYE BOLT
320/25.	[2]	139510-0200	GASKET
320/26.	[1]	154412-7920	JOINT CONNECTION
320/30.	[3]	154062-4300	BLEEDER SCREW
320/31.	[3]	014110-6440	LOCKING WASHER
320/35.	[1]	029111-2090	CAPSULE
320/36.	[1]	139512-0000	GASKET D17.2&12.2T1.0
320/40.	[1]	154413-5321	DIAPHRAGM HOUSING
320/41.	[1]	016500-2400	O-RING
320/42.	[1]	016500-0810	O-RING
320/43.	[1]	029311-6020	SHIM
320/44.	[1]	155423-9800	COILED SPRING
320/45.	[1]	154413-5100	STOP PIN
320/46.	[1]	016010-0640	LOCKING WASHER
320/47.	[1]	155403-3021	BELLOWS
320/48.	[1]	155423-1500	SCREW PLUG
320/49.	[1]	155423-2000	COVER
320/50.	[1]	154011-4600	UNION NUT
320/51.	[1]	154035-1600	CAP NUT
320/56.	[1]	139805-0000	JOINT CONNECTION
320/57.	[1]	154413-4500	UNION NUT
320/59.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
320/60.	[1]	139505-0000	PLAIN WASHER
320/61.	[1]	010006-1670	BLEEDER SCREW M6P1L16 7T
320/62.	[1]	159226-4500	SPACER RING
320/65.	[1]	154390-3900	GASKET
320/70.	[2]	020106-2040	BLEEDER SCREW M6P1L20
320/71.	[3]	020106-2240	BLEEDER SCREW

Include in #1:

101481-0250 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105932-1980

9 420 611 391
NP-EP/RLD300-1500A1FYL

8971605900 ISUZU

GOVERNOR
K 14JK MECHANICAL GOVERNOR GOV RLD GOV
