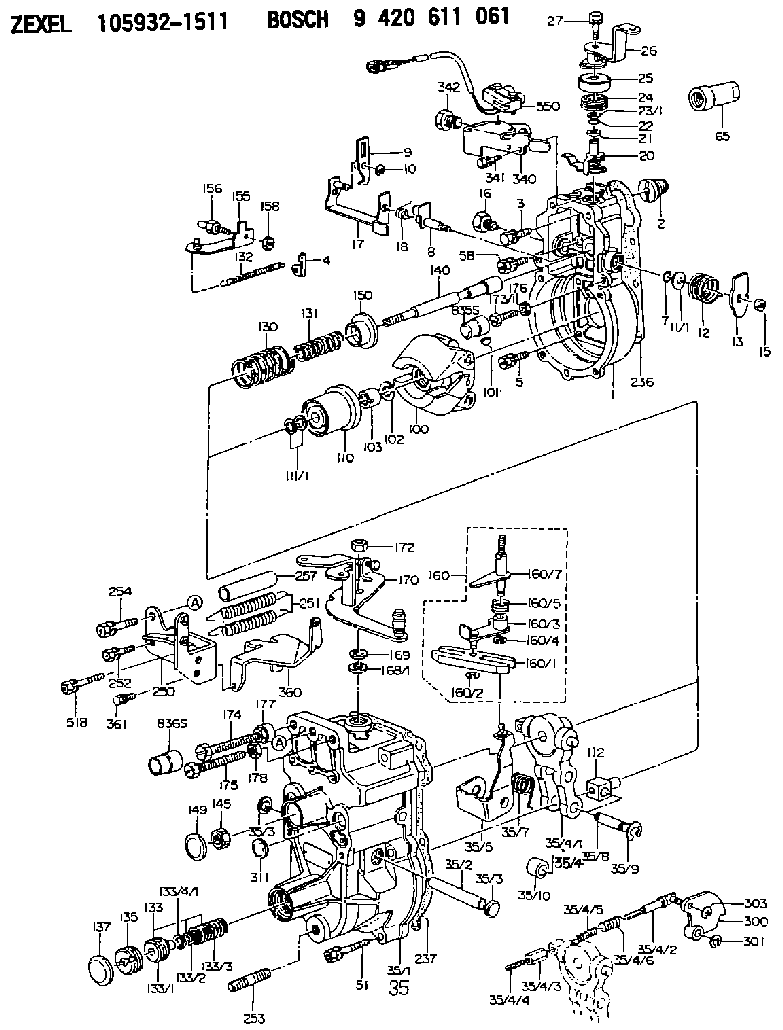

105932-1511 ZEXEL 9 420 611 061 BOSCH GOVERNOR 9420611061 1059321511 me740647

Illustration 39 g03157737
Select "Engine Technical Marketing Information - TMI Web" under the "Additional Service Information" heading.Note: If "Engine Technical Marketing Information - TMI Web" is not visible, select "View More".
Illustration 40 g03817877
Input the serial number of the engine in "Reference Number" box (1).
Select "Serial Number" in drop-down menu (2).
Select "Retrieve Data" (3).
Illustration 41 g03817327
Select "Emissions Data" (4).
Select "Need emissions replacement label? Click here!" (5).Note: "Large Power Systems Division" window will now open.
Illustration 42 g03817878
Select "Recon Replacement Request".
Illustration 43 g03818933
Typical example - "Emissions/Certification Replacement" window
Fill in the required details:
Table 5
Emissions/Certification Replacement Window
Item Description
2 Enter the dealer name (code)
3 Enter "Machine"
4 Enter "C15" under Engine Sales Model
5 Enter the Engine Serial Number
6 Enter the media number of the Special Instruction
When all details are filled in, select "Submit".Note: Two labels and a serial number plate will be sent to the dealer address. If two labels are not received, contact Global_Engine_Marking.
Illustration 44 g03159376
Install the new emissions certification film (6), information label (7), and serial number plate on the cylinder block according to the installation instructions received with the labels and plate.Note: Destroy the old emissions certification film and serial number plate.Operation and Maintenance information
There are several specific messages on this machine. The exact location of the messages and the description of the messages are reviewed in this section. Become familiarized with all messages.Make sure that all of the messages are legible. Clean the messages or replace the messages if you cannot read the words. Replace the illustrations if the illustrations are not legible. When you clean the messages, use a cloth, water, and soap. Do not use solvent, gasoline, or other harsh chemicals to clean the messages. Solvents, gasoline, or harsh chemicals could loosen the adhesive that secures the messages. Loose adhesive will allow the messages to fall.Replace any message that is damaged, or missing. If a message is attached to a part that is replaced, install a message on the replacement part. Any Cat® dealer can provide new messages.
Illustration 45 g03501777
Location of films
(1) Engine Oil film
(2) Diesel Fuel Requirements filmEngine Oil (1)
This film is located next to the engine oil filler tube on the right side of the machine.
Illustration 46 g02448560Cat® DEO-ULS oils and oils that satisfy the "API CJ-4"and/or "ACEA E9" requirements are required for engines that are equipped with a diesel particulate filter.Diesel Fuel Requirements (2)
This film is located next to the fuel cap on the right side of the machine.
Illustration 47 g03619316Use Ultralow Sulfur Diesel (ULSD) fuel.The Environmental Protection Agency (EPA) defines Ultra-Low Sulfur Diesel (ULSD - S15) as “a diesel fuel with a sulfur content not to exceed 15 parts per million (ppm(mg/kg)) or 0.0015 percent by weight”. Engines are equipped with exhaust after-treatment systems are designed to run on ULSD only. Use of LSD or fuels higher than 15 ppm (mg/kg) sulfur in these engines will reduce engine efficiency and engine durability. Damage to the emissions control systems and/or shortened service interval will occur. Failures that result form the use of fuels are not Caterpillar factory defects. Therefore the cost of repairs would not be
