105932-1011 ZEXEL 9 420 611 335 BOSCH GOVERNOR 9420611335 1059321011 1157708261

Information governor

BOSCH 9 420 611 335 9420611335

ZEXEL 105932-1011 1059321011

ISUZU 1157708261 1157708261

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105932-1011 zexel genuine, new aftermarket engine parts with delivery

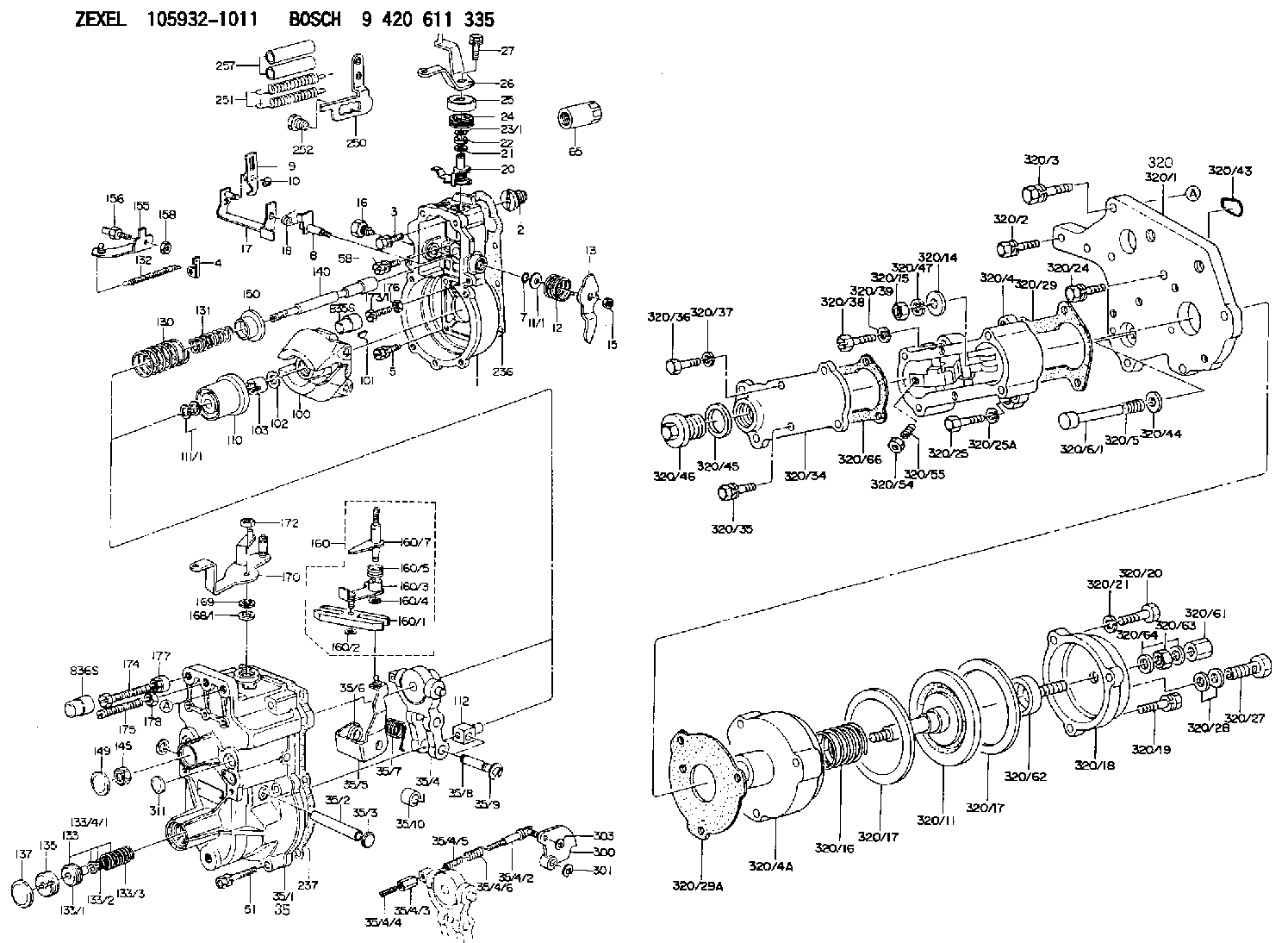

Scheme ###:

1.	[1]	159200-7920	GOVERNOR HOUSING
2.	[1]	154007-0200	ADAPTOR
3.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
4.	[1]	159232-0201	PLATE
5.	[5]	029010-6810	BLEEDER SCREW
5B.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
7.	[1]	139710-0200	O-RING
8.	[1]	159205-2321	LEVER SHAFT
9.	[1]	159202-5101	CONTROL LEVER
10.	[1]	016010-0810	LOCKING WASHER
11/1.	[0]	029311-0220	SHIM D18&10.3T0.2
11/1.	[0]	029311-0230	SHIM D18&10.3T0.5
11/1.	[0]	029311-0430	SHIM D18&10.3T0.30
11/1.	[0]	029311-0440	SHIM D18&10.3T0.40
11/1.	[0]	029311-0450	SHIM D18&10.3T0.25
11/1.	[0]	029311-0460	SHIM D18&10.3T0.35
11/1.	[0]	139410-3300	SHIM D18&10.3T0.6
11/1.	[0]	139410-3400	SHIM D18&10.3T0.8
11/1.	[0]	139410-3500	SHIM D18&10.3T0.9
12.	[1]	159215-0000	COILED SPRING
13.	[1]	159290-7500	CONTROL LEVER
15.	[1]	013020-8040	UNION NUT M8P1.25H7
16.	[1]	159237-5500	CAPSULE
17.	[1]	159202-5220	CONTROL LEVER
18.	[1]	159215-0300	COILED SPRING
20.	[1]	159242-0220	CONTROL LEVER
21.	[1]	029311-0210	SHIM D14&10.1T1
22.	[1]	139610-0700	PACKING RING
23/1.	[0]	139410-3800	SHIM D22&10.2T0.2
23/1.	[0]	139410-3900	SHIM D22&10.2T0.3
23/1.	[0]	139410-4000	SHIM D22&10.2T0.4
23/1.	[0]	139410-4100	SHIM D22&10.2T0.6
23/1.	[0]	139410-4200	SHIM D22&10.2T0.8
24.	[1]	159215-7200	COILED SPRING
25.	[1]	159235-6500	CAP
26.	[1]	159290-8020	CONTROL LEVER
27.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
35.	[1]	159250-0220	GOVERNOR COVER
35/1.	[1]	159201-8420	GOVERNOR COVER
35/2.	[1]	159205-0400	LEVER SHAFT
35/3.	[2]	159237-0200	CAPSULE
35/4.	[1]	159253-2320	TENSIONING LEVER
35/4/2.	[1]	159204-5021	RACK
35/4/3.	[1]	159233-0300	UNION NUT
35/4/4.	[1]	159234-0300	FLAT-HEAD SCREW
35/4/5.	[1]	159216-0000	COILED SPRING
35/4/6.	[1]	159216-0100	COILED SPRING
35/5.	[1]	159203-5320	GUIDE LEVER
35/6.	[2]	159235-5000	BUSHING
35/7.	[1]	159215-1701	COILED SPRING
35/8.	[1]	159231-1300	BEARING PIN
35/9.	[2]	016010-0610	LOCKING WASHER
35/10.	[1]	159238-2900	BUSHING
51.	[7]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5700	CAP
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
110.	[1]	154123-2320	SLIDING PIECE
111/1.	[0]	029311-0010	SHIM D14&10.1T0.2
111/1.	[0]	029311-0180	SHIM D14&10.1T0.3
111/1.	[0]	029311-0190	SHIM D14&10.1T0.40
111/1.	[0]	029311-0210	SHIM D14&10.1T1
111/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
111/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
111/1.	[0]	139410-3000	SHIM D14&10.1T2.0
111/1.	[0]	139410-3100	SHIM D14&10.1T3.0
111/1.	[0]	139410-3200	SHIM D14&10.1T4.0
112.	[1]	159236-0200	TERMINAL STUD
130.	[1]	159210-5300	GOVERNOR SPRING
131.	[1]	159211-0600	GOVERNOR SPRING
132.	[1]	159214-0100	COILED SPRING
133.	[1]	159212-3520	SPRING PACK
133/1.	[1]	159234-5602	GUIDE SLEEVE
133/2.	[1]	159212-3300	COILED SPRING
133/3.	[1]	159212-3500	COILED SPRING
133/4/1.	[0]	029310-9240	SHIM D11.9&9T0.1
133/4/1.	[0]	029310-9250	SHIM D11.9&9T0.2
133/4/1.	[0]	029310-9260	SHIM D11.9&9T0.25
133/4/1.	[0]	029310-9270	SHIM D11.9&9T1.0
133/4/1.	[0]	139409-0100	SHIM D11.9&9T0.3
133/4/1.	[0]	139409-0200	SHIM D11.9&9T0.5
133/4/1.	[0]	139409-0300	SHIM D11.5&9T0.8
135.	[1]	159248-2700	FLAT-HEAD SCREW
137.	[1]	159237-5300	CAPSULE
140.	[1]	159205-2101	LEVER SHAFT
145.	[1]	159233-5700	UNION NUT
149.	[1]	159237-5400	CAPSULE
150.	[1]	159235-5300	SLOTTED WASHER
155.	[1]	159204-5120	STRAP
156.	[1]	159233-0520	BLEEDER SCREW
158.	[1]	013020-5240	UNION NUT M5P0.8H4
160.	[1]	159252-0821	LEVER GROUP
160/1.	[1]	159202-2200	CONTROL LEVER
160/2.	[1]	016010-0810	LOCKING WASHER
160/3.	[1]	159202-2120	CONTROL LEVER
160/4.	[1]	016010-0810	LOCKING WASHER
160/5.	[1]	159215-2301	COILED SPRING
160/7.	[1]	159205-2222	LEVER SHAFT
168/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
168/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
168/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
168/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
168/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
168/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
168/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
168/1.	[0]	139410-1400	SHIM D26&10.2T0.7
168/1.	[0]	139410-1500	SHIM D26&10.2T0.9
168/1.	[0]	139410-1600	SHIM D26&10.2T0.8
168/1.	[0]	139410-2700	SHIM D26&10.2T0.6
169.	[1]	139410-2300	SHIM
170.	[1]	159263-8420	CONTROL LEVER
172.	[1]	013020-8040	UNION NUT M8P1.25H7
173/1.	[1]	139006-3500	BLEEDER SCREW M6P1.0L33
173/1.	[1]	139006-3700	BLEEDER SCREW M6P1.0L34
173/1.	[1]	139006-3800	BLEEDER SCREW M6P1.0L35
173/1.	[1]	139006-3900	BLEEDER SCREW M6P1.0L36
173/1.	[1]	139006-5300	BLEEDER SCREW M6P1.0L31
173/1.	[1]	139006-5400	BLEEDER SCREW M6P1.0L32
173/1.	[1]	155615-2500	BLEEDER SCREW M6P1.0L37
173B.	[1]	155615-3200	BLEEDER SCREW M6P1.0L40
173C.	[1]	155615-3300	BLEEDER SCREW M6P1.0L42
173D.	[1]	155615-3400	BLEEDER SCREW M6P1.0L44
174.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
174B.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
175.	[1]	154010-0100	FLAT-HEAD SCREW
176.	[1]	159225-8600	UNION NUT
177.	[1]	154011-2300	UNION NUT
178.	[1]	154011-0100	HEXAGON NUT
236.	[1]	154390-0000	GASKET
237.	[1]	159238-3100	GASKET
250.	[1]	159228-4920	BRACKET
251.	[2]	154317-8700	COILED SPRING
252.	[1]	159248-0200	BLEEDER SCREW
257.	[2]	154156-1800	TUBE
300.	[1]	159286-5700	CAM PLATE
301.	[1]	016010-0840	LOCKING WASHER
303.	[1]	016010-0540	LOCKING WASHER
311.	[1]	159237-0200	CAPSULE
320.	[1]	154420-9921	MANIFOLD-PRESSURE COMP.
320/1.	[1]	154413-7300	SPACER BUSHING
320/2.	[3]	020106-2040	BLEEDER SCREW M6P1L20
320/3.	[1]	020118-3040	BLEEDER SCREW
320/4.	[1]	154413-7420	DIAPHRAGM HOUSING
320/4A.	[1]	154413-7820	DIAPHRAGM HOUSING
320/5.	[1]	159275-1400	COILED SPRING
320/6/1.	[1]	154413-8320	STOP PIN L108.5
320/6/1.	[1]	154413-8420	STOP PIN L109.5
320/6/1.	[1]	154413-8520	STOP PIN L110.5
320/6/1.	[1]	154413-8620	STOP PIN L111.5
320/6/1.	[1]	154413-8720	STOP PIN L112.5
320/6/1.	[1]	154413-8820	STOP PIN L113.5
320/6/1.	[1]	154413-8920	STOP PIN L114.5
320/6/1.	[1]	154413-9020	STOP PIN L115.5
320/6/1.	[1]	154413-9120	STOP PIN L116.5
320/6/1.	[1]	154413-9220	STOP PIN L117.5
320/6/1.	[1]	154413-9320	STOP PIN L118.5
320/6/1.	[1]	159274-1120	STOP PIN L119.5
320/11.	[1]	154413-9520	DIAPHRAGM
320/14.	[1]	154413-9700	SLOTTED WASHER
320/15.	[1]	013030-6010	UNION NUT
320/17.	[2]	154413-2600	GASKET
320/17.	[2]	154413-2600	GASKET
320/18.	[1]	154404-5000	COVER
320/19.	[2]	020106-2240	BLEEDER SCREW
320/20.	[1]	139006-7000	BLEEDER SCREW
320/21.	[1]	014110-6440	LOCKING WASHER
320/24.	[5]	020106-2240	BLEEDER SCREW
320/25.	[1]	010006-6040	BLEEDER SCREW
320/25A.	[1]	014110-6440	LOCKING WASHER
320/27.	[1]	029731-0180	EYE BOLT
320/28.	[2]	139510-0200	GASKET
320/29.	[1]	154413-9800	GASKET
320/29A.	[1]	154413-9900	GASKET
320/34.	[1]	154415-0000	COVER
320/35.	[4]	010065-1240	BLEEDER SCREW M5P0.8L12
320/36.	[1]	020565-1240	BLEEDER SCREW
320/37.	[5]	014110-5440	LOCKING WASHER
320/38.	[1]	139006-7000	BLEEDER SCREW
320/39.	[1]	014110-6440	LOCKING WASHER
320/43.	[1]	159226-4500	SPACER RING
320/44.	[1]	014010-5140	PLAIN WASHER D12&5.5T0.8
320/45.	[1]	029331-8040	GASKET
320/46.	[1]	154415-0101	FLAT-HEAD SCREW
320/47.	[1]	014110-6440	LOCKING WASHER
320/54.	[1]	013030-6040	UNION NUT M6P1H3.6
320/55.	[1]	154404-4800	FLAT-HEAD SCREW
320/61.	[1]	154035-1600	CAP NUT
320/62.	[1]	154404-4400	FLAT-HEAD SCREW
320/63.	[1]	013030-6040	UNION NUT M6P1H3.6
320/64.	[2]	139506-0300	GASKET
320/66.	[1]	154415-0200	GASKET

Include in #1:

101603-8601 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105932-1011
105932-1012

9 420 611 335

1157708261 ISUZU

GOVERNOR
* K 14JK GOV RLD GOV

105932-1011
105932-1012

9 420 611 335

1157708262 ISUZU

GOVERNOR
A * K 14JK GOV RLD GOV

Information:

Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.The actuator and pump groups of these fuel injectors are sensitive to debris in the oil. The injector may malfunction due to debris in the oil, causing seizure, or high leaks in components.
Table 1
Revision Table
Revision Summary of Changes
3 Added serial numbers. Improvement Procedure
Clean oil rail after pump failure.Reference: Refer to Special Instruction, REHS3819 for the procedure to clean the oil rail after engine failure to avoid debris in the oil system.
Use clean oil and clean filters.The life of the injector depends on the oil quality. It can be increased if good cleaning practices are performed before installing the injectors.Reference: Refer to Operation and Maintenance Manual, SEBU6250 and Operation and Maintenance Manual, SEBU6251 for direction on oil sampling intervals and optimizing engine oil life.
Illustration 1 g06207717
(1) Actuator
(2) Pump Group
(3) Valve Seat Damage Due to Debris in the Oil SystemInjector Failure Due To Damage From Debris In The Oil May Not Be A Warrantable Failure
Illustration 2 g06244961
