105932-0691 ZEXEL 9 420 611 636 BOSCH GOVERNOR 9420611636 1059320691




Information governor

BOSCH 9 420 611 636 9420611636
ZEXEL 105932-0691 1059320691
105932-0691 GOVERNOR
Rating:
35
Buy GOVERNOR 105932-0691 zexel genuine, new aftermarket engine parts with delivery

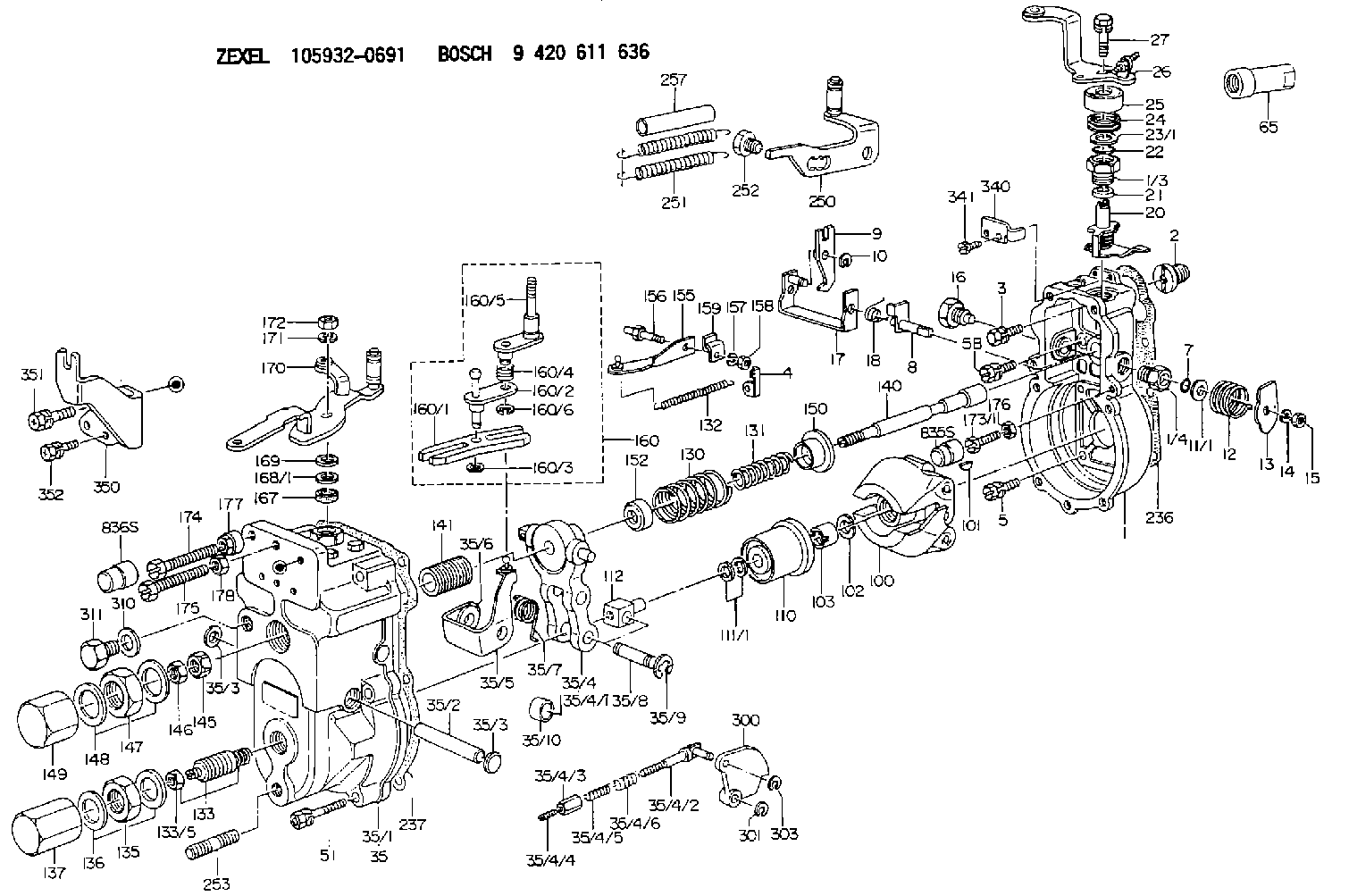

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-7820 GOVERNOR HOUSING
1/3. [1] 154321-0400 BUSHING
1/4. [1] 154321-0400 BUSHING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-0801 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 029631-0030 O-RING &9.8W2.3
8. [1] 159205-2321 LEVER SHAFT
9. [1] 159202-2301 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
11/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
11/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
11/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
11/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
11/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
12. [1] 159215-0000 COILED SPRING
13. [1] 159242-0100 CONTROL LEVER
14. [1] 014110-8440 LOCKING WASHER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-0000 CAPSULE
17. [1] 159202-2420 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159242-7820 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 029631-0030 O-RING &9.8W2.3
23/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
23/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
23/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
23/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
23/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
23/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
24. [1] 159215-2900 COILED SPRING
25. [1] 154322-0100 CAP
26. [1] 159291-1020 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159250-9920 GOVERNOR COVER
35/1. [1] 159301-7520 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-4320 TENSIONING LEVER
35/4/1. [1] 159253-4220 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0000 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-5320 GUIDE LEVER
35/6. [2] 159235-5000 BUSHING
35/7. [1] 159215-0201 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-1801 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154100-8920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0100 TERMINAL STUD
130. [1] 159210-9600 GOVERNOR SPRING
131. [1] 159211-6500 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159219-2820 HEADLESS SCREW
133/5. [1] 013020-6040 UNION NUT M6P1H5
135. [1] 159248-0600 UNION NUT
136. [2] 026520-2440 GASKET D23.9&20.2T1
137. [1] 159248-0700 CAP
140. [1] 159205-1801 LEVER SHAFT
141. [1] 159234-5200 GUIDE SLEEVE
145. [1] 159233-5000 UNION NUT
146. [1] 023020-8040 UNION NUT M8P1H5
147. [1] 139222-0200 UNION NUT
148. [2] 026522-2740 GASKET D26.9&22.2T1
149. [1] 159237-5000 CAP
150. [1] 159235-5300 SLOTTED WASHER
152. [1] 159235-7200 SLOTTED WASHER
155. [1] 159204-0320 STRAP
156. [1] 159237-0300 BLEEDER SCREW
157. [1] 014110-5440 LOCKING WASHER
158. [1] 159233-5620 UNION NUT
159. [1] 159242-0800 PLATE
160. [1] 159252-0521 LEVER GROUP
160/1. [1] 159202-1400 CONTROL LEVER
160/2. [1] 159202-1520 CONTROL LEVER
160/3. [1] 016010-0610 LOCKING WASHER
160/4. [1] 159215-1300 COILED SPRING
160/5. [1] 159205-1721 LEVER SHAFT
160/6. [1] 016010-0810 LOCKING WASHER
167. [1] 029621-0080 PACKING RING
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159267-9520 CONTROL LEVER
171. [1] 014110-8440 LOCKING WASHER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-8000 BLEEDER SCREW
175. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-0100 HEXAGON NUT
236. [1] 154390-1300 GASKET
237. [1] 154390-1100 GASKET
250. [1] 159221-8920 BRACKET
251. [2] 154338-3200 COILED SPRING
252. [1] 159248-0200 BLEEDER SCREW
257. [2] 154156-0500 TUBE
300. [1] 159286-7000 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
310. [1] 026516-2040 GASKET D19.9&16.2T1
311. [1] 159237-0100 CAPSULE
340. [1] 159221-9000 PLATE
341. [2] 020104-1040 BLEEDER SCREW
350. [1] 159221-9120 BRACKET
351. [1] 020118-1640 BLEEDER SCREW
352. [2] 020106-1240 BLEEDER SCREW M6P1.0L12
835S. [1] 154062-1900 CAP D12L24
836S. [1] 154062-1700 CAP D20L32

Include in #1:

101501-2021 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105932-0691
105932-0692
9 420 611 636

GOVERNOR
* K




Information:


Illustration 1 g06022453
Typical example
(1) Existing fuel injection pump stop solenoid with red colored connection
(2) New fuel injection pump stop solenoid with cream colored connectionThere have been some isolated instances of issues with the existing fuel injection pump stop solenoid (1). The issues with the fuel injection pump stop solenoid have caused issues with starting the engine and fuel leaks.A new fuel injection pump stop solenoid (2) has been introduced. The improved fuel injection pump stop solenoid will offer better reliability and extended service life.The part number for the fuel injection pump stop solenoid has not changed.Follow step 1 through to step 7 for the correct procedure to replace the fuel injection pump stop solenoid.
Turn the battery disconnect switch to the OFF position.
Disconnect the electrical connection from the fuel injection pump stop solenoid.
Remove the existing fuel injection pump stop solenoid.
Install the new fuel injection pump stop solenoid. Tighten the fuel injection pump stop solenoid to a torque of 15 N m (133 lb in).
Remove the protective cap.
Connect the electrical connection to the fuel injection pump stop solenoid.
Turn the battery disconnect switch to the ON position.
