105932-0523 ZEXEL 9 420 610 491 BOSCH GOVERNOR 9420610491 1059320523




Information governor

BOSCH 9 420 610 491 9420610491
ZEXEL 105932-0523 1059320523
105932-0523 GOVERNOR
Rating:
9
Buy GOVERNOR 105932-0523 zexel genuine, new aftermarket engine parts with delivery

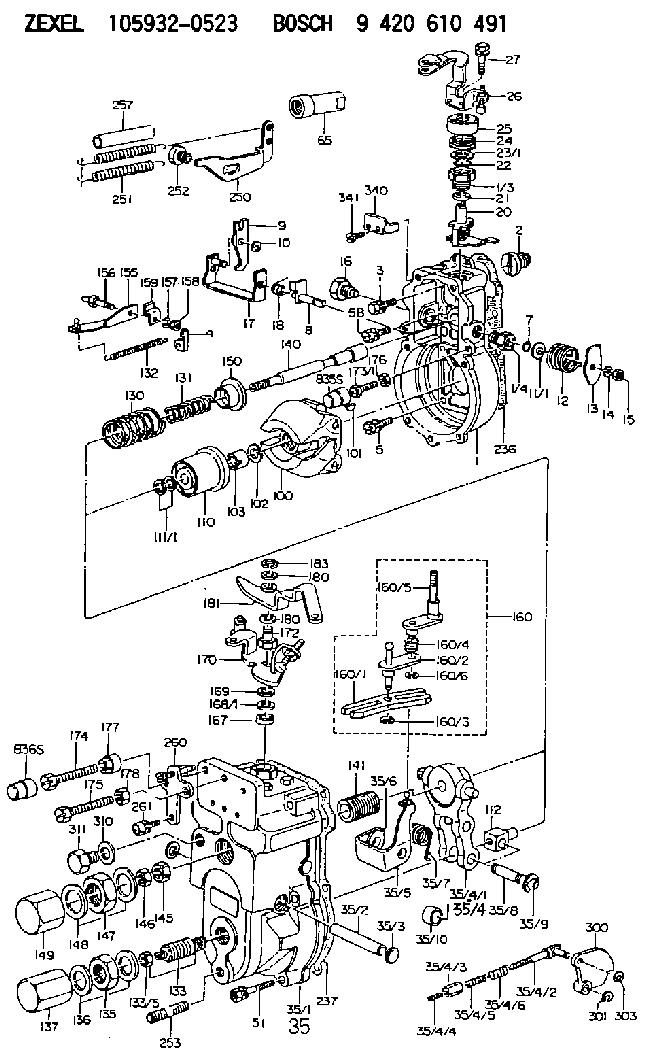

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-2520 GOVERNOR HOUSING
1/3. [1] 154321-0400 BUSHING
1/4. [1] 154321-0400 BUSHING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-0801 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 029631-0030 O-RING &9.8W2.3
8. [1] 159205-2321 LEVER SHAFT
9. [1] 159202-2301 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
11/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
11/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
11/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
11/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
11/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
12. [1] 159215-0000 COILED SPRING
13. [1] 159242-0100 CONTROL LEVER
14. [1] 014110-8440 LOCKING WASHER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-0000 CAPSULE
17. [1] 159202-2420 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159242-7820 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 016530-1010 O-RING
23/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
23/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
23/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
23/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
23/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
23/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
24. [1] 159215-2900 COILED SPRING
25. [1] 154322-0100 CAP
26. [1] 159249-7420 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159251-4520 GOVERNOR COVER
35/1. [1] 159201-2410 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-0220 TENSIONING LEVER
35/4/1. [1] 159203-0420 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0000 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-5320 GUIDE LEVER
35/6. [2] 159235-5000 BUSHING
35/7. [1] 159215-0201 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-1801 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154101-0920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0100 TERMINAL STUD
130. [1] 159210-7500 GOVERNOR SPRING
131. [1] 159211-4900 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159219-1220 HEADLESS SCREW
133/5. [1] 013020-6040 UNION NUT M6P1H5
135. [1] 139220-0200 UNION NUT
136. [2] 026520-2440 GASKET D23.9&20.2T1
137. [1] 159248-0700 CAP
140. [1] 159205-1801 LEVER SHAFT
141. [1] 159234-5200 GUIDE SLEEVE
145. [1] 159233-5000 UNION NUT
146. [1] 023020-8040 UNION NUT M8P1H5
147. [1] 139222-0200 UNION NUT
148. [2] 026522-2740 GASKET D26.9&22.2T1
149. [1] 159237-5000 CAP
150. [1] 159235-5300 SLOTTED WASHER
155. [1] 159204-0320 STRAP
156. [1] 159237-0300 BLEEDER SCREW
157. [1] 014110-5440 LOCKING WASHER
158. [1] 159233-5620 UNION NUT
159. [1] 159242-0800 PLATE
160. [1] 159252-0521 LEVER GROUP
160/1. [1] 159202-1400 CONTROL LEVER
160/2. [1] 159202-1520 CONTROL LEVER
160/3. [1] 016010-0610 LOCKING WASHER
160/4. [1] 159215-1300 COILED SPRING
160/5. [1] 159205-1721 LEVER SHAFT
160/6. [1] 016010-0810 LOCKING WASHER
167. [1] 029621-0080 PACKING RING
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159266-7720 CONTROL LEVER
172. [1] 159233-6200 UNION NUT
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-9200 BLEEDER SCREW
175. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-0100 HEXAGON NUT
180. [2] 139410-2600 SHIM
180. [2] 139410-2600 SHIM
181. [1] 159261-4120 CONTROL LEVER
183. [1] 016010-0940 LOCKING WASHER
236. [1] 154390-0000 GASKET
237. [1] 154390-1100 GASKET
250. [1] 159229-1120 BRACKET
251. [2] 159243-4600 COILED SPRING
252. [1] 159248-0200 BLEEDER SCREW
253. [1] 139010-1000 STUD
257. [2] 154156-0500 TUBE
260. [1] 159228-4420 BRACKET
261. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
300. [1] 159286-6100 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
310. [1] 026516-2040 GASKET D19.9&16.2T1
311. [1] 159237-0100 CAPSULE
340. [1] 159228-2300 PLATE
341. [2] 020104-1040 BLEEDER SCREW

Include in #1:

101607-6874 as GOVERNOR
101607-6875

Cross reference number

Zexel num
Bosch num
Firm num
Name
105932-0523
105932-0524
9 420 610 491

GOVERNOR
* K




Information:

Safety Precautions
Make sure that you disconnect all power to the monitor before performing any of the procedures that follow.
Disconnect all electrical power from the monitor before removing components. Failure to disconnect the power could result in severe electrical shock or damage to the monitor. An electrical shock can cause severe personal injury or death.
Removing The Flat Panel Display
The monitor has 10 screws that secure the flat panel display to the chassis.In order to remove the flat panel display, perform the following procedure:
Remove the top cover of the monitor. Refer to Testing and Adjusting, "Cover - Remove" for details on removing the top cover.
Illustration 1 g00858319
Central Processing Unit (CPU) Card (1) Display Connector
Disconnect the video cable that is connected to the display connector (1) on the CPU card.
Illustration 2 g00858320
(2) Power Supply (3) Touchscreen Controller Board (4) Pin 1 on the touchscreen cable connector
If the unit is equipped with a touchscreen, remove the back cover of the monitor. Refer to Testing and Adjusting, "Cover - Remove" for details on removing the back cover.Disconnect the touchscreen cable (flexible cable) from the touchscreen controller board (3). The touchscreen controller board (3) is attached to the outside of the power supply (2) .
Illustration 3 g00858321
10 Screws
Remove the 10 screws that secure the flat panel display to the chassis of the monitor.
Illustration 4 g00858322
(5) Video Cable (6) Backlight Power Supply (7) Indicator Board (8) Backlight TubesNote: This illustration shows the 264 mm (10.4 inch) version. The backlight power supply board (6) on the 307 mm (12.1 inch) version is mounted on a separate detachable bracket. The backlight power supply board is not mounted on the back of the display.
Carefully pull the flat panel display away from the chassis and disconnect the following connectors from the flat panel display:
Indicator connector from the indicator board (7)
Power cable that is attached to the backlight power supply (6) Replacing The Backlight Tubes
The backlight assembly contains two backlight tubes (8), which must be replaced. The replacement tubes are 203-7814 Boards .In order to replace the backlight tubes (8), perform the following procedure:
Disconnect the backlight tube connectors from the backlight power supply (6) .
Remove the two screws that are holding each backlight tube (8) in place.
Slide the tube to the left and gently pull the tube out of the assembly.
Insert the replacement backlight tube into the slot. Slide the tube to the right until the holes for the screws are aligned. Replace the screws.
Reattach the backlight tube connectors to the backlight power supply (6) .
Reattach the indicator connector to the indicator board (7) and the power cable to the backlight controller board.
Reattach the display cable to the CPU card. Attach the touchscreen cable to the touchscreen controller board (3) .
Reattach the display assembly to the unit. Use the 10 screws.
Replace the top cover of the unit. Replace the back cover of the unit.

Have questions with 105932-0523?





Group cross 105932-0523 ZEXEL

Mitsubishi

105932-0520

105932-0521

ME738645
GOVERNOR
105932-0521

105932-0522
F 019 Z1E 513
ME740022
GOVERNOR
105932-0522

105932-0523
9 420 610 490
ME740312
GOVERNOR
105932-0523

105932-0524
9 420 610 491

GOVERNOR

Mitsubishi

105932-0524
9 420 611 502
NP-EP/RLD275-1550A1CFL
ME741763
GOVERNOR
