105932-0481 ZEXEL 9 420 612 192 BOSCH GOVERNOR 9420612192 1059320481




Information governor

BOSCH 9 420 612 192 9420612192
ZEXEL 105932-0481 1059320481
105932-0481 GOVERNOR
Rating:
67
Buy GOVERNOR 105932-0481 zexel genuine, new aftermarket engine parts with delivery

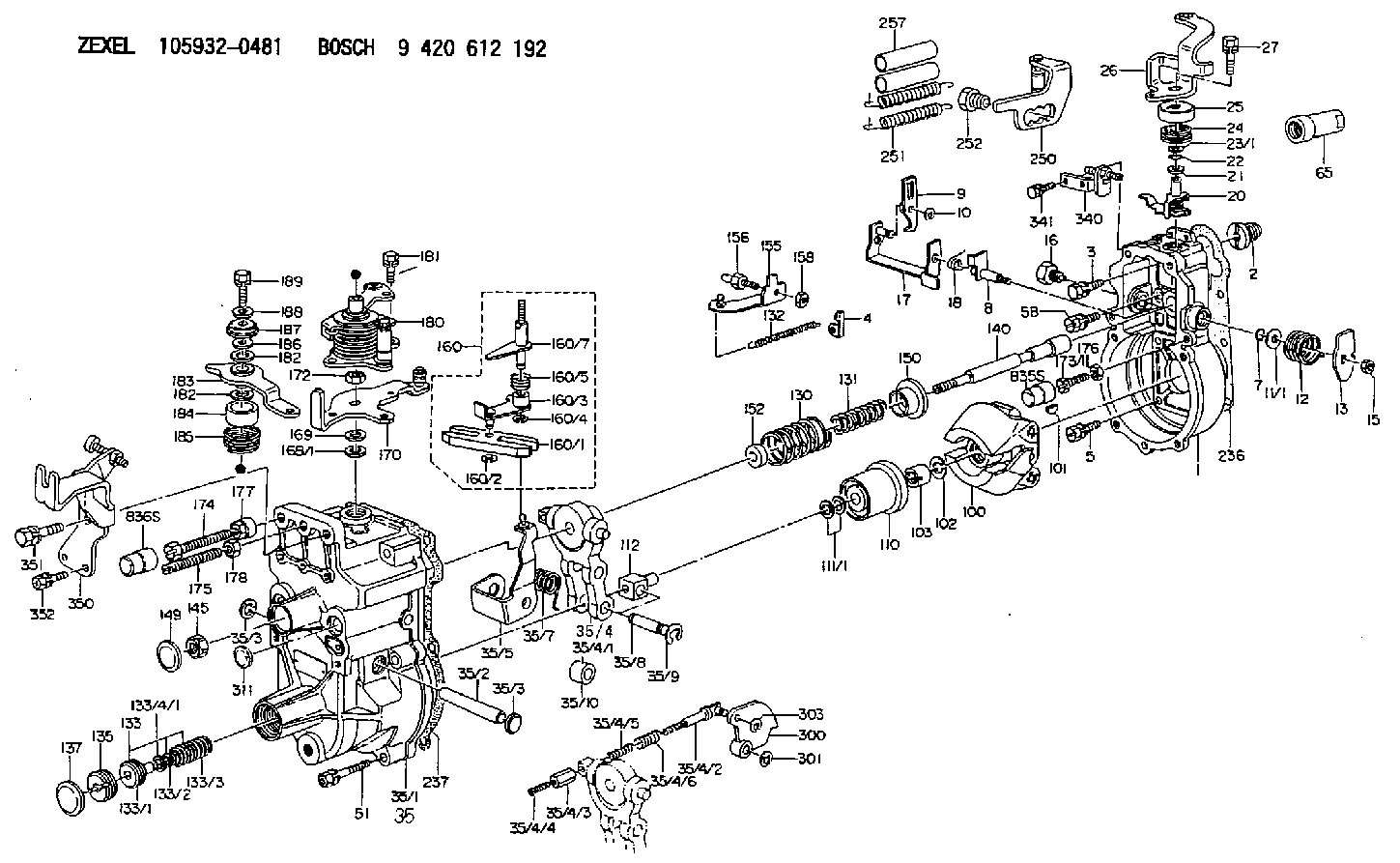

Scheme ###:

GOVERNOR HOUSING
1. [1] 159200-6020 GOVERNOR HOUSING
2. [1] 154007-0200 ADAPTOR
3. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
4. [1] 159232-0201 PLATE
5. [5] 029010-6810 BLEEDER SCREW
5B. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
7. [1] 016530-1010 O-RING
8. [1] 159205-2321 LEVER SHAFT
9. [1] 159202-5101 CONTROL LEVER
10. [1] 016010-0810 LOCKING WASHER
11/1. [0] 029311-0220 SHIM D18&10.3T0.2
11/1. [0] 029311-0230 SHIM D18&10.3T0.5
11/1. [0] 029311-0430 SHIM D18&10.3T0.30
11/1. [0] 029311-0440 SHIM D18&10.3T0.40
11/1. [0] 029311-0450 SHIM D18&10.3T0.25
11/1. [0] 029311-0460 SHIM D18&10.3T0.35
11/1. [0] 139410-3300 SHIM D18&10.3T0.6
11/1. [0] 139410-3400 SHIM D18&10.3T0.8
11/1. [0] 139410-3500 SHIM D18&10.3T0.9
12. [1] 159215-0000 COILED SPRING
13. [1] 159242-6601 CONTROL LEVER
15. [1] 013020-8040 UNION NUT M8P1.25H7
16. [1] 159237-5500 CAPSULE
17. [1] 159202-6820 CONTROL LEVER
18. [1] 159215-0300 COILED SPRING
20. [1] 159242-0220 CONTROL LEVER
21. [1] 159242-0600 BUSHING
22. [1] 029631-0030 O-RING &9.8W2.3
23/1. [0] 029311-0220 SHIM D18&10.3T0.2
23/1. [0] 029311-0230 SHIM D18&10.3T0.5
23/1. [0] 029311-0430 SHIM D18&10.3T0.30
23/1. [0] 029311-0440 SHIM D18&10.3T0.40
23/1. [0] 029311-0450 SHIM D18&10.3T0.25
23/1. [0] 029311-0460 SHIM D18&10.3T0.35
23/1. [0] 139410-3300 SHIM D18&10.3T0.6
23/1. [0] 139410-3400 SHIM D18&10.3T0.8
23/1. [0] 139410-3500 SHIM D18&10.3T0.9
24. [1] 159215-2000 COILED SPRING
25. [1] 159235-5800 CAP
26. [1] 159291-1920 CONTROL LEVER
27. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
35. [1] 159250-9820 GOVERNOR COVER
35/1. [1] 159201-3422 GOVERNOR COVER
35/2. [1] 159205-0400 LEVER SHAFT
35/3. [2] 159237-0200 CAPSULE
35/3. [2] 159237-0200 CAPSULE
35/4. [1] 159253-4120 TENSIONING LEVER
35/4/1. [1] 159253-4020 TENSIONING LEVER
35/4/2. [1] 159204-5021 RACK
35/4/3. [1] 159233-0300 UNION NUT
35/4/4. [1] 159234-0300 FLAT-HEAD SCREW
35/4/5. [1] 159216-0000 COILED SPRING
35/4/6. [1] 159216-0100 COILED SPRING
35/5. [1] 159203-6120 GUIDE LEVER
35/7. [1] 159215-1701 COILED SPRING
35/8. [1] 159231-1300 BEARING PIN
35/9. [2] 016010-0610 LOCKING WASHER
35/10. [1] 159238-2900 BUSHING
51. [7] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
100. [1] 154100-8920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
110. [1] 154123-2320 SLIDING PIECE
111/1. [0] 029311-0010 SHIM D14&10.1T0.2
111/1. [0] 029311-0180 SHIM D14&10.1T0.3
111/1. [0] 029311-0190 SHIM D14&10.1T0.40
111/1. [0] 029311-0210 SHIM D14&10.1T1
111/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
111/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
111/1. [0] 139410-3000 SHIM D14&10.1T2.0
111/1. [0] 139410-3100 SHIM D14&10.1T3.0
111/1. [0] 139410-3200 SHIM D14&10.1T4.0
112. [1] 159236-0200 TERMINAL STUD
130. [1] 159210-9400 GOVERNOR SPRING
131. [1] 159211-6200 GOVERNOR SPRING
132. [1] 159214-0000 COILED SPRING
133. [1] 159212-8220 SPRING PACK
133/1. [1] 159234-5602 GUIDE SLEEVE
133/2. [1] 159212-5000 COILED SPRING
133/3. [1] 159212-5700 COILED SPRING
133/4/1. [0] 029310-9240 SHIM D11.9&9T0.1
133/4/1. [0] 029310-9250 SHIM D11.9&9T0.2
133/4/1. [0] 029310-9260 SHIM D11.9&9T0.25
133/4/1. [0] 029310-9270 SHIM D11.9&9T1.0
133/4/1. [0] 139409-0100 SHIM D11.9&9T0.3
133/4/1. [0] 139409-0200 SHIM D11.9&9T0.5
133/4/1. [0] 139409-0300 SHIM D11.5&9T0.8
135. [1] 159248-2700 FLAT-HEAD SCREW
137. [1] 159237-5300 CAPSULE
140. [1] 159205-2101 LEVER SHAFT
145. [1] 159233-5700 UNION NUT
149. [1] 159237-5400 CAPSULE
150. [1] 159235-5300 SLOTTED WASHER
152. [1] 159235-7200 SLOTTED WASHER
155. [1] 159204-5120 STRAP
156. [1] 159233-0520 BLEEDER SCREW
158. [1] 013020-5240 UNION NUT M5P0.8H4
160. [1] 159252-0821 LEVER GROUP
160/1. [1] 159202-2200 CONTROL LEVER
160/2. [1] 016010-0810 LOCKING WASHER
160/3. [1] 159202-2120 CONTROL LEVER
160/4. [1] 016010-0810 LOCKING WASHER
160/5. [1] 159215-2301 COILED SPRING
160/7. [1] 159205-2222 LEVER SHAFT
168/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
168/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
168/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
168/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
168/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
168/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
168/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
168/1. [0] 139410-1400 SHIM D26&10.2T0.7
168/1. [0] 139410-1500 SHIM D26&10.2T0.9
168/1. [0] 139410-1600 SHIM D26&10.2T0.8
168/1. [0] 139410-2700 SHIM D26&10.2T0.6
169. [1] 139410-2300 SHIM
170. [1] 159267-9820 CONTROL LEVER
172. [1] 013020-8040 UNION NUT M8P1.25H7
173/1. [1] 139006-3500 BLEEDER SCREW M6P1.0L33
173/1. [1] 139006-3700 BLEEDER SCREW M6P1.0L34
173/1. [1] 139006-3800 BLEEDER SCREW M6P1.0L35
173/1. [1] 139006-3900 BLEEDER SCREW M6P1.0L36
173/1. [1] 139006-5300 BLEEDER SCREW M6P1.0L31
173/1. [1] 139006-5400 BLEEDER SCREW M6P1.0L32
173/1. [1] 155615-2500 BLEEDER SCREW M6P1.0L37
174. [1] 154010-7200 BLEEDER SCREW M8P1.25L62
175. [1] 154010-0100 FLAT-HEAD SCREW
176. [1] 159225-8600 UNION NUT
177. [1] 154011-2300 UNION NUT
178. [1] 154011-0100 HEXAGON NUT
180. [1] 159267-9720 CONTROL LEVER
181. [3] 020106-1040 BLEEDER SCREW M6P1L12
182. [2] 139310-0500 PLAIN WASHER
182. [2] 139310-0500 PLAIN WASHER
183. [1] 159267-7120 CONTROL LEVER
184. [1] 159230-6000 BUSHING
185. [1] 159215-7400 COILED SPRING
186. [0] 029311-0010 SHIM D14&10.1T0.2
187. [1] 159235-7100 CAP
188. [1] 139306-0600 PLAIN WASHER
189. [1] 020006-1270 BLEEDER SCREW M6P1L12 7T
236. [1] 154390-1300 GASKET
237. [1] 159238-3100 GASKET
250. [1] 159222-3120 BRACKET
251. [2] 154338-4900 COILED SPRING
252. [1] 159248-0200 BLEEDER SCREW
257. [2] 154156-0700 TUBE
300. [1] 159286-3000 CAM PLATE
301. [1] 016010-0840 LOCKING WASHER
303. [1] 016010-0540 LOCKING WASHER
311. [1] 159237-0200 CAPSULE
340. [1] 159221-9820 BRACKET
341. [2] 020104-1040 BLEEDER SCREW
350. [1] 159222-0720 BRACKET
351. [1] 020118-1640 BLEEDER SCREW
352. [2] 020106-1240 BLEEDER SCREW M6P1.0L12

Include in #1:

101603-2112 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105932-0481
105932-0482
9 420 612 192

GOVERNOR
* K




Information:

Introduction
The following special instructions must be used to test for a crack in the Diesel Particulate Filter (DPF). Do not perform any procedure that is outlined in this Special Instruction until you have read and understand the information that is contained in this document.Required Tools
Table 1
Required Tools
Tool     Part Number     Part Description     Qty
A     380-5200     Tool Kit     1
B     366-7782     Attenuator     1    Testing Procedure
Perform a "Manual Diesel Particulate Filter Regeneration" using the electronic service tool.
After the manual DPF regeneration is complete, operate the engine at 1800 rpm for a MINIMUM of 20 minutes to stabilize the DPF temperatures.Note: The engine must maintain a steady speed for the entire duration of the test.
Hot engine components can cause injury from burns. Before performing maintenance on the engine, allow the engine and the components to cool.
Illustration 1 g02597531
Typical example (1) DPF Outlet Cap (2) Filter Paper (3) Hose Assembly (4) Air Pump
Illustration 2 g03655197
Typical example
Stop the engine. Disconnect harness assembly from both soot antennae. Remove outlet soot antenna (5). Refer to
